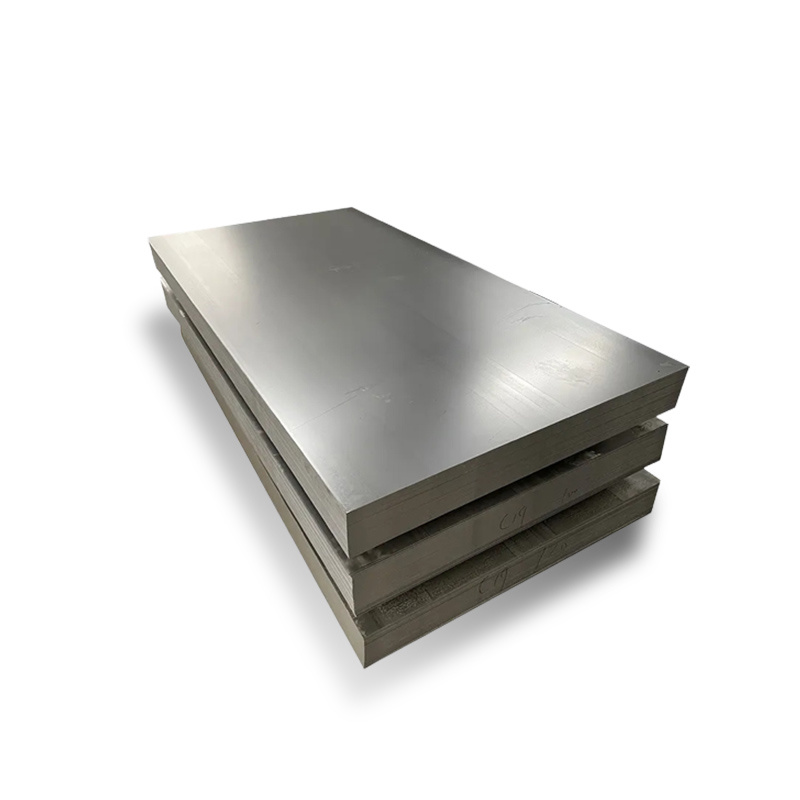

Docol 500HE High Edge Ductility Steel (HE)
Docol 500 high edge ductile steel is the next generation of hot-rolled high-strength low alloy steel with improved local formability, which results in greater edge ductility and better edge trimming quality.
- Product Description
- Spot Warehouse
- Product Inspection
- Product Measurement
- Product Packaging
-
- Commodity name: Docol 500HE High Edge Ductility Steel (HE)
Docol 500 high edge ductile steel is the next generation of hot-rolled high-strength low alloy steel with improved local formability, which results in greater edge ductility and better edge trimming quality.
Docol 500HE High Edge Ductility Steel (HE) Description
Developed specifically for the most demanding applications and manufacturing conditions in the automotive industry, Docol HE steel provides improved performance to those facing design and production challenges with traditional high-strength low alloy steel (HSLA) materials. Docol 500 high edge ductile steel is produced using a new and tightly controlled method with a very fine structure. It is an extremely pure steel that greatly improves local formability while still maintaining good overall formability. It is suitable for stamping most geometric shapes and excels in demanding applications where trimming quality affects forming feasibility. Lastly, the steel can well adapt to the requirements of mold adjustment and wear resistance, so it is suitable for precision blanking. Various chassis components, consoles, seats, as well as driveline parts, clutches are the common automotive parts suitable for Docol 500 high edge ductile steel.
Mechanical Properties
Yield Strength Rp0.2 (MPa)
Tensile Strength Rm (MPa)
Extension Rate A80( min%)
Extension Rate A5( min%)
Reaming
(% typical)
90 ° Bend the Most
Small Bend Inner Diameter
500
560-700
14
17
70
0.0xt
Chemical Composition
C
(max %)
Si
(max %)
Mn
(max %)
P
(max %)
S
(max %)
Everything
( %)
Nb
(max %)
V
(max%)
Ti
(max %)
0.10
0.03
1.60
0.025
0.010
0.015
0.09
0.20
0.15
-
Docol 500HE High Edge Ductility Steel (HE) - Stock Warehouse
-
Docol 500HE High Edge Ductility Steel (HE) - Product Inspection
Tensile Strength Testing Tensile Strength Testing Physical Performance Testing Chemical Composition Testing
Inspection Hardness Testing Spectral Detection Mechanical Properties -
Docol 500HE High Edge Ductility Steel (HE) - Product Measurement
Thickness measurement Thickness measurement Thickness measurement Thickness measurement
Thickness measurement Thickness measurement Thickness measurement Width measurement -
Docol 500HE High Edge Ductility Steel (HE) - Product Packaging
Baowu Special steel
Your reliable steel supplier
Baowu Special steel has 10+ warehouses with ready stock. The annual supply capacity is approximately 10 million tons. It has 10 years of experience in large-scale project supply. The customer reorder rate reaches 86%. We ensure quality and quantity, provide material certificates, and will refund if the products are not qualified, so please be assured the purchase.
