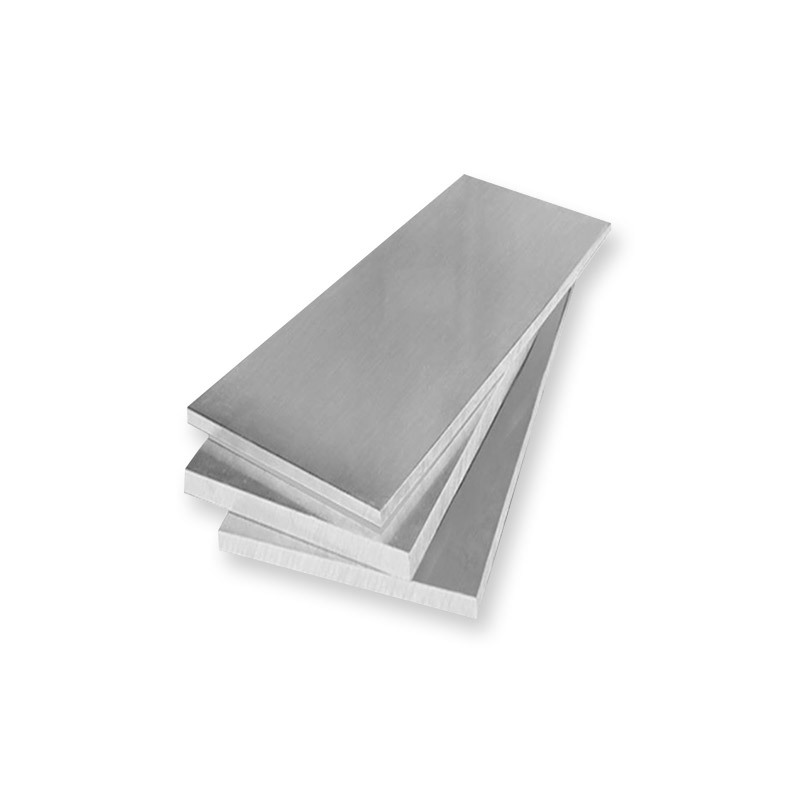

Inconel 600 Plate
Inconel 600 plate is made of a nickel-based superalloy known for its excellent heat resistance, corrosion resistance and high strength in extreme environments. This alloy is widely used in the chemical, aerospace, heat treatment and power industries, especially in high-temperature applications where resistance to oxidizing and reducing environments is required.
- Product Description
- Spot Warehouse
- Product Inspection
- Product Measurement
- Product Packaging
-
- Commodity name: Inconel 600 Plate
Inconel 600 plate is made of a nickel-based superalloy known for its excellent heat resistance, corrosion resistance and high strength in extreme environments. This alloy is widely used in the chemical, aerospace, heat treatment and power industries, especially in high-temperature applications where resistance to oxidizing and reducing environments is required.
Inconel 600 Plate Description
Inconel 600 alloy is mainly composed of nickel and chromium, with a nickel content of approximately 72% and a chromium content of approximately 14%-17%. In addition, the alloy contains a smaller proportion of iron, as well as trace amounts of silicon, carbon and manganese. This unique chemical composition gives Inconel 600 plate excellent corrosion resistance and mechanical strength at high temperatures. Inconel 600 alloy exhibits excellent mechanical properties over a wide temperature range and is capable of use at temperatures up to 1093°C (2000°F) while maintaining good creep and fracture resistance. Its corrosion resistance is particularly outstanding and it can resist a variety of corrosive media, including seawater, organic acids, and high-temperature and high-pressure steam environments.
Product Parameters
Product Name
Inconel 600 Plate
Thickness
0.3mm-200mm
Length
2000mm, 2438mm, 3000mm, 5800mm, 6000mm, 12000mm, etc.
Width
40mm-600mm, 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc.
Standard
ASTM, AISI, JIS, GB, DIN, EN, etc.
Surface
BA, 2B, NO.1, NO.4, 4K, HL, 8K, etc.
Certificate
ISO, SGS, BV
Production Technology
Hot Rolling, Cold Rolling
Chemical Composition
C
Si
S
Cr
Mn
Fe
Ni
Cu
0.15 max
0.5 max
0.015 max
14.0 - 17.0
1.0 max
6.0 - 10.0
72.0 min
0.5 max
Mechanical Properties
Tensile Strength (ksi)
0.2% Yield Strength (ksi)
Elongation% in 2 inches
110
85
10
Physical Performance
Units
Temperature in°C
Density
8.47 g/cm³
Room
Specific Heat
0.106 Kcal/kg.C
22°
Melting Range
1354-1413°C
-
Modulus of Elasticity
214 KN/mm²
22°
Electrical Resistivity
103 µΩ.cm
Room
Coefficient of Expansion
13.3 µm/m °C
20 - 100°
Thermal Conductivity
14.9 w/m-° K
20°
Scope of Application
The average utilization of this nickel alloy includes the chemical, pulp and paper, aerospace, nuclear engineering and heat treatment industries.
-

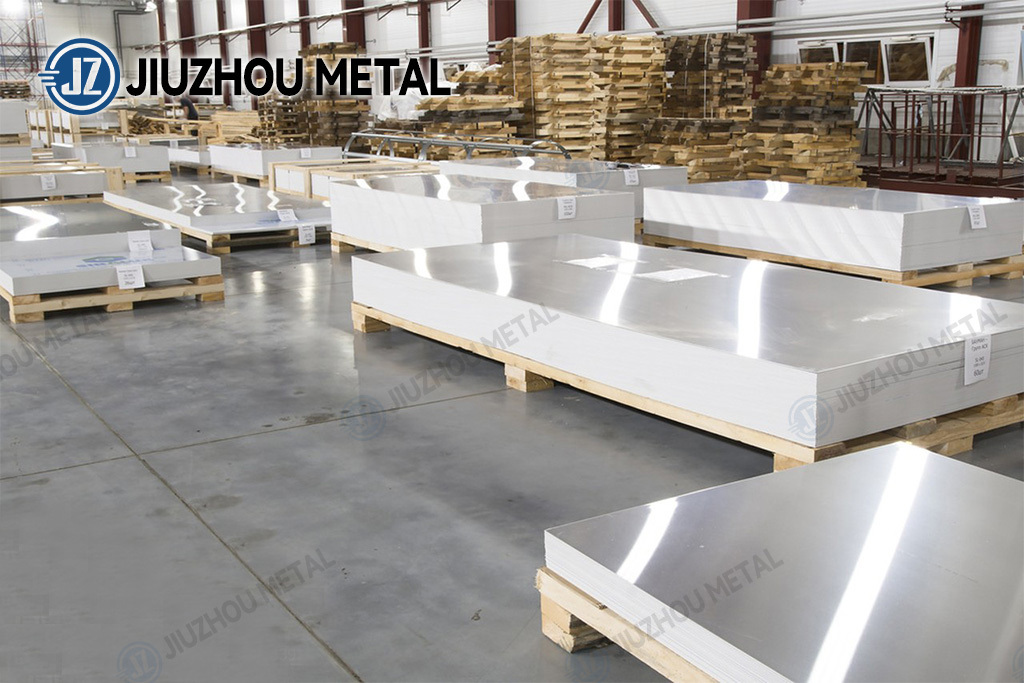

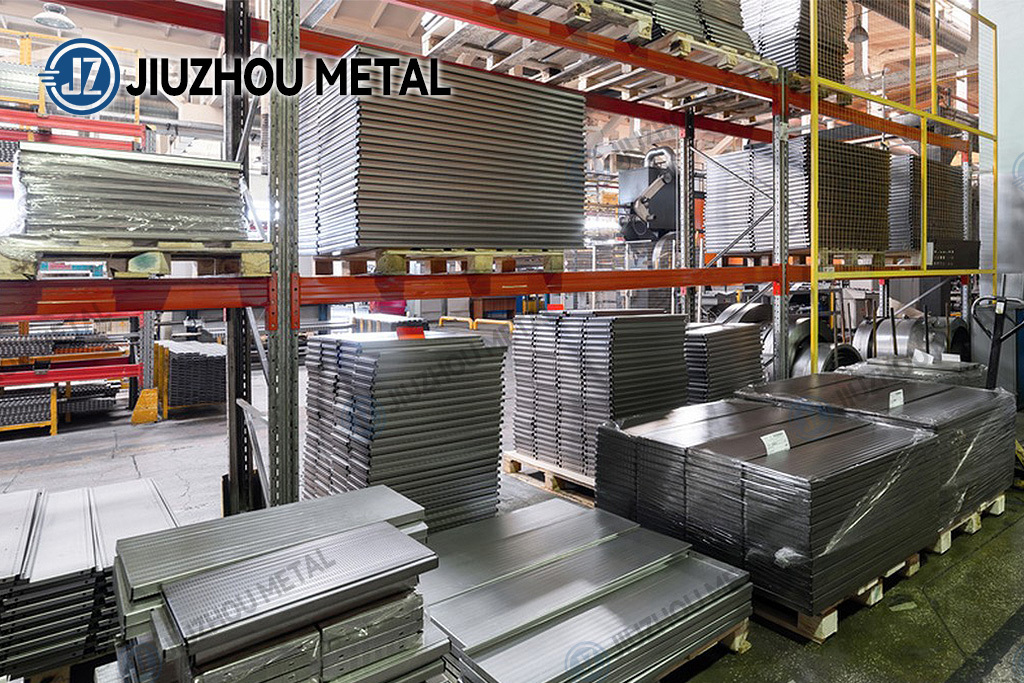

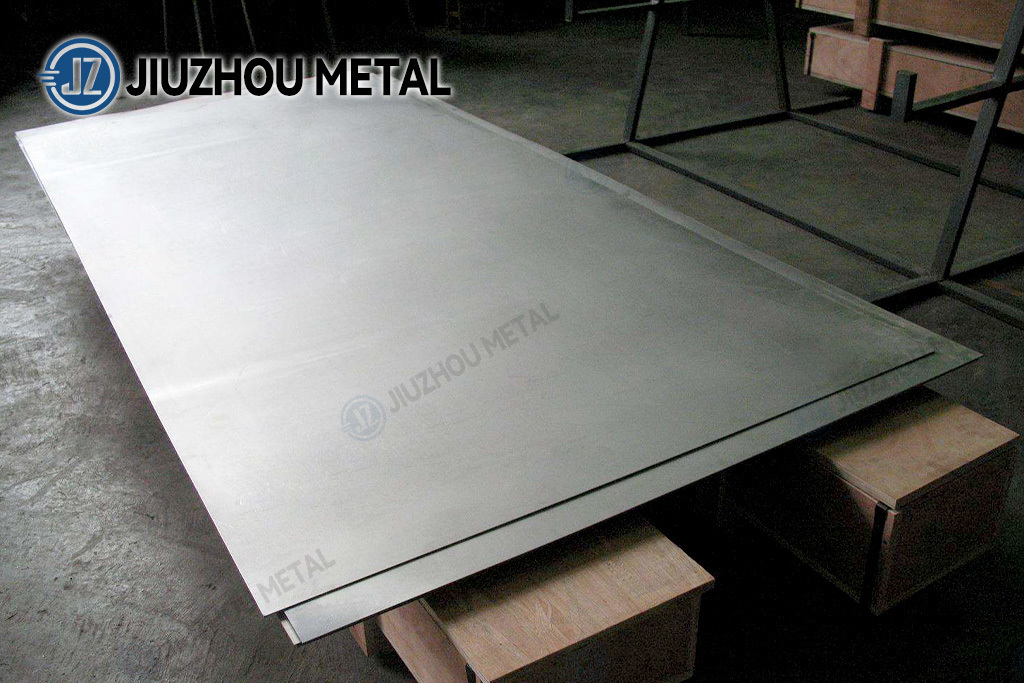

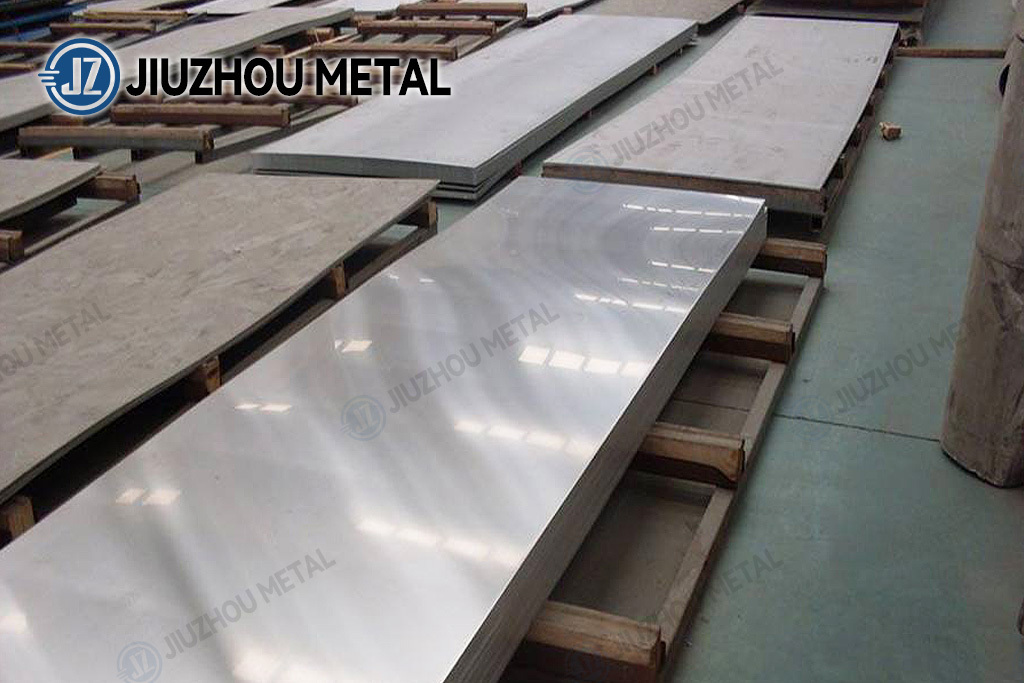

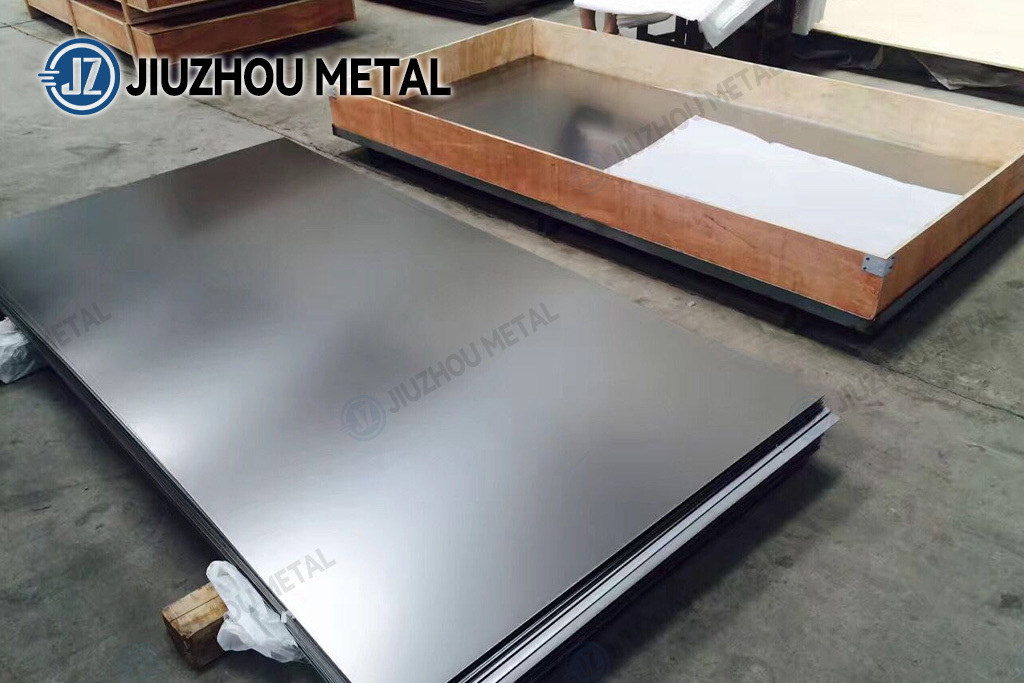

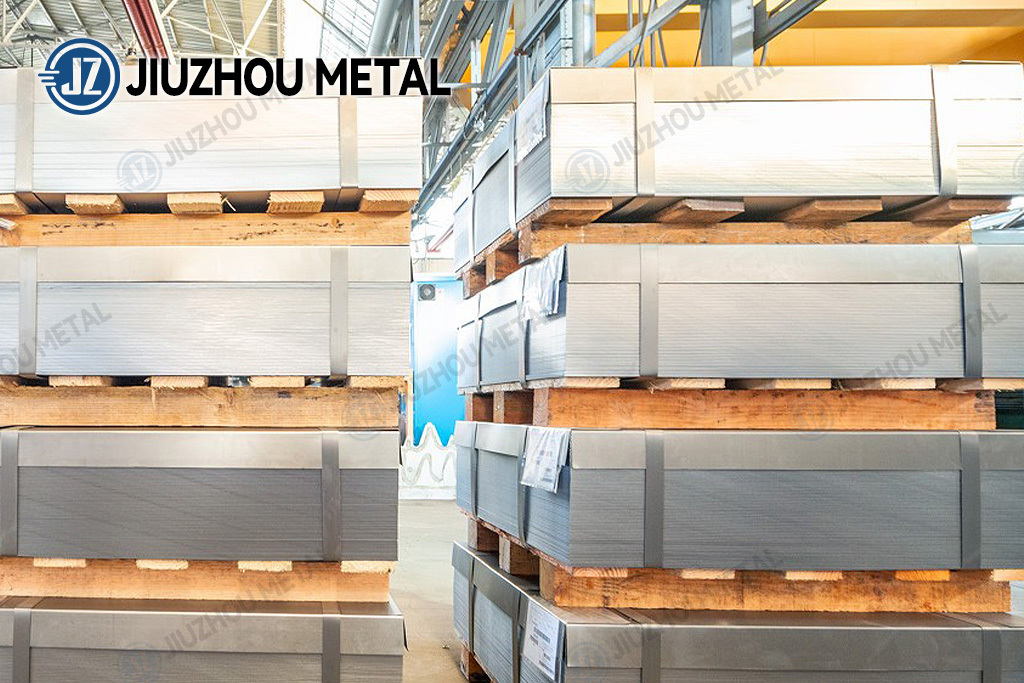

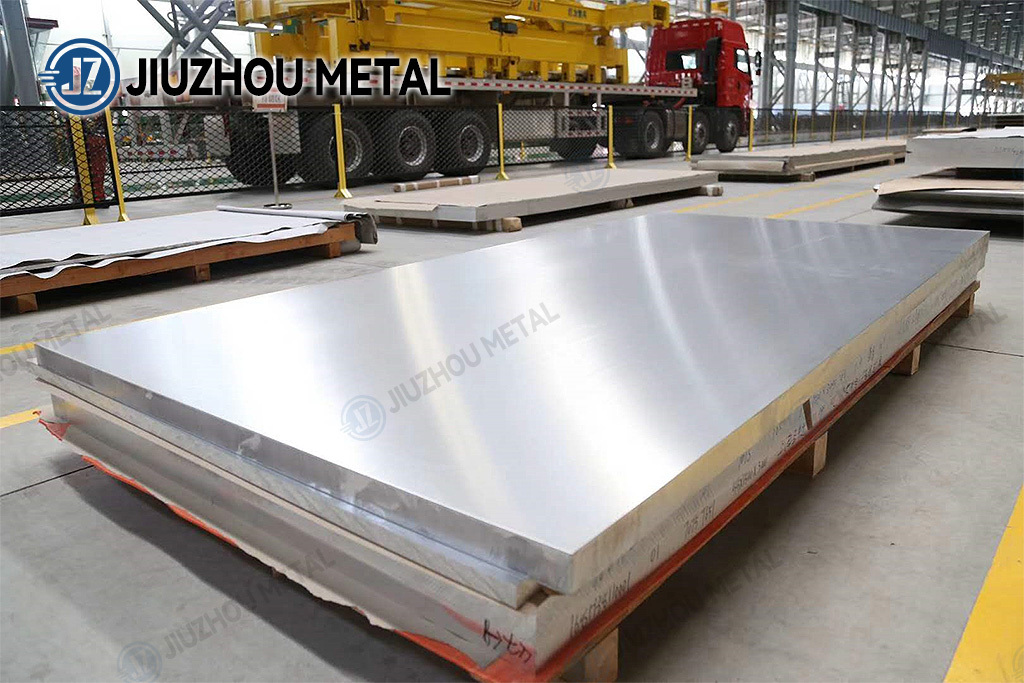

Inconel 600 Plate - Stock Warehouse
-

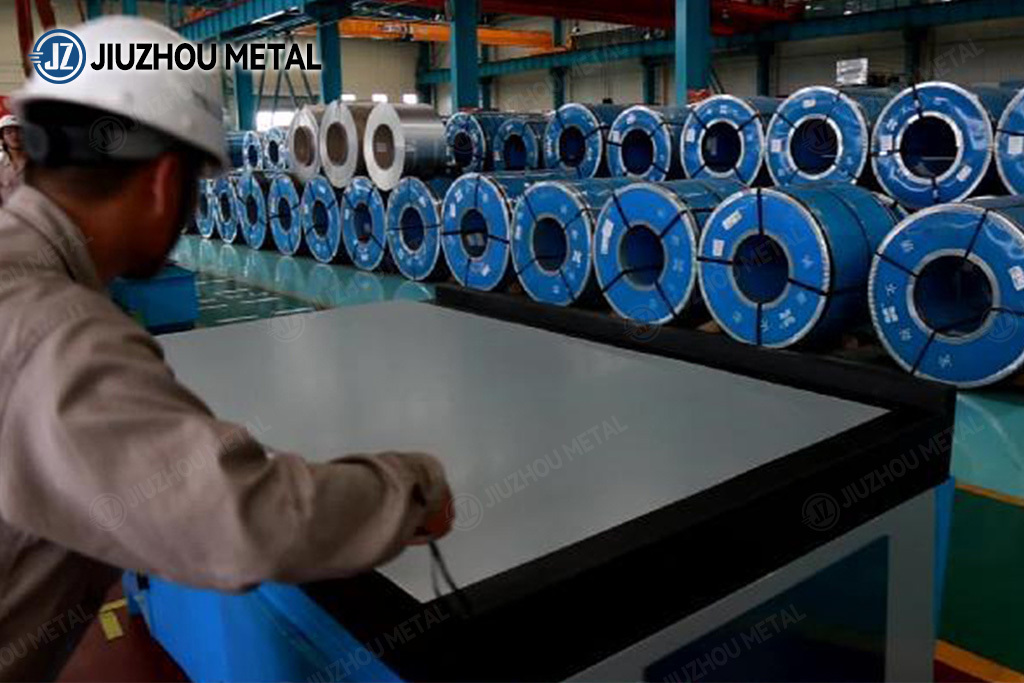

Inconel 600 Plate - Product Inspection
Tensile Strength Testing Tensile Strength Testing Physical Performance Testing Chemical Composition Testing
Inspection Hardness Testing Spectral Detection Mechanical Properties -

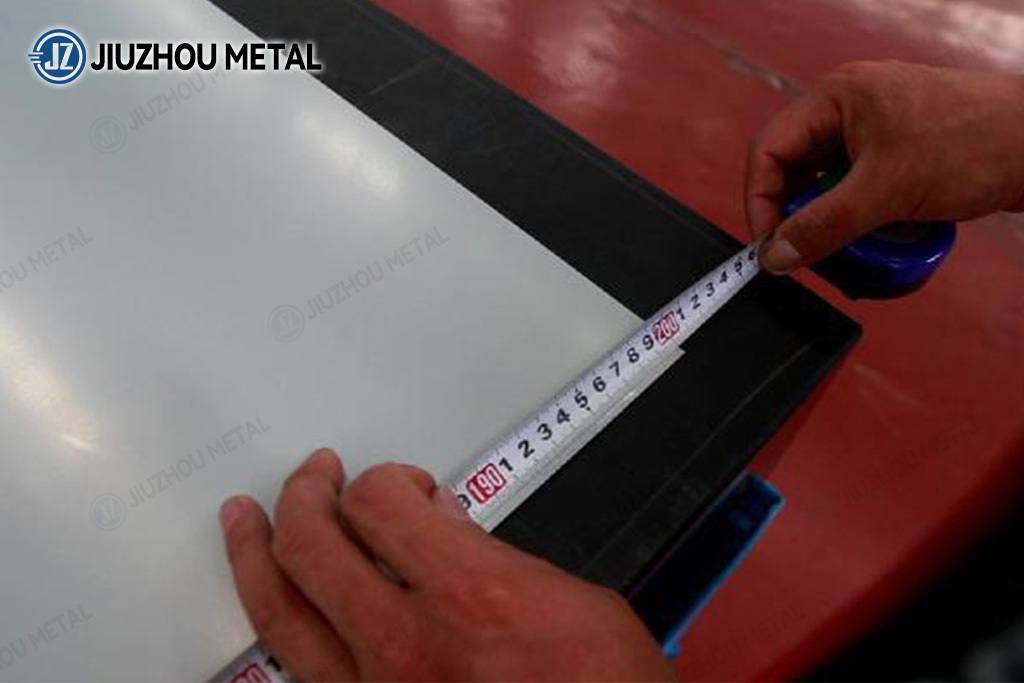

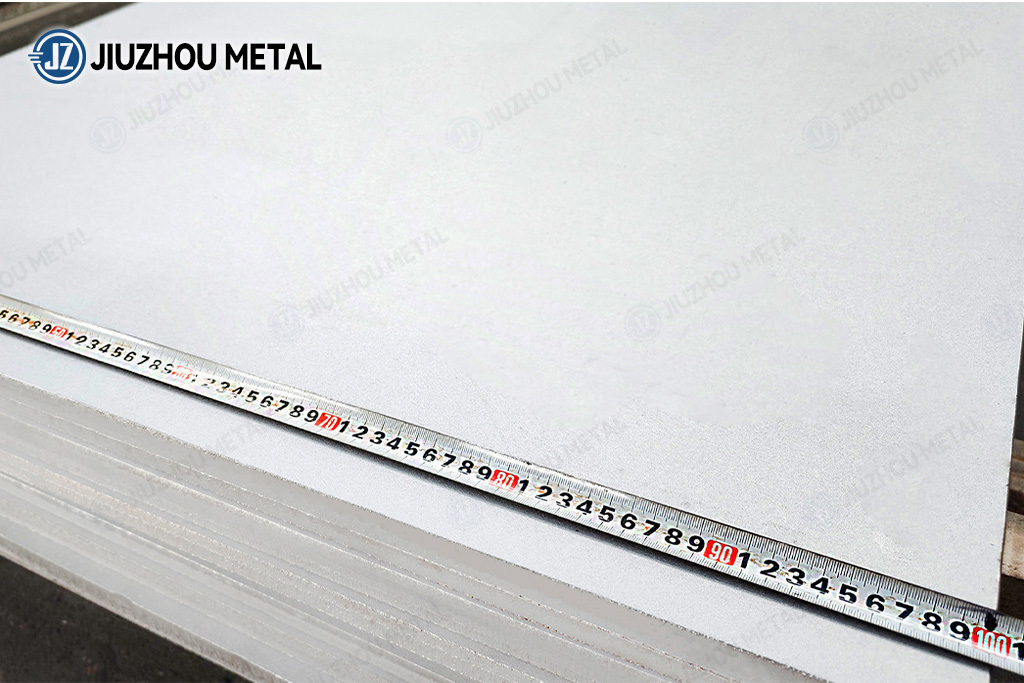

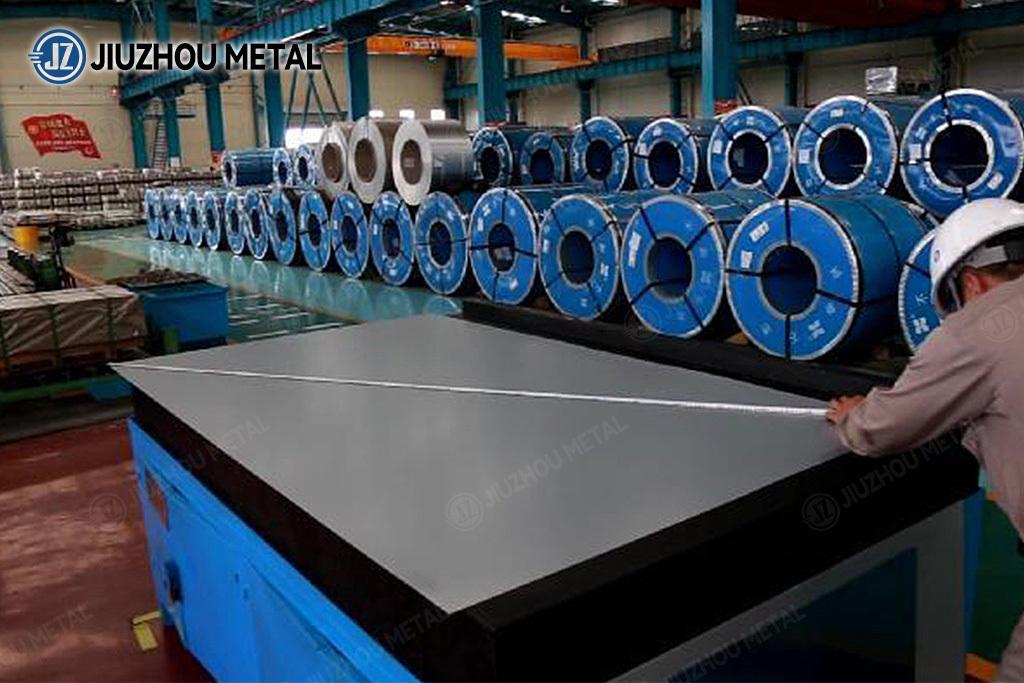

Inconel 600 Plate - Product Measurement
Thickness measurement Thickness measurement Thickness measurement Thickness measurement
Length measurement Length measurement Length measurement Length measurement -

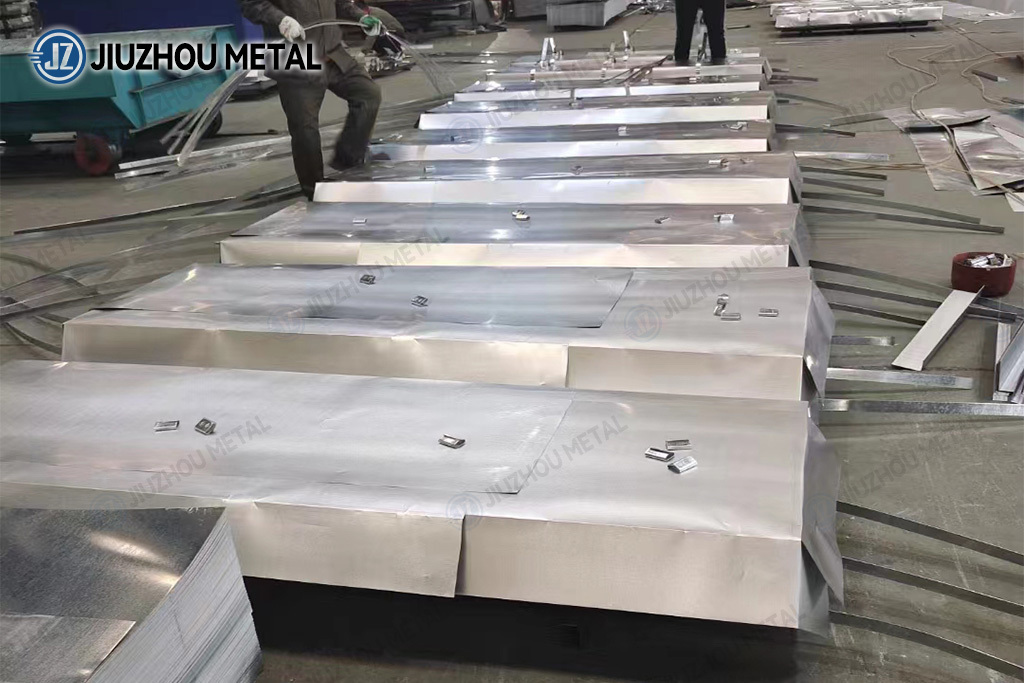

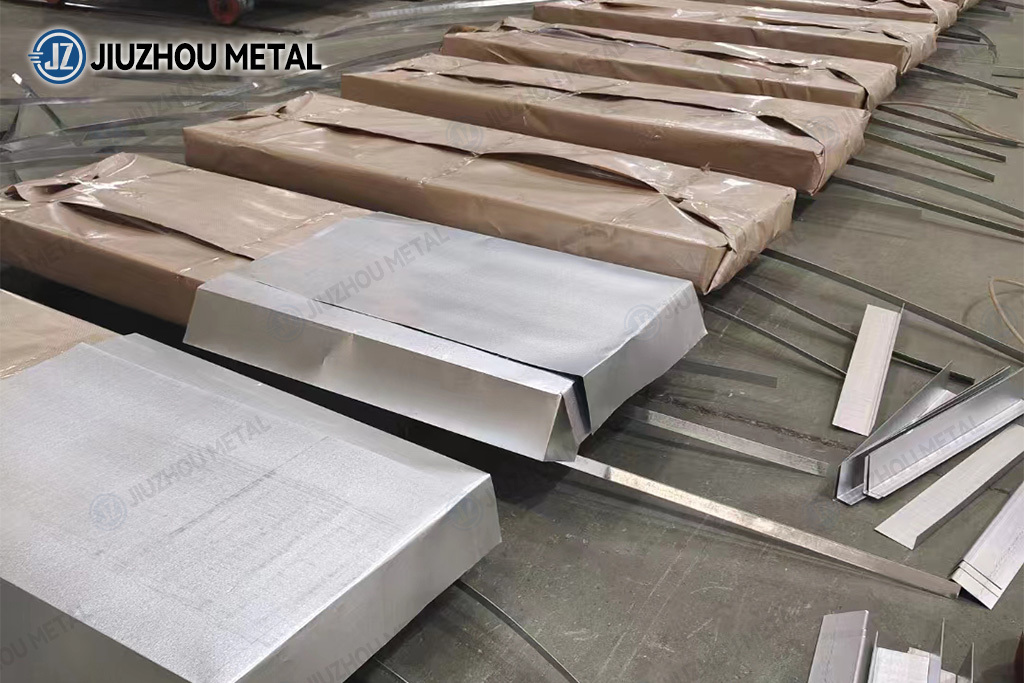

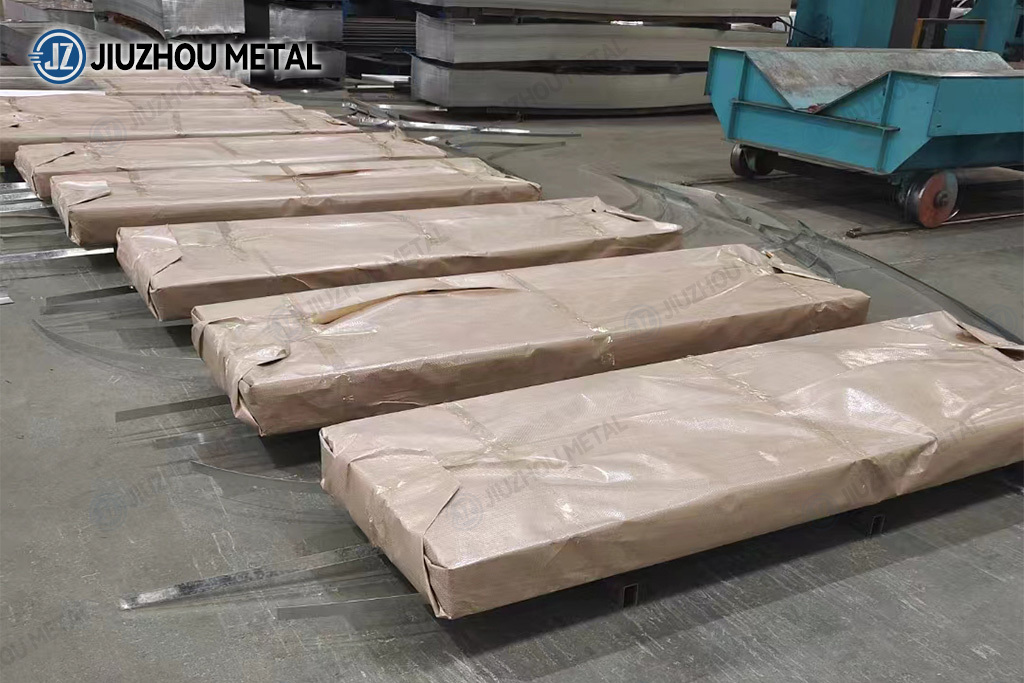

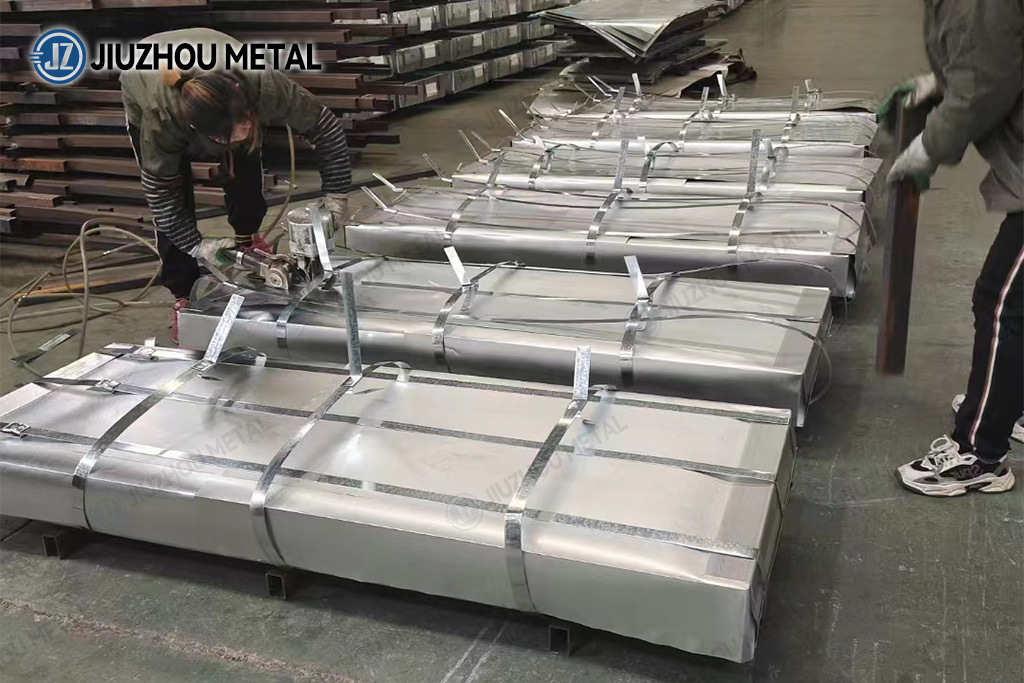

Inconel 600 Plate - Product Packaging
