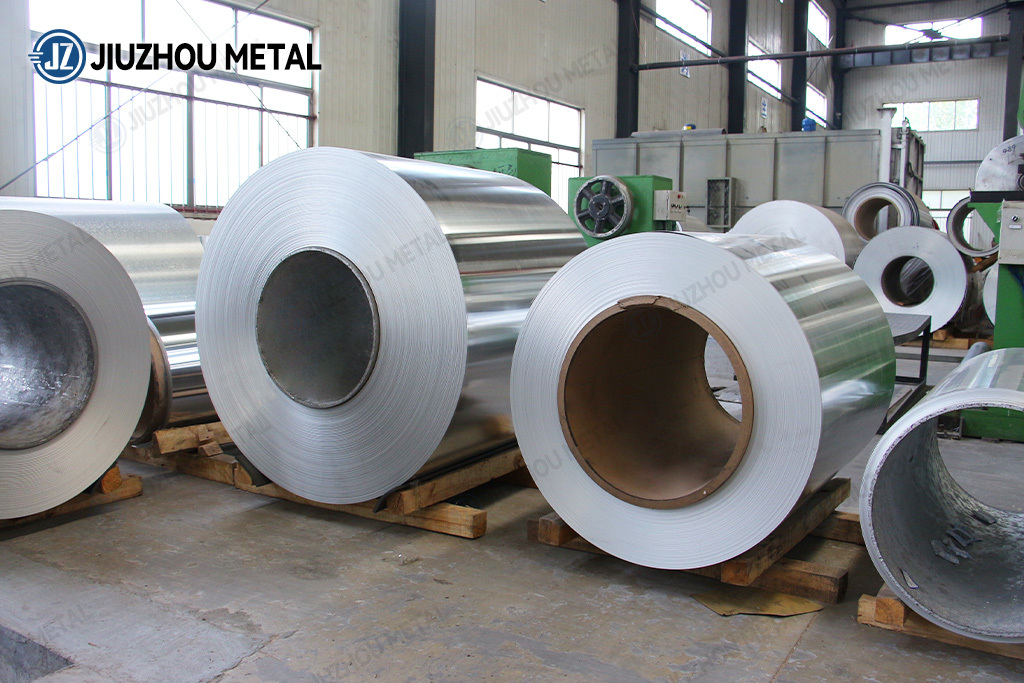

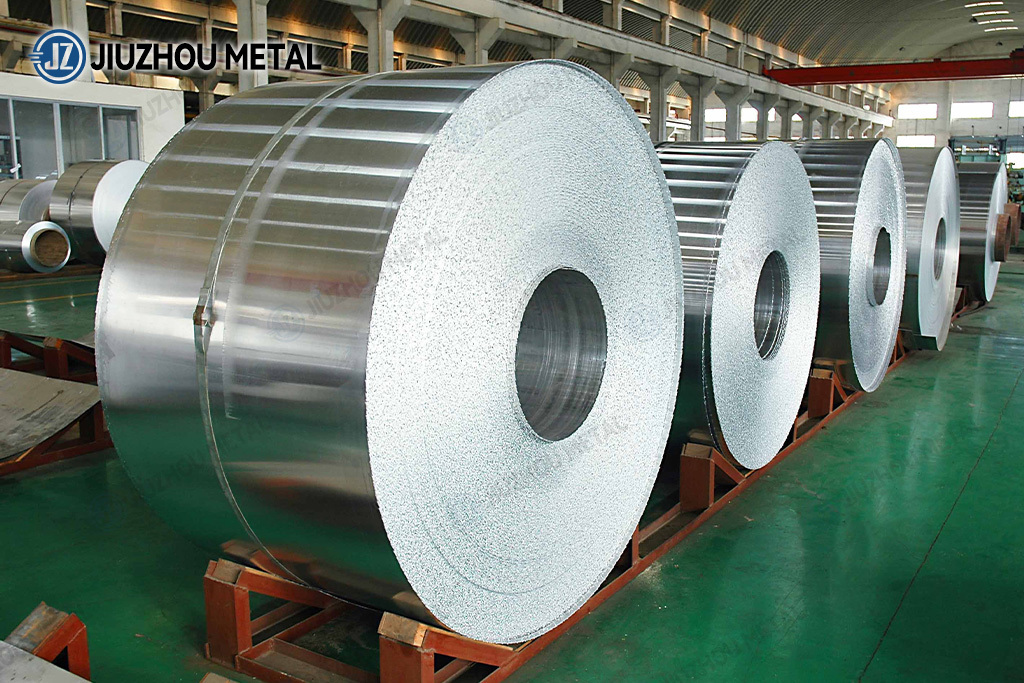

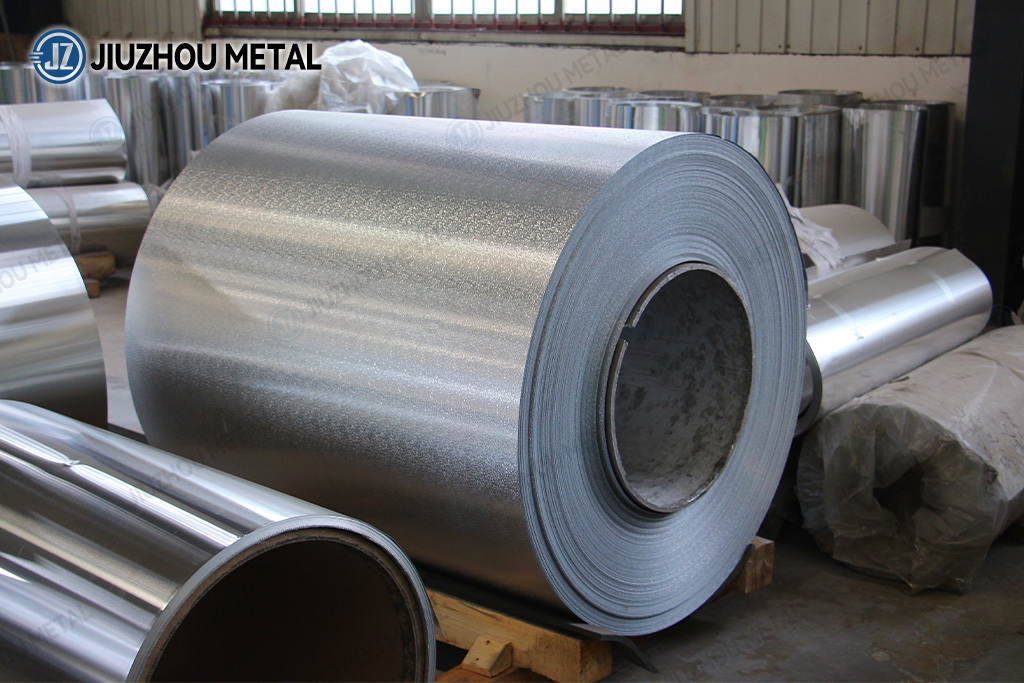

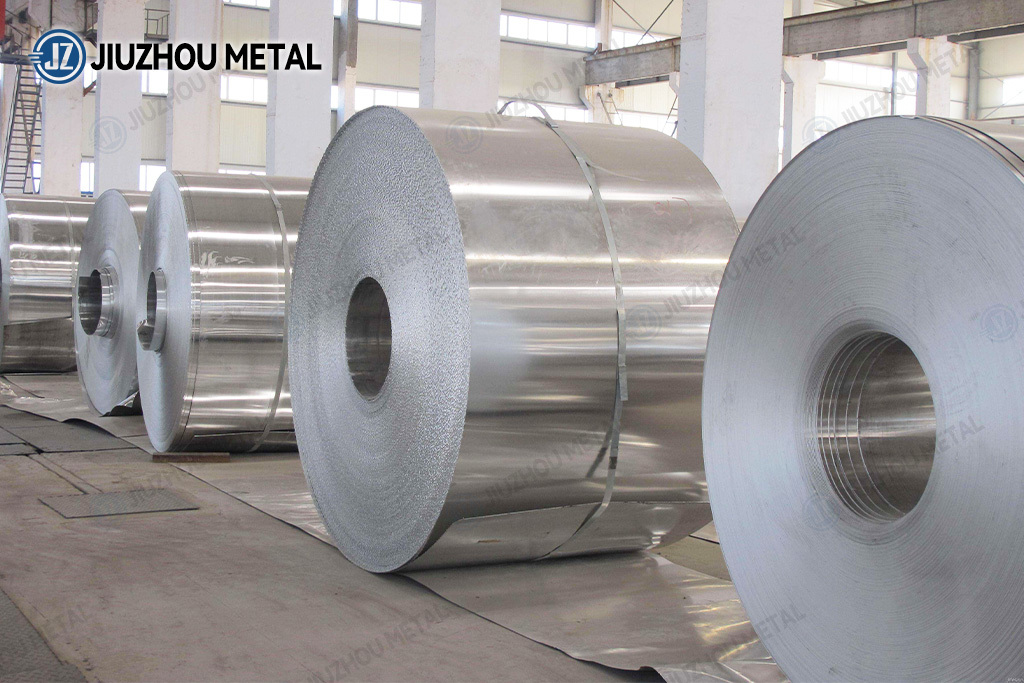

1060 Aluminum Coil
1060 aluminum coil contains more than 99.6% aluminum as a commonly used series. 1060 aluminum coils are widely used in aerospace, transportation and other industrial fields. At the same time, they are often subject to impact loads under high temperature and high pressure conditions in various other complex working environments.
- Product Description
- Spot Warehouse
- Product Inspection
- Product Measurement
- Product Packaging
-
- Commodity name: 1060 Aluminum Coil
1060 aluminum coil contains more than 99.6% aluminum as a commonly used series. 1060 aluminum coils are widely used in aerospace, transportation and other industrial fields. At the same time, they are often subject to impact loads under high temperature and high pressure conditions in various other complex working environments.
1060 Aluminum Coil Description
The 1060 aluminum alloy is the most commonly used series, given its fast production speed, simple production process, and mature technology. The price has a huge advantage compared with other series of aluminum alloy. 1060 aluminum alloy has good plasticity, corrosion resistance, electrical and thermal conductivity, ideal for gas welding, hydrogen welding and contact welding. But the strength is low and it is not easy to braze. 1060 aluminum coil is widely used in products that do not require high strength such as signboards, billboards, building exterior decorations, bus bodies, high-rise building and factory wall decorations, fan blades, electronic parts, chemical instruments.
Product ParametersWidth
20-3000mm or customized
Thickness
0.1-120mm or customized
Length
100-12000mm or customized
Certificate
ISO, SGS, BV
Standard
JIS, AISI, ASTM, GB, DIN, EN, etc.
Brand
1000 Series: 1050 1060 1070 1100 1200 1235 etc.
3000 Series: 3003 3004 3005 3104 3105 3A21 etc.
5000 Series: 5005 5052 5083 5086 5154 5182 5251 5754 5A05 etc.
6000 Series: 6061 6063 6082 6A02 etc.
7000 Series: 7050 7475 7075 etc.
8000 Series: 8A06 8011 8090 etc.
Surface
Coating, Embossing, Drawing, Polishing, Anodizing, etc.
OEM Service
Punching, Cutting Special Size, Making Flat Surface, Surface Treatment, etc.
Delivery Time
Received 30% after deposit 7-15 working days
Application
Construction, Shipbuilding, Decoration, Industry, Manufacturing, Machinery, Hardware and other fields
Sample
Free Offers Sample
Packaging
Strapping, Plastic bag, Film, Wooden pallet standard seaworthy export packing or according to customer requirement
Chemical Composition
Alloy
Si
Fe
Cu
Mn
Mg
Cr
Zn
Ti
Others:
Each
Others:
Total
Al: Min.
1050
0.25
0.40
0.05
0.05
0.05
-
0.05
0.03
0.03
-
99.50
1060
0.25
0.35
0.05
0.03
0.03
-
0.05
0.03
0.03
-
99.60
1070
0.20
0.25
0.04
0.03
0.03
-
0.04
0.03
0.05
-
99.70
1100
0.95 Si Fee
0.05~0.20
0.05
-
-
0.1
-
0.05
0.15
99.0
2014
0.5~1.2
0.7
3.9~5.0
0.4~1.2
0.2~0.8
0.10
0.25
0.15
0.05
0.15
Allowance
2017
0.2~0.8
0.7
3.5~4.5
0.4~1.0
0.4~0.8
0.10
0.25
0.15
0.05
0.15
91.5 - 95.5
2024
0.50
0.50
3.8~4.9
0.3~0.9
1.2~1.8
0.10
0.25
0.15
0.05
0.15
Allowance
3003
0.60
0.70
0.05~0.20
1.0~1.5
-
-
0.10
-
0.05
0.15
Allowance
3A21
0.60
0.70
0.20
1.0-1.6
0.05
-
0.15
0.1-0.2
-
-
Allowance
3004
0.30
0.70
0.25
1.0~1.5
0.8~1.3
-
0.25
-
0.05
0.15
Allowance
3005
0.60
0.70
0.30
1.0~1.5
0.2~0.6
0.10
0.25
0.10
0.05
0.15
Allowance
3105
0.60
0.70
0.30
0.3~0.8
0.2~0.8
0.20
0.40
0.10
0.05
0.15
Allowance
5005
0.30
0.70
0.20
0.20
0.5~1.1
0.1
0.25
-
0.05
0.15
Allowance
5052
0.25
0.40
0.10
0.10
2.2~2.8
0.15~0.35
0.10
-
0.05
0.15
Allowance
5754
0.40
0.40
0.10
0.50
2.6~3.6
0.30
0.20
0.15
0.05
0.15
Allowance
5A05
0.50
0.50
0.10
0.3-0.6
4.8-5.5
-
0.20
-
0.05
0.05
Allowance
5083
0.40
0.40
0.10
0.4~1.0
4.0~4.9
0.05~0.25
0.25
0.15
0.05
0.15
Allowance
6061
0.40~0.8
0.70
0.15~0.4
0.15
0.8~1.2
0.04~0.35
0.25
0.15
0.05
0.15
Allowance
6082
0.70~1.3
0.50
0.10
0.4~1.0
0.6~1.2
0.25
0.20
0.10
0.05
0.15
Allowance
7075
0.40
0.50
1.2~2.0
0.30
2.1~2.9
0.18~0.28
5.1~6.1
0.20
0.05
0.15
Allowance
Mechanical Properties
Tensile Strength
(MPa)
Test Stress
0.2% (MPa)
Elongation Rate D10
(%)
110-136
≥75
3-5
Physical Performance
Density
Melting Point
Modulus of Elasticity
Thermal Conductivity
Thermal Expansion
2.7 Kg/m³
649 °C
70-80 GPa
234 W/m.K
23.6× 10-6/K
Annealing State
Brand
Annealing State
1xxx: 1050, 1050A, 1060, 1100
O, H12, H14, H16, H18, H22, H24, H26, H28, H111
3xxx: 3003, 3004, 3005, 3105
5xxx: 5005, 5052, 5754, 5083, 5086, 5182, 5049, 5251, 5454
O, H22, H24, H26, H28, H32, H34, H36, H38, H111
6xxx: 6061, 6082
T4, T6, T451, T651
2xxx: 2024
T3, T351, T4
7xxx: 7075
T6, T651
Scope of Application
Aluminum Uses And Application Area
Food Packaging
Beverage can ends, cans, bottle caps, etc.
Building
Curtain walls, cladding, suspended ceilings, thermal insulation, venetian blinds, etc.
Transportation
Auto parts, passenger car bodies, aviation ships and air cargo containers.
Electronic Equipment
Electrical appliances, communication equipment,PCPlate drilling guide, lighting and heat dissipation materials, etc.
Consumer Goods
Umbrellas, cooking utensils, sports equipment, etc
Other
Military, color coated aluminum plate
-

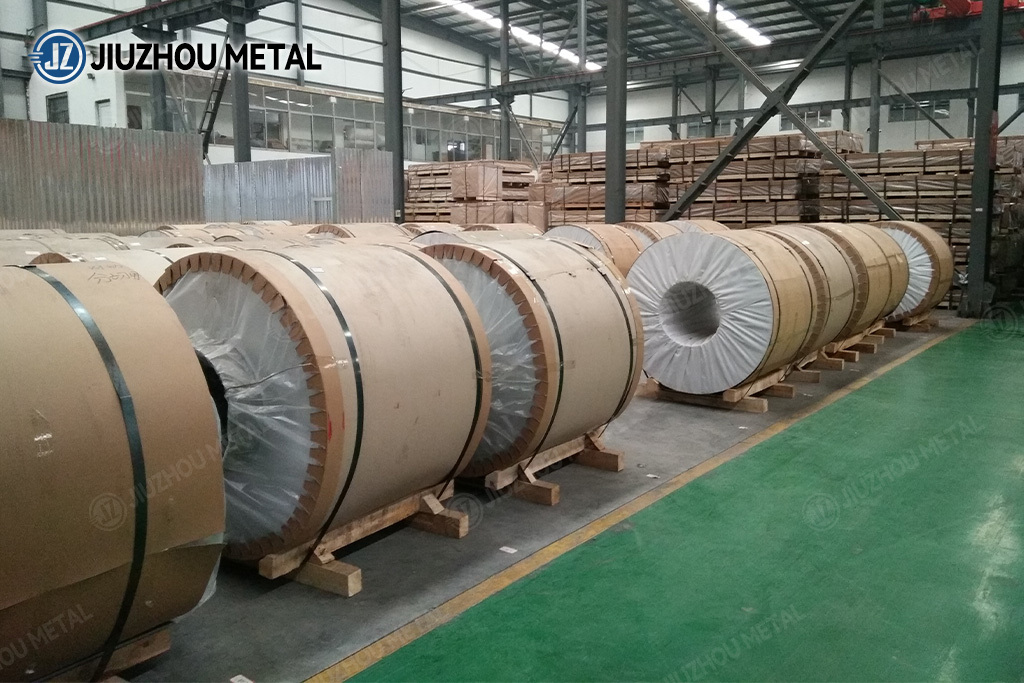

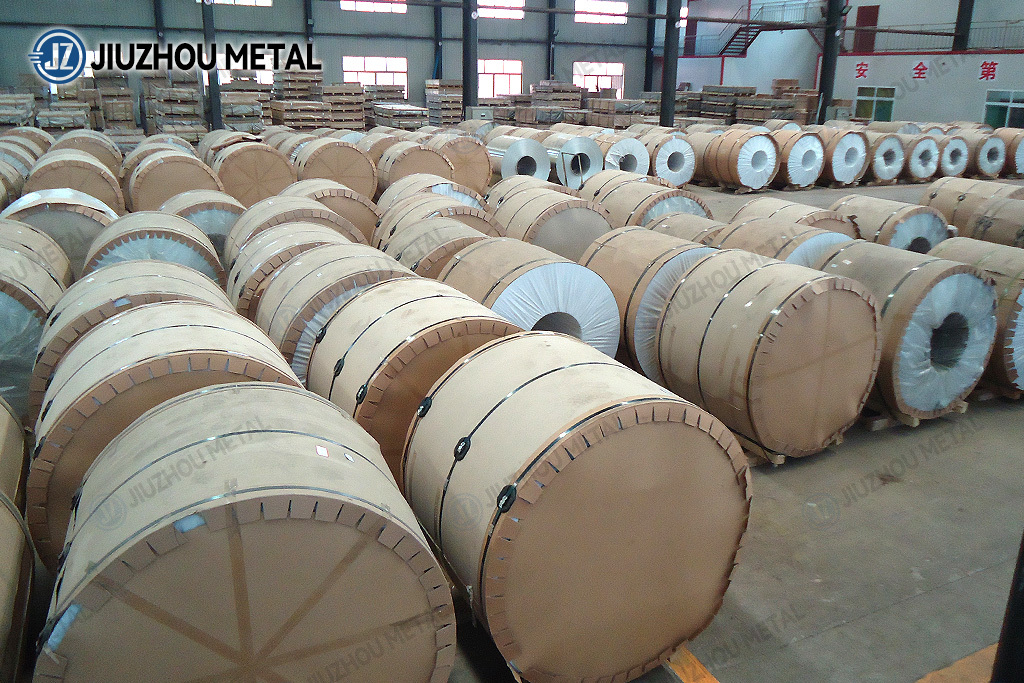

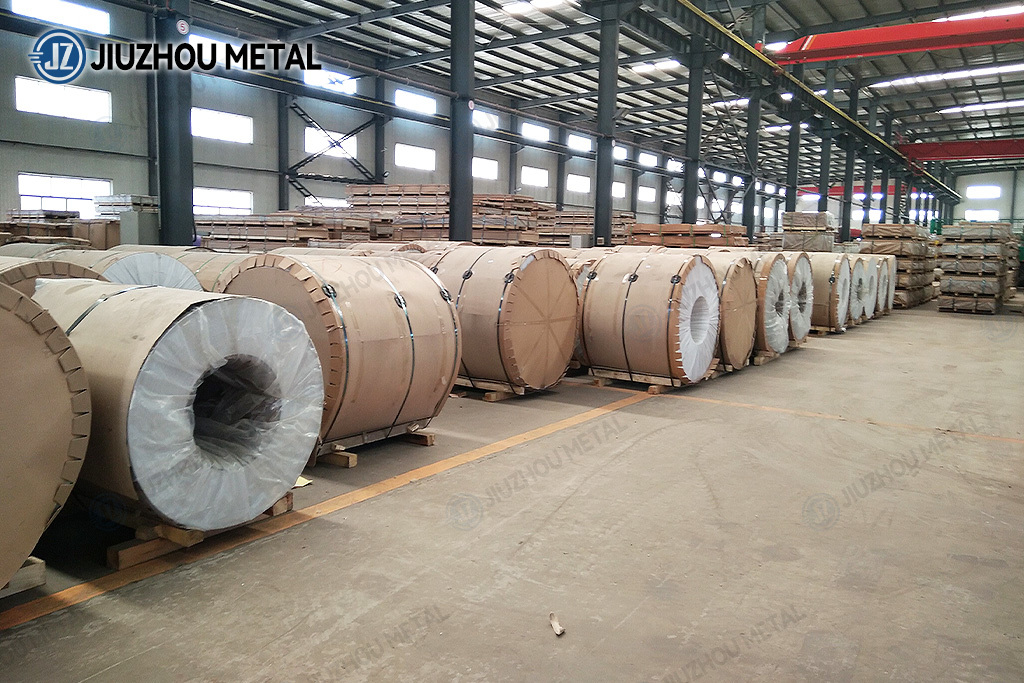

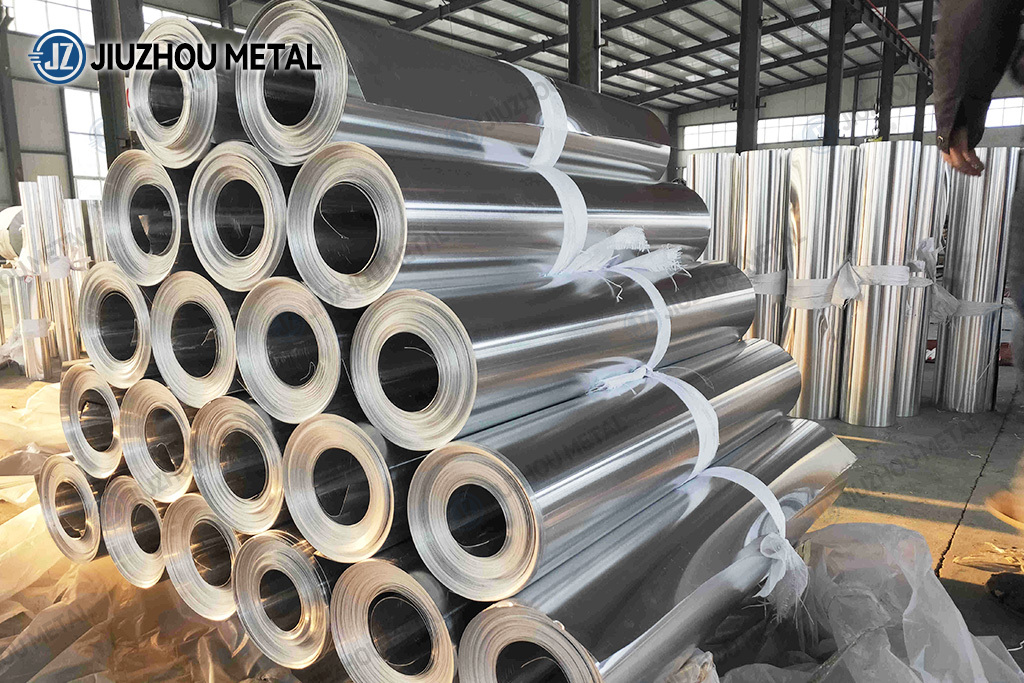

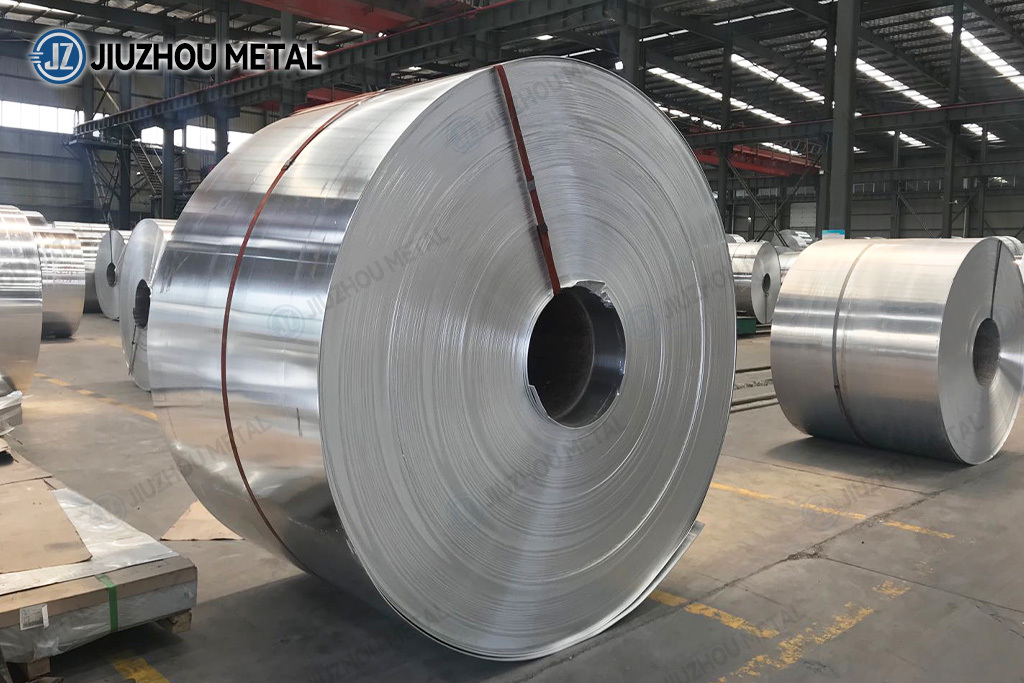

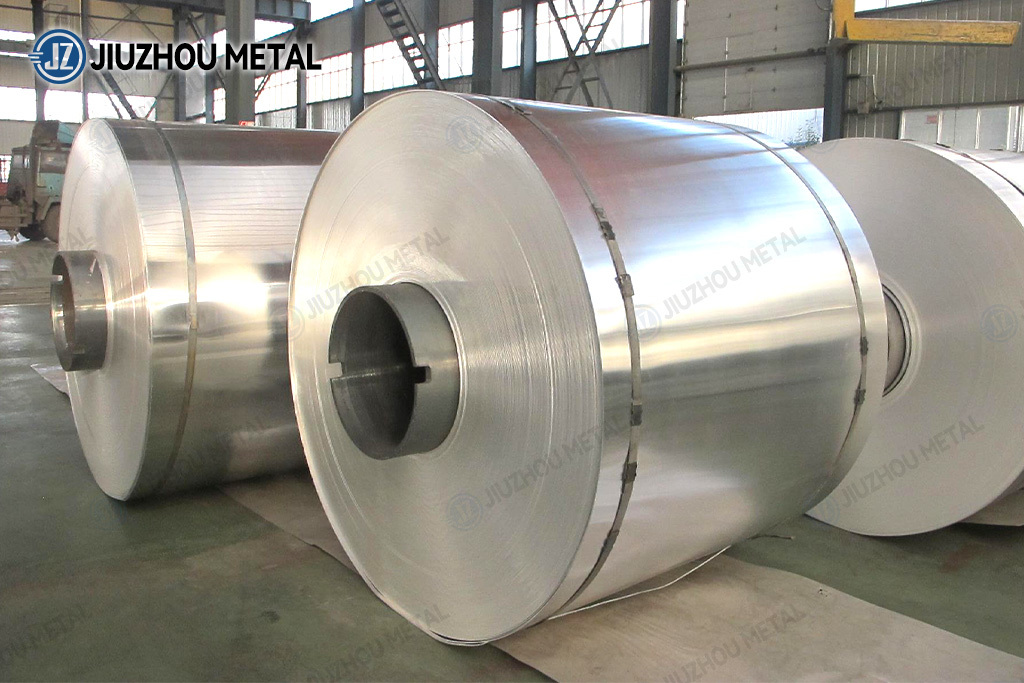

1060 Aluminum Coil - Stock Warehouse
-
1060 Aluminum Coil - Product Inspection
Tensile Strength Testing Tensile Strength Testing Physical Performance Testing Chemical Composition Testing
Inspection Hardness Testing Spectral Detection Mechanical Properties -
1060 Aluminum Coil - Product Measurement
Thickness measurement Thickness measurement Thickness measurement Width measurement
Measurement Measurement Measurement Measurement -

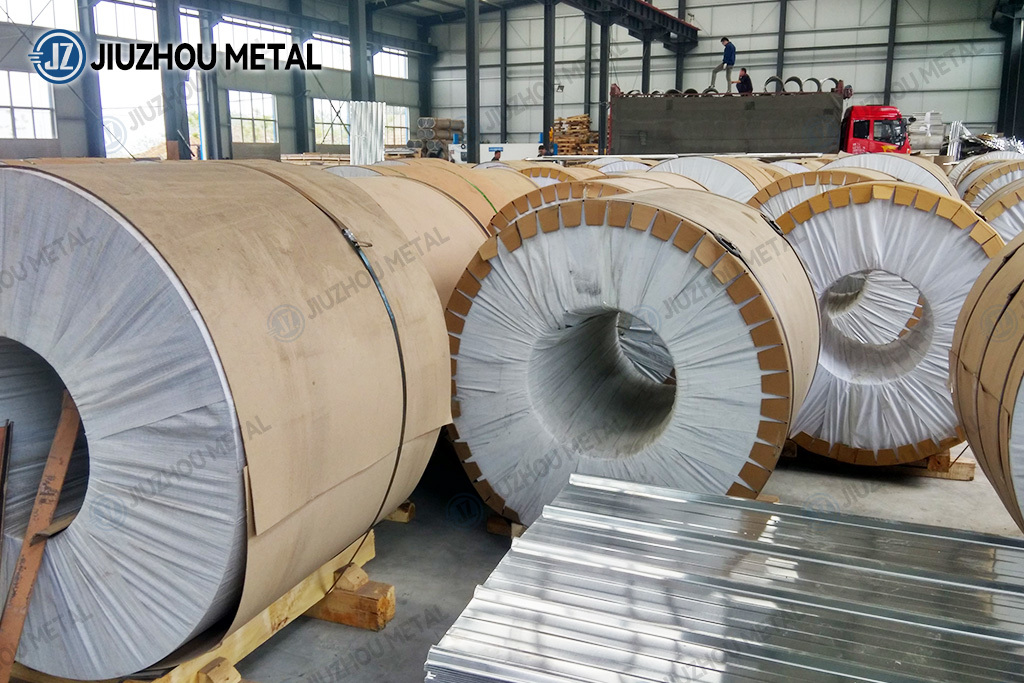

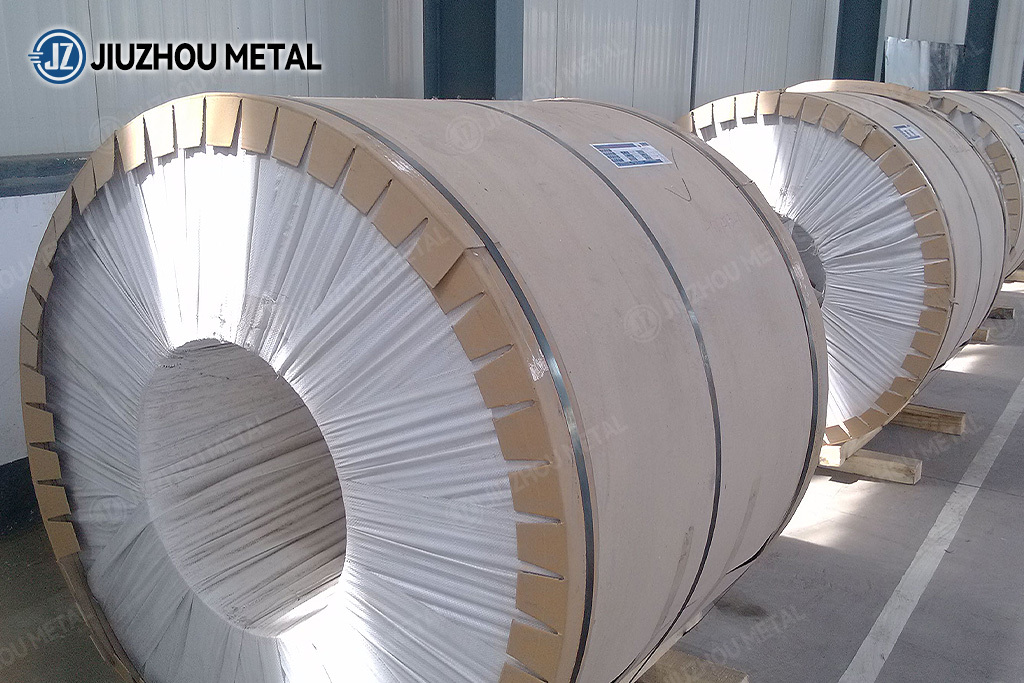

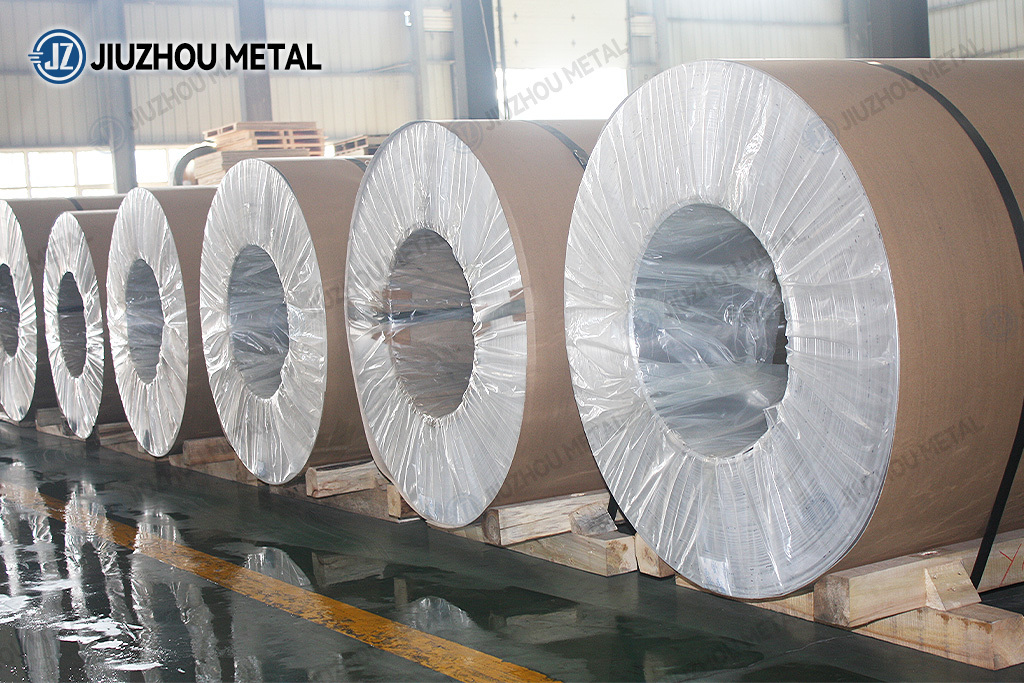

1060 Aluminum Coil - Product Packaging
Baowu Special steel
Your reliable steel supplier
Baowu Special steel has 10+ warehouses with ready stock. The annual supply capacity is approximately 10 million tons. It has 10 years of experience in large-scale project supply. The customer reorder rate reaches 86%. We ensure quality and quantity, provide material certificates, and will refund if the products are not qualified, so please be assured the purchase.
