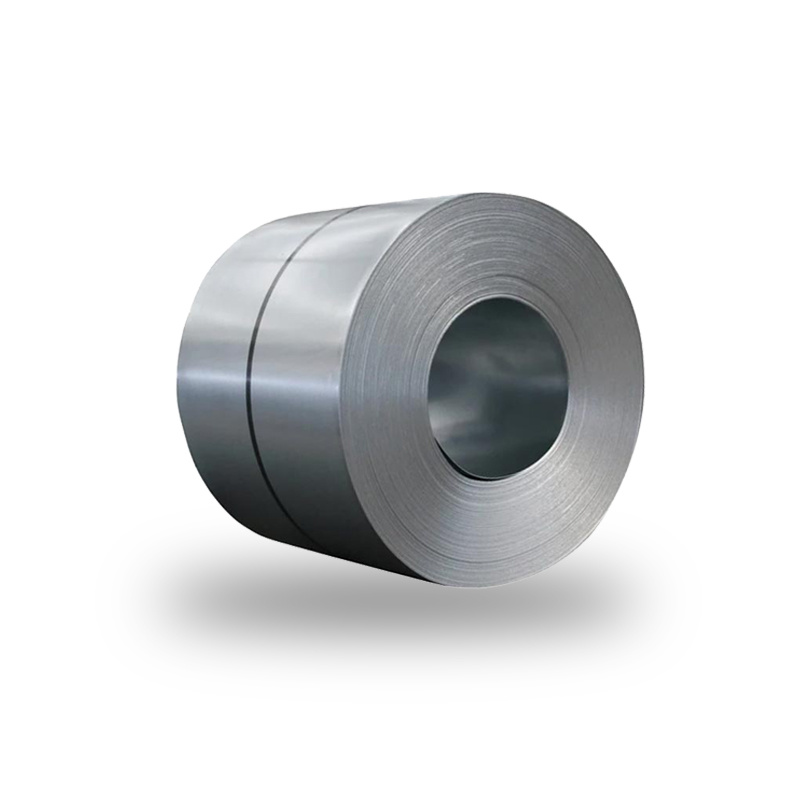

Fully Machined Non-oriented Electrical Steel (FP)M12/M15/M19/M22
Non-oriented electrical steel is a kind of ferrosilicon soft magnetic alloy with low carbon content, which is an indispensable material in electric power, electronic and military industry. With the development of high-speed and miniaturization of motors, the performance requirements of non-oriented silicon steel are put forward higher requirements, such as low iron loss and high magnetic induction strength at high frequency.
- Product Description
- Spot Warehouse
- Product Inspection
- Product Measurement
- Product Packaging
-
- Commodity name: Fully Machined Non-oriented Electrical Steel (FP)M12/M15/M19/M22
Non-oriented electrical steel is a kind of ferrosilicon soft magnetic alloy with low carbon content, which is an indispensable material in electric power, electronic and military industry. With the development of high-speed and miniaturization of motors, the performance requirements of non-oriented silicon steel are put forward higher requirements, such as low iron loss and high magnetic induction strength at high frequency.
Fully Machined Non-oriented Electrical Steel (FP)M12/M15/M19/M22 Description
Non-oriented electrical steel is a kind of ferrosilicon soft magnetic alloy with low carbon content, which is an indispensable material in electric power, electronic and military industry. With the development of high-speed and miniaturization of motors, the performance requirements of non-oriented silicon steel are put forward higher requirements, such as low iron loss and high magnetic induction strength at high frequency.
AISI ASTM Thickness Max W/LB M12 36F130 0.0140 1.30 M15 36F145 0.0140 1.45 47F160 0.0185 1.60 M19 36F155 0.0140 1.55 47F165 0.0185 1.65 64F200 0.0250 2.00 M22 36F165 0.0140 1.65 47F180 0.0185 1.80 64F210 0.0250 2.10 M27 36F175 0.0140 1.75 47F200 0.0185 1.90 64F235 0.0250 2.25 M36 36F185 0.0140 1.85 47F200 0.0185 2.00 64F235 0.0250 2.35 M43 36F195 0.0140 1.95 47F210 0.0185 2.10 64F250 0.0250 2.50
Product ParametersCategory Silicon Content/%
Nominal Thickness/Mm
Lord To Use Way
Hot Rolled Silicon Steel
(No Orientation)
Hot rolled low silicon steel(Motor Steel)
1.0~2.5
0.5
Household motors and micromotors
Hot rolled high silicon steel(Transformer steel)
3.0~4.5
0.35,0.50
Transformer
Cold Rolled Electrical Steel
Cold rolled non-oriented electrical steel(Motor Steel)
Low carbon electrical steel
≤ 0.5
0.50,0.65
Small transformers and ballasts for household motors, micromotors
Silicon steel
>0.5~3.5
0.35,0.50
Medium and large motors, generators and transformers
Cold rolled grain oriented silicon steel(Transformer steel)
Ordinary oriented silicon steel
2.9~3.3
0.18,0.23,0.27
0.30,0.35Large, medium and small transformers and ballasts
High magnetic induction oriented silicon steel
Special Purpose Silicon Steel
Cold rolled grain oriented silicon steel strip
2.9~3.3
0.03,0.05,0.10
Pulse transformer, magnetic amplifier, high frequency transformer and electric welding machine
Cold rolled non-oriented silicon steel strip
3.0
0.15,0.20
High-frequency motors and generators
Cold rolled non-oriented silicon steel for magnetic switch
3.0
0.70
Relays and magnetic switches
Cold rolled high silicon steel
6.5
0.1~0.5
High-frequency motors, transformers and magnetic shielding
-
Fully Machined Non-oriented Electrical Steel (FP)M12/M15/M19/M22 - Stock Warehouse
-
Fully Machined Non-oriented Electrical Steel (FP)M12/M15/M19/M22 - Product Inspection
Tensile Strength Testing Tensile Strength Testing Physical Performance Testing Chemical Composition Testing
Inspection Hardness Testing Spectral Detection Mechanical Properties -
Fully Machined Non-oriented Electrical Steel (FP)M12/M15/M19/M22 - Product Measurement
Thickness measurement Thickness measurement Thickness measurement Thickness measurement
Thickness measurement Thickness measurement Thickness measurement Width measurement -
Fully Machined Non-oriented Electrical Steel (FP)M12/M15/M19/M22 - Product Packaging
