DC01 Cold Rolled Steel Coil
DC01, DC02, DC03, DC04, DC05, DC06 are steel grades of European standard DIN EN 10130, 10209 and DIN 1623, which are specified cold rolled steel. The grades are classified according to the maximum permissible yield strength.
- Product Description
- Spot Warehouse
- Product Inspection
- Product Measurement
- Product Packaging
-
- Commodity name: DC01 Cold Rolled Steel Coil
DC01, DC02, DC03, DC04, DC05, DC06 are steel grades of European standard DIN EN 10130, 10209 and DIN 1623, which are specified cold rolled steel. The grades are classified according to the maximum permissible yield strength.

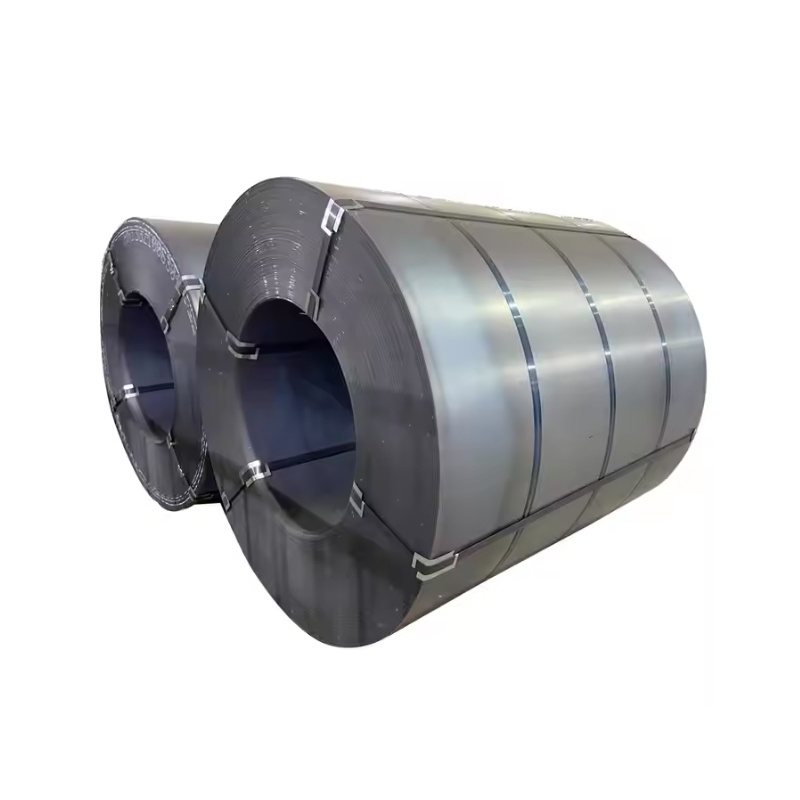

DC01 Cold Rolled Steel Coil
DC steel coils have high tensile strength and elongation, giving them good processing properties during the manufacturing process. This makes DC steel coil widely used in the manufacturing of automotive parts, home appliances, construction and other parts that require high strength and precision. DC steel coil has excellent weldability and machinability with its low carbon content. So it can be processed through various welding and cutting processes, such as arc welding, gas shielded welding, laser cutting, etc., to meet the needs of material processing performance in different fields. Lastly, it meets the requirements of environmental protection and sustainable development by releasing low carbon emission.
Product ParametersProduct Name
DC01 Cold Rolled Steel Coil
Production Process
Hot Rolling, Cold Rolling
Material Standards
AISI, ASTM, ASME, DIN, BS, EN, ISO, JIS, GOST, SAE, etc.
Width
45mm-2200mm
Length
Custom Size
Thickness
Hot Rolling: 2.75mm-100mm
Cold Rolling: 0.2mm-3mmDelivery Conditions
Rolling, Annealing, Quenching, Tempered or Standard
Surface Process
Ordinary, Wire Drawing, Laminated Film
Chemical Composition
C: max. 0,08 %
Mn: max. 0,40 %
P: max. 0,03 %
S: max. 0,03 %
Mechanical Properties
Steel Grade
Yield Strength (MPa) min
Tensile Strength (MPa) min
Elongation % min
Old Description
DC01
≤ 280
270-410
28
St 12-03
DC03
≤ 240
270-370
34
St 13-03
DC04
≤ 210
270-350
38
St 14-03
DC05
≤ 180
270-330
40
St 15-03
DC06
≤ 170
270-330
41
- DC07
≤ 150
250-310
44
- Scope of Application
DC01 can be used for simple forming work, for example Bending, embossing, beading and pulling.
DC03 is suitable for forming requirements like Deep drawing and difficult profiles suitable.
DC04 is suitable for high deformation requirements.
DC05 is a thermal forming grade, it is suitable for higher forming requirements.
DC06 is a grade for special deep drawing, suitable for the higher deformation requirements.
DC07, this superior deep drawing quality is suitable for highest deformation requirements.
-
DC01/DC02/DC03/DC04 Cold Rolled Steel Coil - Stock Warehouse
-
DC01/DC02/DC03/DC04 Cold Rolled Steel Coil - Product Inspection
Tensile Strength Testing Tensile Strength Testing Physical Performance Testing Chemical Composition Testing
Inspection Hardness Testing Spectral Detection Mechanical Properties -
DC01/DC02/DC03/DC04 Cold Rolled Steel Coil - Product Measurement
Width Measurement Length Measurement Thickness Measurement Thickness Measurement
Measurement Measurement Measurement Measurement -
DC01/DC02/DC03/DC04 Cold Rolled Steel Coil- Product Packaging
