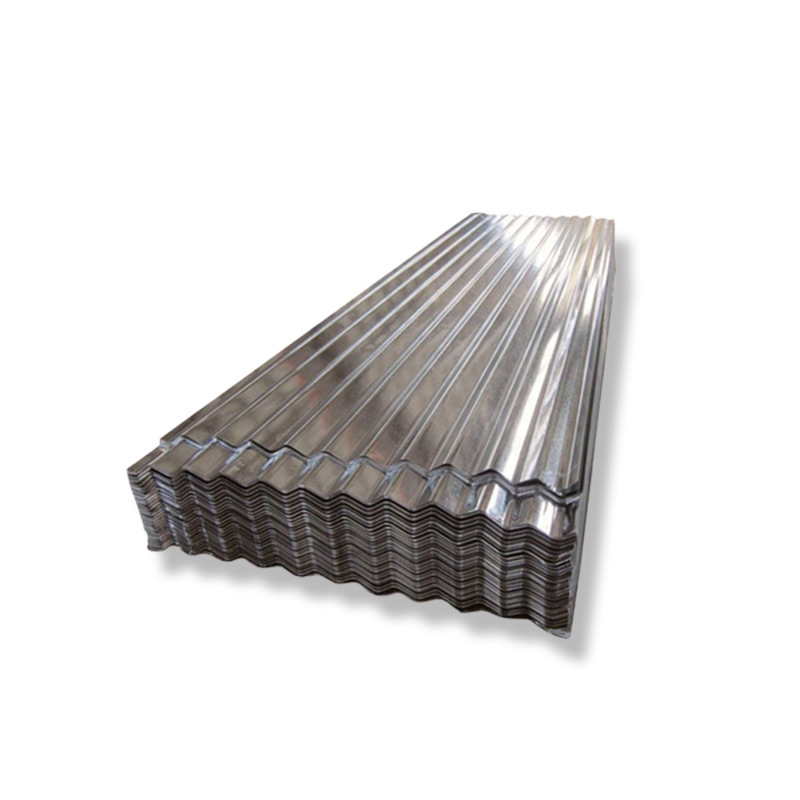

Galvalume Steel Corrugated Roof Sheet
Galvalume steel corrugated roof sheet is made of galvanized steel sheet used for roofing and coated with zinc. The zinc coating provides moisture and oxygen protection for the base steel. According to the galvanizing process, it can be divided into hot-dip galvanized steel plate and electro-galvanized steel plate. The corrugated design improves its strength and enable it to withstand harsh weather conditions.
- Product Description
- Spot Warehouse
- Product Inspection
- Product Measurement
- Product Packaging
-
- Commodity name: Galvalume Steel Corrugated Roof Sheet
Galvalume steel corrugated roof sheet is made of galvanized steel sheet used for roofing and coated with zinc. The zinc coating provides moisture and oxygen protection for the base steel. According to the galvanizing process, it can be divided into hot-dip galvanized steel plate and electro-galvanized steel plate. The corrugated design improves its strength and enable it to withstand harsh weather conditions.
Galvalume Steel Corrugated Roof Sheet Description
Galvalume steel corrugated roof sheet has designs of wavy, trapezoidal designs, ribbed galvanized roof panels, etc. It can be used as a single-layer board, covering an existing roof, or a steel sandwich panel. Galvalume sheet itself is more cost-effective than traditional roofing materials. In addition, it is light in weight and easy and quick to install. In addition, it is durable and recyclable and requires less maintenance. All these factors make galvalume steel corrugated roof sheet an economical choice. It has a bright and smooth surface. The corrugated design is also excellent from the outside. In addition, it has good adhesion, so you can paint it in different colors. Having a galvalume steel roof makes it easy to achieve aesthetic purposes.
Superior Corrosion Resistance
The aluminum layer makes the aluminized zinc steel have excellent corrosion resistance. When the zinc wears, the aluminum will form a dense aluminum oxide layer, preventing the corrosion-resistant substance from further corroding the interior. Therefore, the corrosion resistance of GL plate is 3 times that of galvanized plate. Under the same circumstances, the service life of GL roof panels is 2-6 times that of GI roof panels.
High Thermal Reflectivity
Its reflection coefficient is twice that of galvanized metal roof panels, which can reduce the indoor temperature in summer and reduce the power consumption of air conditioning. This feature makes it ideal for hot climates.
High Temperature Resistance
GL roofing sheet has good heat resistance and can withstand high temperatures above 300 degrees. Therefore, it can be used for a long time at high temperature.
Smooth Surface, Uniform Appearance
The aluminized zinc roof panels are smooth, silvery white with uniform sequins. It looks beautiful and can be used directly. Therefore, it is widely used for commercial and residential purposes.
Good Formability And Adhesion
The adhesion between the GL coating and the paint is good and easy to paint. In addition, it also has excellent formability. That is, punching, cutting, and the like are easy.
Scope of ApplicationCommercial buildings: hospitals, schools, shops, government buildings, etc.
Residential projects: private houses, apartments, temporary houses, garages, etc.
Industrial application: warehouse, factory, etc
Agricultural use: barn, storage room, greenhouse, etcProduct Parameters
Product Name
Galvalume Steel Sheet
Thickness
0.12mm-6.00mm
Width
600mm-1500mm
Length
1m-12m, Support Customization
Standard
AISI, ASTM, DIN, JIS, GB, JIS, SUS, EN, etc.
Thickness of Aluminum Zinc Coating
30-185g/m²
Content of Al-Zn Coating
Al: 55%, Zn: 43.5%, Si: 1.5%
Chemical Composition
Al
Zn
Si
Fe
Cu
Cd
Pb
Sn
Ni
Close Cr
55-58
41-43
1.5-2
0.25
0.03
0.05
0.01
0.05
0.05
0.05
Mechanical Properties
Grade
Yield Strength MPa≥
Tensile Strength MPa≥
Elongation A%≥
DX51D Z/ZM/AZ/AM
240-380
270-500
22
DX52D Z/ZM/AZ/AM
140-300
270-420
26
DX53D Z/ZM/AZ/AM
140-260
270-380
30
DX54D Z/ZM/AZ/AM
120-220
260-350
36
S220GD Z/ZM/AM
220
300
20
S250GD Z/ZM/AZ/AM
250
330
19
S280GD Z/ZM/AM
280
360
18
S300GD A/AM
300
380
18
S320GD Z/ZM/AM
320
390
17
S350GD Z/ZM/AZ/AM
350
420
16
S450GD A/AM
450
480
15
S550GD Z/ZM/AZ/AM
550
550
-
Galvanized Surface Selection
Zero Spangle
Minimized Spangle
Normal Spangle
Large Spangle
Type of Coating
Recommended Coating Weight
Aluminum-zinc Alloy
30/40/50/60/75/90/100/150
A: Coating quality50g/㎡,approximately equal to the coating thickness13.3pm
Project
Classification
Symbol
Type of Coating
Aluminum-zinc Alloy
AZ
Surface Finish
Conventional Sequins
R
Minimize Sequins
M
Skin Through
S
Surface Treatment
Chromate Passivation
c
Non-chromate Passivation
C5
Chromate Passivationoiling
CO
Chromium-free Passivationoiling
CO5
Anti-fingerprint
N
Chromate-free/Anti-fingerprint
N5
No chromate high weather resistance fingerprint
NW
Oil filling
0
No treatment
U
Material Comparison
Chinese Standard
European Standards
American Standard
Japanese Standard
DC51D+AZ
DX51D+AZ
CS Type B, Type C
SGLCC
DC52D+AZ
DX52D+AZ
DS
SGLCD
S250GD+AZ
S250GD+AZ
255
-
S300GD+AZ
-
-
-
S350GD+AZ
S350GD+AZ
345
Class1 SGLC490
S550GD+AZ
S550GD+AZ
550
SGLC570
-
Galvalume Steel Corrugated Roof Sheet - Stock Warehouse
-
Galvalume Steel Corrugated Roof Sheet - Product Inspection
Tensile Strength Testing Tensile Strength Testing Physical Performance Testing Chemical Composition Testing
Inspection Hardness Testing Spectral Detection Mechanical Properties -
Galvalume Steel Corrugated Roof Sheet - Product Measurement
Thickness Measurement Width Measurement Measurement Measurement -
Galvalume Steel Corrugated Roof Sheet - Product Packaging
