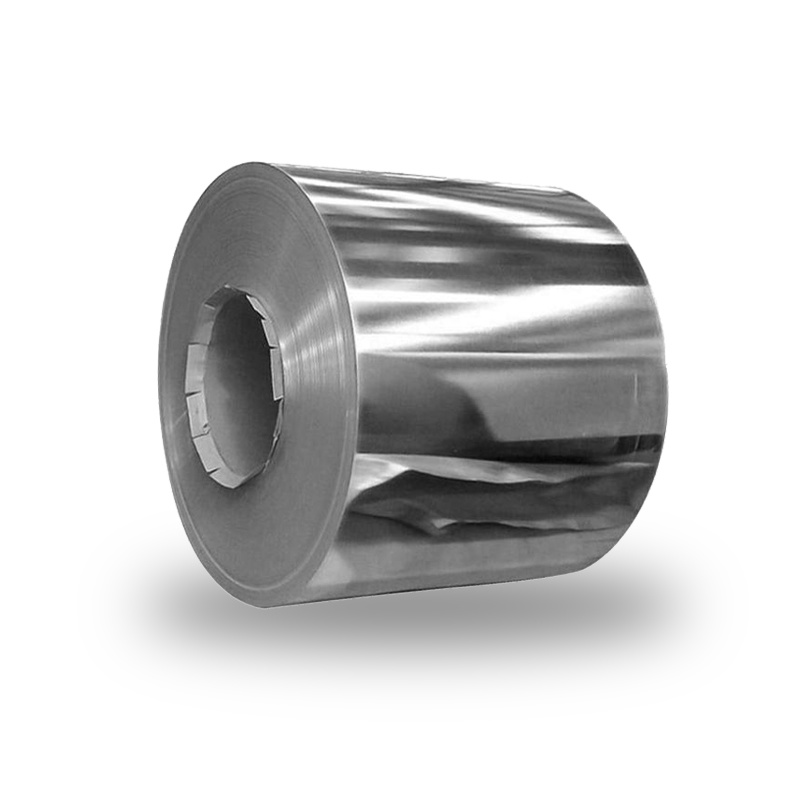

CGO Grain Oriented Electrical Steel M3/M4/M5/M6
We produce cold rolled grain oriented plates (CRGO), also known as transformer plates. They are made of 3% silicon steel. There are four grades of CRGO sheets: 0.23mm (M3), 0.27mm (M4), 0.30mm (M5), and 0.35mm (M6).
- Product Description
- Spot Warehouse
- Product Inspection
- Product Measurement
- Product Packaging
-
- Commodity name: CGO Grain Oriented Electrical Steel M3/M4/M5/M6
We produce cold rolled grain oriented plates (CRGO), also known as transformer plates. They are made of 3% silicon steel. There are four grades of CRGO sheets: 0.23mm (M3), 0.27mm (M4), 0.30mm (M5), and 0.35mm (M6).
CGO Grain Oriented Electrical Steel M3/M4/M5/M6 Description
We produce cold rolled grain oriented plates (CRGO), also known as transformer plates. They are made of 3% silicon steel. Contains four levels of CRGO sheets:
AISI ASTM Thickness in mm M3 23G045 0.009 0.23 M4 27G051 0.011 0.27 M5 30G058 0.012 0.30 M6 35G066 0.014 0.35 Product Parameters
Category Silicon Content/%
Nominal Thickness/Mm
Lord To Use Way
Hot Rolled Silicon Steel
(No Orientation)
Hot rolled low silicon steel(Motor Steel)
1.0~2.5
0.5
Household motors and micromotors
Hot rolled high silicon steel(Transformer steel)
3.0~4.5
0.35,0.50
Transformer
Cold Rolled Electrical Steel
Cold rolled non-oriented electrical steel(Motor Steel)
Low carbon electrical steel
≤ 0.5
0.50,0.65
Small transformers and ballasts for household motors, micromotors
Silicon steel
>0.5~3.5
0.35,0.50
Medium and large motors, generators and transformers
Cold rolled grain oriented silicon steel(Transformer steel)
Ordinary oriented silicon steel
2.9~3.3
0.18,0.23,0.27
0.30,0.35Large, medium and small transformers and ballasts
High magnetic induction oriented silicon steel
Special Purpose Silicon Steel
Cold rolled grain oriented silicon steel strip
2.9~3.3
0.03,0.05,0.10
Pulse transformer, magnetic amplifier, high frequency transformer and electric welding machine
Cold rolled non-oriented silicon steel strip
3.0
0.15,0.20
High-frequency motors and generators
Cold rolled non-oriented silicon steel for magnetic switch
3.0
0.70
Relays and magnetic switches
Cold rolled high silicon steel
6.5
0.1~0.5
High-frequency motors, transformers and magnetic shielding
Scope of Application
The main application field of grain oriented electrical thin sheets is the iron core of power and distribution transformers. In addition, they are also used in the production of current transformers, voltage transformers, medium to large high-efficiency generators, reactors, magnetic screens, wound magnetic cores, audio transformers, etc.
-
CGO Grain Oriented Electrical Steel M3/M4/M5/M6 - Stock Warehouse
-
CGO Grain Oriented Electrical Steel M3/M4/M5/M6 - Product Inspection
Tensile Strength Testing Tensile Strength Testing Physical Performance Testing Chemical Composition Testing
Inspection Hardness Testing Spectral Detection Mechanical Properties -
CGO Grain Oriented Electrical Steel M3/M4/M5/M6 - Product Measurement
Thickness measurement Thickness measurement Thickness measurement Thickness measurement
Thickness measurement Thickness measurement Thickness measurement Width measurement -
CGO Grain Oriented Electrical Steel M3/M4/M5/M6 - Product Packaging
Baowu Special steel
Your reliable steel supplier
Baowu Special steel has 10+ warehouses with ready stock. The annual supply capacity is approximately 10 million tons. It has 10 years of experience in large-scale project supply. The customer reorder rate reaches 86%. We ensure quality and quantity, provide material certificates, and will refund if the products are not qualified, so please be assured the purchase.
