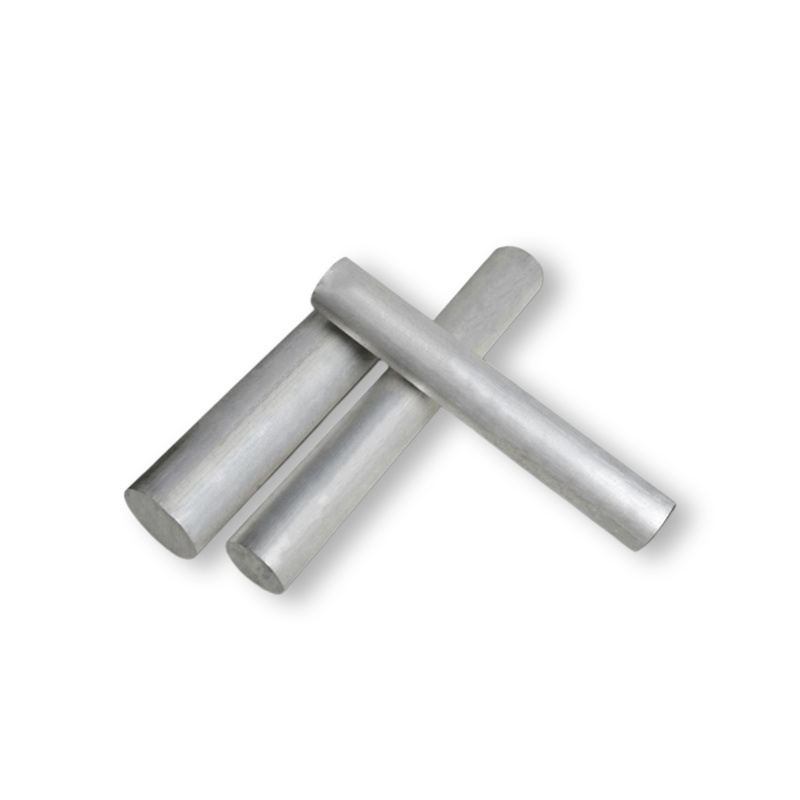

Hastelloy C-22 Bar
Hastelloy C22 bar is made of a solid solution strengthened nickel-based alloy with excellent corrosion resistance and high temperature strength. It mainly contains cobalt, chromium, tungsten, molybdenum and a small amount of aluminum, titanium, nitrogen and other elements.
- Product Description
- Spot Warehouse
- Product Inspection
- Product Measurement
- Product Packaging
-
- Commodity name: Hastelloy C-22 Bar
Hastelloy C22 bar is made of a solid solution strengthened nickel-based alloy with excellent corrosion resistance and high temperature strength. It mainly contains cobalt, chromium, tungsten, molybdenum and a small amount of aluminum, titanium, nitrogen and other elements.
Hastelloy C-22 Bar Description
The main elements of Hastelloy C22 bar include cobalt, chromium, tungsten, molybdenum and small amounts of aluminum, titanium and nitrogen. Among them, cobalt element can improve the strength and hardness of the alloy, chromium element has an important impact on the corrosion resistance of the alloy, tungsten and molybdenum can improve the high-temperature strength of the alloy. In addition, aluminum and titanium elements can help refine the grains and improve the toughness of the alloy, while the addition of nitrogen can improve the strength and corrosion resistance of the alloy. What is more, it has good plasticity and toughness and can be used for cold and hot processing. Hastelloy C22 bar also exhibits excellent oxidation resistance and creep resistance at high temperatures, making it a popular choice in aerospace, chemical industry, petroleum fields.
Product Parameters
Product Name
Hastelloy C-22 Bar
Outer Diameter
Round Bar
4mm-500mm
Hexagon Bar
18mm-57mm (11/16″ to 2-3/4″)
Square Bar
18mm-47mm (11/16″ to 1-3/4″)
Flat Steel
1/2 "to 10", Thickness: 2mm-150mm, Can provide customized
Length
1-6 meters, Length can be customized
Standard
ASTM, AISI, JIS, GB, DIN, EN, etc.
Surface
Black, Bright Polished, Rough Turning, Matt Surface Treatment, NO.4, BA, etc.
Certificate
ISO, SGS, BV
Production Technology
Hot Rolling, Cold Rolling
Chemical Composition
C
Si
P
S
V
Cr
Mn
Fe
Co
Ni
Mo
W
0.015 max
0.08 max
0.02 max
0.02 max
0.35 max
20.0 - 22.5
0.50 max
2.0-6.0
2.5 max
Remainder
12.5 - 14.5
2.5 - 3.5
Mechanical Properties
Tensile Strength (ksi)
0.2% Yield Strength (ksi)
Elongation% in 2 inches
100
45
45
Physical Performance
Units
Temperature in°C
Density
8.69 g/cm³
24°C
Specific Heat
0.093 Kcal/kg.C
52°
Melting Range
1357-1399°C
-
Modulus of Elasticity
205.5 KN/mm²
-
Electrical Resistivity
113.7 µΩ.cm
24 °
Coefficient of Expansion
12.4 µm/m °C
24-93°
Thermal Conductivity
10.1 w/m-° K
48°
Scope of Application
C- 276 alloy is used in pesticide production, phosphoric acid production, pickling system, plate heat exchanger, selective leaching system, SO2 cooling tower, sulfonation system, shell and tube heat exchanger, surfacing welding valve, etc.
-

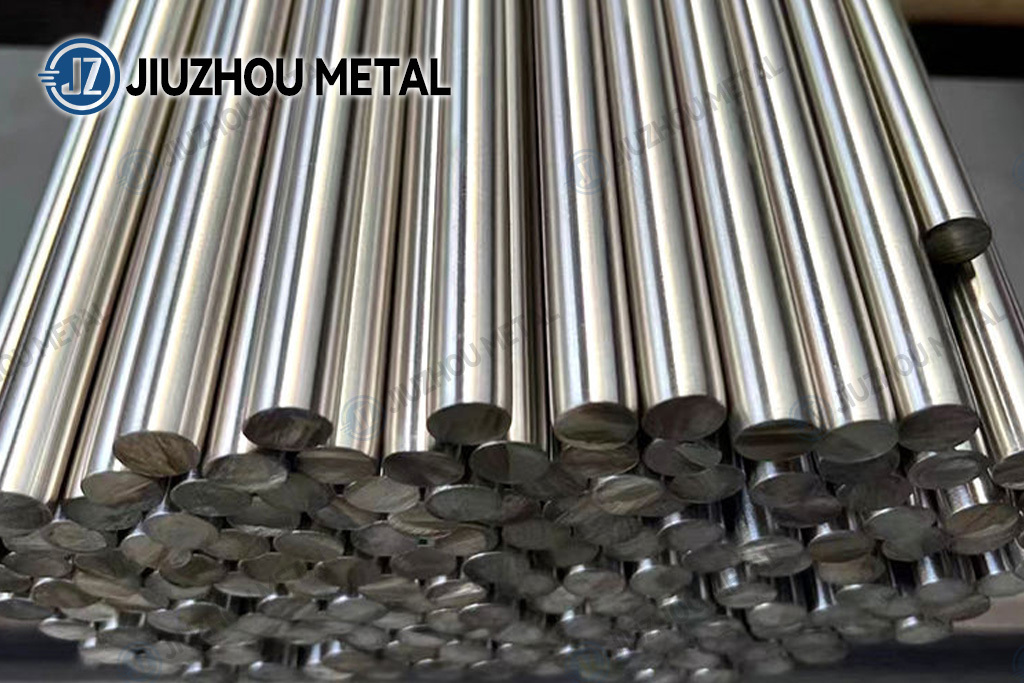

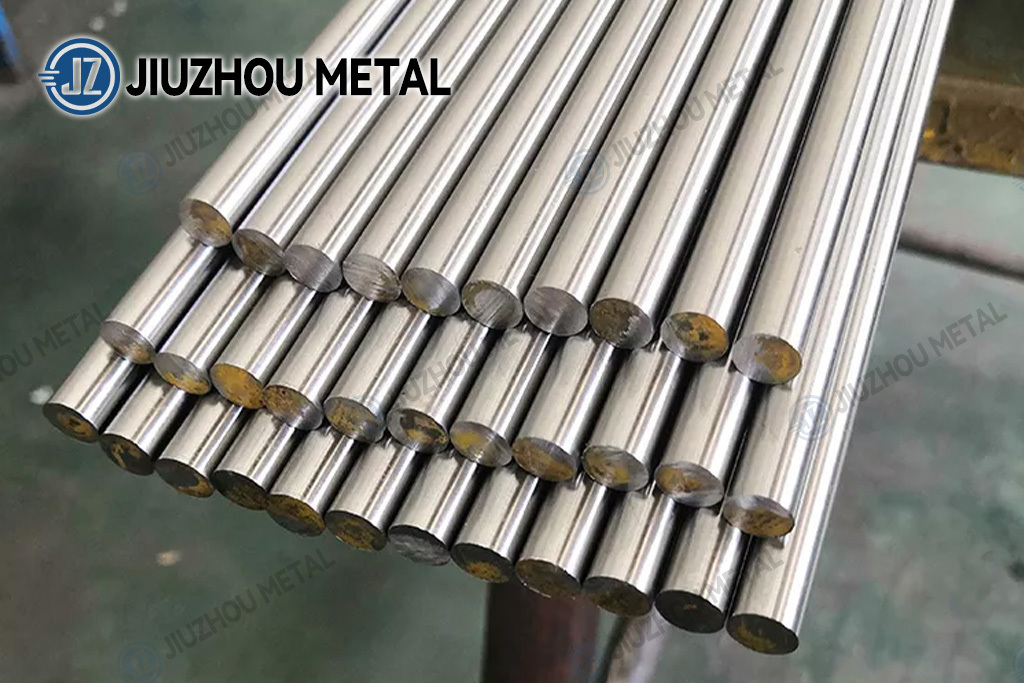

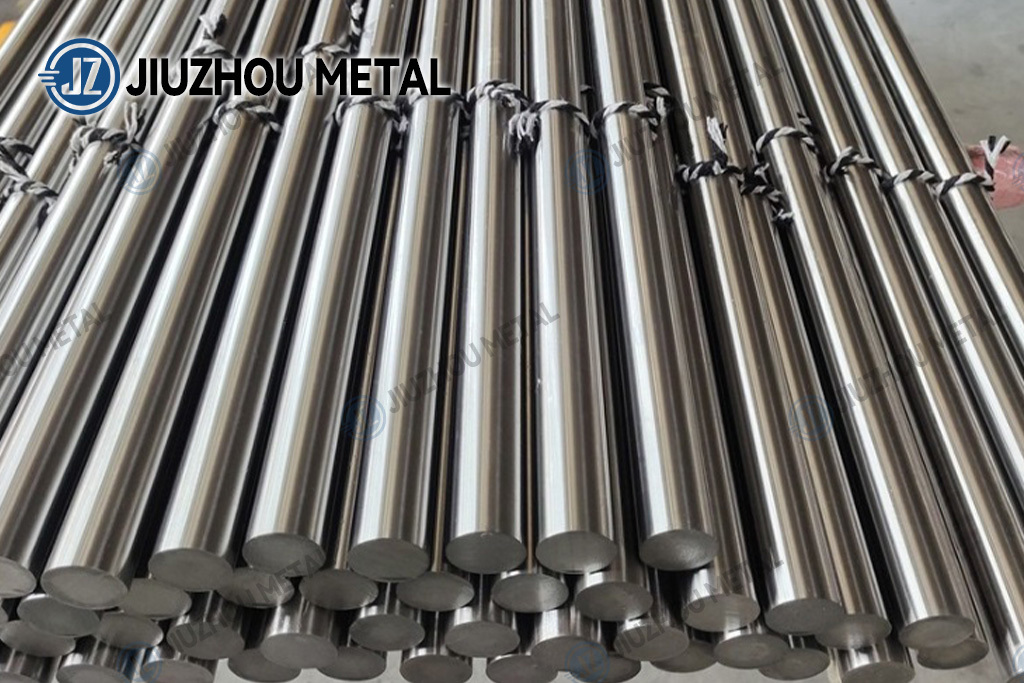

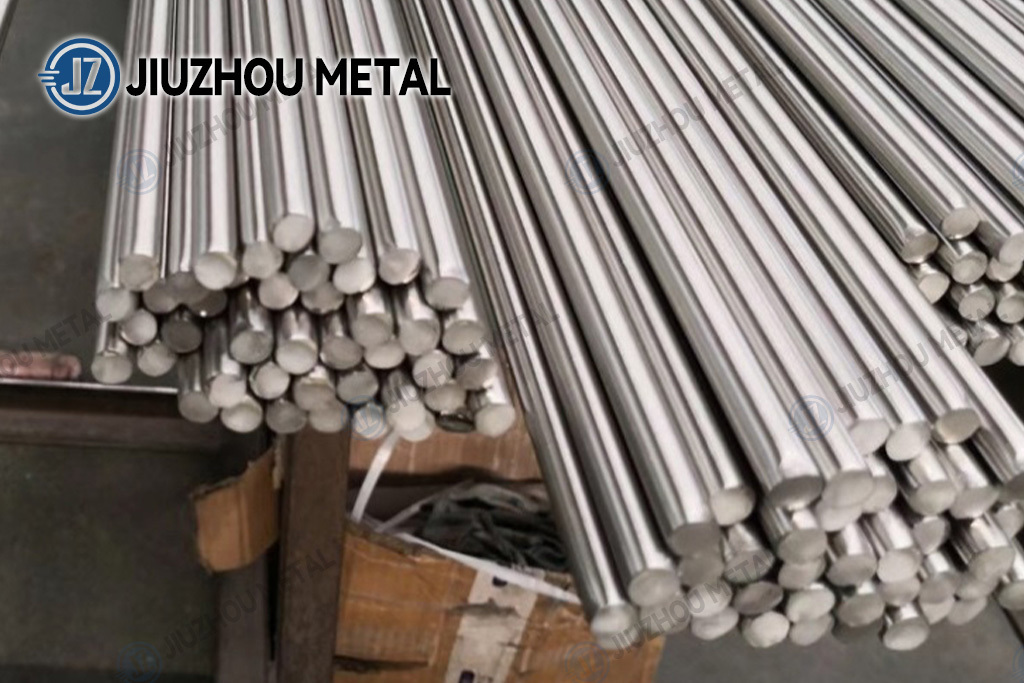

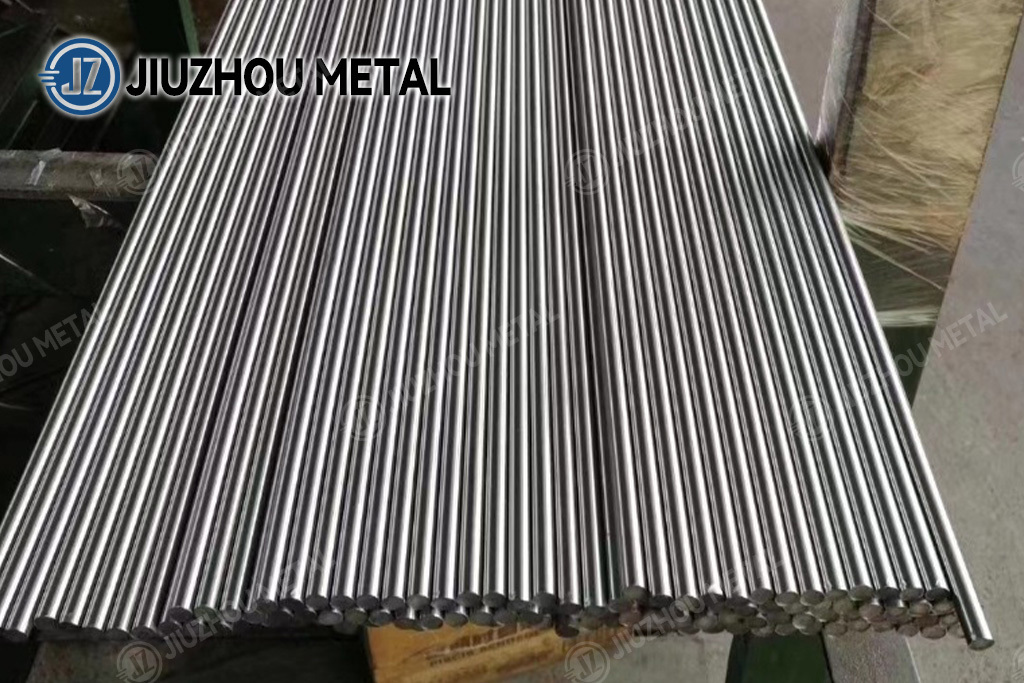

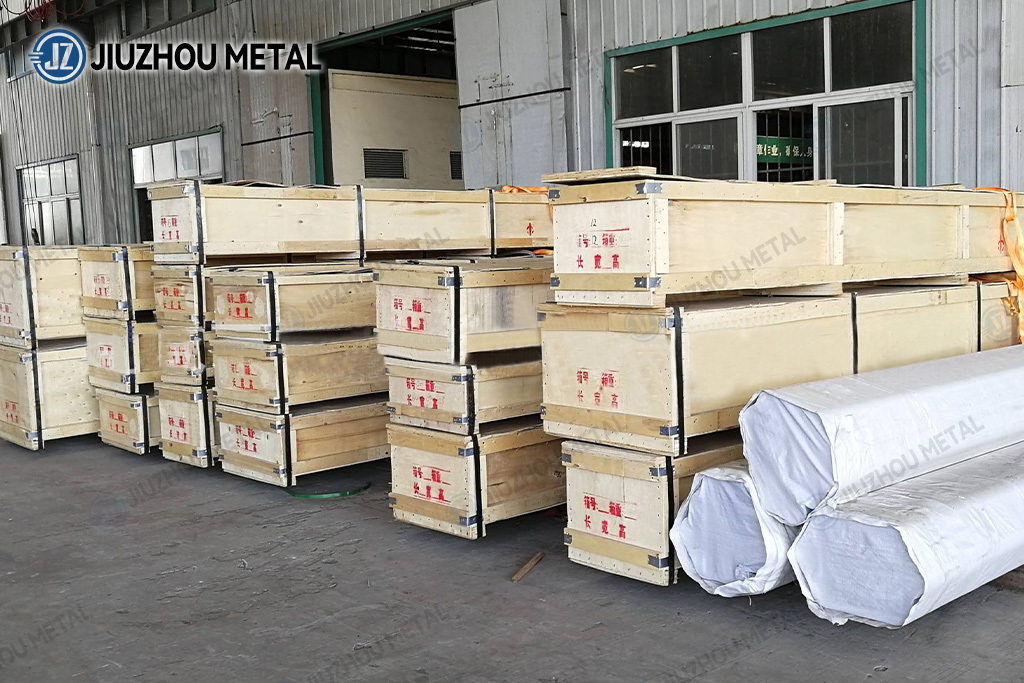

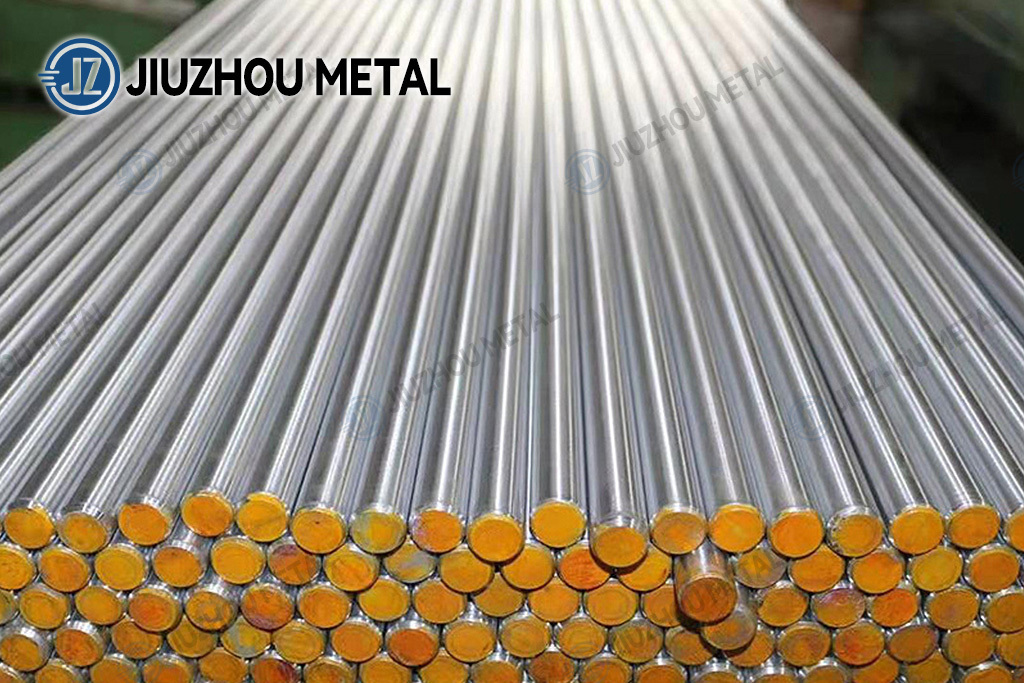

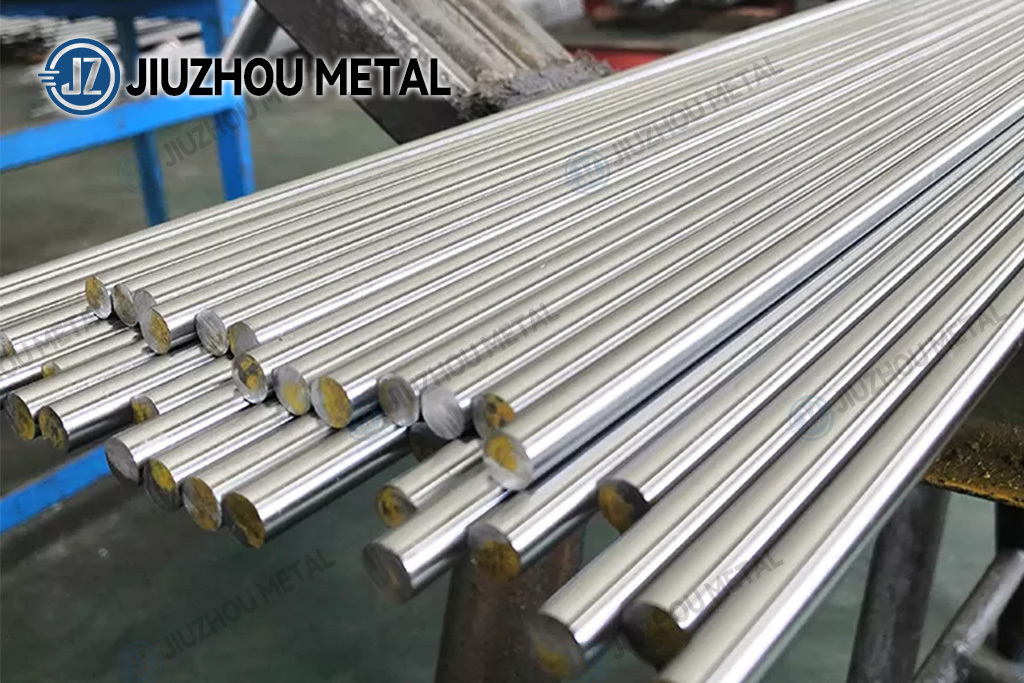

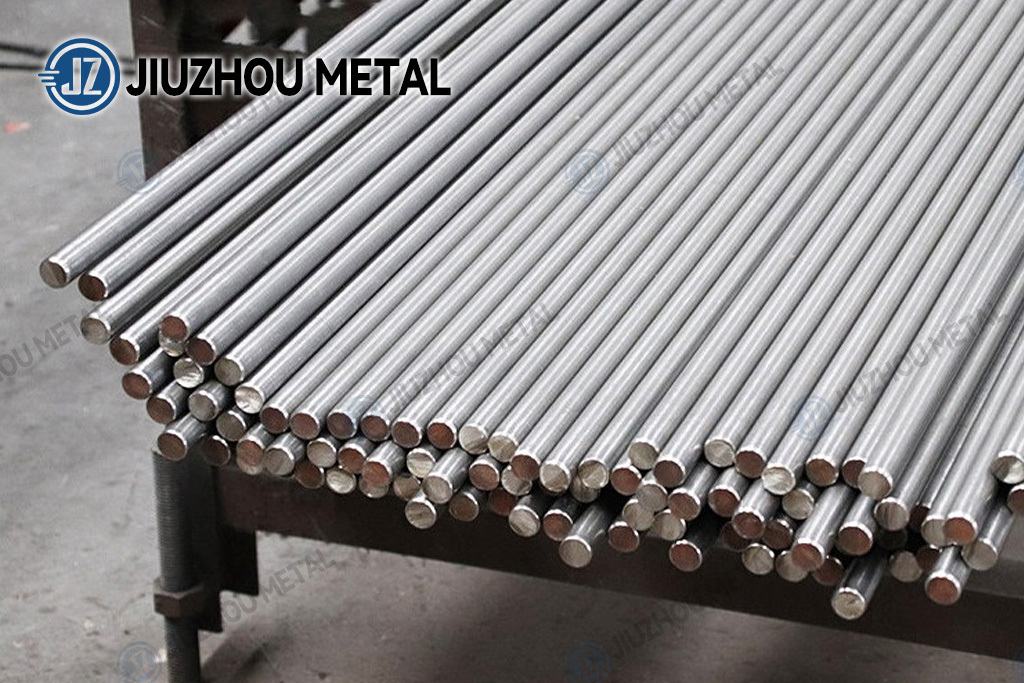

Hastelloy C-22 Bar - Stock Warehouse
-
Hastelloy C-22 Bar - Product Inspection
Tensile Strength Testing Tensile Strength Testing Physical Performance Testing Chemical Composition Testing
Inspection Hardness Testing Spectral Detection Mechanical Properties -

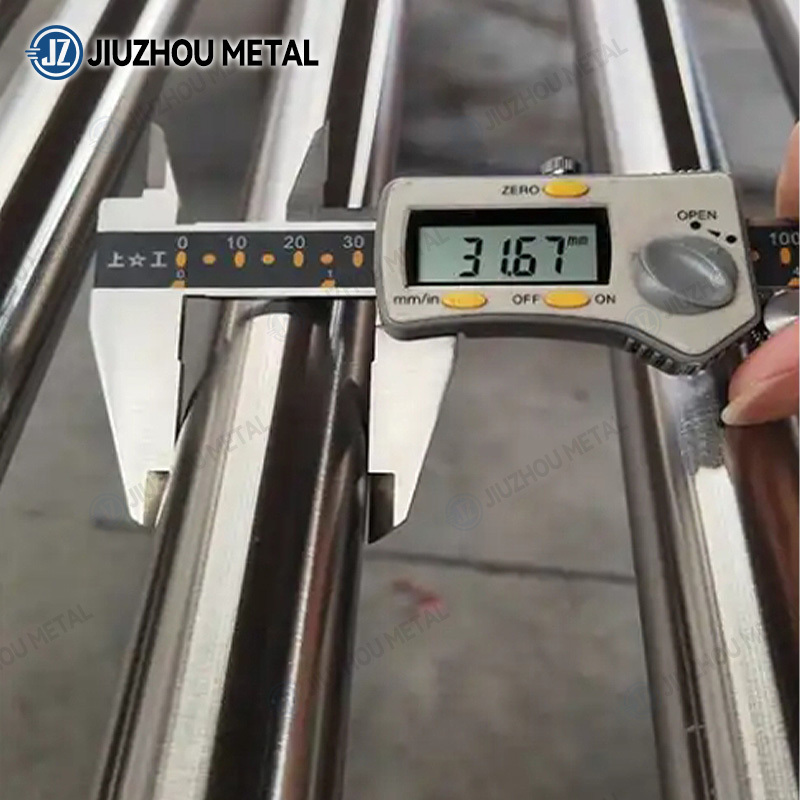

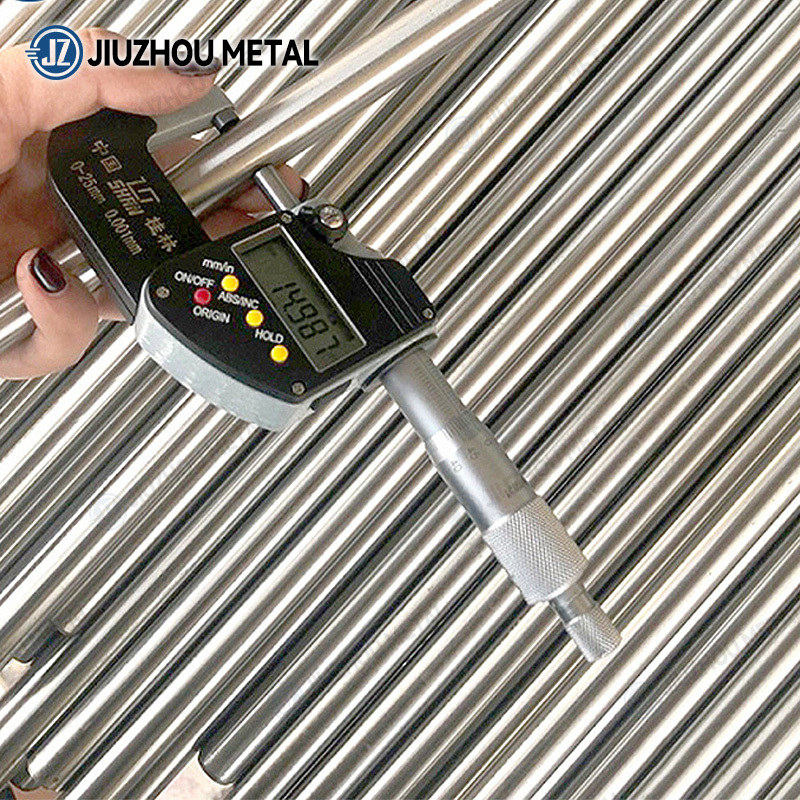

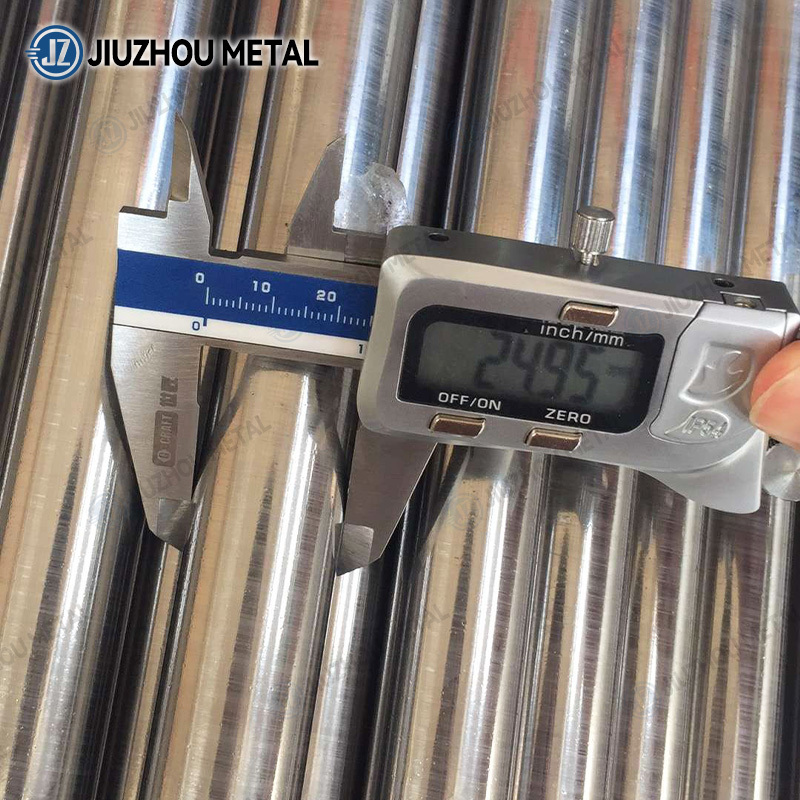

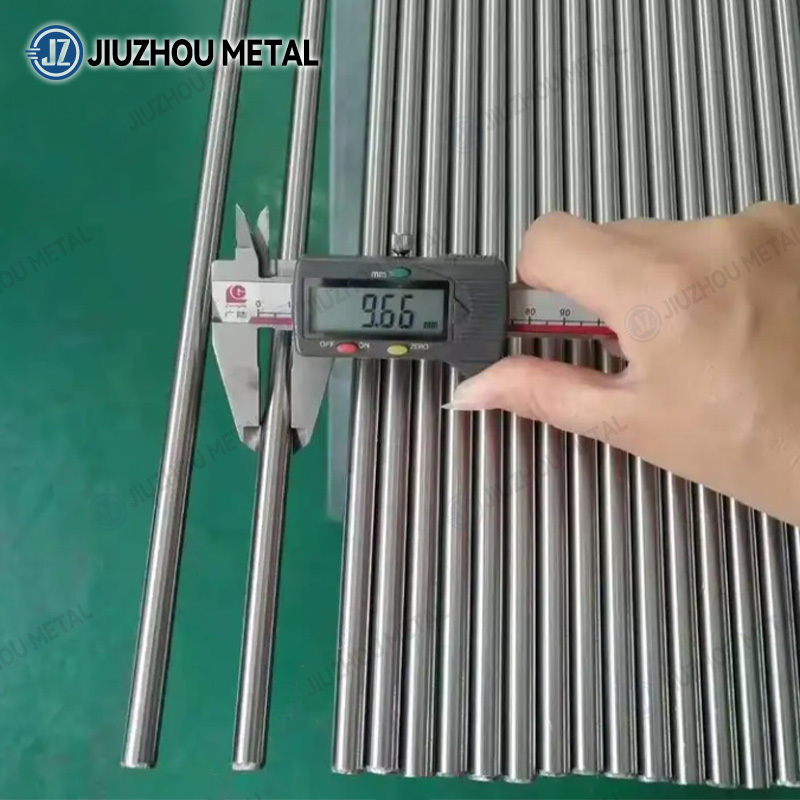

Hastelloy C-22 Bar - Product Measurement
Outer Diameter Measurement Outer Diameter Measurement Outer Diameter Measurement Outer Diameter Measurement -

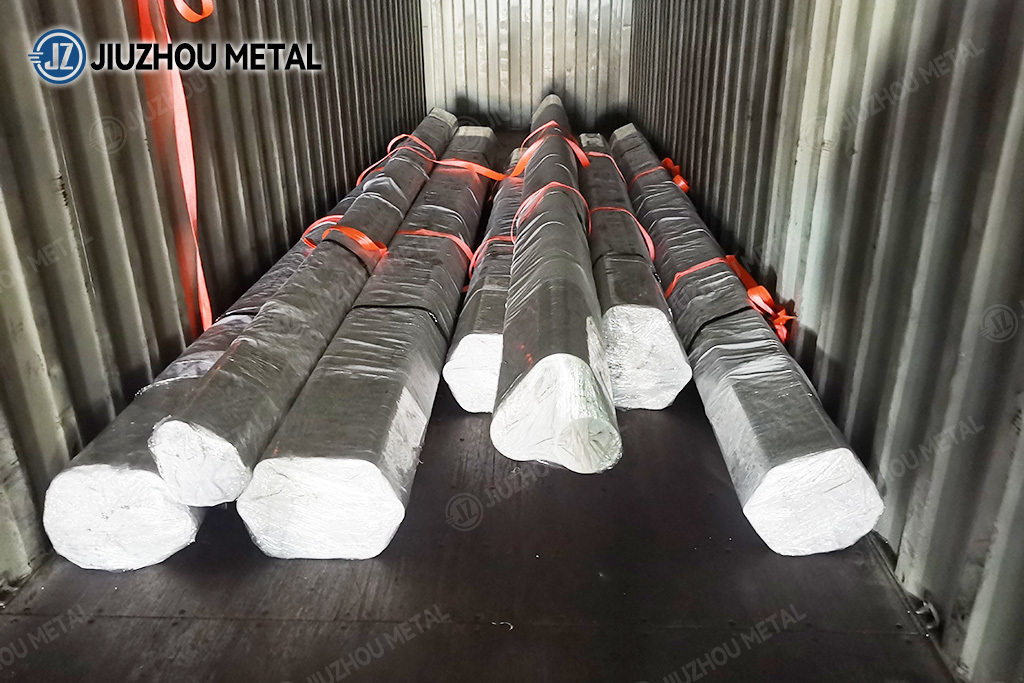

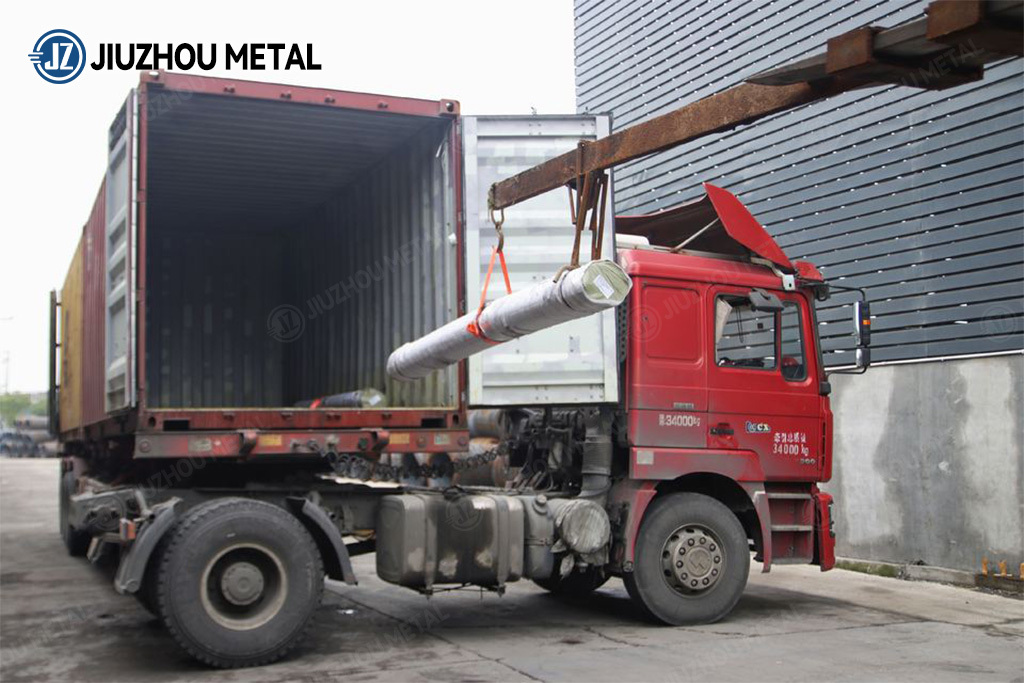

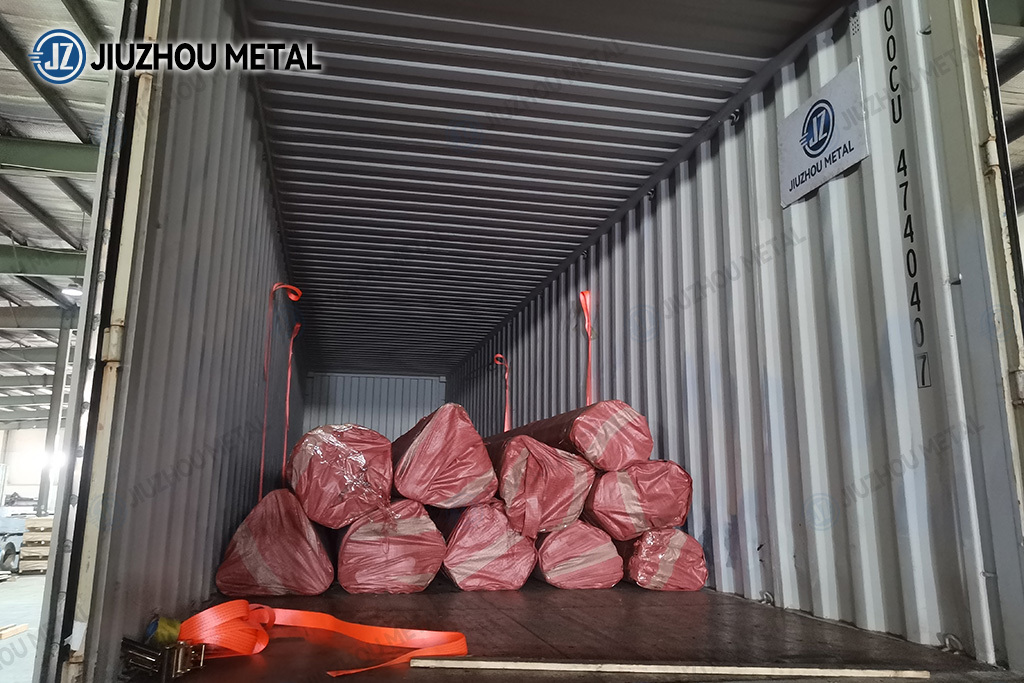

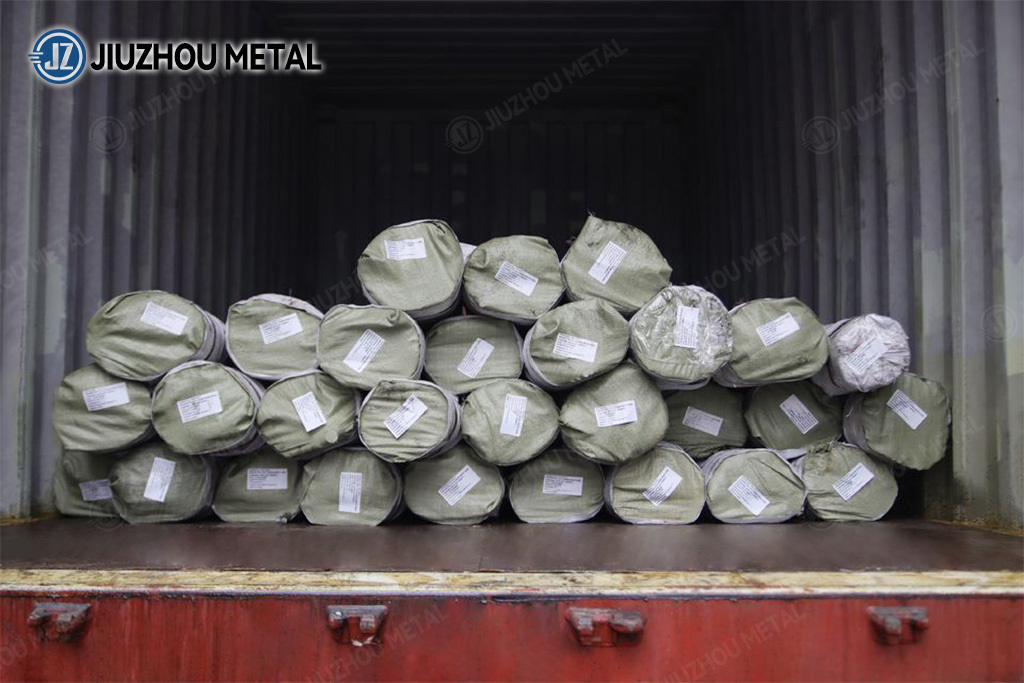

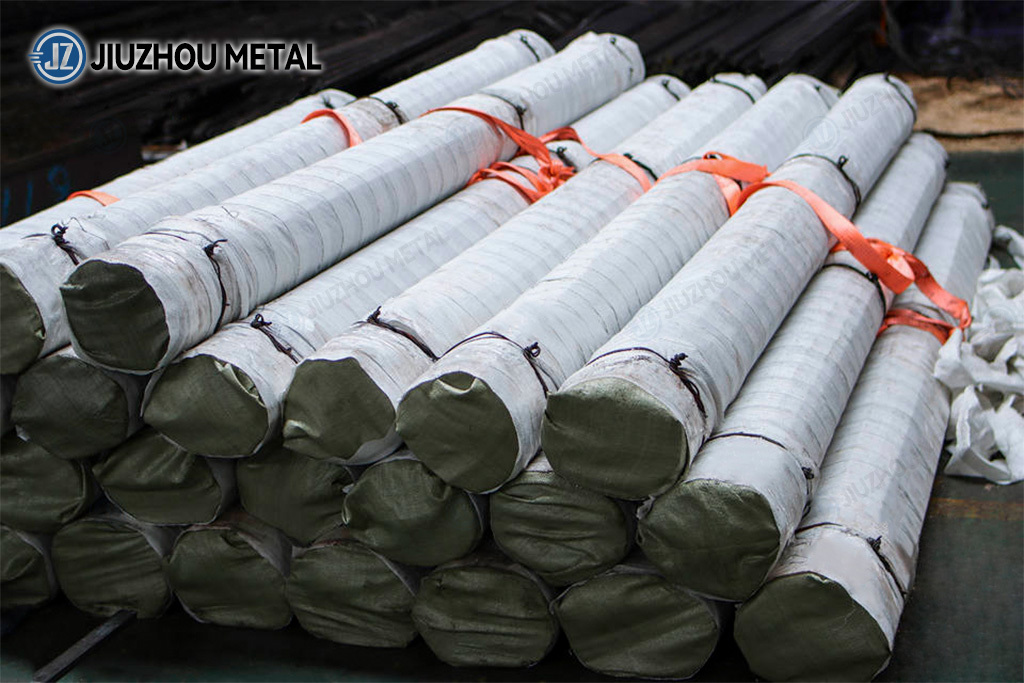

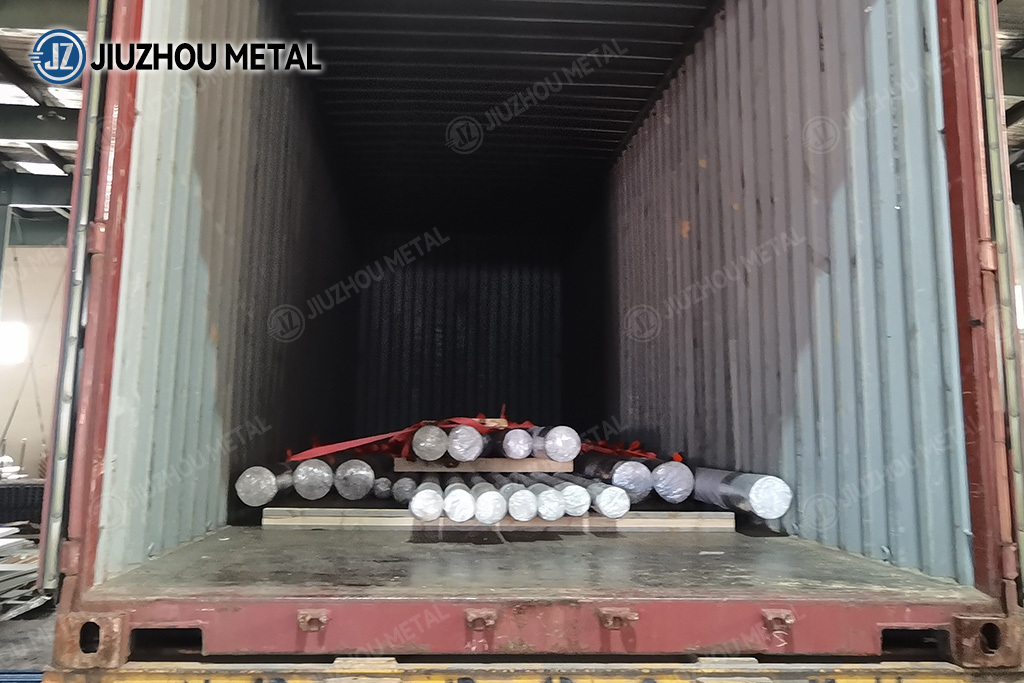

Hastelloy C-22 Bar - Product Packaging
