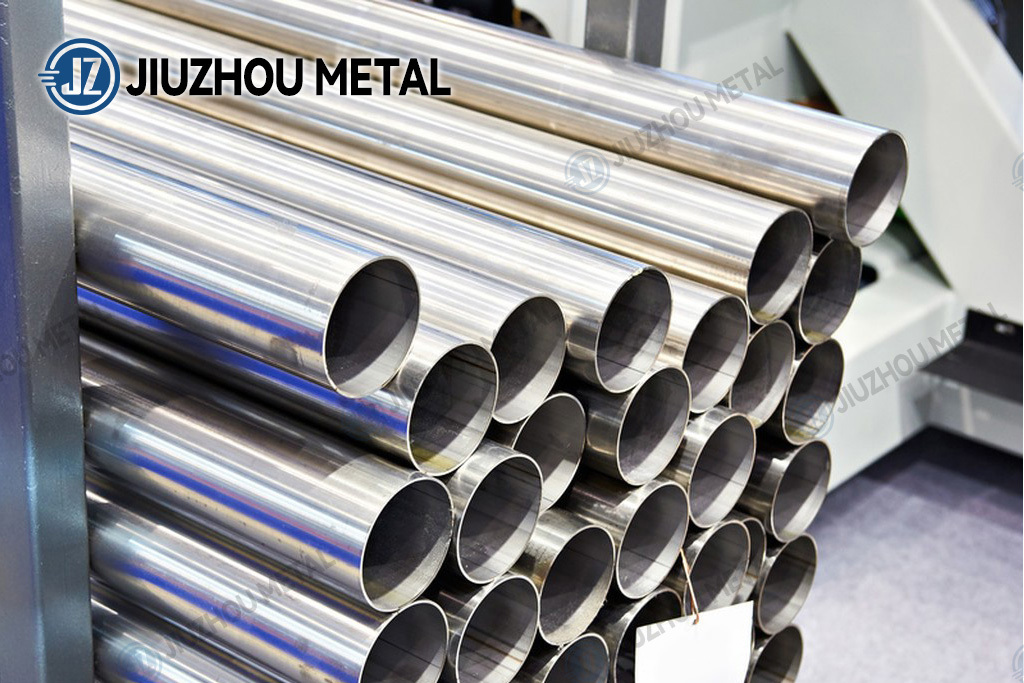

Inconel 600 Pipe
Inconel 600 pipe is made of a nickel-based superalloy characterized by excellent heat resistance, corrosion resistance and high strength in extreme environments. This alloy is widely used in the chemical, aerospace, heat treatment and power industries, especially in high-temperature applications that require resistance to oxidizing and reducing environments.
- Product Description
- Spot Warehouse
- Product Inspection
- Product Measurement
- Product Packaging
-
- Commodity name: Inconel 600 Pipe
Inconel 600 pipe is made of a nickel-based superalloy characterized by excellent heat resistance, corrosion resistance and high strength in extreme environments. This alloy is widely used in the chemical, aerospace, heat treatment and power industries, especially in high-temperature applications that require resistance to oxidizing and reducing environments.
Inconel 600 Pipe Description
Inconel 600 alloy is mainly composed of nickel and chromium, with a nickel content of approximately 72% and a chromium content of approximately 14%-17%. In addition, the alloy contains a smaller proportion of iron, as well as trace amounts of silicon, carbon and manganese. This unique chemical composition gives Inconel 600 pipe excellent corrosion resistance and mechanical strength at high temperatures. Inconel 600 alloy has excellent mechanical properties over a wide temperature range and is capable of use at temperatures up to 1093°C (2000°F) without losing good creep and fracture resistance. Its corrosion resistance is particularly remarkable and it is highly resistant to a variety of corrosive media, including seawater, organic acids, and high-temperature and high-pressure steam environments.
Product Parameters
Product Name
Inconel 600 Pipe
Outer Diameter
Round Pipe
4mm-200mm
Square Pipe
10*10mm-100*100mm
Rectangular Pipe
10*20mm-50*100mm
Wall Thickness
0.6mm-6.0mm
Length
1-6 meters, Length can be customized
Standard
ASTM, AISI, JIS, GB, DIN, EN, etc.
Surface
Black, Bright Polished, Rough Turning, Matt Surface Treatment, No.4, BA, etc.
Certificate
ISO, SGS, BV
Production Technology
Hot Rolling, Cold Rolling
Chemical Composition
C
Si
S
Cr
Mn
Fe
Ni
Cu
0.15 max
0.5 max
0.015 max
14.0 - 17.0
1.0 max
6.0 - 10.0
72.0 min
0.5 max
Mechanical Properties
Tensile Strength (ksi)
0.2% Yield Strength (ksi)
Elongation% in 2 inches
110
85
10
Physical Performance
Units
Temperature in°C
Density
8.47 g/cm³
Room
Specific Heat
0.106 Kcal/kg.C
22°
Melting Range
1354-1413°C
-
Modulus of Elasticity
214 KN/mm²
22°
Electrical Resistivity
103 µΩ.cm
Room
Coefficient of Expansion
13.3 µm/m °C
20 - 100°
Thermal Conductivity
14.9 w/m-° K
20°
Scope of Application
The average utilization of this nickel alloy includes the chemical, pulp and paper, aerospace, nuclear engineering and heat treatment industries.
-

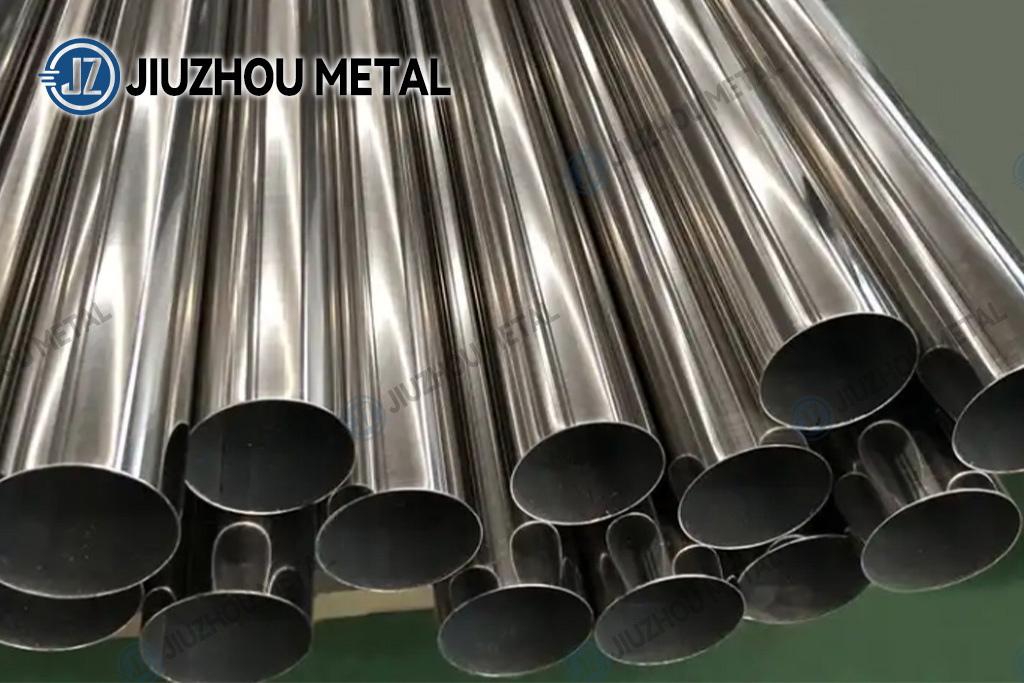

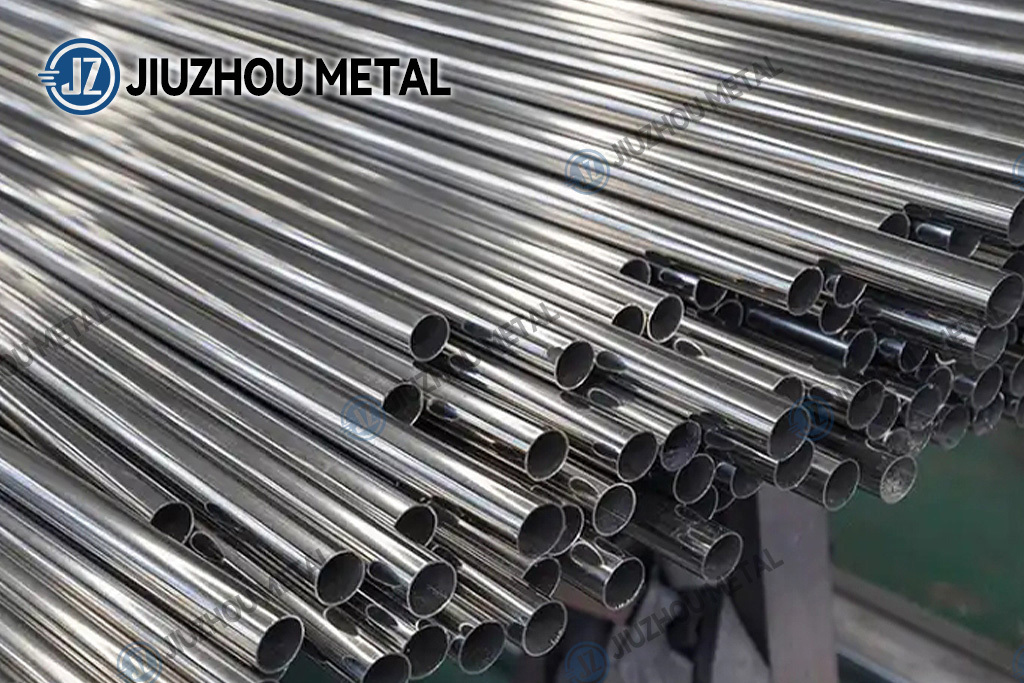

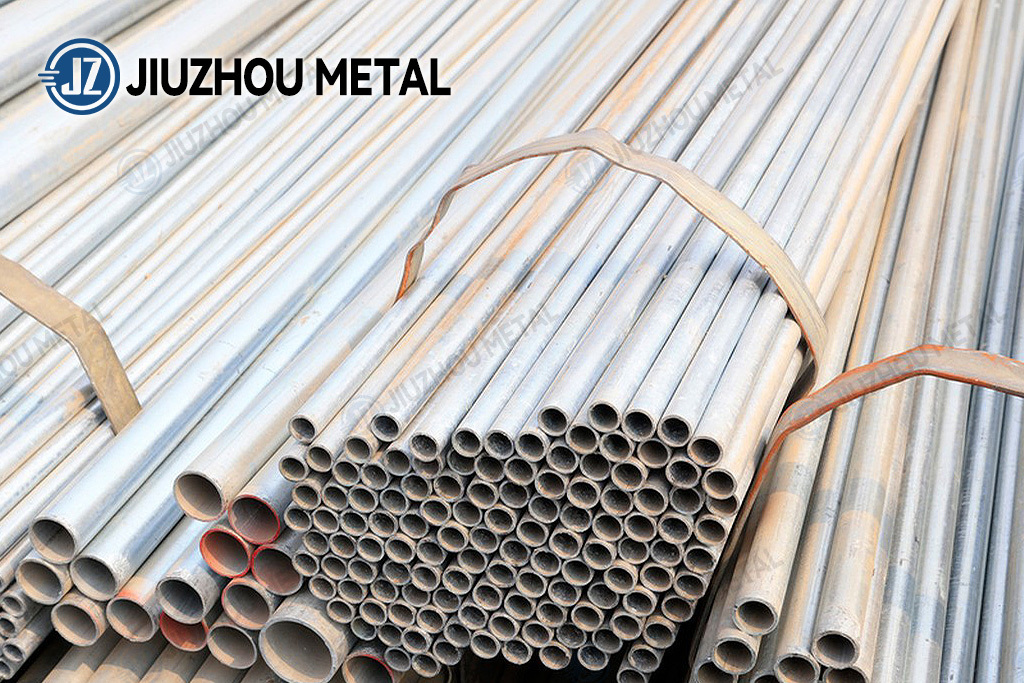

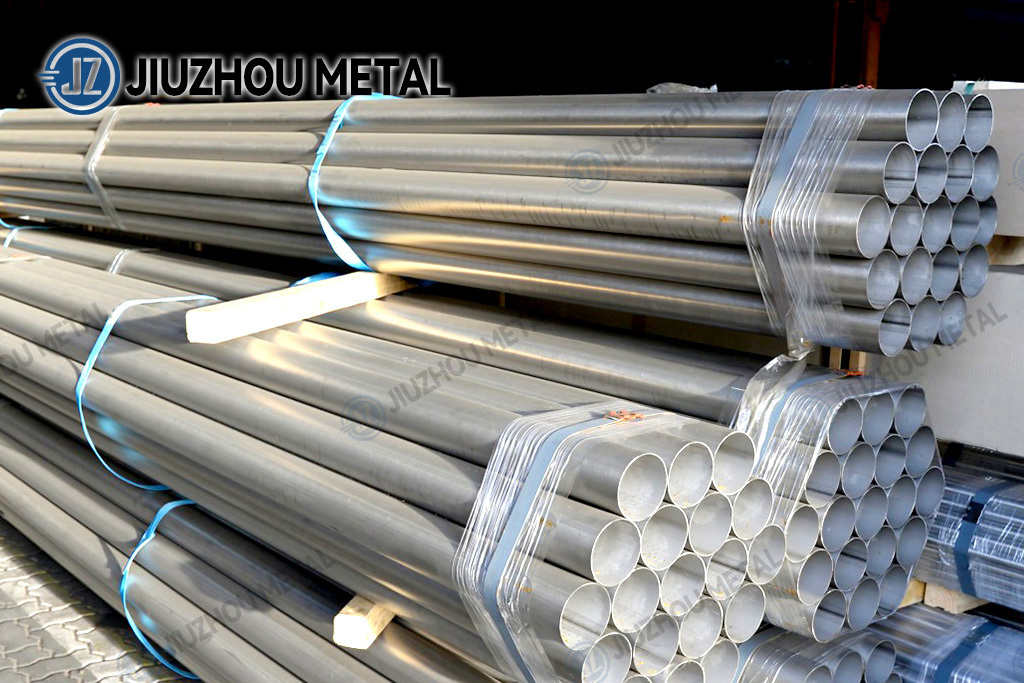

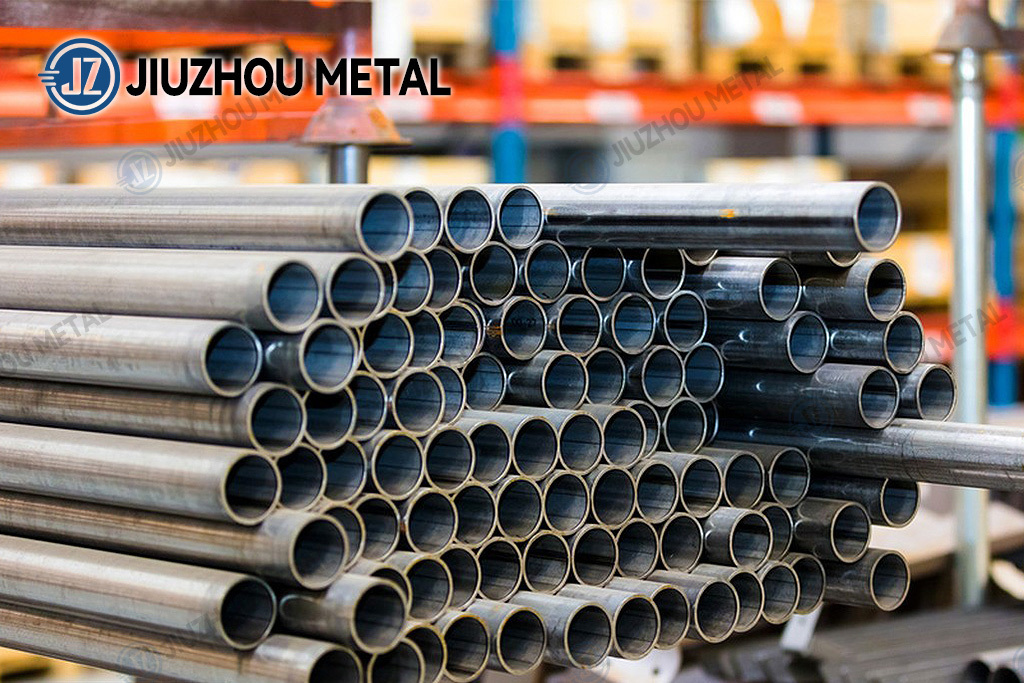

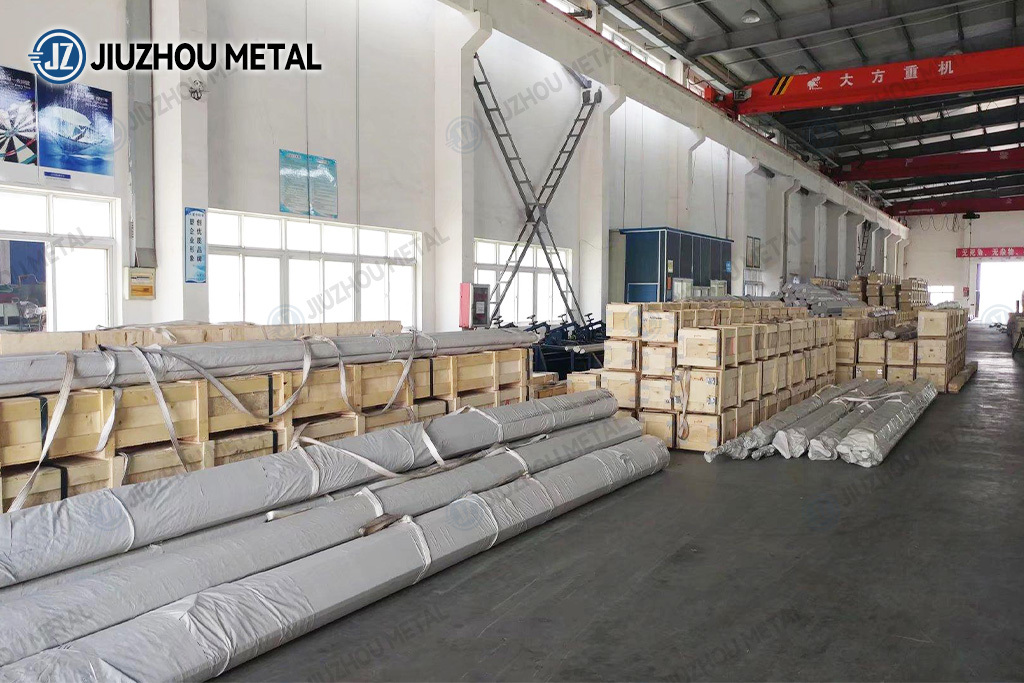

Inconel 600 Pipe - Stock Warehouse
-

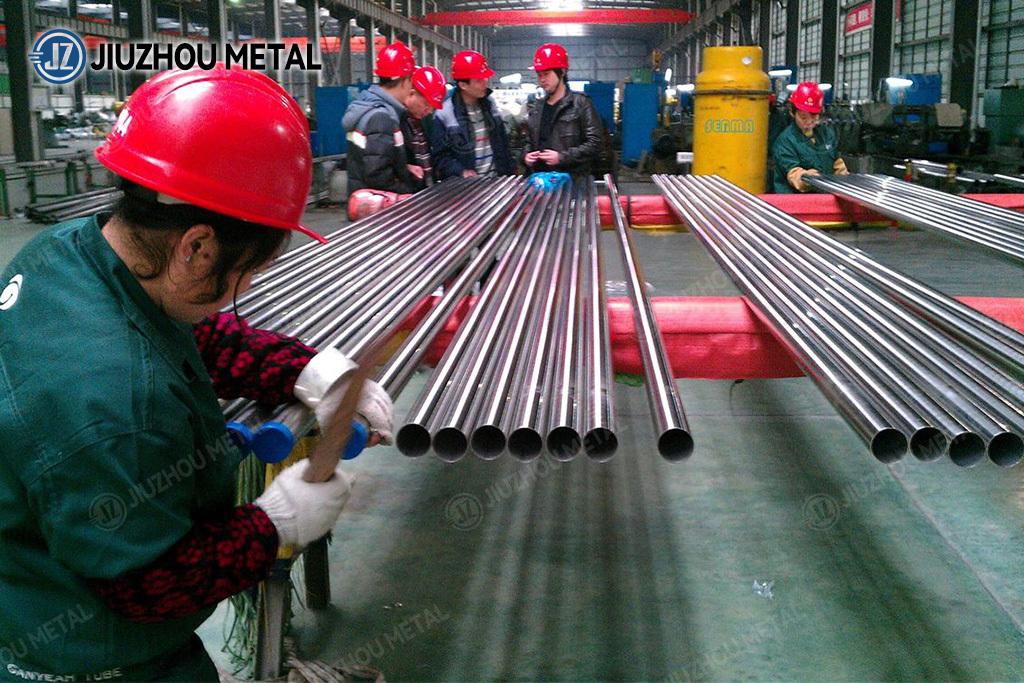

Inconel 600 Pipe - Product Inspection
Tensile Strength Testing Tensile Strength Testing Physical Performance Testing Chemical Composition Testing
Inspection Hardness Testing Spectral Detection Mechanical Properties -

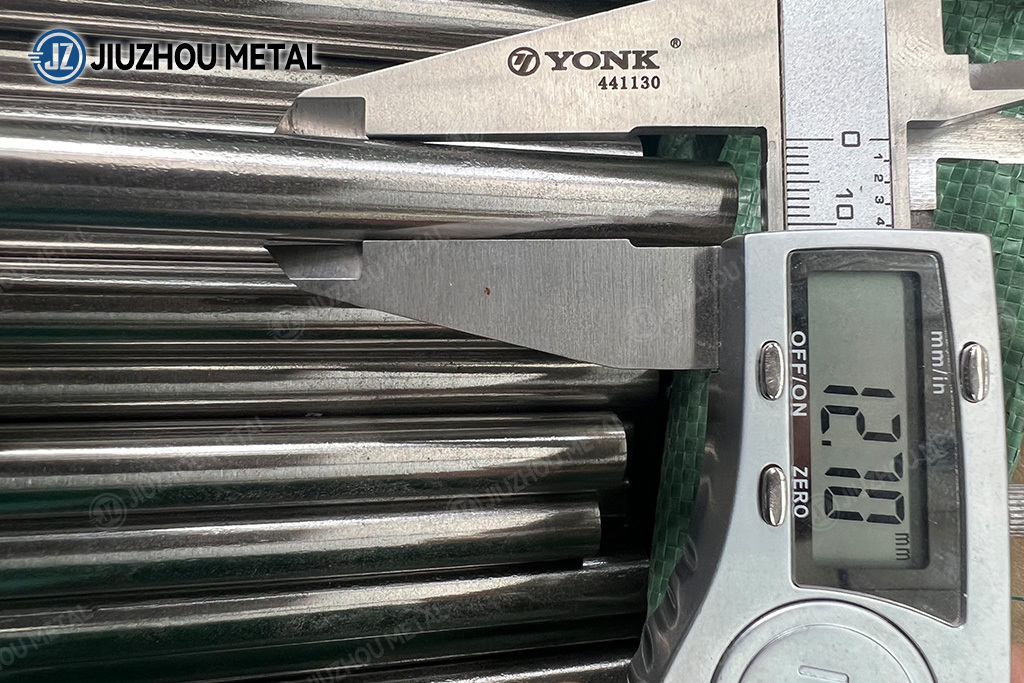

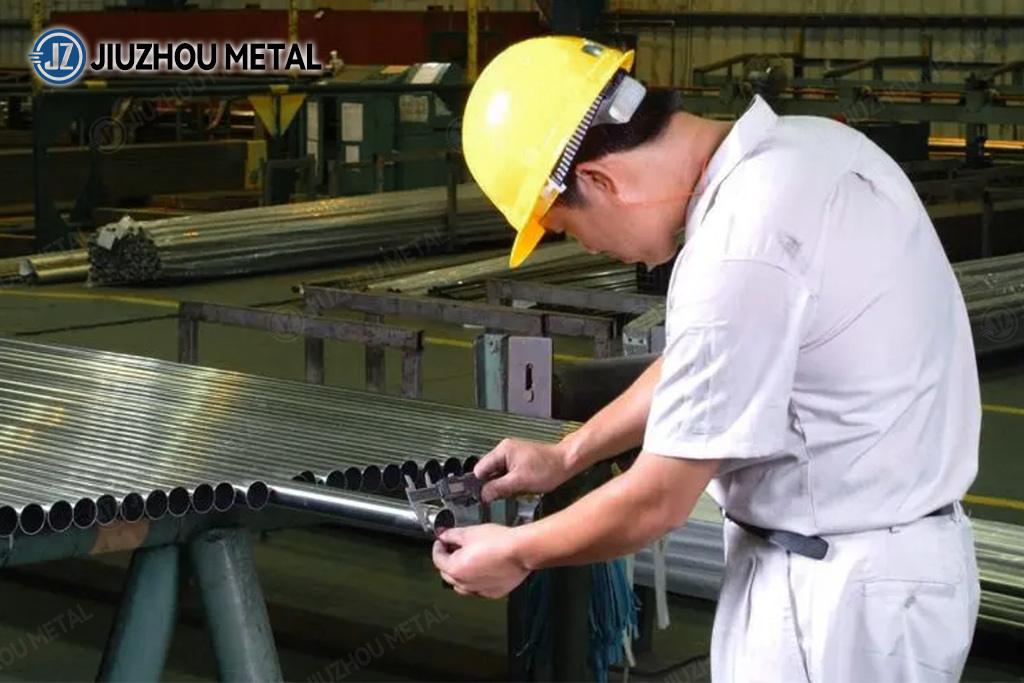

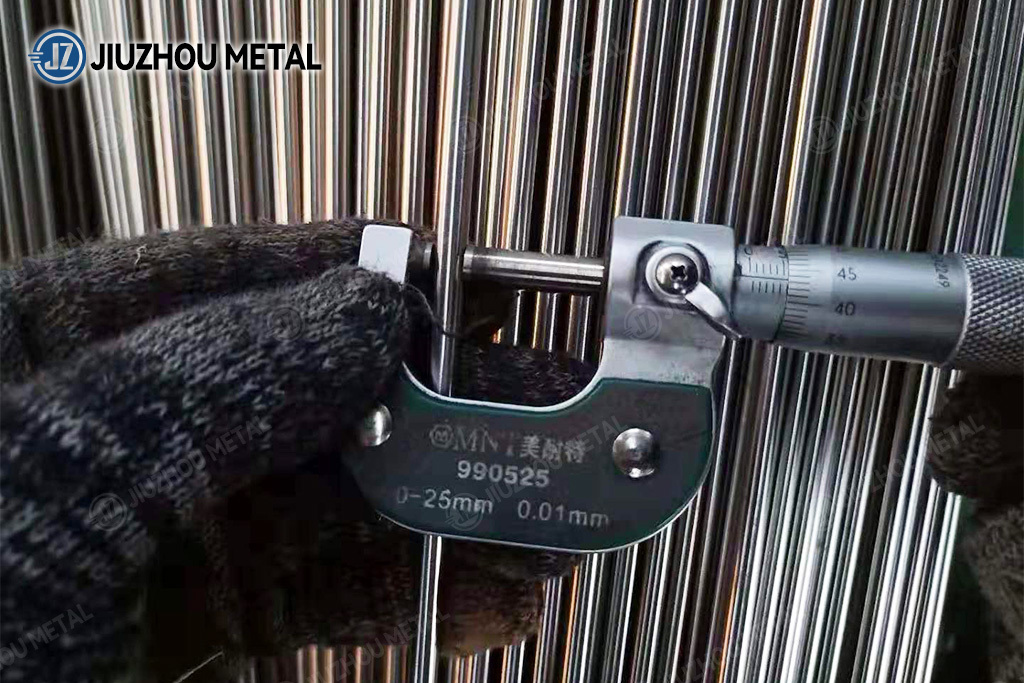

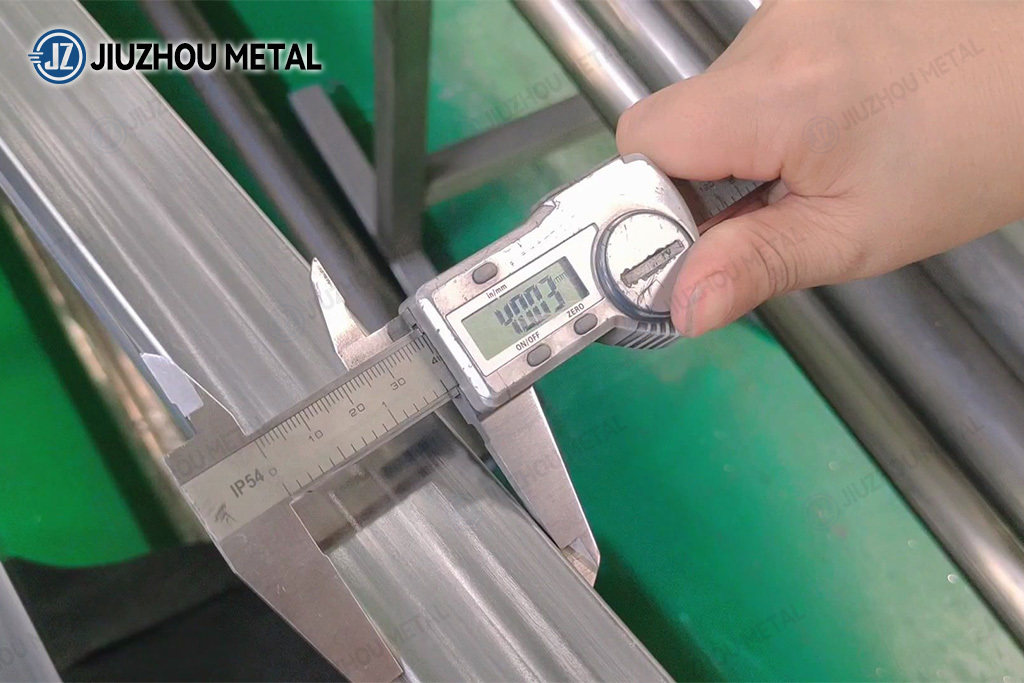

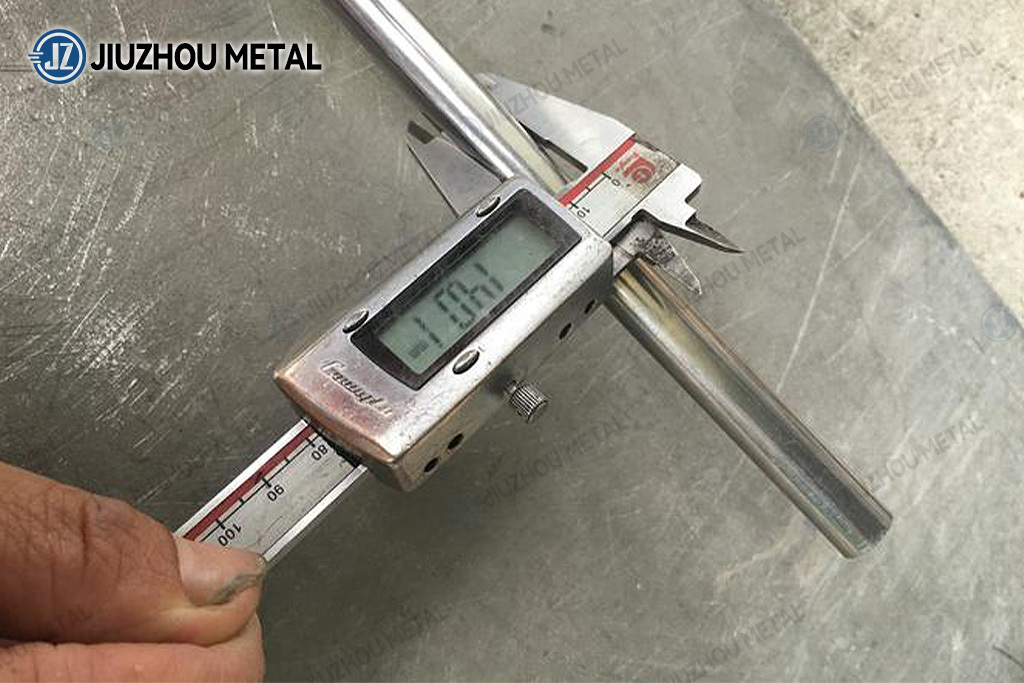

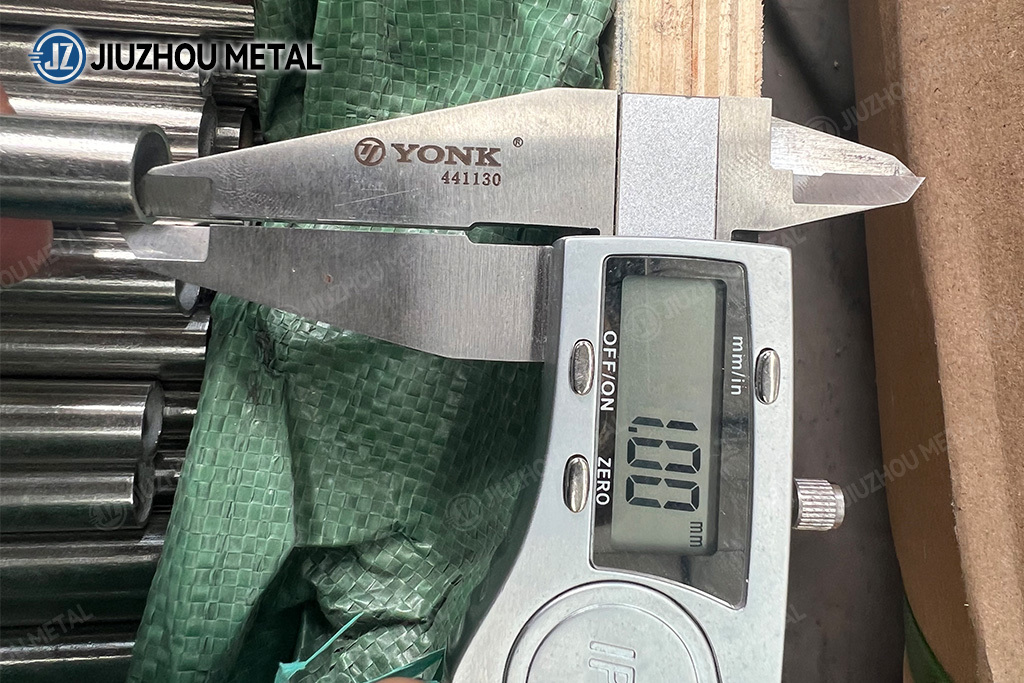

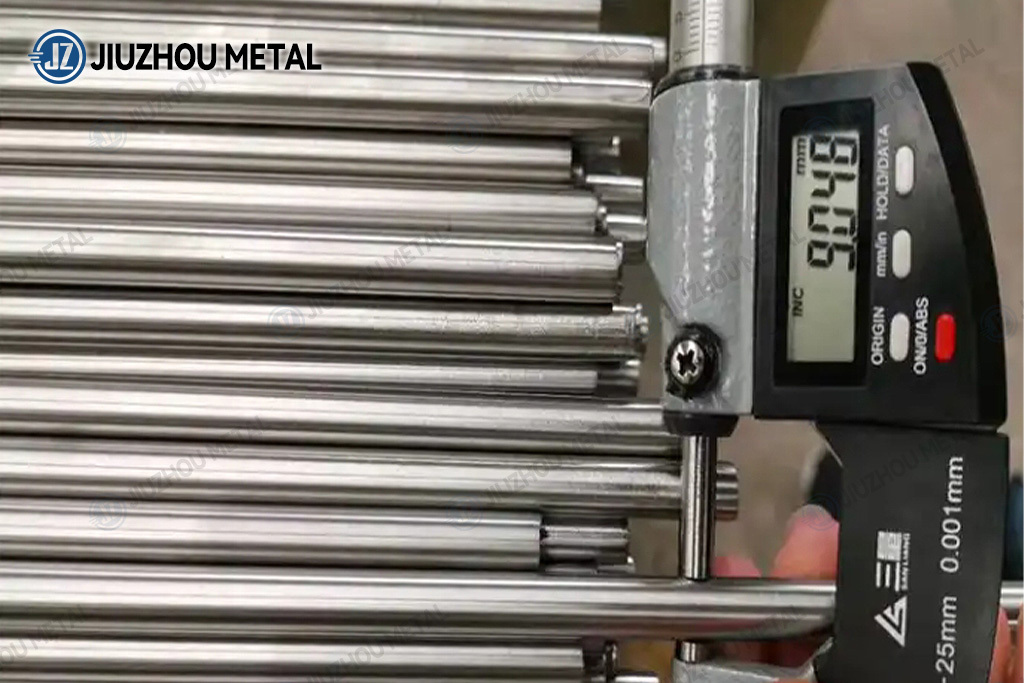

Inconel 600 Pipe - Product Measurement
Outer Diameter Measurement Outer Diameter Measurement Wall Thickness Measurement Outer Diameter Measurement
Outer Diameter Measurement Outer Diameter Measurement Wall Thickness Measurement Diameter Measurement -

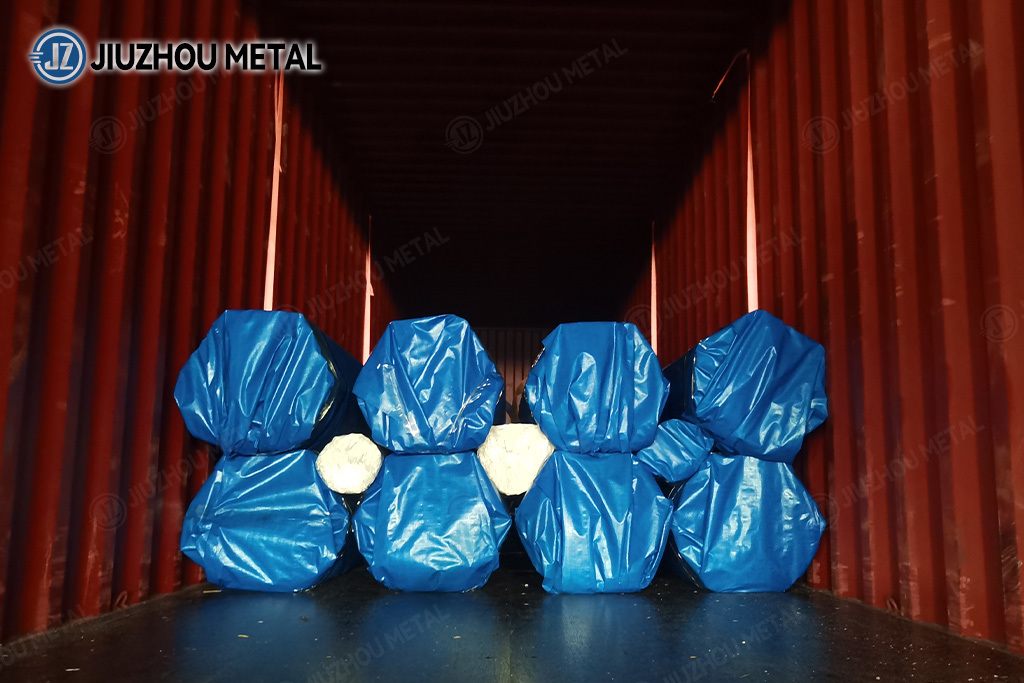

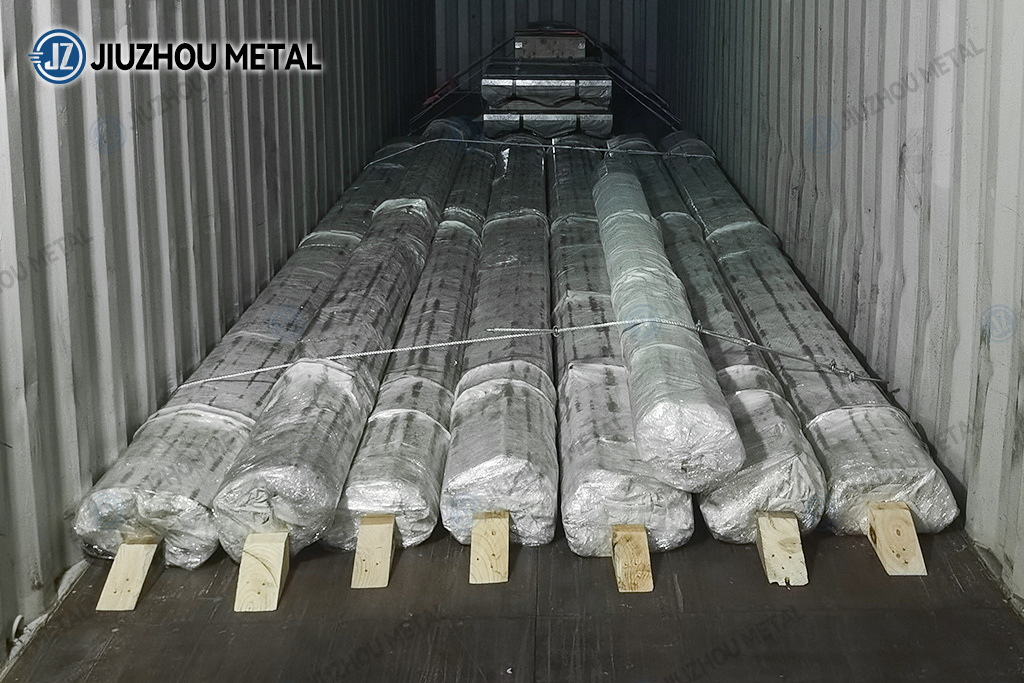

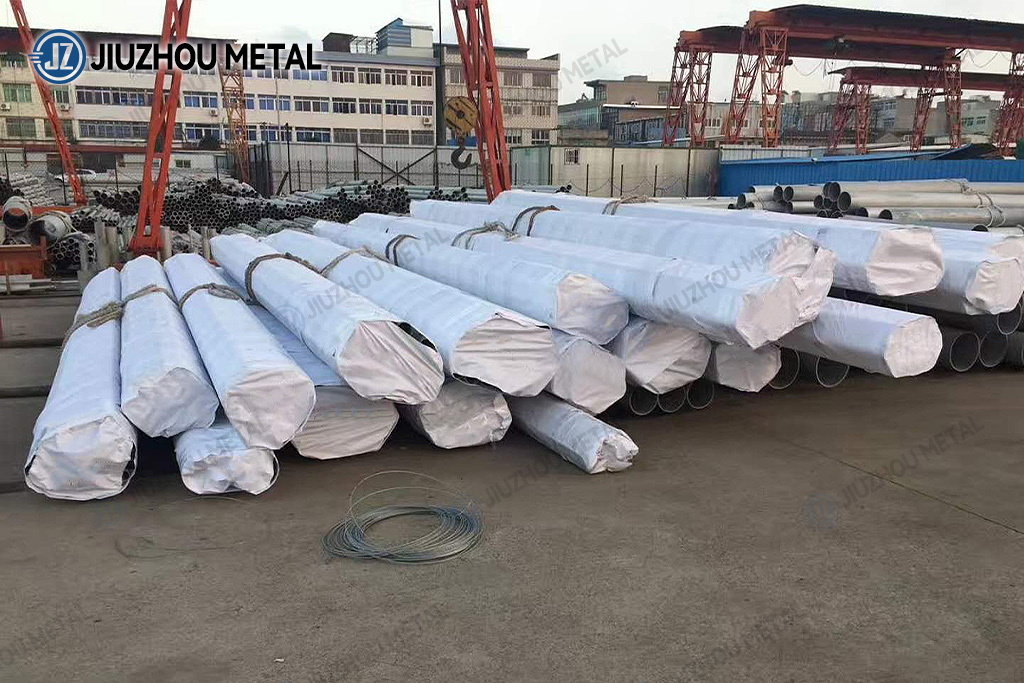

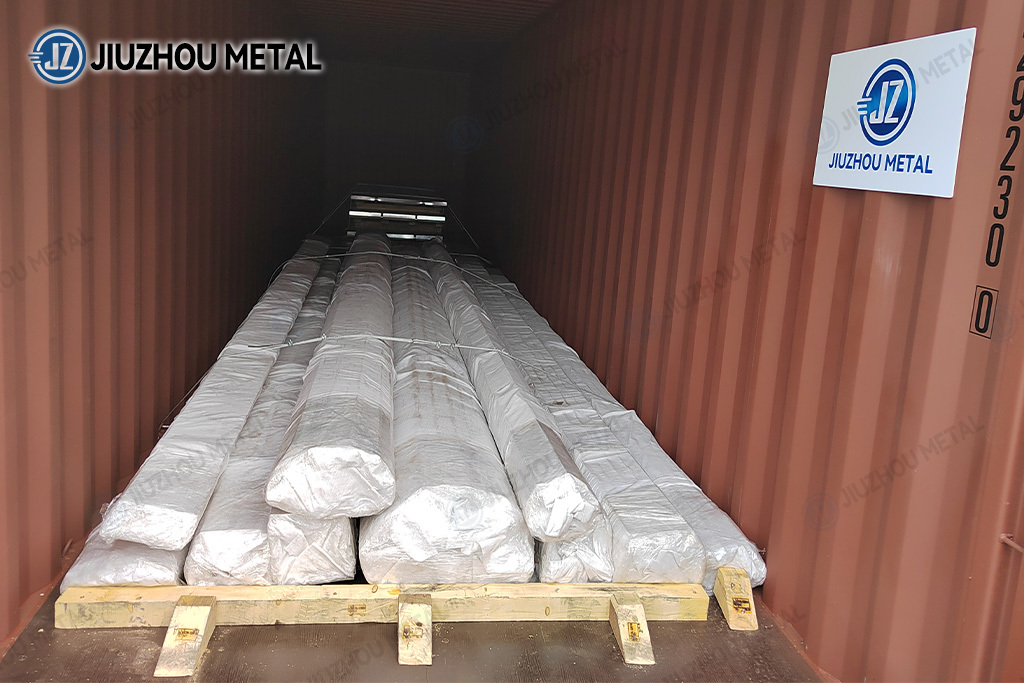

Inconel 600 Pipe - Product Packaging
Baowu Special steel
Your reliable steel supplier
Baowu Special steel has 10+ warehouses with ready stock. The annual supply capacity is approximately 10 million tons. It has 10 years of experience in large-scale project supply. The customer reorder rate reaches 86%. We ensure quality and quantity, provide material certificates, and will refund if the products are not qualified, so please be assured the purchase.
