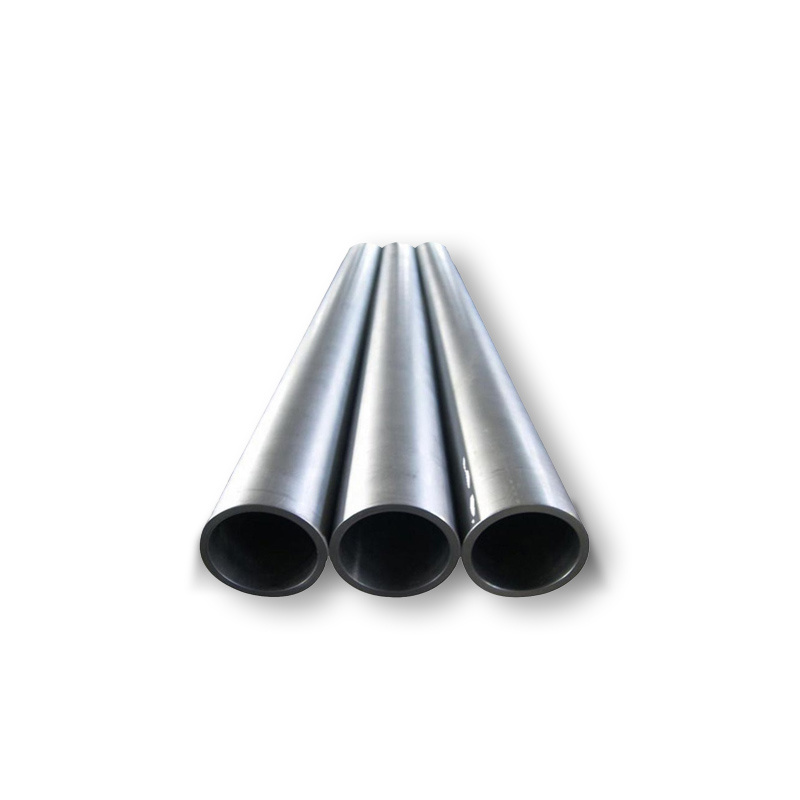

Hastelloy B-3 Pipe
Hastelloy B3 pipe performs better in terms of strength and corrosion resistance at high temperatures compared with traditional Hastelloy. B3 alloy has excellent stability and durability, especially in oxidizing and reducing environments, as well as extreme corrosive environments such as strong acid and strong alkali.
- Product Description
- Spot Warehouse
- Product Inspection
- Product Measurement
- Product Packaging
-
- Commodity name: Hastelloy B-3 Pipe
Hastelloy B3 pipe performs better in terms of strength and corrosion resistance at high temperatures compared with traditional Hastelloy. B3 alloy has excellent stability and durability, especially in oxidizing and reducing environments, as well as extreme corrosive environments such as strong acid and strong alkali.
Hastelloy B-3 Pipe Description
Hastelloy B3 is a nickel-based high-temperature alloy mainly consisting of nickel, molybdenum, cobalt and other elements, of which the nickel content is about 65%. This alloy material is optimized on the basis of Hastelloy B2. By improving the thermal stability of the material, it significantly enhances the corrosion resistance, while also effectively improving the hot forming and cold forming performance. In recent years, Hastelloy B3 pipe has been increasingly used in the production and manufacturing of chemical equipment. Hastelloy B3 material has many unique properties. Its high elongation provides favorable conditions for cold forming operations. Compared to austenitic stainless steel, Hastelloy B3 material is harder and therefore needs greater pressure during cold forming or step forming processes.
Product Parameters
Product Name
Hastelloy B-3 Pipe
Outer Diameter
Round Pipe
4mm-200mm
Square Pipe
10*10mm-100*100mm
Rectangular Pipe
10*20mm-50*100mm
Wall Thickness
0.6mm-6.0mm
Length
1-6 meters, Length can be customized
Standard
ASTM, AISI, JIS, GB, DIN, EN, etc.
Surface
Black, Bright Polished, Rough Turning, Matt Surface Treatment, No.4, BA, etc.
Certificate
ISO, SGS, BV
Production Technology
Hot Rolling, Cold Rolling
Chemical Composition
C
Al
Si
P
S
Ti
V
Cr
Mn
Fe
Co
Ni
Cu
Zr
Nb
Mo
Ta
W
Not MO
0.01 max
0.5 max
0.10 max
0.03 max
0.01 max
0.2 max
0.2 max
1.0 - 3.0
3.0 max
1.0 - 3.0
3.0 max
65.0 min
0.2 max
0.1 max
0.2 max
27.0 - 32.0
0.2 max
3.0 max
94.0 - 98.0
Mechanical Properties
Tensile Strength (ksi)
0.2% Yield Strength (ksi)
Elongation% in 2 inches
110
51
40
Physical Performance
Units
Temperature in°C
Density
9.22 g/cm³
Room
Specific Heat
0.089 Kcal/kg.C
Room
Melting Range
1370-1418°C
-
Modulus of Elasticity
216 KN/mm²
Room
Electrical Resistivity
137 µΩ.cm
Room
Coefficient of Expansion
10.6 µm/m °C
25 - 100°
Thermal Conductivity
11.2 w/m-° K
Room
Scope of Application
B- 3 is used in chemical processes, vacuum furnaces, mechanical parts in reduced pressure environments, etc.
-

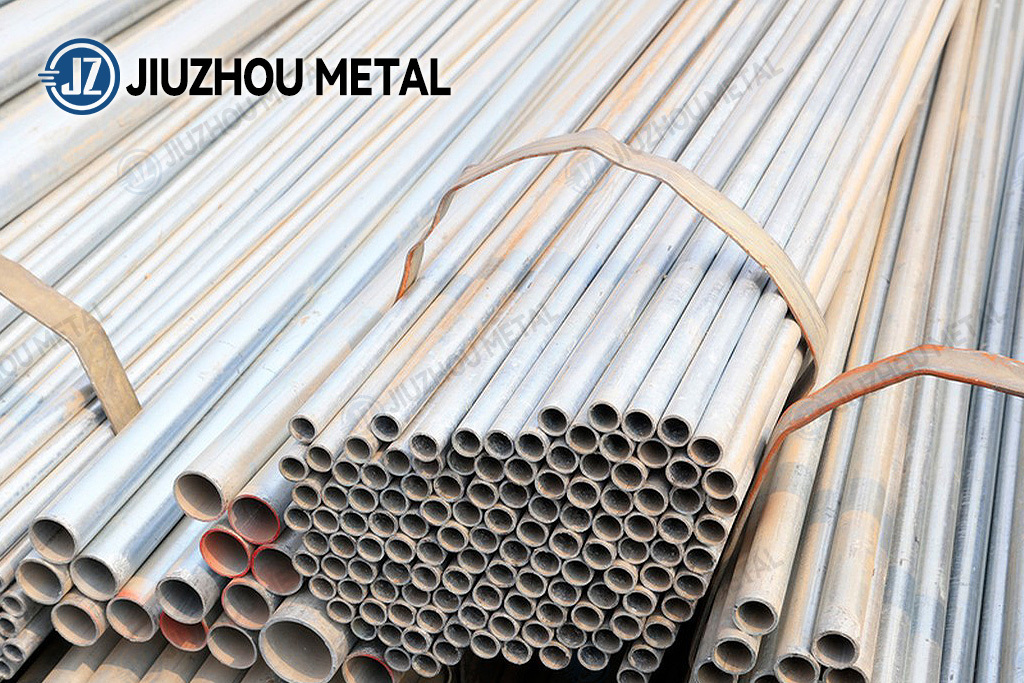

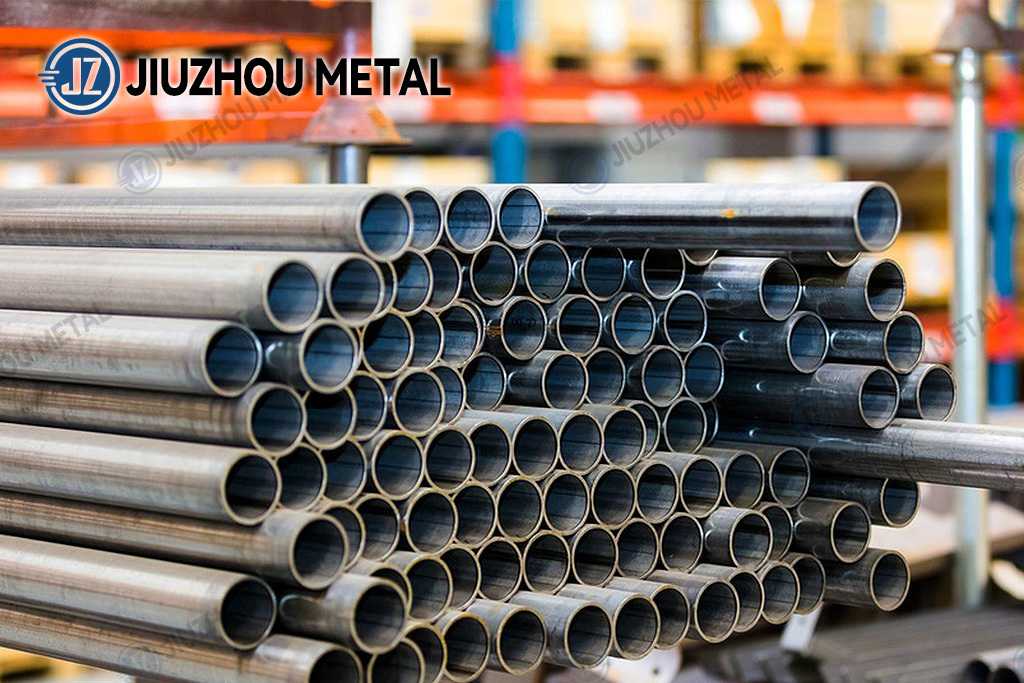

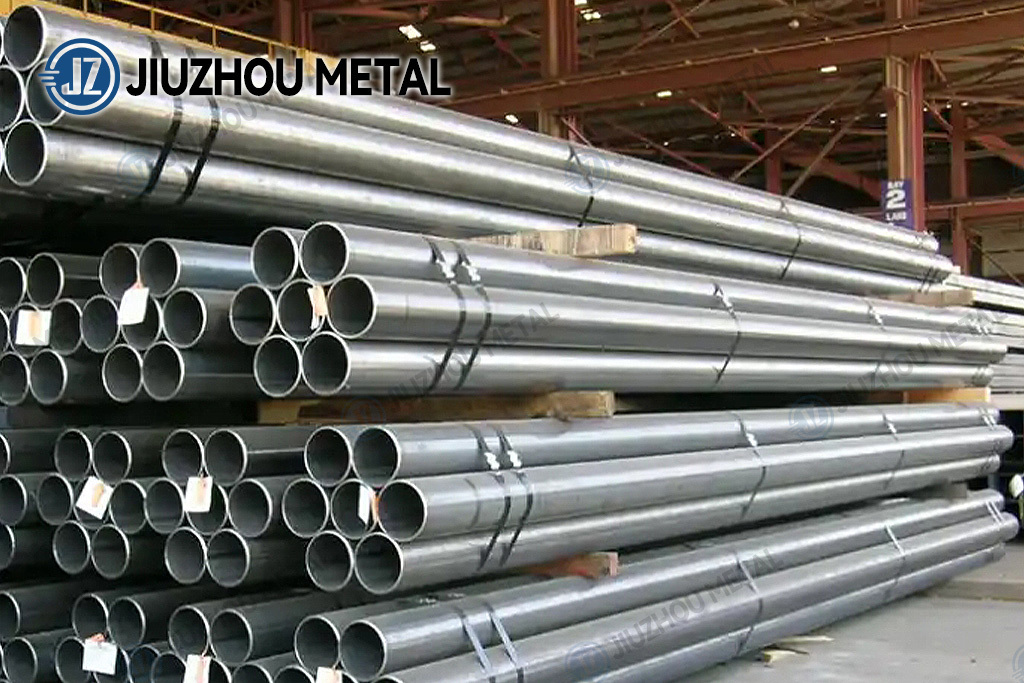

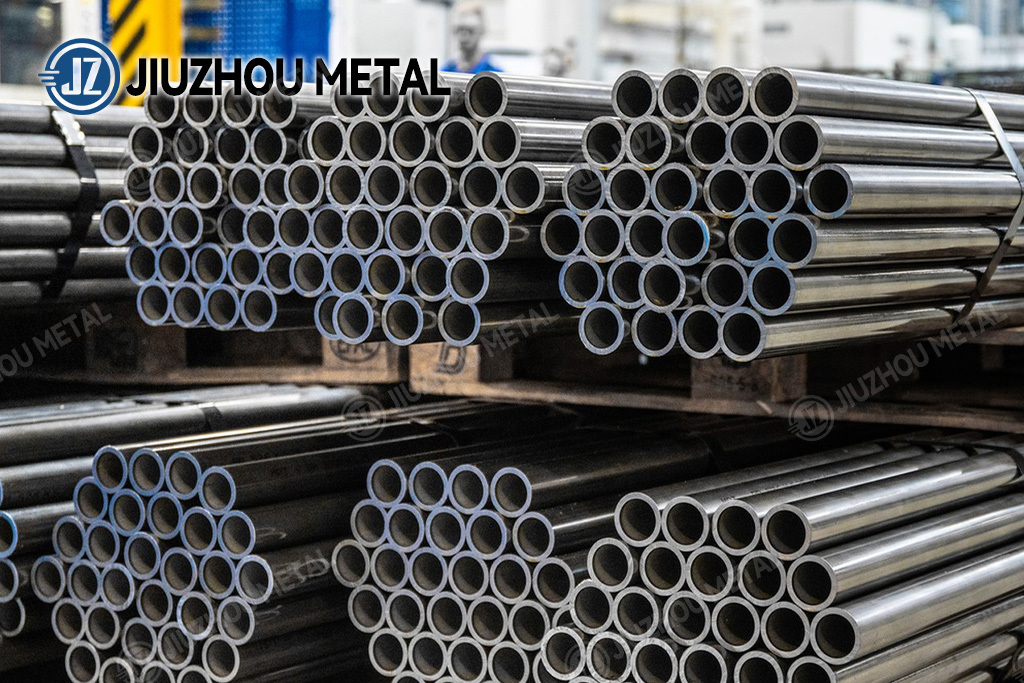

Hastelloy B-3 Pipe - Stock Warehouse
-
Hastelloy B-3 Pipe - Product Inspection
Tensile Strength Testing Tensile Strength Testing Physical Performance Testing Chemical Composition Testing
Inspection Hardness Testing Spectral Detection Mechanical Properties -
Hastelloy B-3 Pipe - Product Measurement
Outer Diameter Measurement Outer Diameter Measurement Wall Thickness Measurement Outer Diameter Measurement
Outer Diameter Measurement Outer Diameter Measurement Wall Thickness Measurement Diameter Measurement -

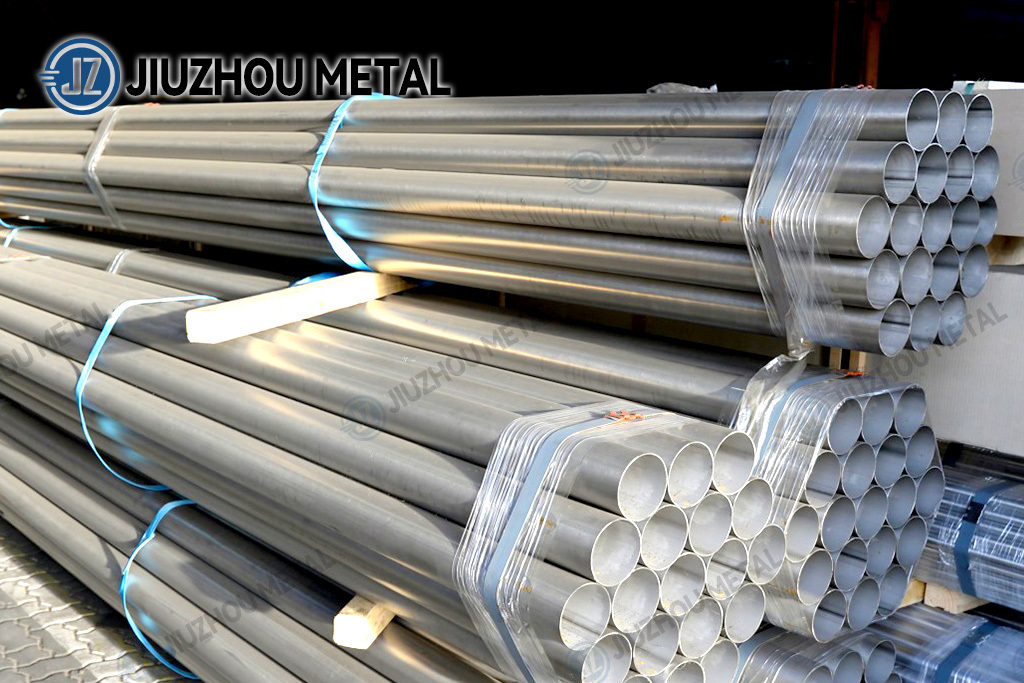

Hastelloy B-3 Pipe - Product Packaging
Baowu Special steel
Your reliable steel supplier
Baowu Special steel has 10+ warehouses with ready stock. The annual supply capacity is approximately 10 million tons. It has 10 years of experience in large-scale project supply. The customer reorder rate reaches 86%. We ensure quality and quantity, provide material certificates, and will refund if the products are not qualified, so please be assured the purchase.
