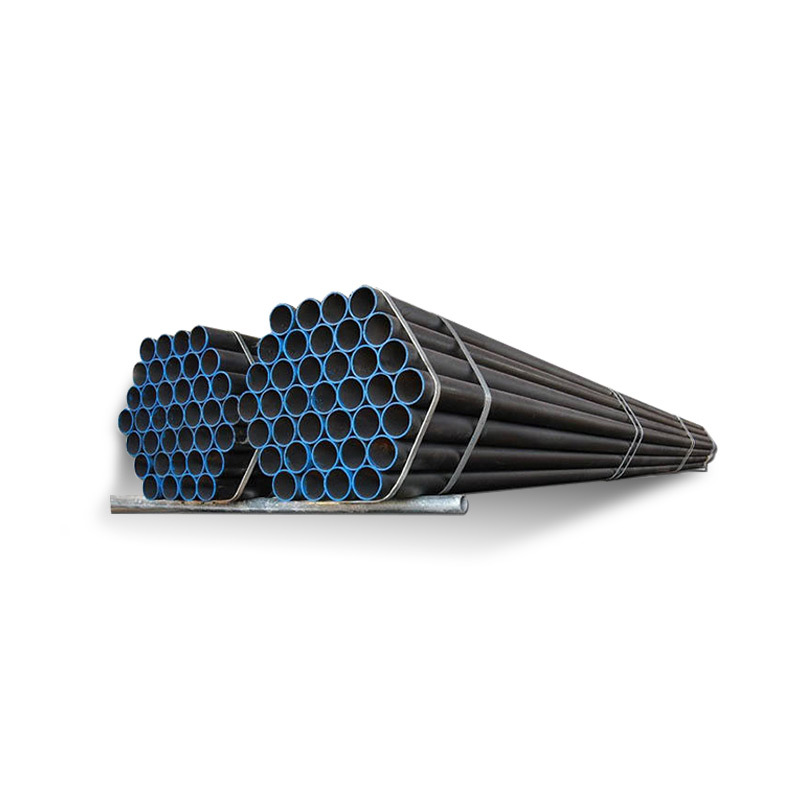

A192 Seamless Carbon Steel Pipe
ASTM A192 is the same as ASME SA-192 and is the standard specification covering seamless carbon steel boiler and superheater tubes of minimum wall thickness for high pressure service.
- Product Description
- Spot Warehouse
- Product Inspection
- Product Measurement
- Product Packaging
-
- Commodity name: A192 Seamless Carbon Steel Pipe
ASTM A192 is the same as ASME SA-192 and is the standard specification covering seamless carbon steel boiler and superheater tubes of minimum wall thickness for high pressure service.
A192 Seamless Carbon Steel Pipe Description
ASTM A192 steel pipe is made of a high pressure seamless carbon steel used in super heaters, water wall panels, heat exchangers, condensers, marine application, refineries, paper pulping, petrochemical applications, pressure vessels, and general engineering applications. It is also used in coal, thermal and oil power generation plants. The A192 carbon steel pipes shall be made by the seamless process and shall be either hot-finished or cold-finished. Hot-finished tubes do not need to be heat treated.
Product ParametersProduct Name
A192 Seamless Carbon Steel Pipe
Standard
EN/DIN/JIS/ASTM/BS/ASME/AISI etc.
Outer Diameter
Seamless: 1/4"-36"
Welding: 21.3mm-3620mm
Round Tube: 1/2"-10"
Square Tube/Rectangular Tube: 15x15mm-400x600mm
Wall Thickness
Seamless: 1.25mm-50mm
Welding: 1.65mm-65mm
Length
3-12 meters, Support customization
Surface Process
Bright, Polished, Black
Other Services
Machining(cnc), Centerless Grinding(cg), Heat Treatment, Annealing, Pickling, Polishing, Rolling, Forging, Cutting, Bending, Small Machining, etc.
Chemical Composition
C, %
Mn, %
Si, %
P, %
S, %
0.06-0.18
0.27-0.63
0.25 max
0.035 max
0.035 max
Mechanical Properties
Tensile Strength MPa
Yield Strength MPa
Elongation %
Hardness HB, wt≥ 5.1mm
Hardness HRB, WT＜ 5.1mm
325 min
180 min
35 min
137 max
77 max
Scope of Application
Seamless carbon steel boilers for high pressure, superheater tubes, etc.
-

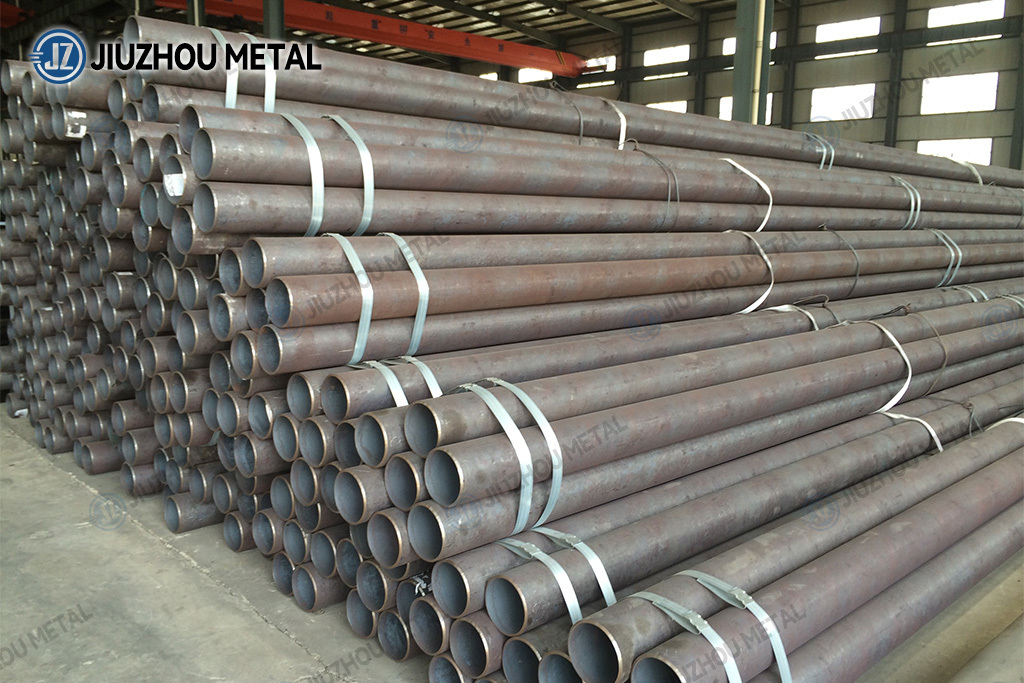

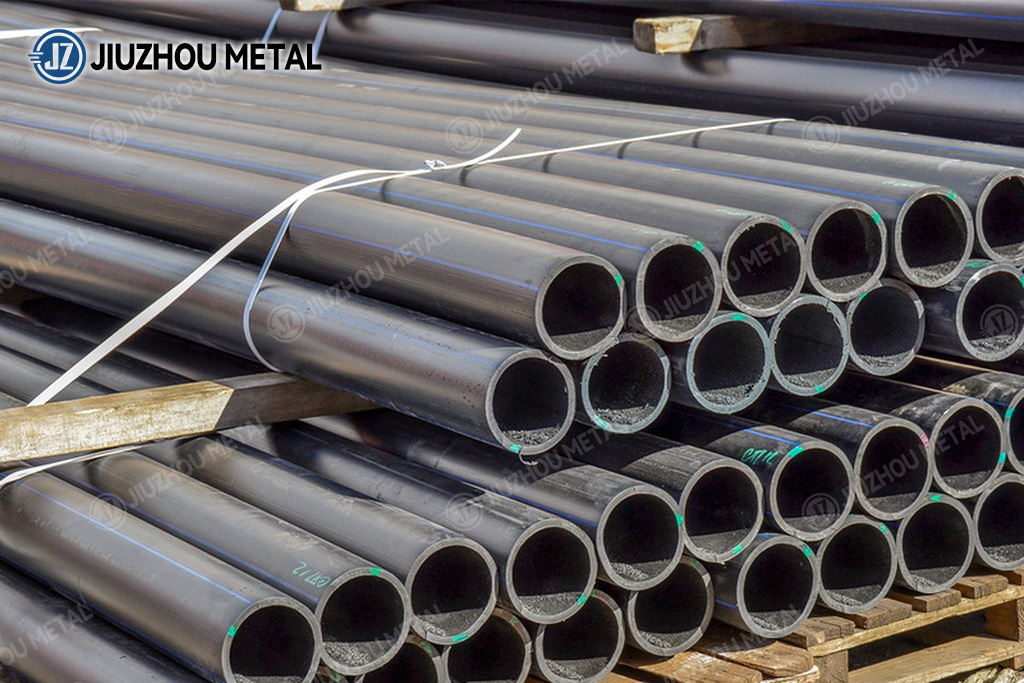

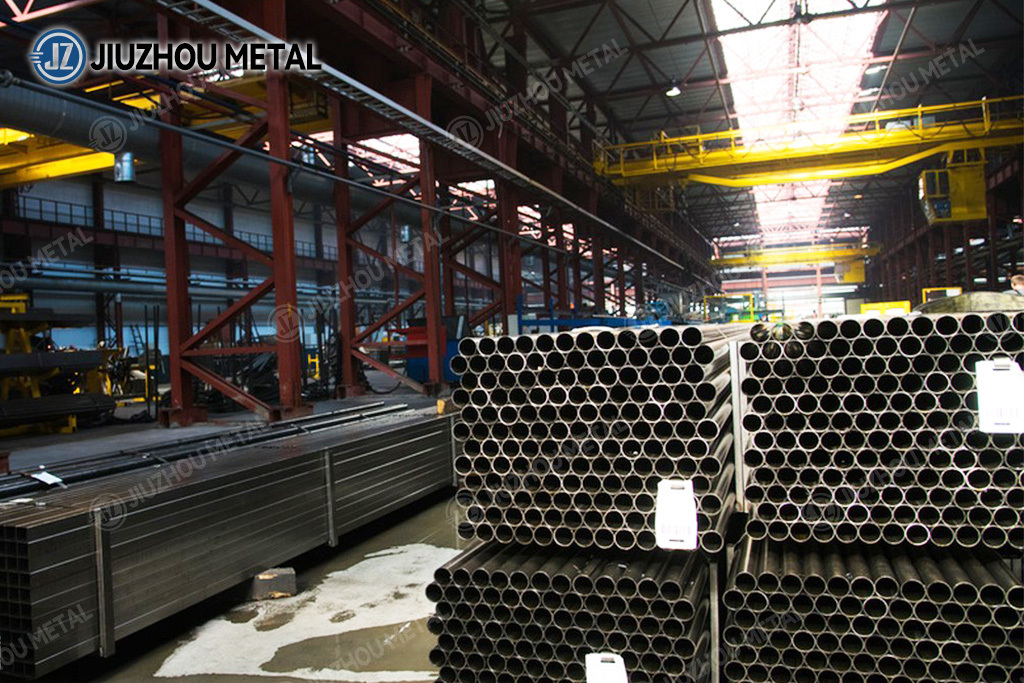

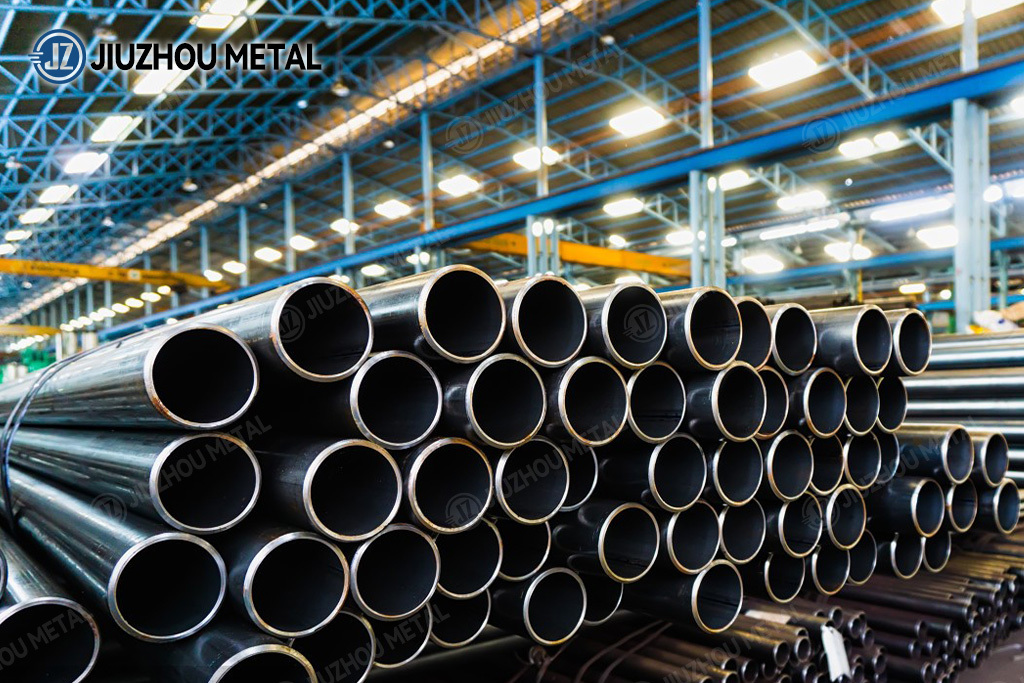

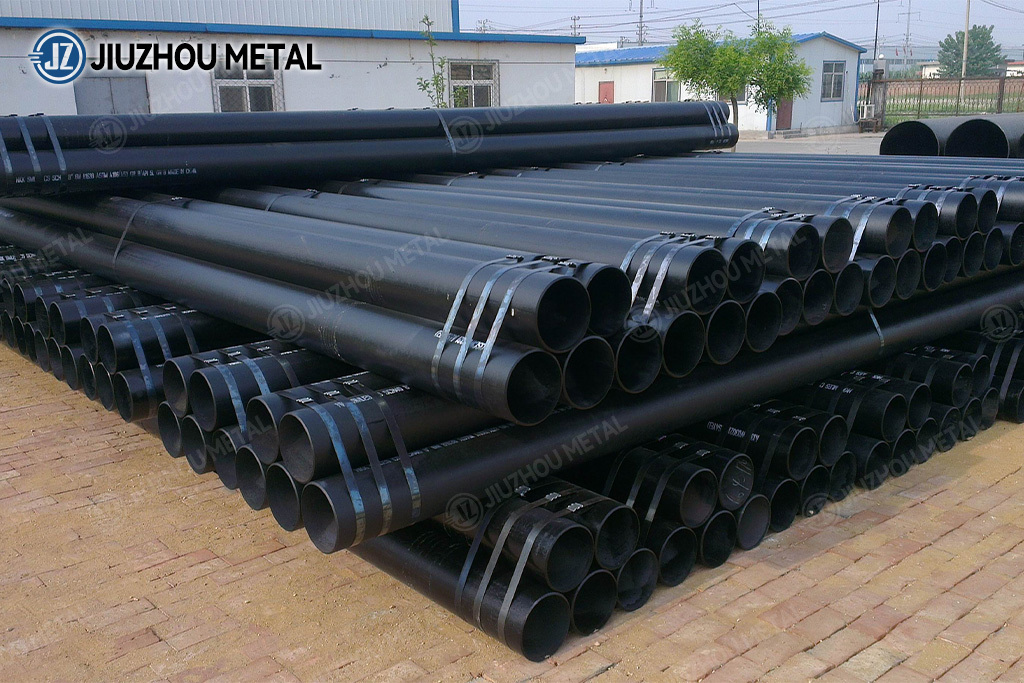

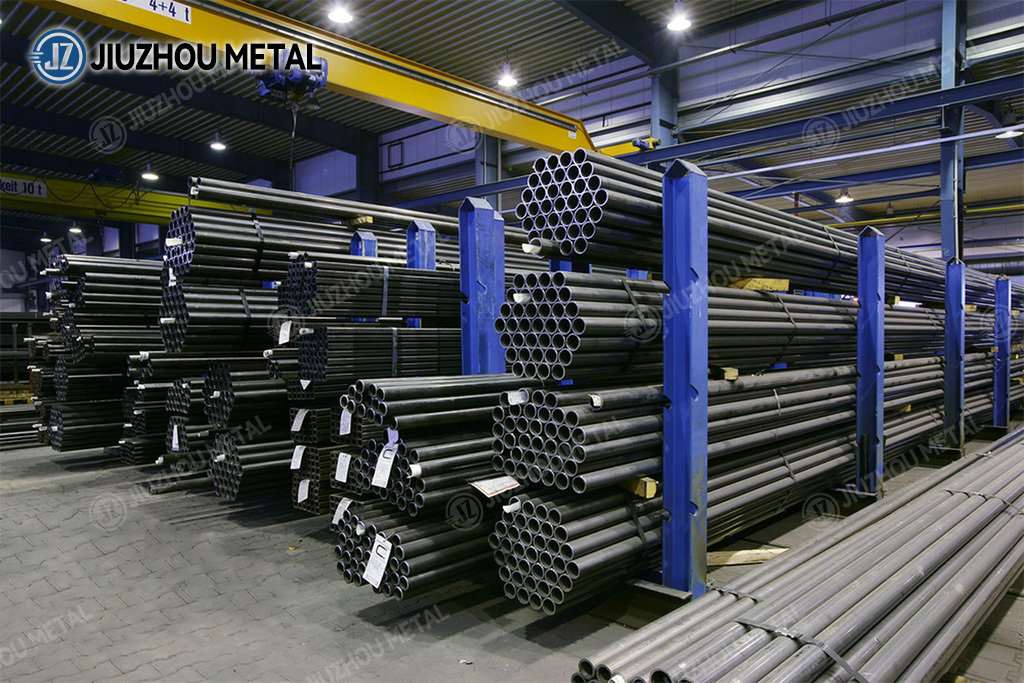

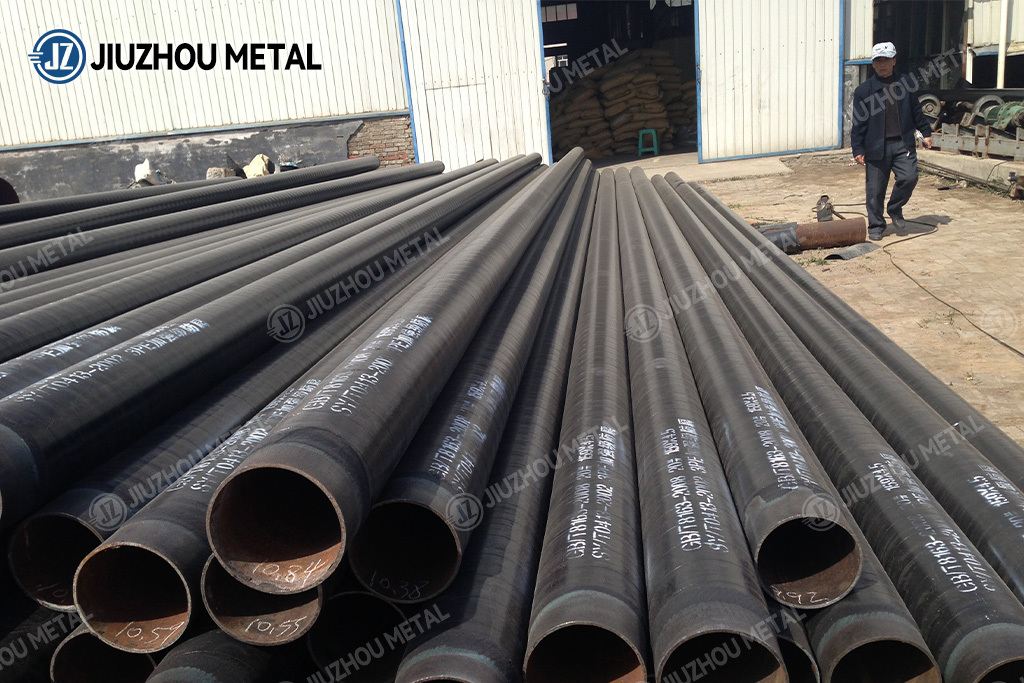

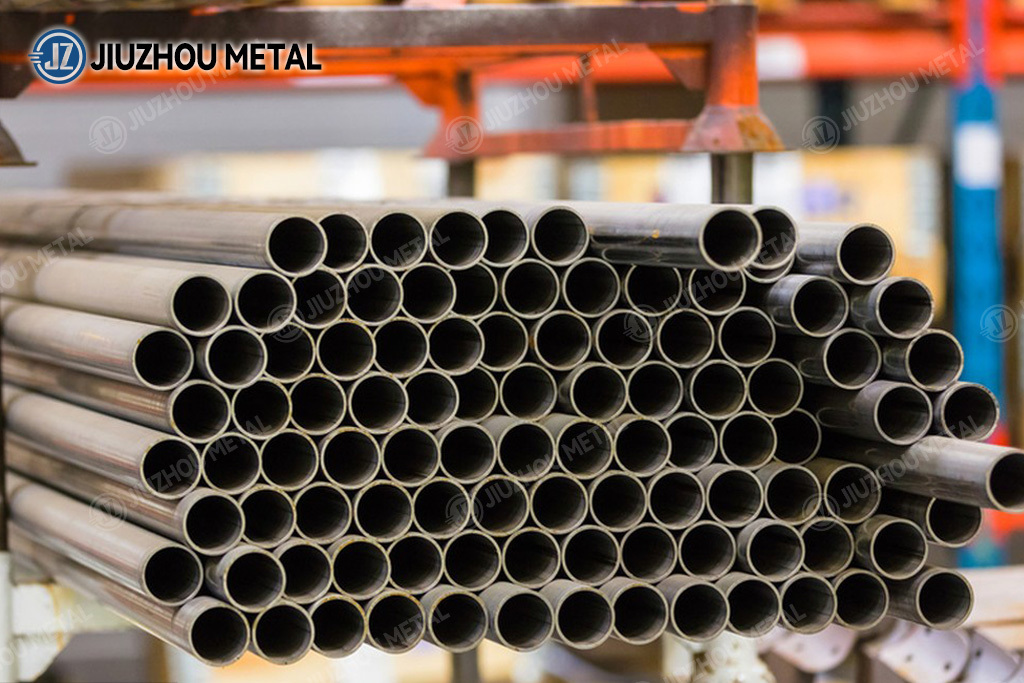

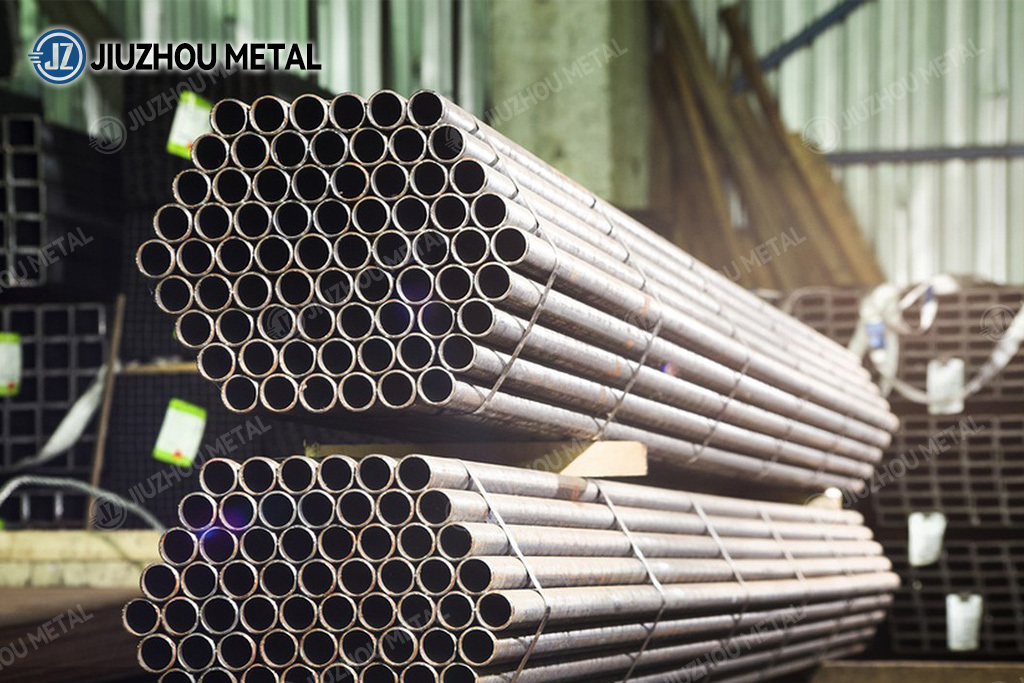

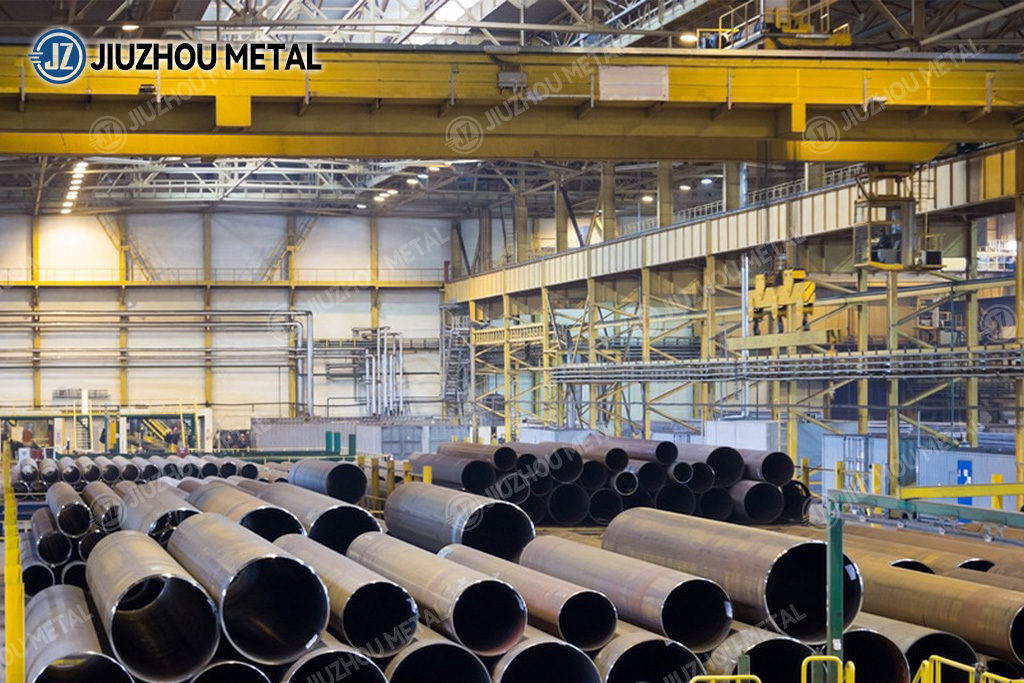

A192 Seamless Carbon Steel Pipe - Stock Warehouse
-

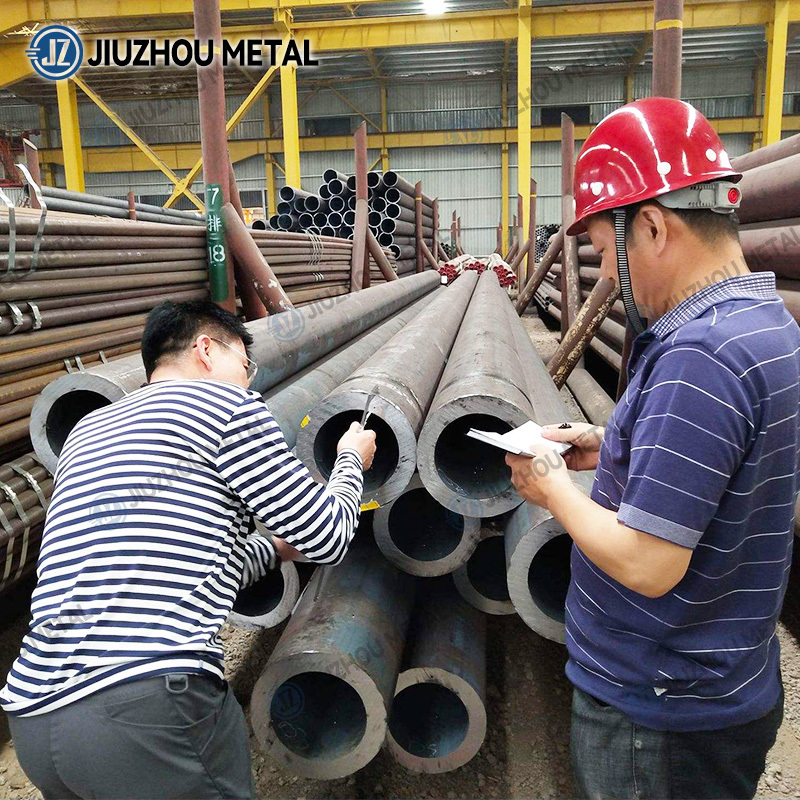

A192 Seamless Carbon Steel Pipe - Product Inspection
Tensile Strength Testing Tensile Strength Testing Physical Performance Testing Chemical Composition Testing
Inspection Hardness Testing Spectral Detection Mechanical Properties -

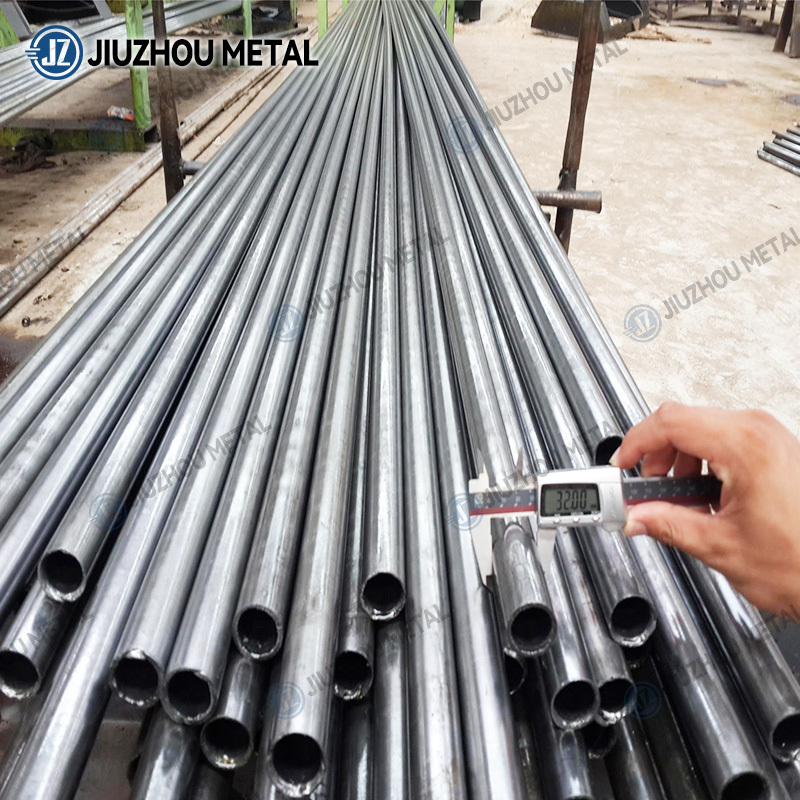

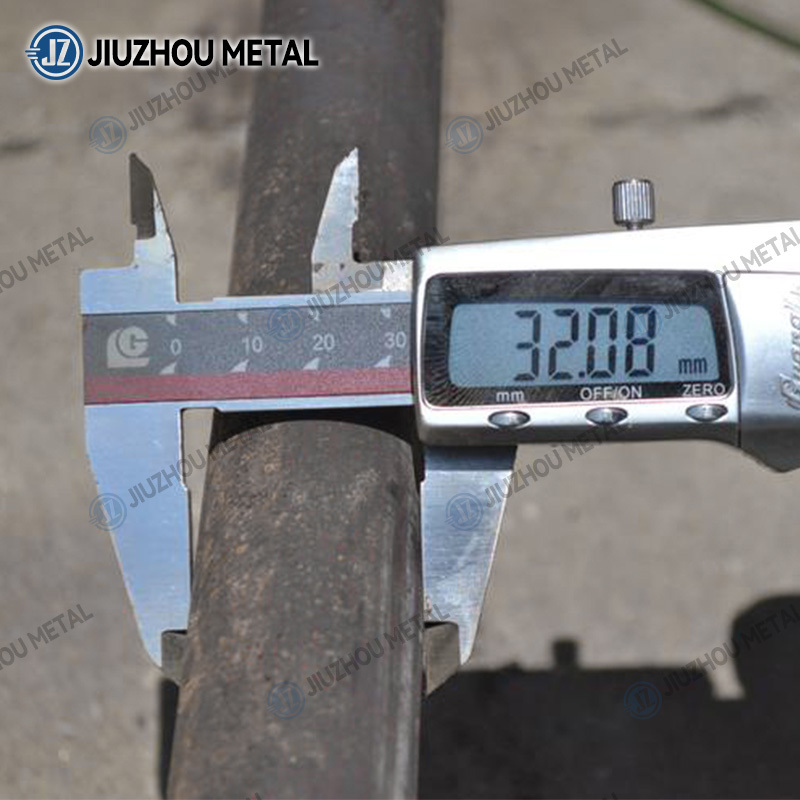

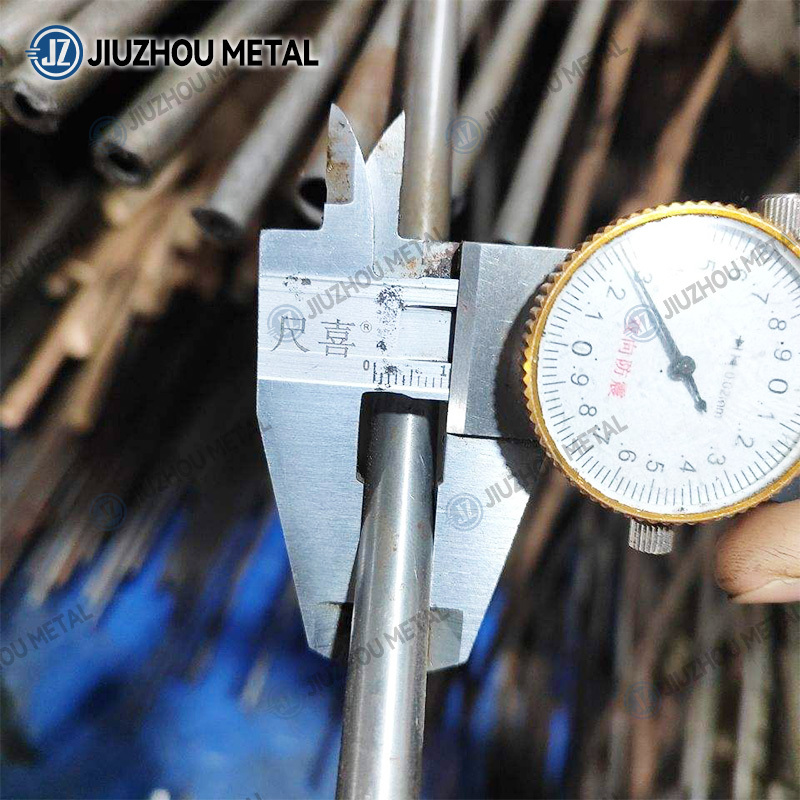

A192 Seamless Carbon Steel Pipe - Product Measurement
Width Measurement Length Measurement Thickness Measurement Thickness Measurement -

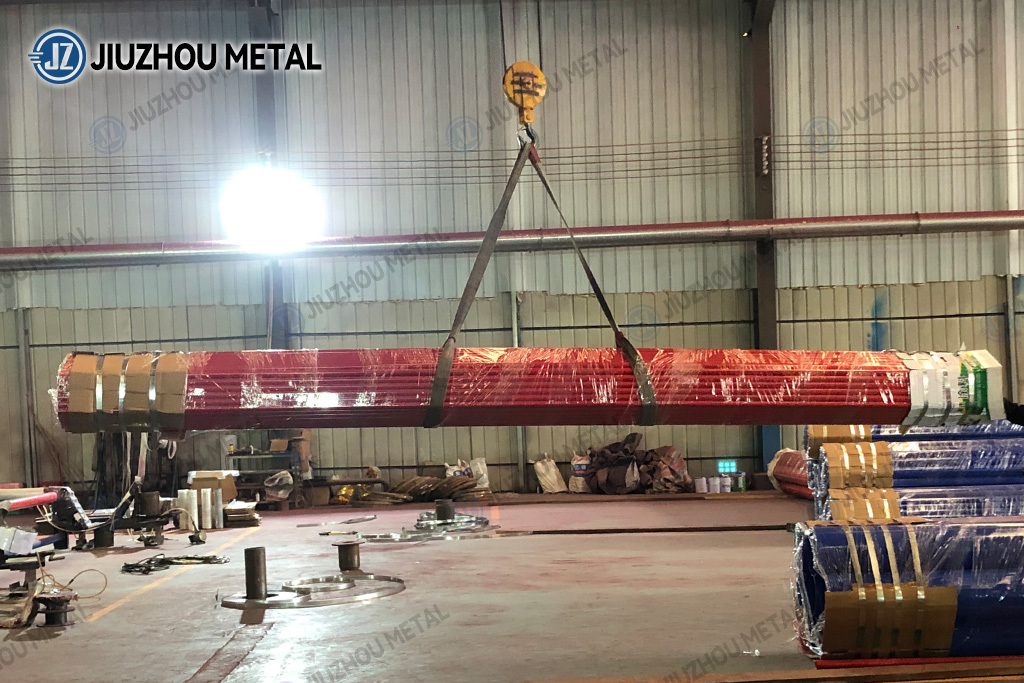

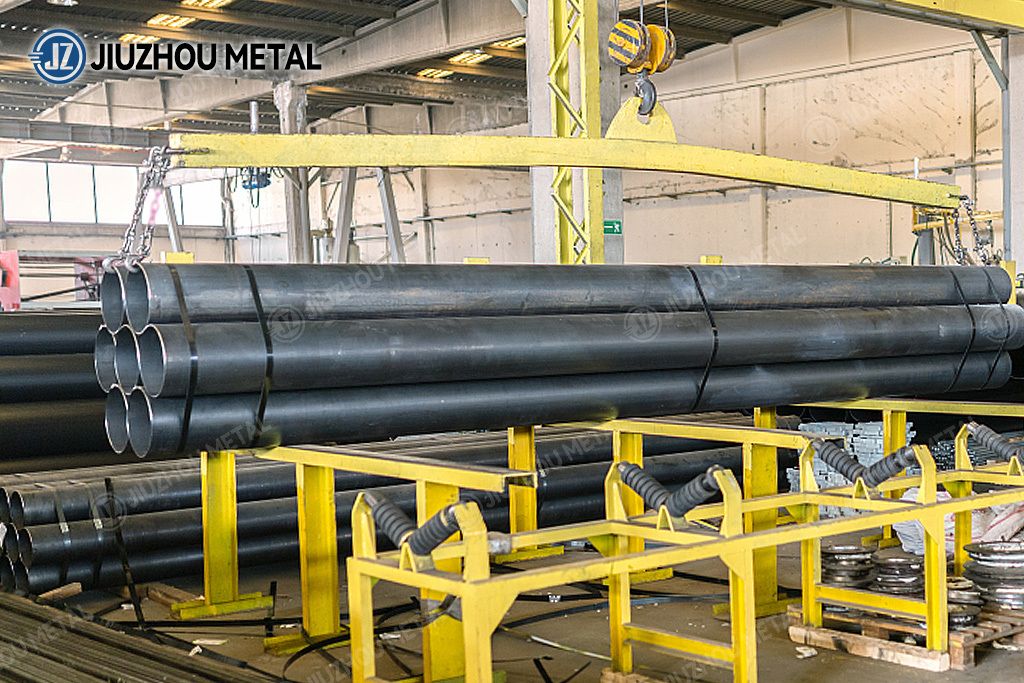

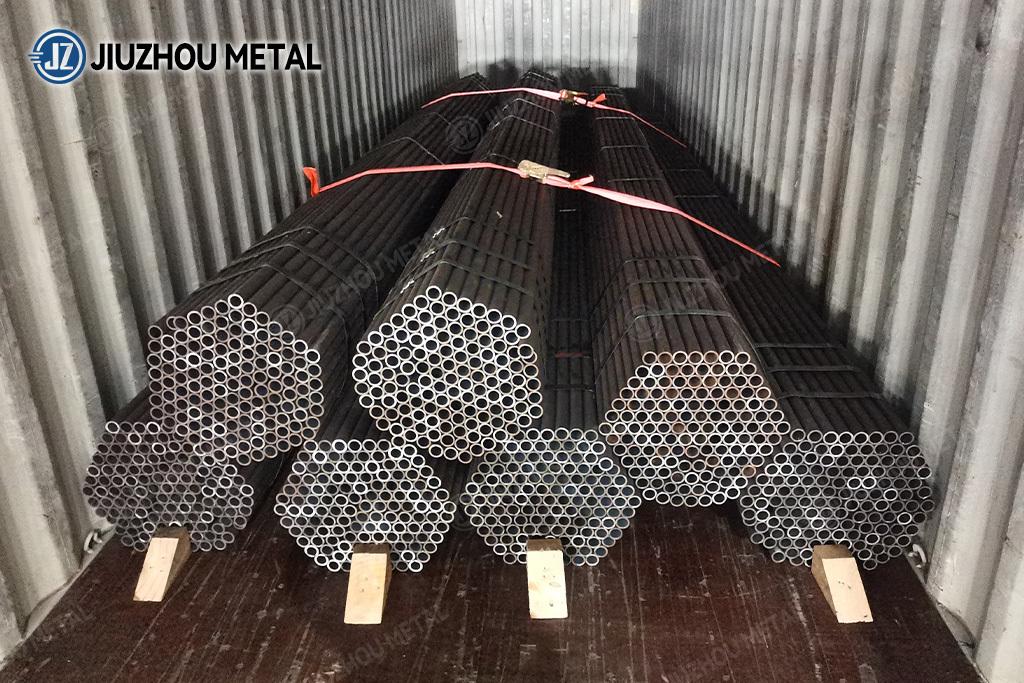

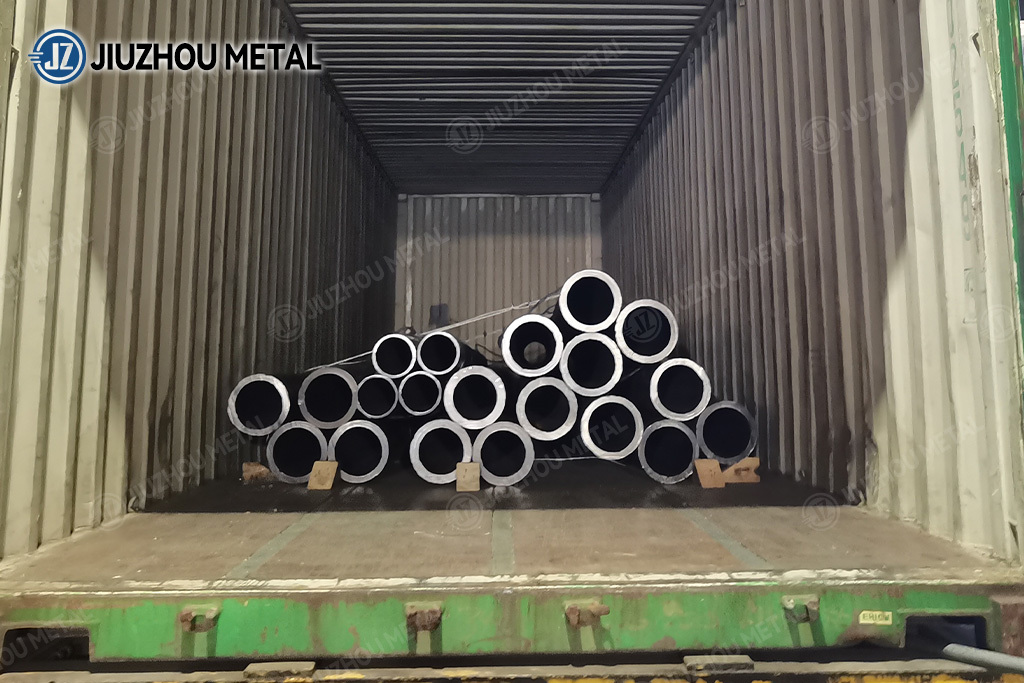

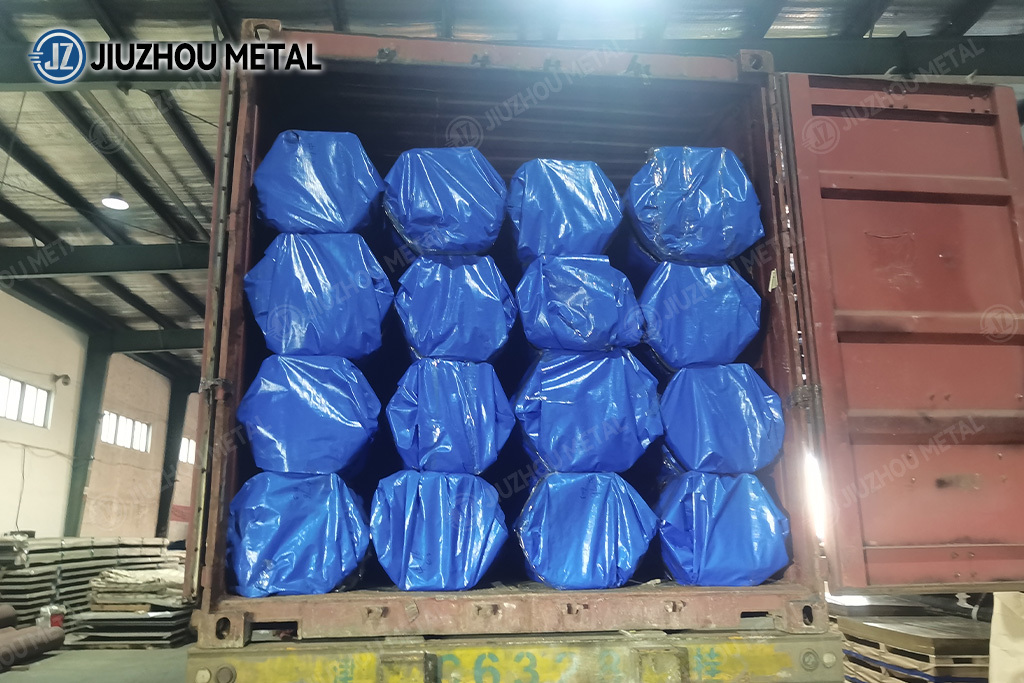

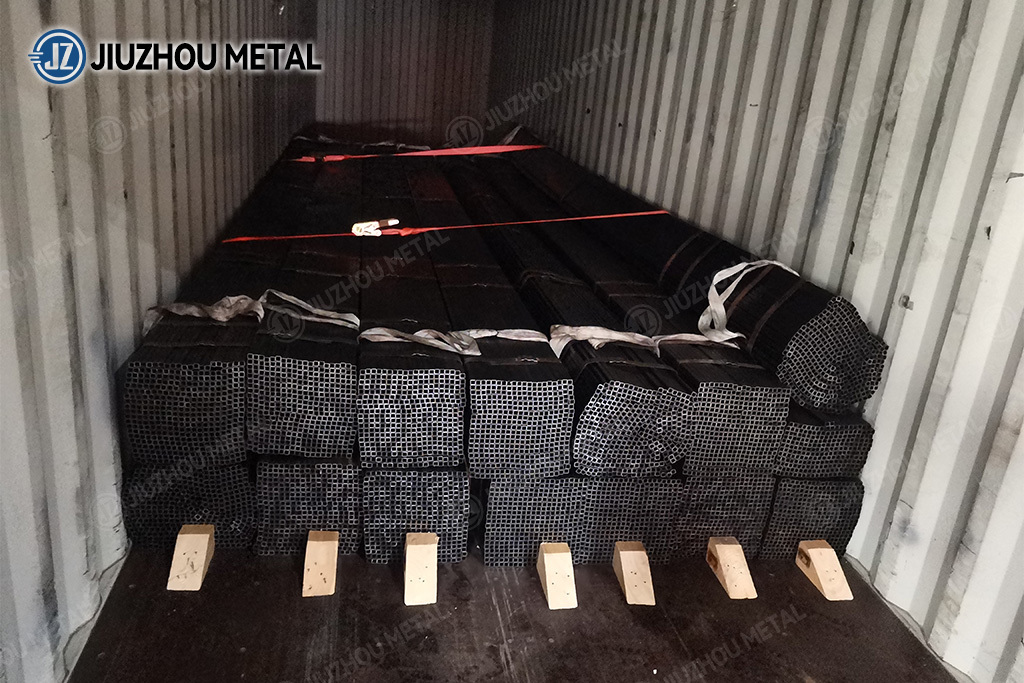

A192 Seamless Carbon Steel Pipe - Product Packaging
Baowu Special steel
Your reliable steel supplier
Baowu Special steel has 10+ warehouses with ready stock. The annual supply capacity is approximately 10 million tons. It has 10 years of experience in large-scale project supply. The customer reorder rate reaches 86%. We ensure quality and quantity, provide material certificates, and will refund if the products are not qualified, so please be assured the purchase.
