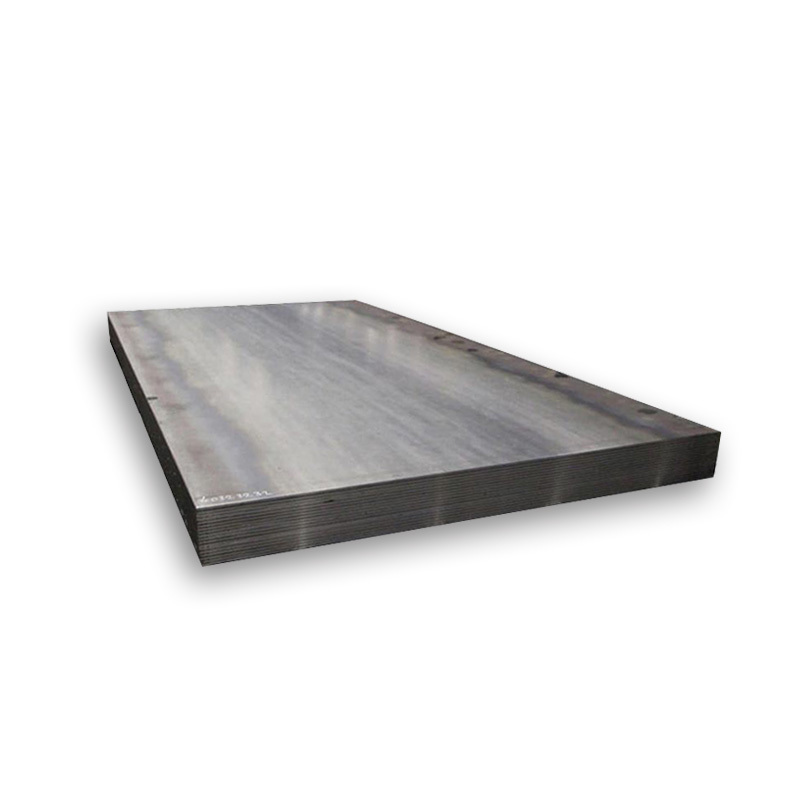

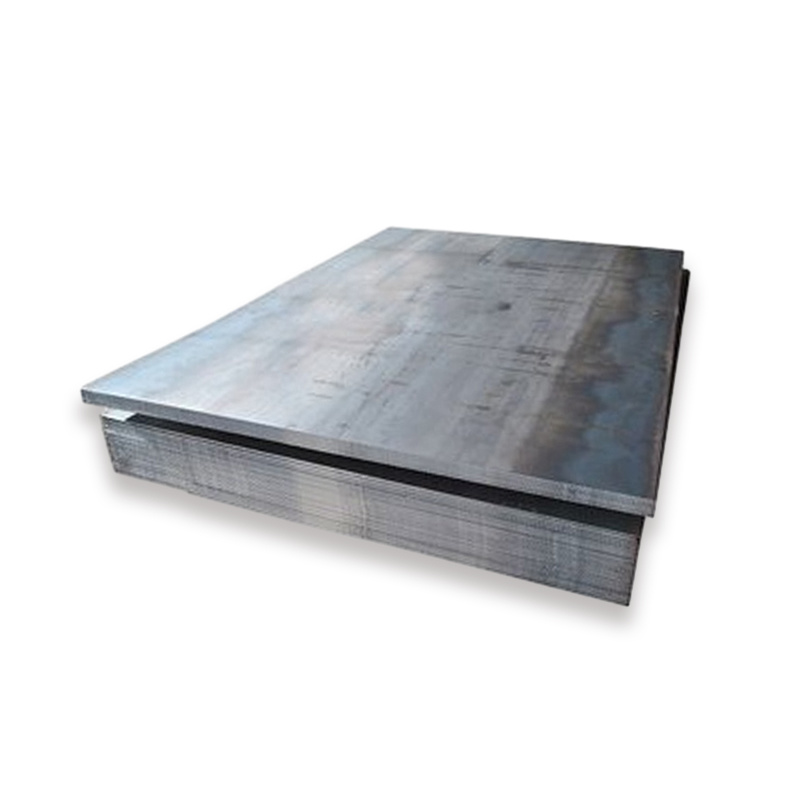

A36/Q235/S235JR Carbon Steel Plate
A36 is a carbon structural steel plate whose chemical composition and mechanical properties comply with American ASTM standards. This kind of steel plate has good mechanical properties, welding performance and corrosion resistance, and is widely used in construction, bridges, machinery manufacturing and other fields.
- Product Description
- Spot Warehouse
- Product Inspection
- Product Measurement
- Product Packaging
-
- Commodity name: A36/Q235/S235JR Carbon Steel Plate
A36 is a carbon structural steel plate whose chemical composition and mechanical properties comply with American ASTM standards. This kind of steel plate has good mechanical properties, welding performance and corrosion resistance, and is widely used in construction, bridges, machinery manufacturing and other fields.
A36/Q235/S235JR Carbon Steel Plate Description
The chemical composition of A36 steel plate is mainly composed of iron, carbon, silicon, manganese, phosphorus, sulfur and other elements. Among them, iron is the most important component, accounting for more than 99% of the entire chemical composition. The carbon content is relatively high, generally around 0.2%, ensuring that the steel has a certain hardness and toughness. The addition of silicon, manganese and other elements enhances the strength and toughness of steel. The content of elements such as phosphorus and sulfur is low to ensure that the steel plate has good welding performance and corrosion resistance. A36 steel plate has excellent mechanical properties, and its tensile strength, yield strength, elongation and impact toughness are all higher than ordinary steel.
Product ParametersProduct Name
A36/Q235/S235JR Carbon Steel Plate
Production Process
Hot Rolling, Cold Rolling
Material Standards
AISI, ASTM, ASME, DIN, BS, EN, ISO, JIS, GOST, SAE, etc.
Width
100mm-3000mm
Length
1m-12m, or Customized Size
Thickness
0.1mm-400mm
Delivery Conditions
Rolling, Annealing, Quenching, Tempered or Standard
Surface Process
Ordinary, Wire Drawing, Laminated Film
Chemical Composition
C
Cu
Fe
Mn
P
Si
S
0.25~0.290
0.20
98.0
1.03
0.040
0.280
0.050
Mechanical Properties
A36
Limit Tensile Strength
Tensile Strength,
Yield Strength
Elongation at Break
(Unit: 200mm)
Elongation at Break
(Unit: 50mm)
Modulus of Elasticity
Bulk Modulus
(Typical for Steel)
Poisson's Ratio
Shear Modulus
Metric
400~550 MPa
250 MPa
20.0%
23.0 %
200 GPa
140 GPa
0.260
79.3 GPa
Imperial
58000~79800 psi
36300 psi
20.0%
23.0 %
29000 ksi
20300 ksi
0.260
11500 ksi
Physical Performance
Physical Performance
Metric
Imperial
Density
7.85 g/cm3
0.284 lb/in3
Scope of Application
Bolted, riveted or welded structures for bridges, buildings and oil drilling rigs.
Used for forming storage tanks, silos, bearing plates, fixtures, rings, templates, fixtures, sprockets, cams, gears, bottom plates, forgings, decoration engineering, piles, brackets, automobiles and agricultural equipment, frames, mechanical parts, etc.Equivalent Material
National Standard GB
European Standard EN
American Standard ASTM
German Standard DIN, WNr
Japanese Standard JIS
French Standard AFNOR
British Standard BS
Canada HG
Q235B
S235JR
A283C
St37-2
SM400A
E24-2
40A/40B
230G
Italy UNI
India IS
Switzerland SS
Australia ONORM
Norway NS
Spain UNE
International Standards ISO
Portugal NP
Fe360B
IS2062
1311/1312
RSt360B
NS12123
AE235B-FN
E235B / Fe360B
FE360-B
-

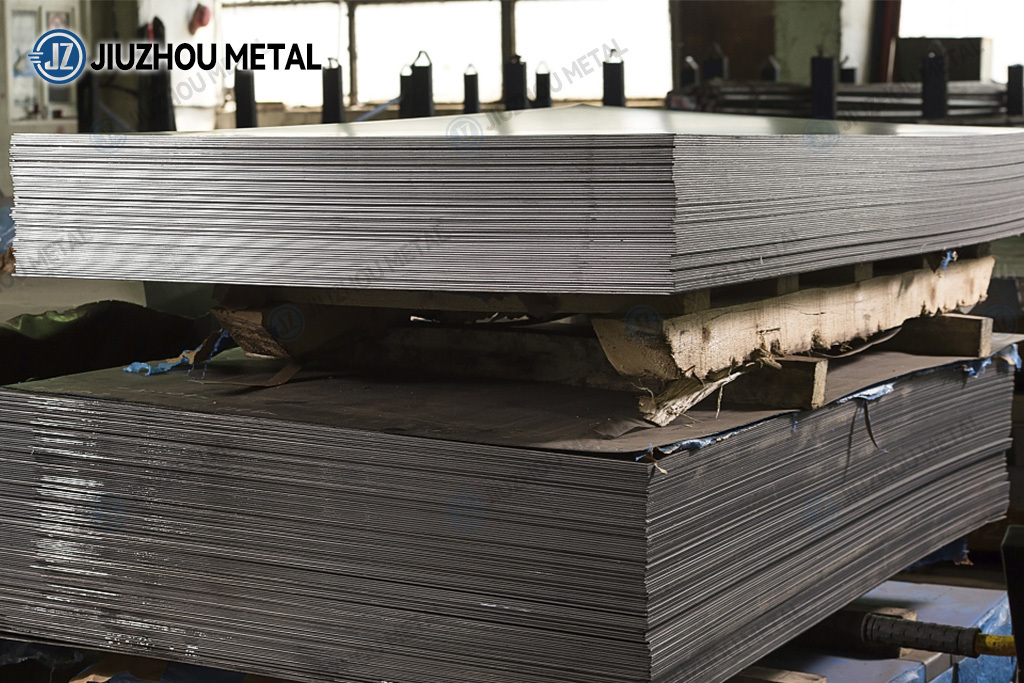

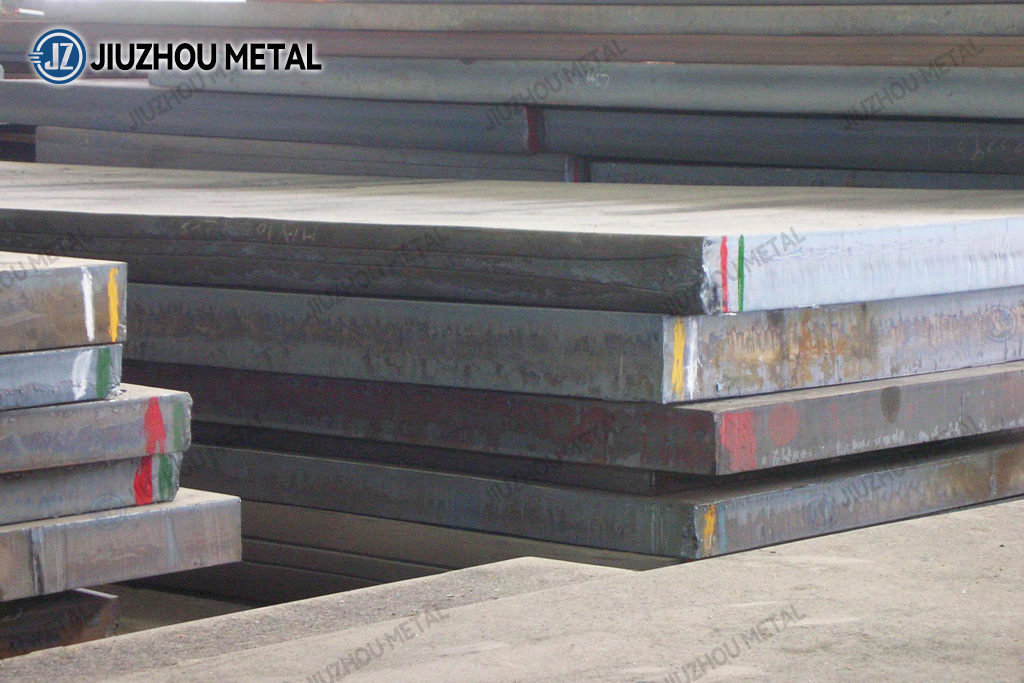

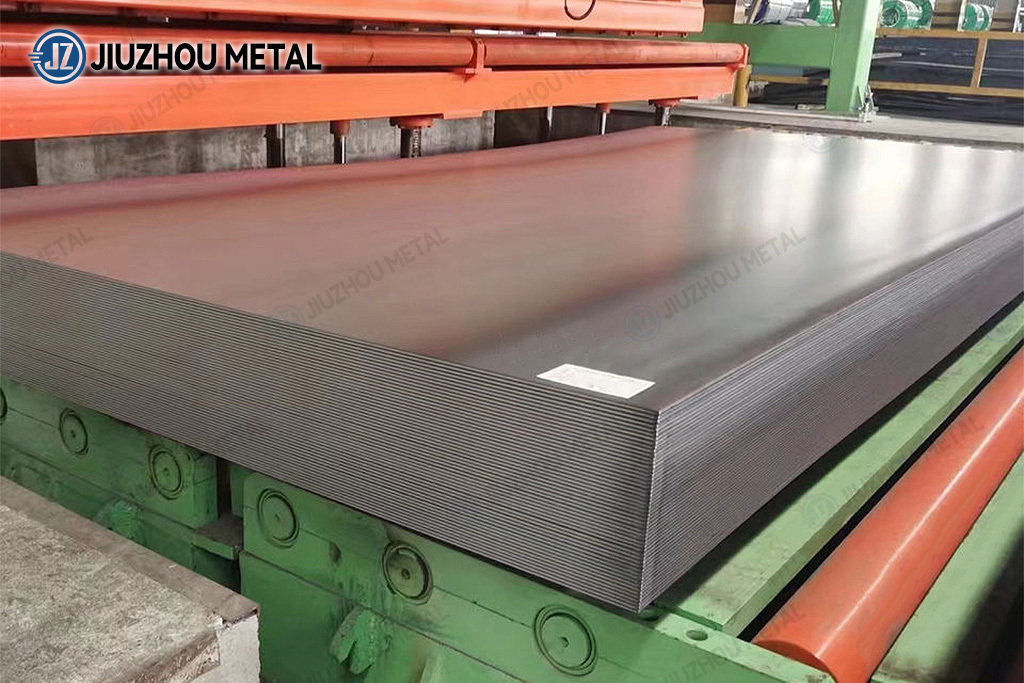

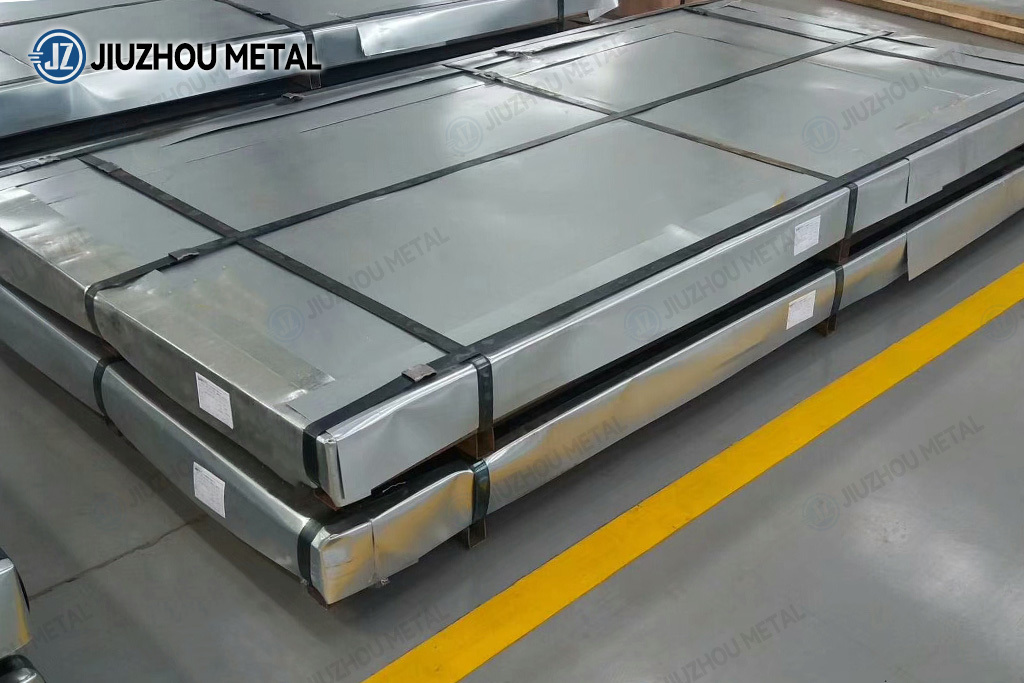

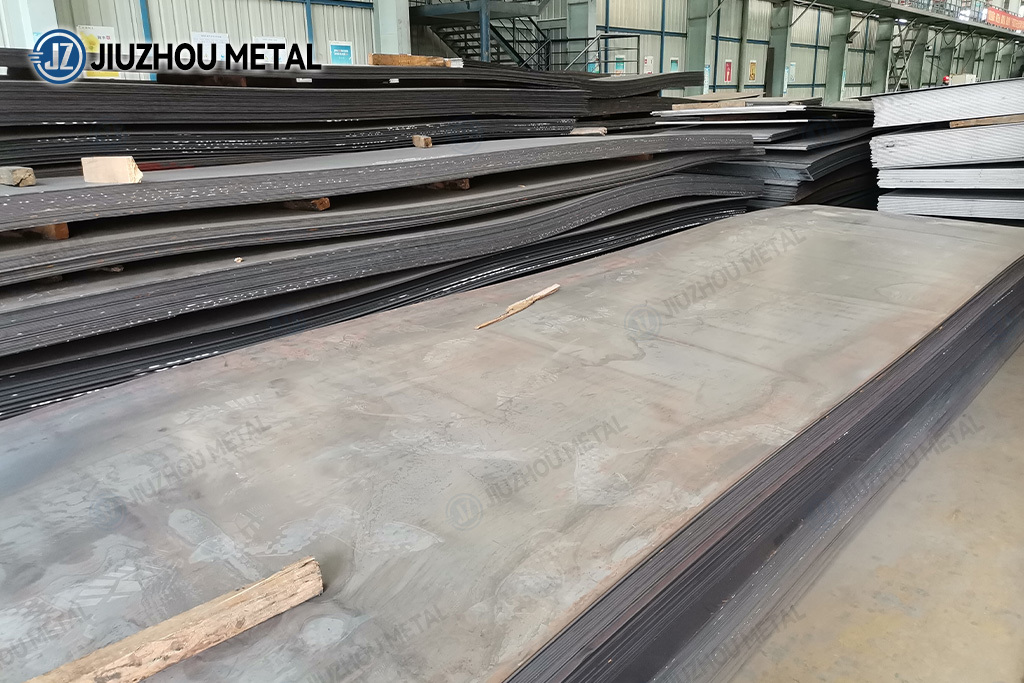

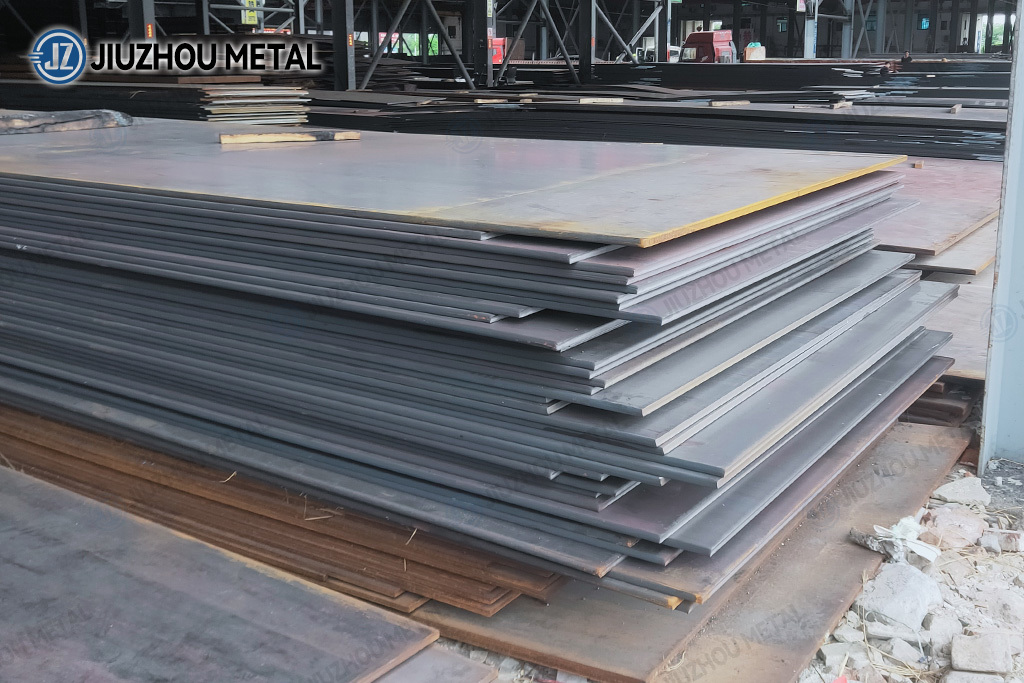

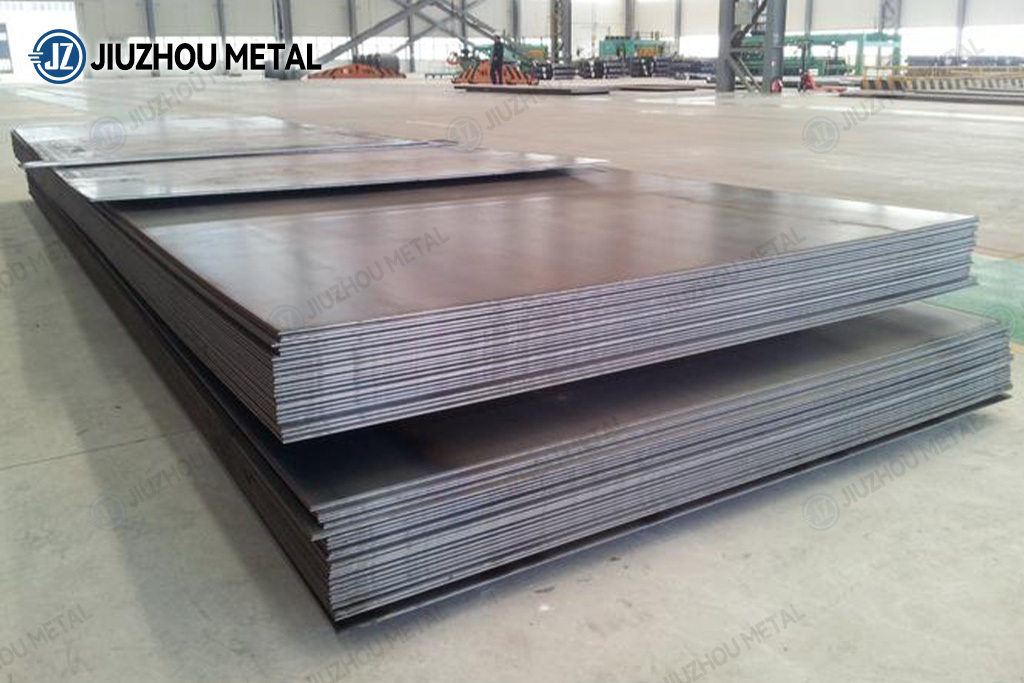

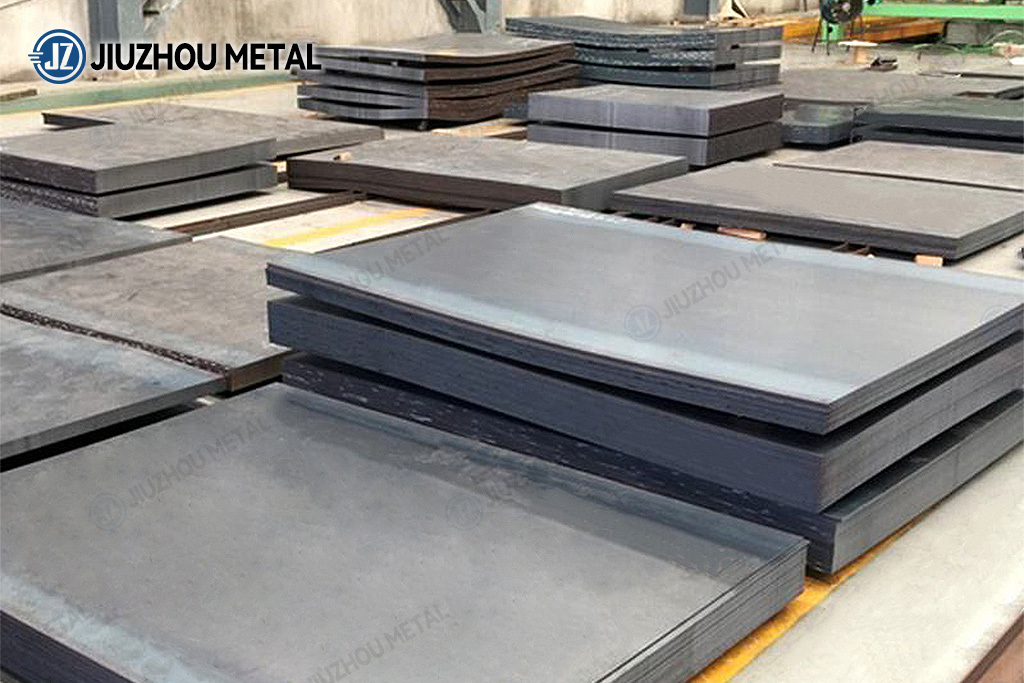

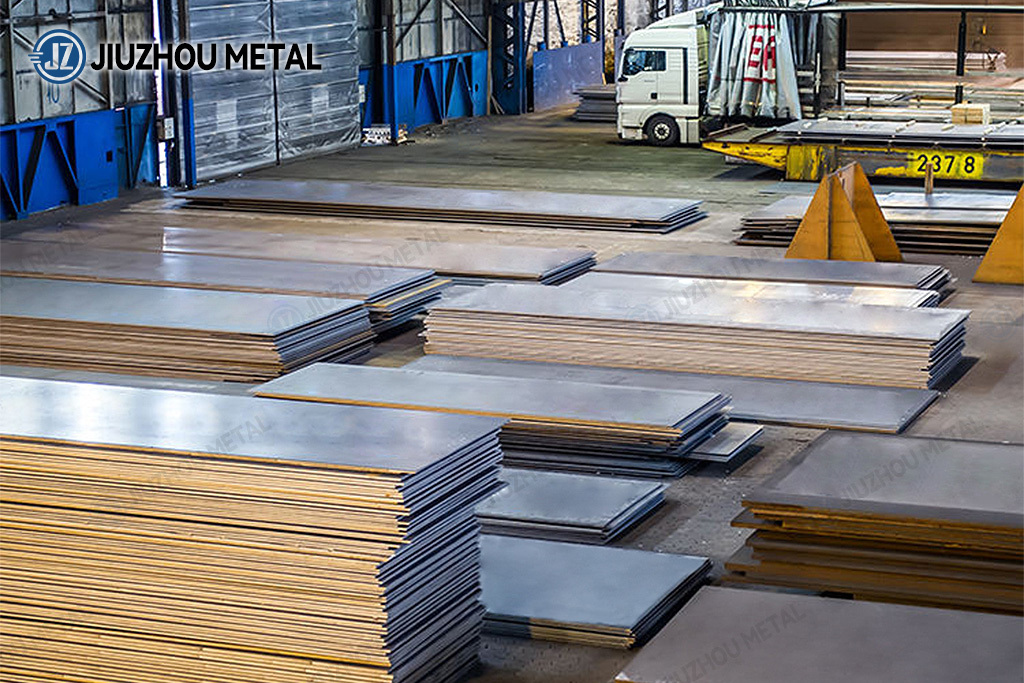

A36/Q235/S235JR Carbon Steel Plate - Stock Warehouse
-
A36/Q235/S235JR Carbon Steel Plate - Product Inspection
Tensile Strength Testing Tensile Strength Testing Physical Performance Testing Chemical Composition Testing
Inspection Hardness Testing Spectral Detection Mechanical Properties -
A36/Q235/S235JR Carbon Steel Plate - Product Measurement
Width Measurement Length Measurement Thickness Measurement Thickness Measurement -

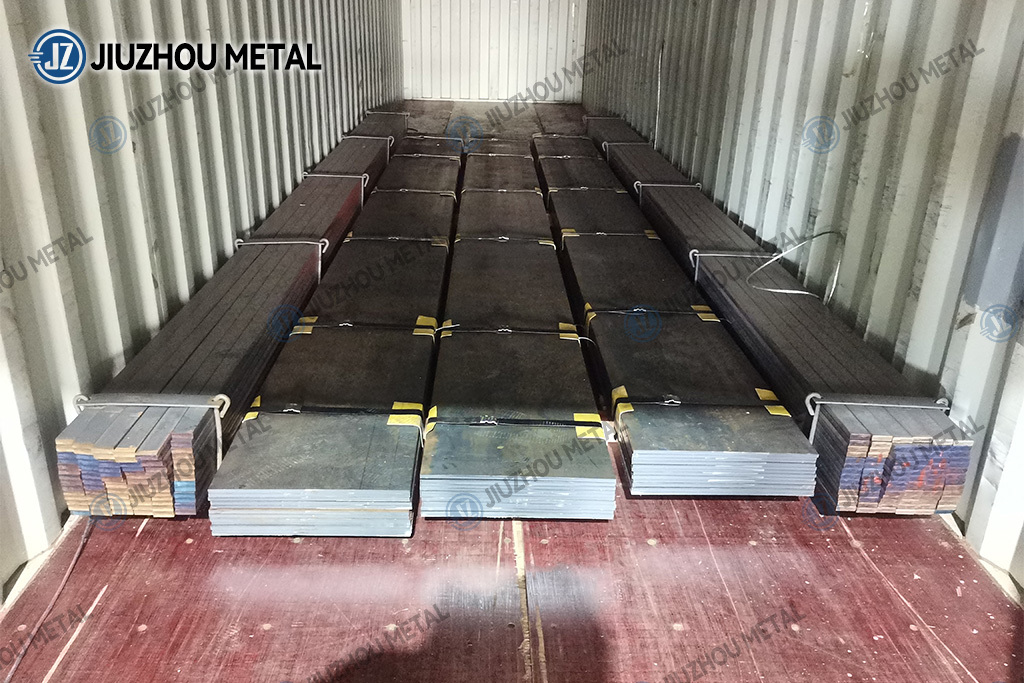

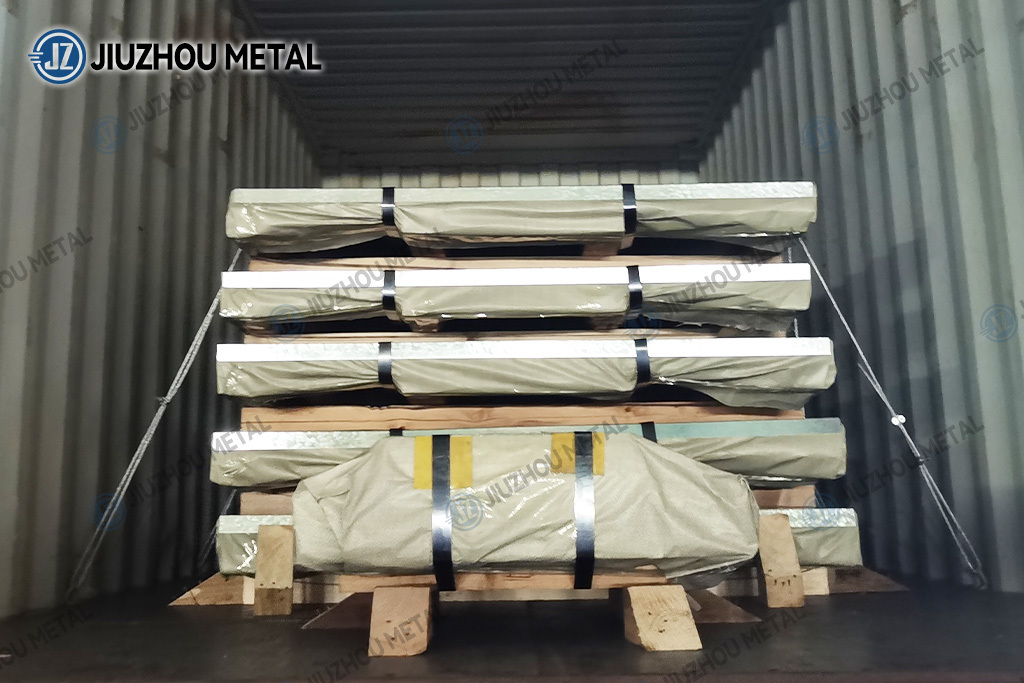

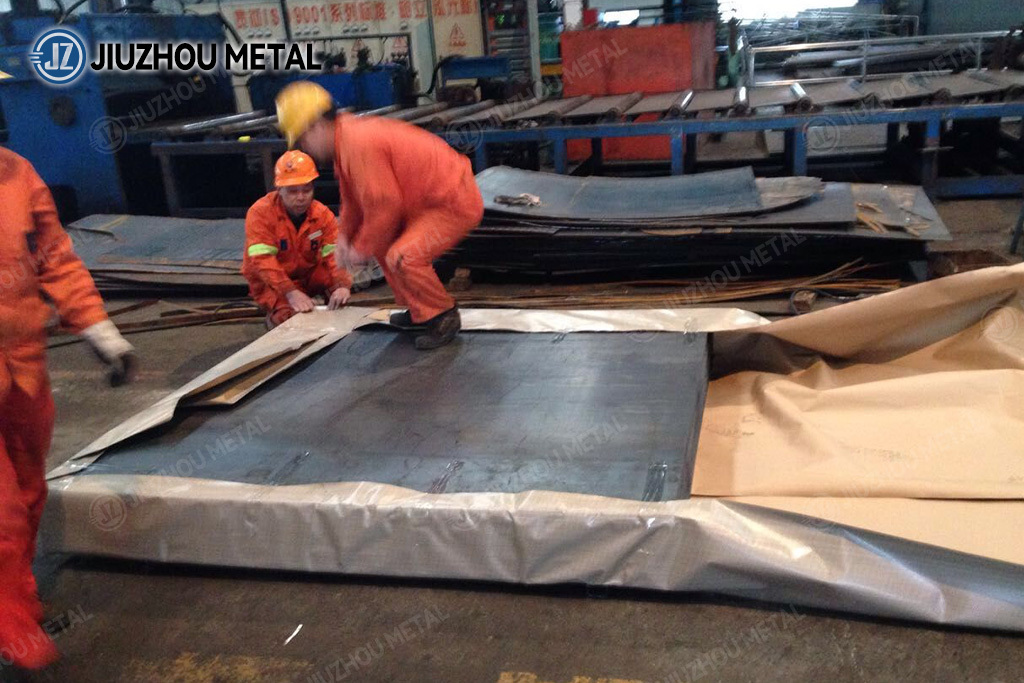

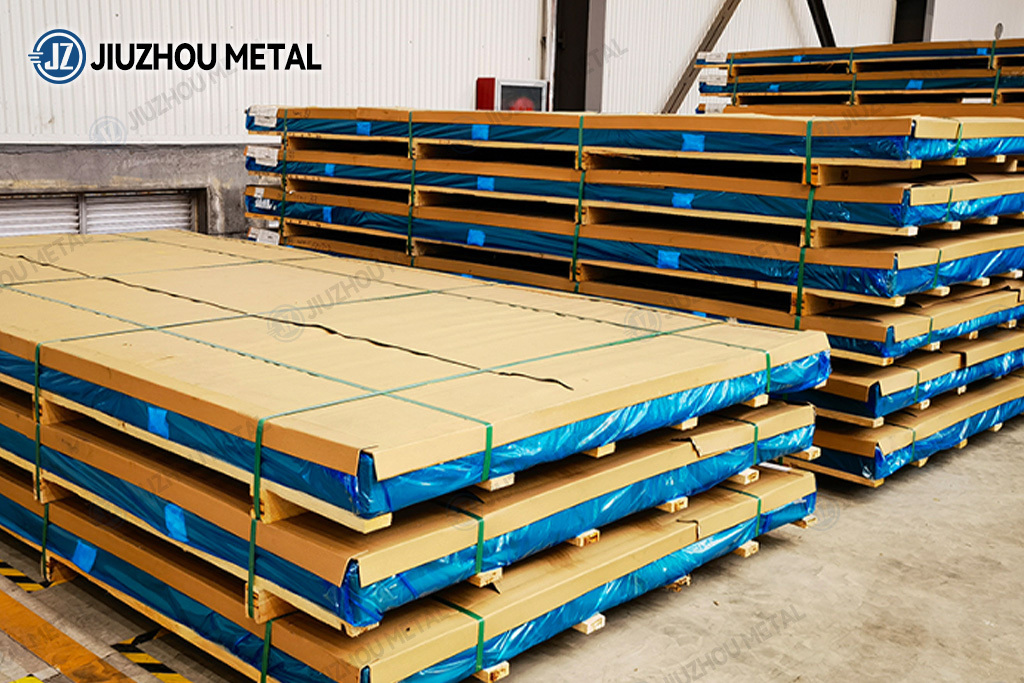

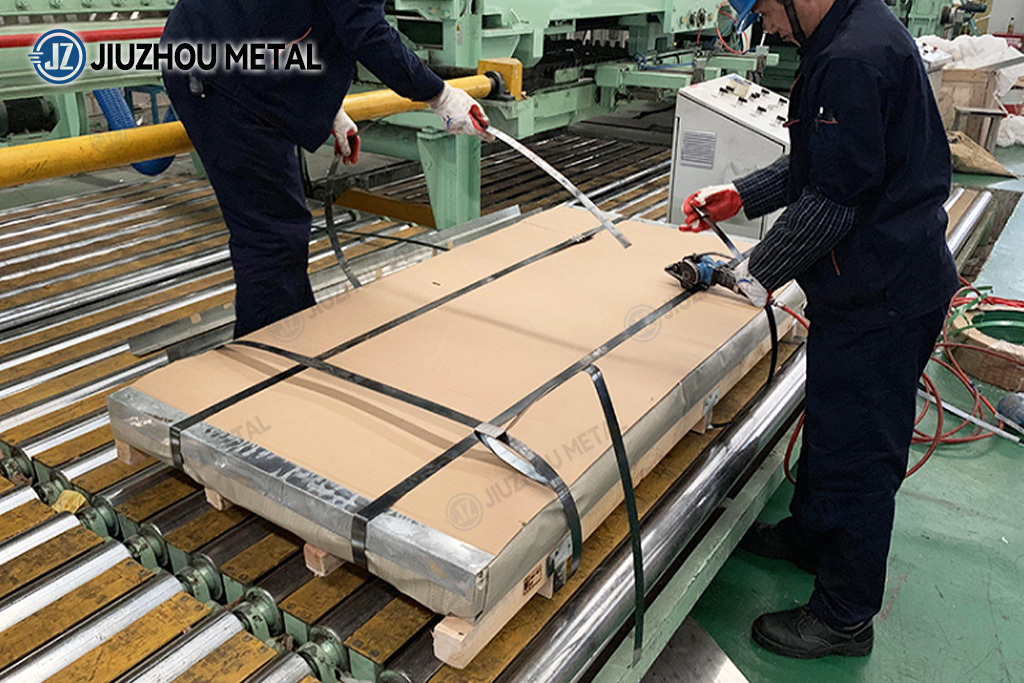

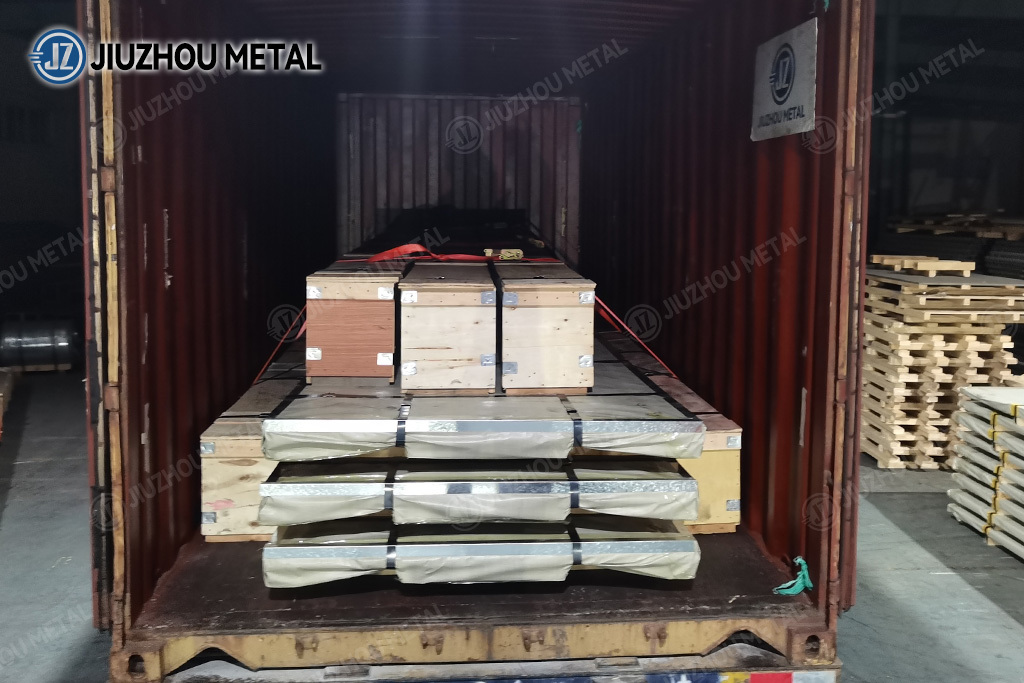

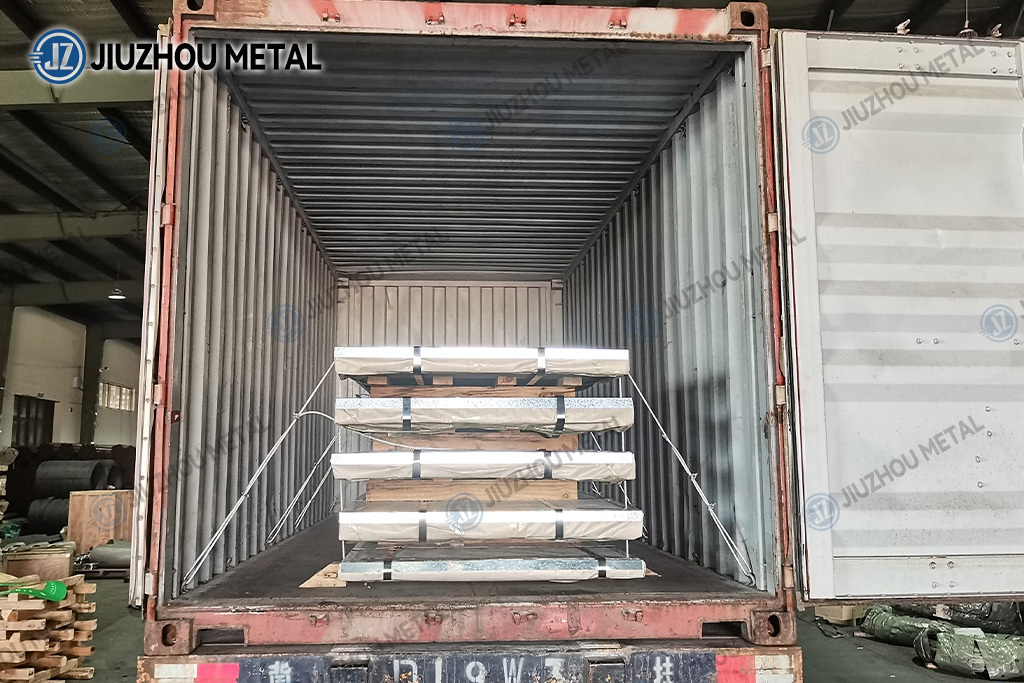

A36/Q235/S235JR Carbon Steel Plate- Product Packaging
