DC01/DC02/DC03/DC04/DC05/DC06 Cold Rolled Steel Plate
DC01, DC02, DC03, DC04, DC05, DC06 are steel grades of European standard DIN EN 10130, 10209 and DIN 1623, which are specified cold rolled steel. The grades are classified according to the maximum permissible yield strength.
- Product Description
- Spot Warehouse
- Product Inspection
- Product Measurement
- Product Packaging
-
- Commodity name: DC01/DC02/DC03/DC04/DC05/DC06 Cold Rolled Steel Plate
DC01, DC02, DC03, DC04, DC05, DC06 are steel grades of European standard DIN EN 10130, 10209 and DIN 1623, which are specified cold rolled steel. The grades are classified according to the maximum permissible yield strength.
DC01/DC02/DC03/DC04 Cold Rolled Steel Plate
DC steel plates have high tensile strength and elongation, giving them good processing properties during the manufacturing process and is easy to bend, stamp, form and weld. This makes DC steel plates widely used in the manufacturing of automotive parts, home appliances, construction and other parts that require high strength and precision. DC steel plates’ s low carbon content gives them excellent weldability and machinability. They can be processed through various welding and cutting processes, such as arc welding, gas shielded welding, laser cutting, etc., to meet the needs of material processing performance in different fields. Lastly, the carbon emission is low and meets the requirements of environmental protection and sustainable development.
Product ParametersProduct Name
DC01/DC02/DC03/DC04 Cold Rolled Steel Plate
Production Process
Hot Rolling, Cold Rolling
Material Standards
AISI, ASTM, ASME, DIN, BS, EN, ISO, JIS, GOST, SAE, etc.
Width
100mm-3000mm
Length
1m-12m, or Customized Size
Thickness
0.1mm-400mm
Delivery Conditions
Rolling, Annealing, Quenching, Tempered or Standard
Surface Process
Ordinary, Wire Drawing, Laminated Film
Chemical Composition
C: max. 0,08 %
Mn: max. 0,40 %
P: max. 0,03 %
S: max. 0,03 %
Mechanical Properties
Steel Grade
Yield Strength (MPa) min
Tensile Strength (MPa) min
Elongation % min
Old Description
DC01
≤280
270-410
28
St 12-03
DC03
≤240
270-370
34
St 13-03
DC04
≤210
270-350
38
St 14-03
DC05
≤180
270-330
40
St 15-03
DC06
≤170
270-330
41
- DC07
≤150
250-310
44
- Scope of Application
DC01 can be used for simple forming work, for example Bending, embossing, beading and pulling.
DC03 is suitable for forming requirements like Deep drawing and difficult profiles suitable.
DC04 is suitable for high deformation requirements.
DC05 is a thermal forming grade, it is suitable for higher forming requirements.
DC06 is a grade for special deep drawing, suitable for the higher deformation requirements.
DC07, this superior deep drawing quality is suitable for highest deformation requirements.
-

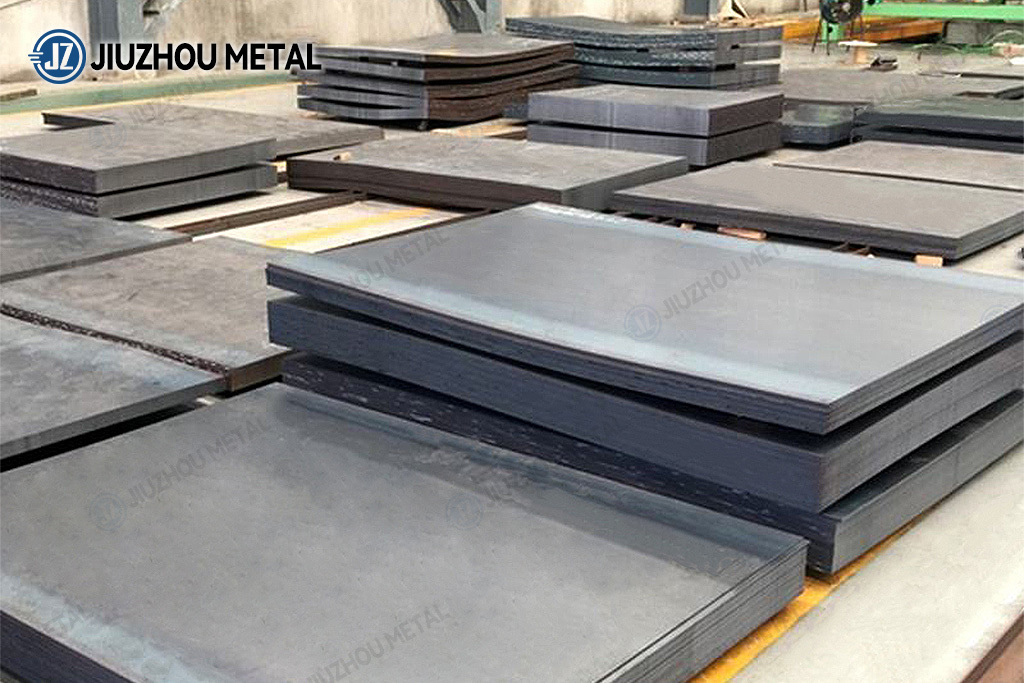

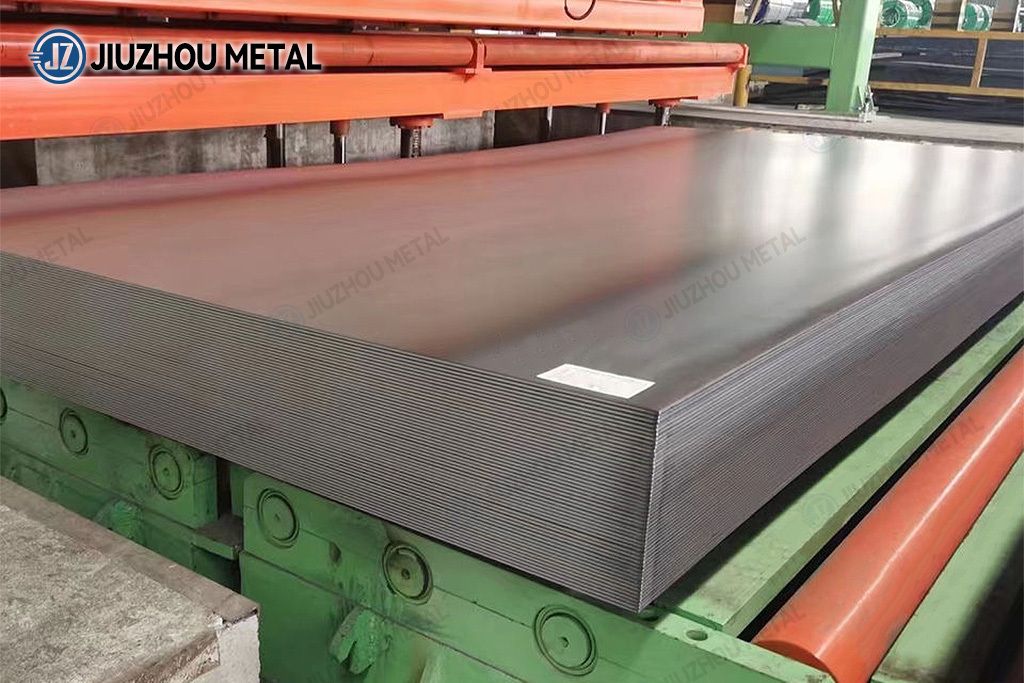

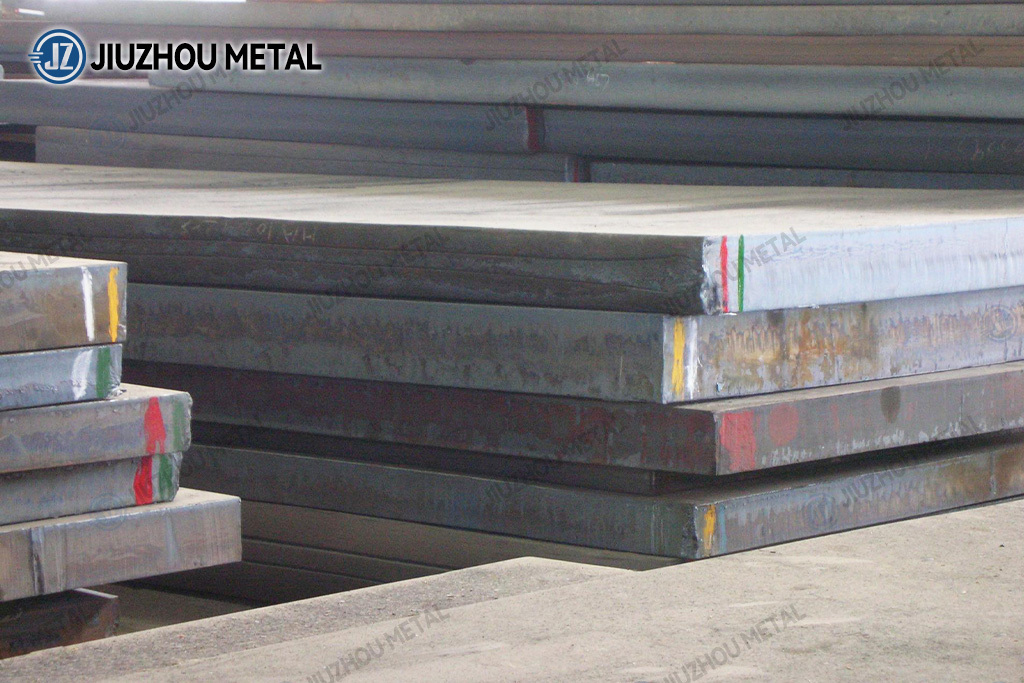

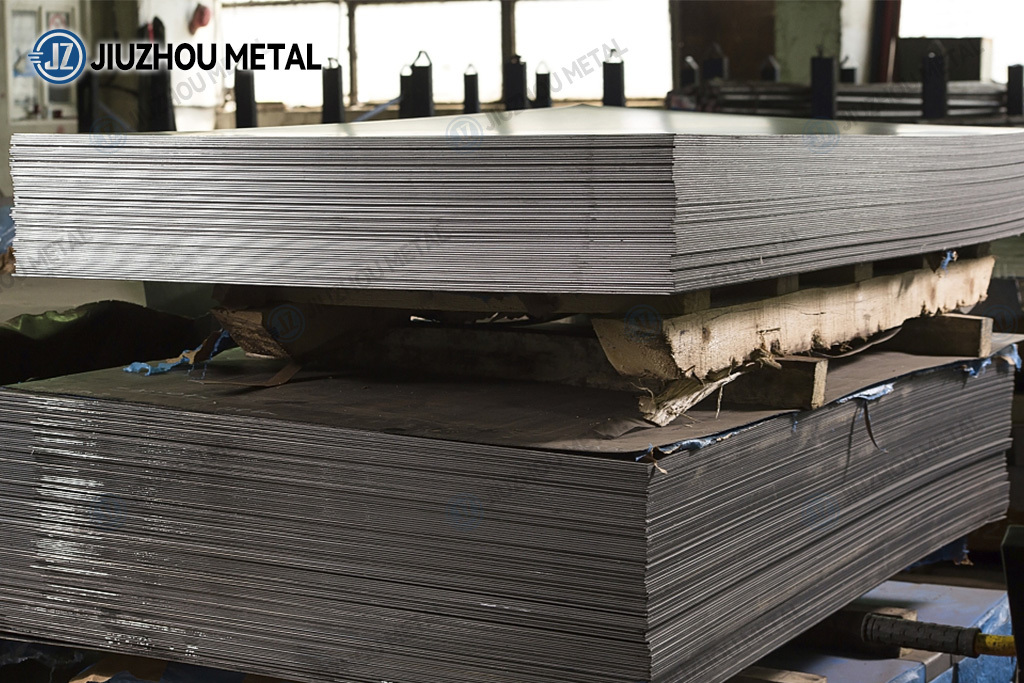

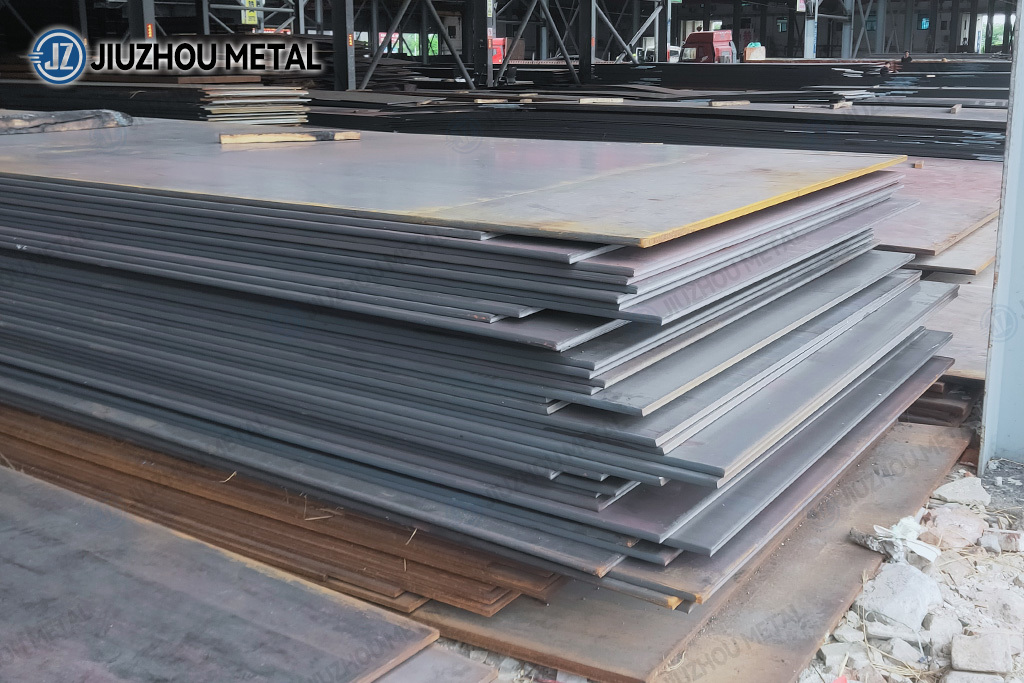

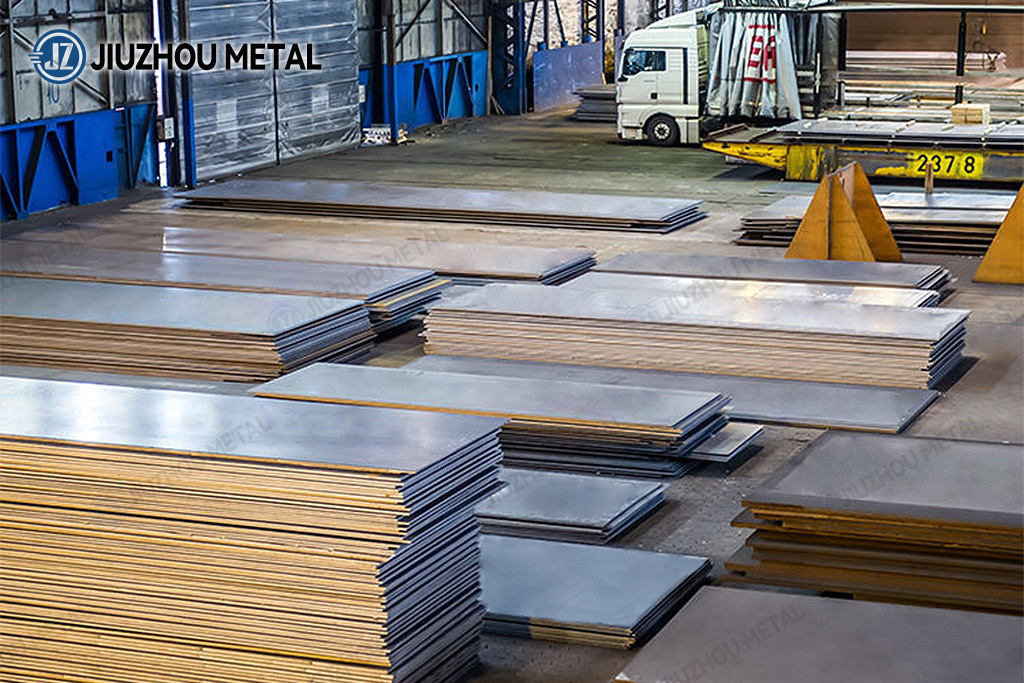

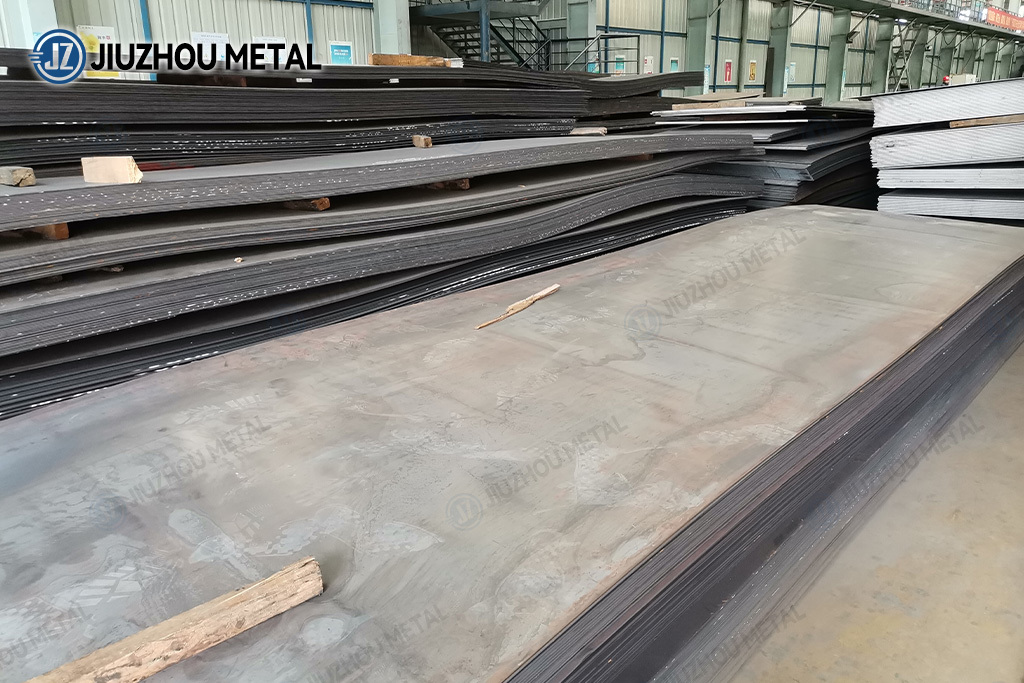

DC01/DC02/DC03/DC04 Cold Rolled Steel Plate - Stock Warehouse
-
DC01/DC02/DC03/DC04 Cold Rolled Steel Plate - Product Inspection
Tensile Strength Testing Tensile Strength Testing Physical Performance Testing Chemical Composition Testing
Inspection Hardness Testing Spectral Detection Mechanical Properties -

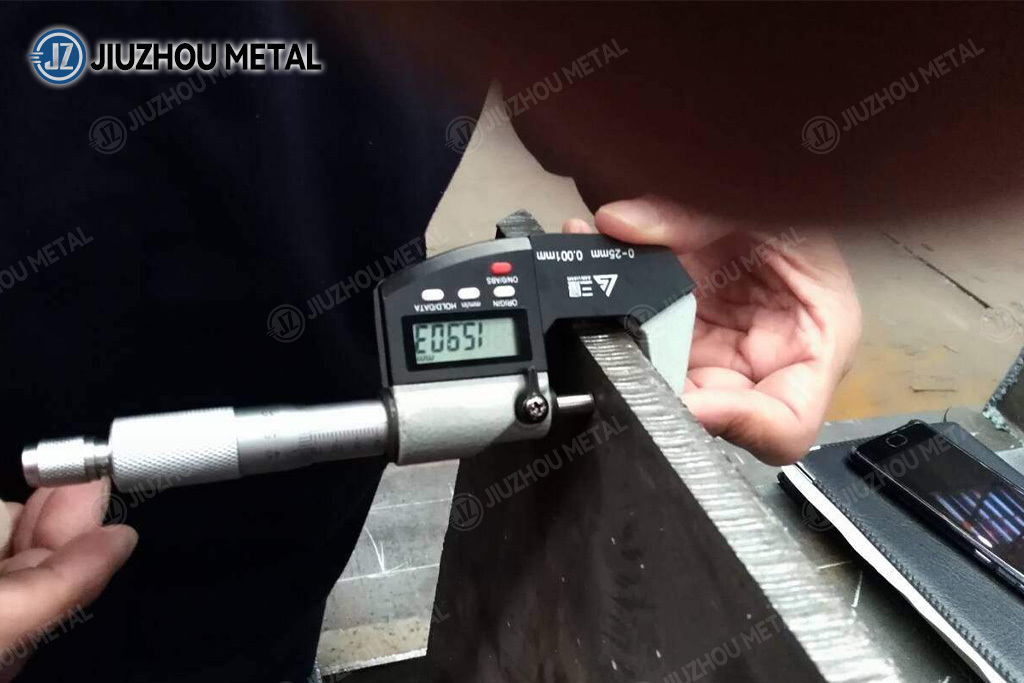

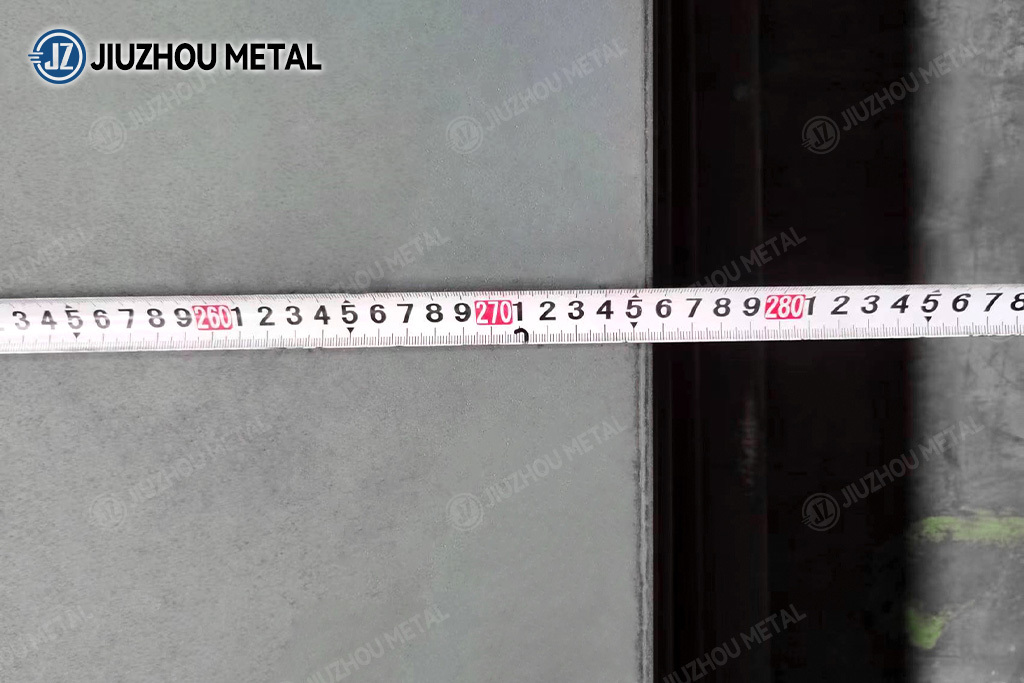

DC01/DC02/DC03/DC04 Cold Rolled Steel Plate - Product Measurement

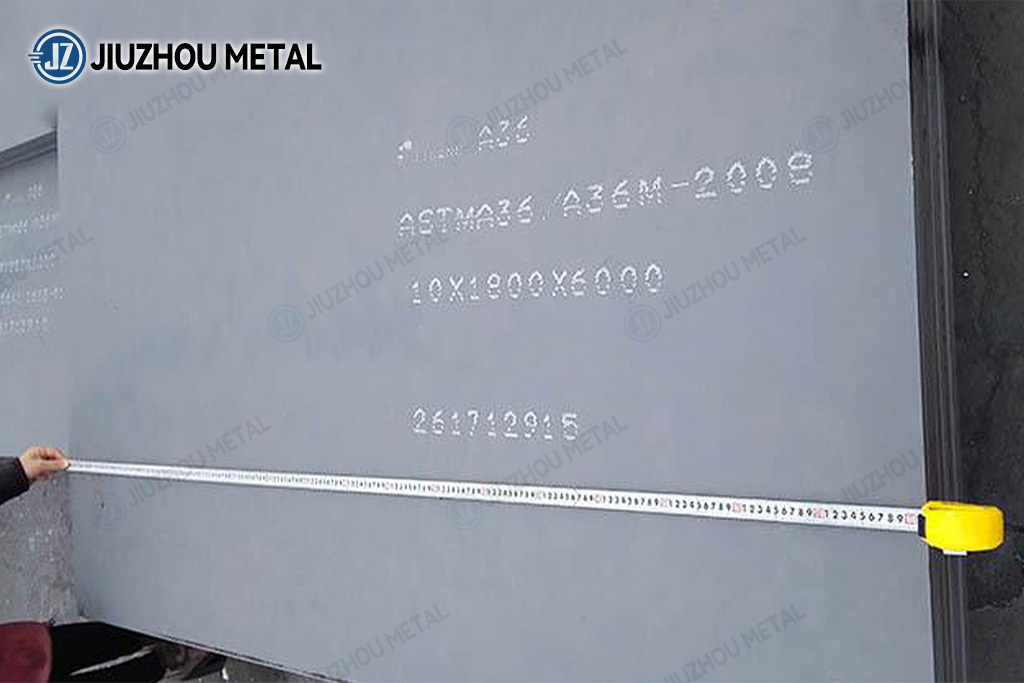

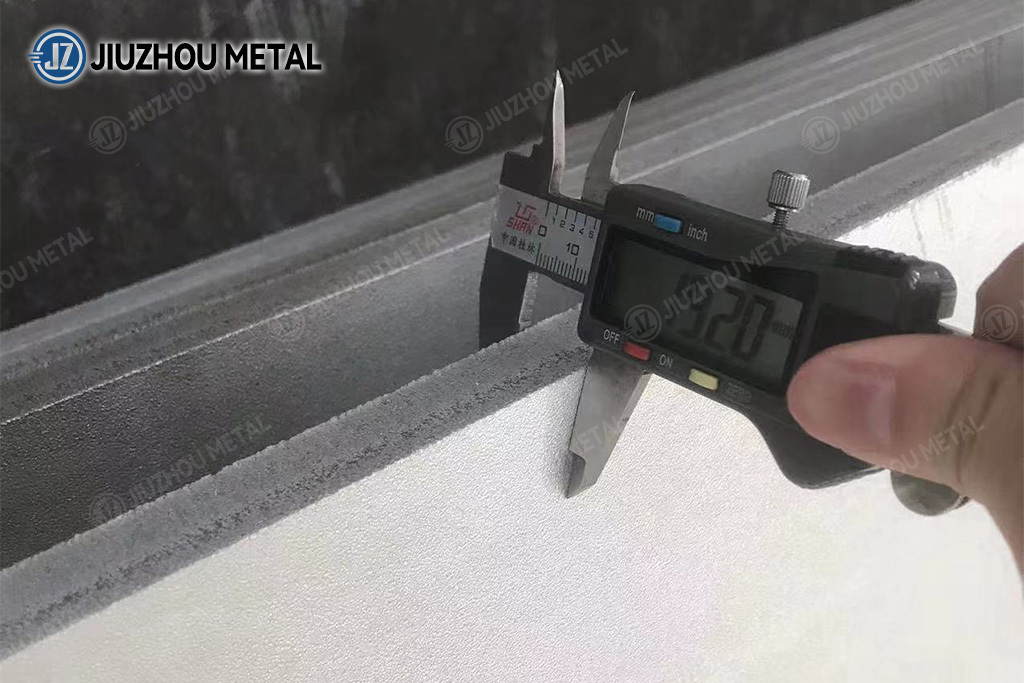

Width Measurement Length Measurement Thickness Measurement Thickness Measurement -

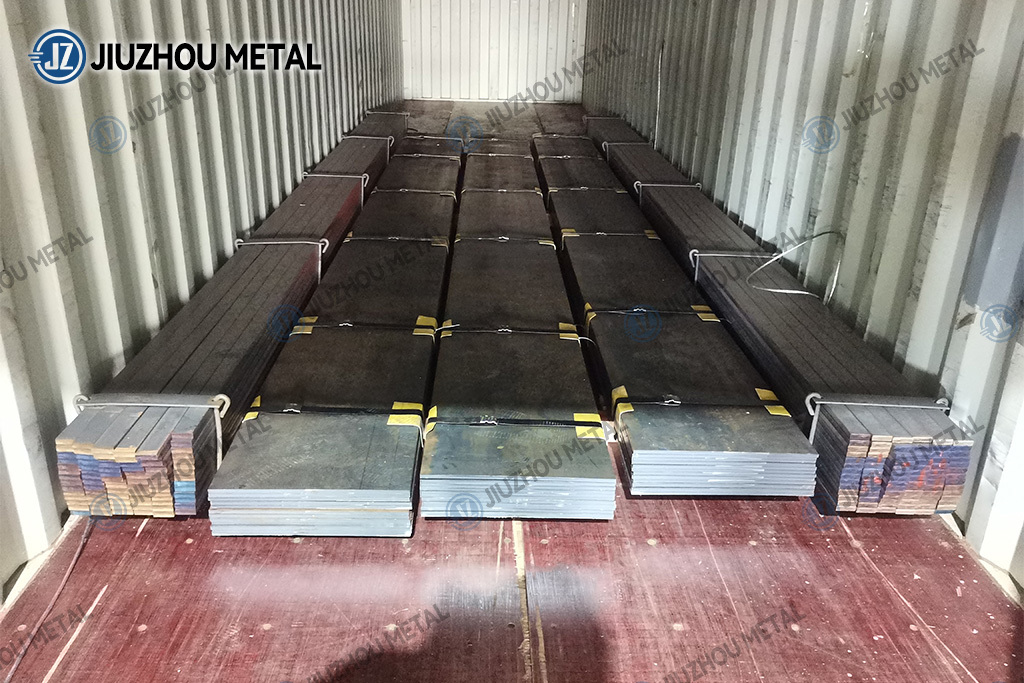

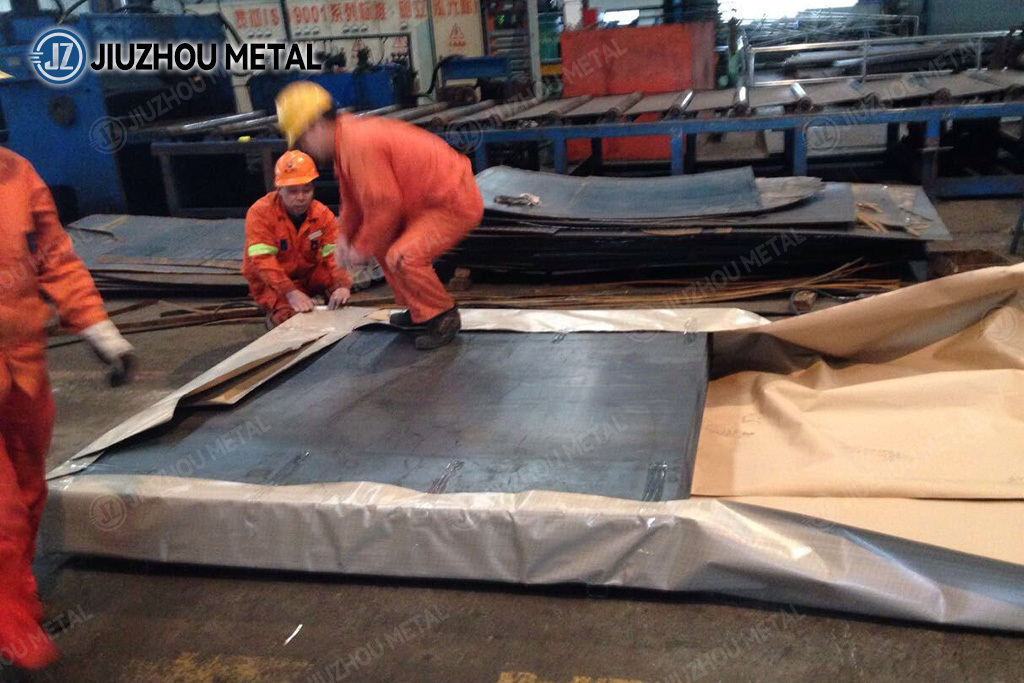

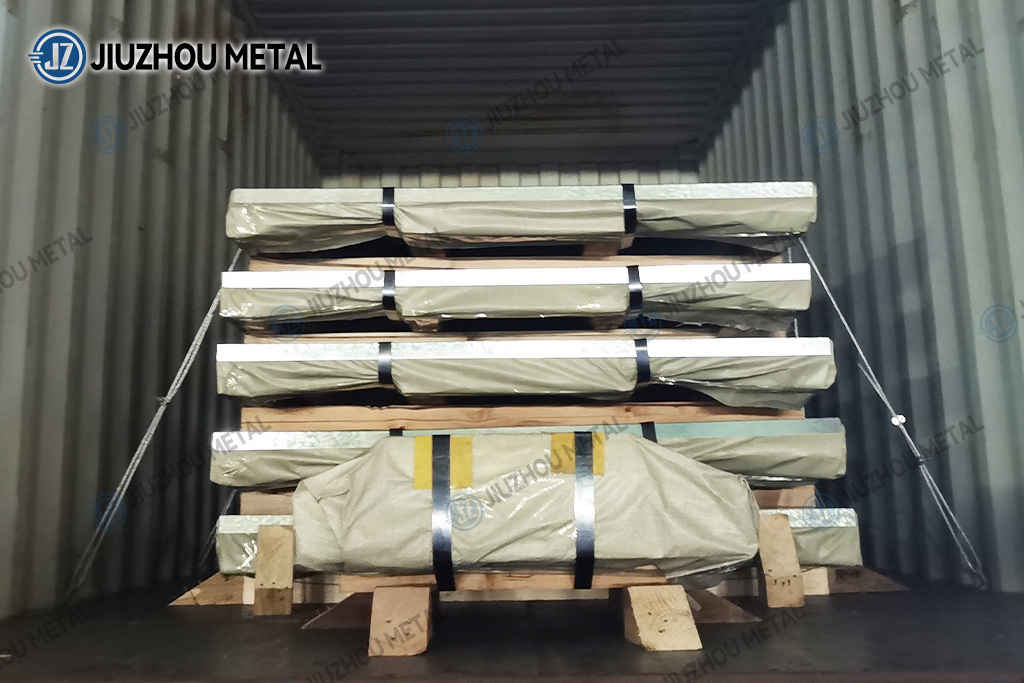

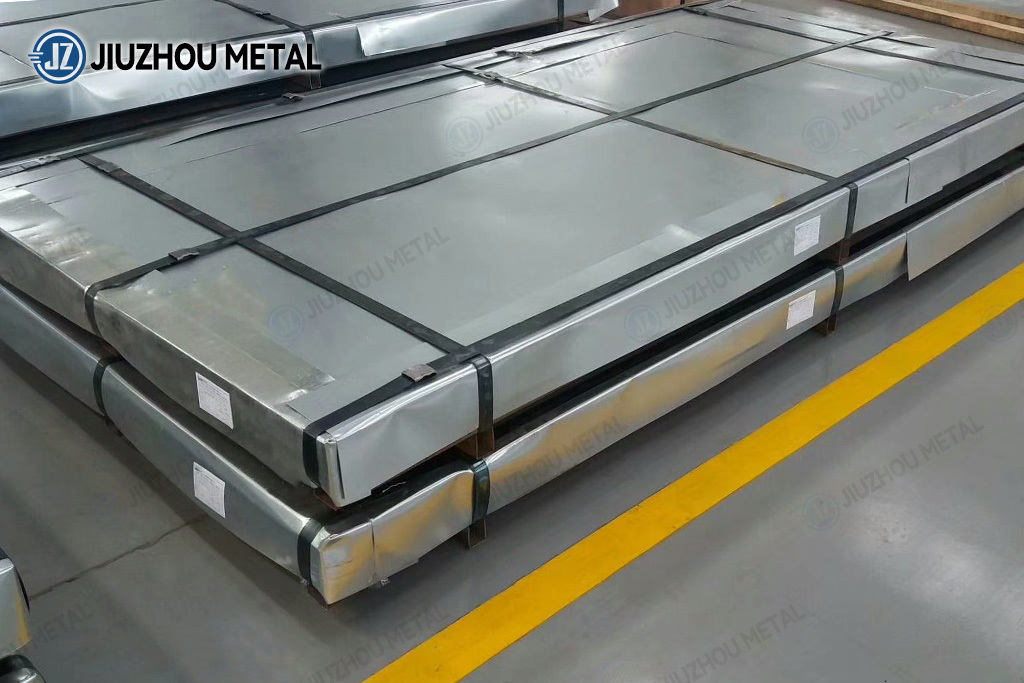

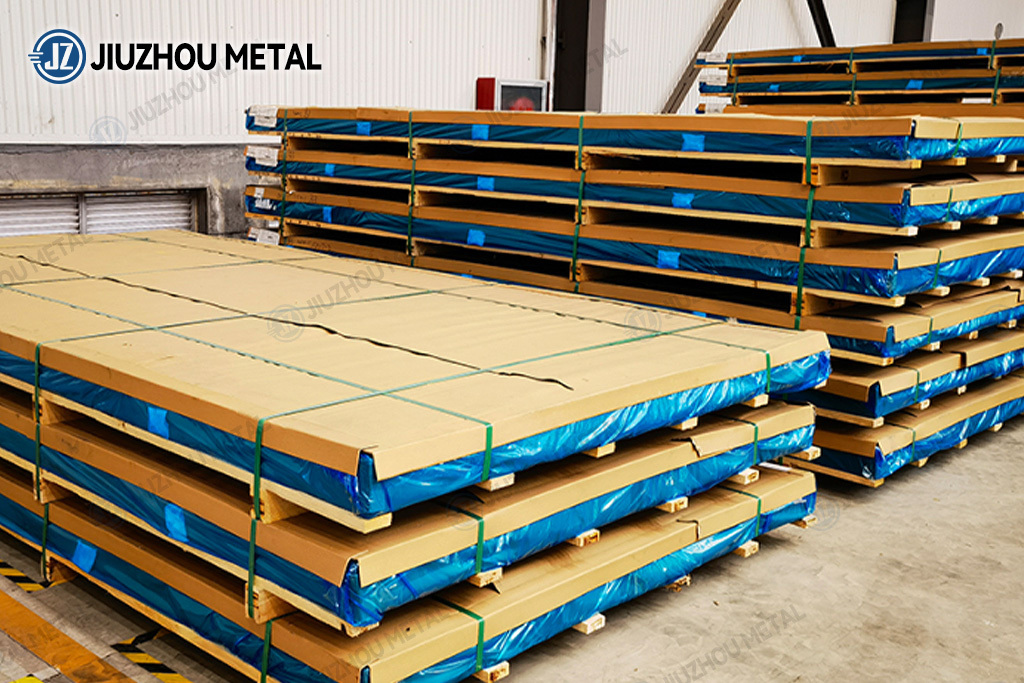

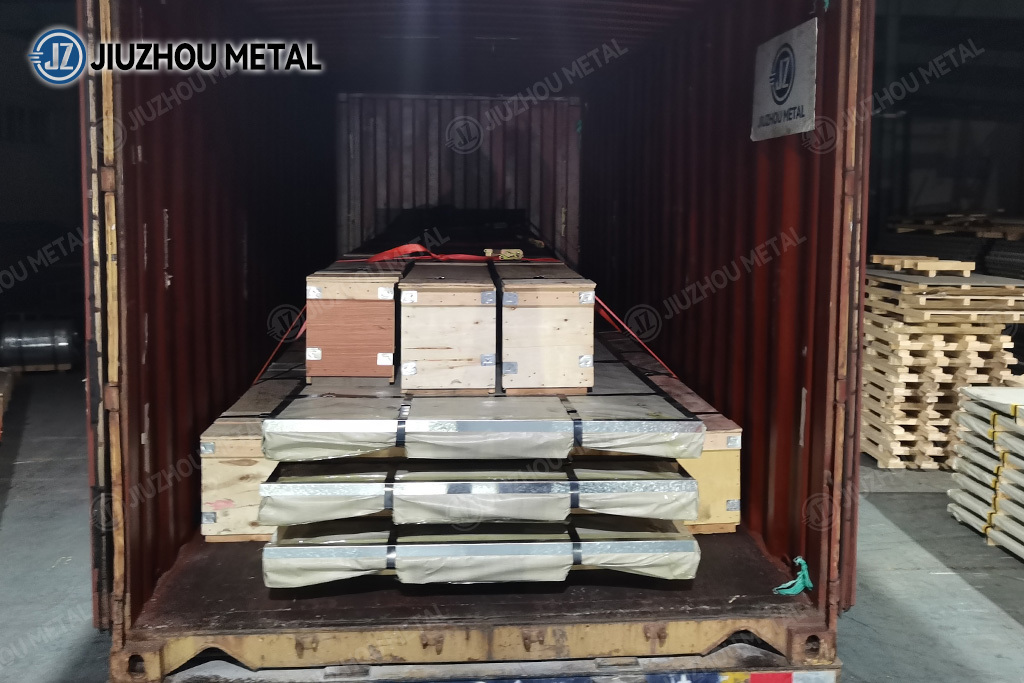

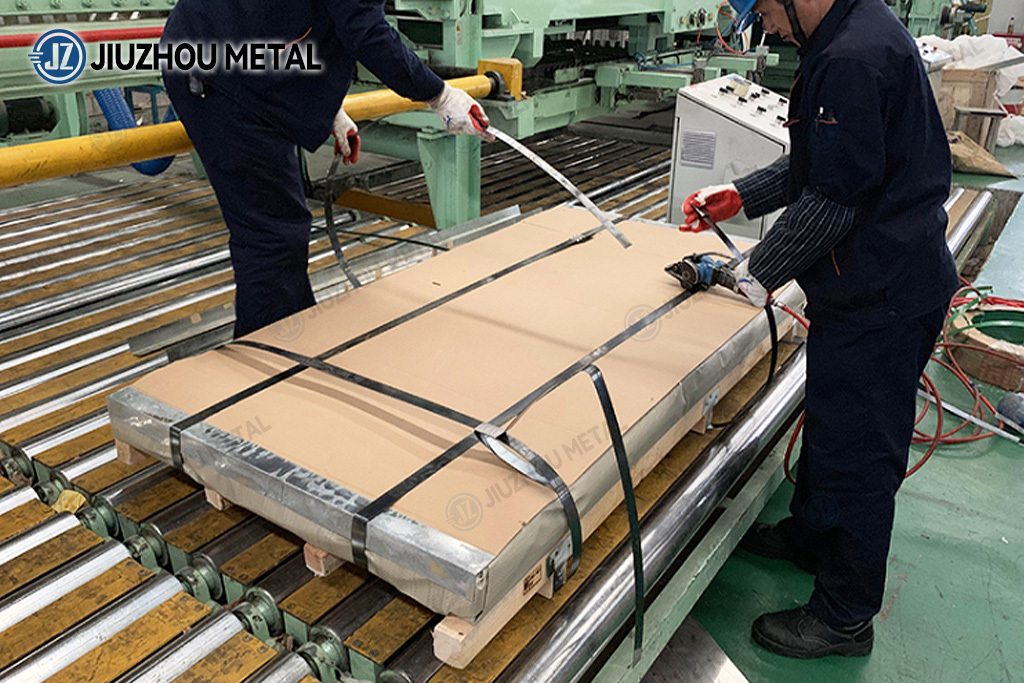

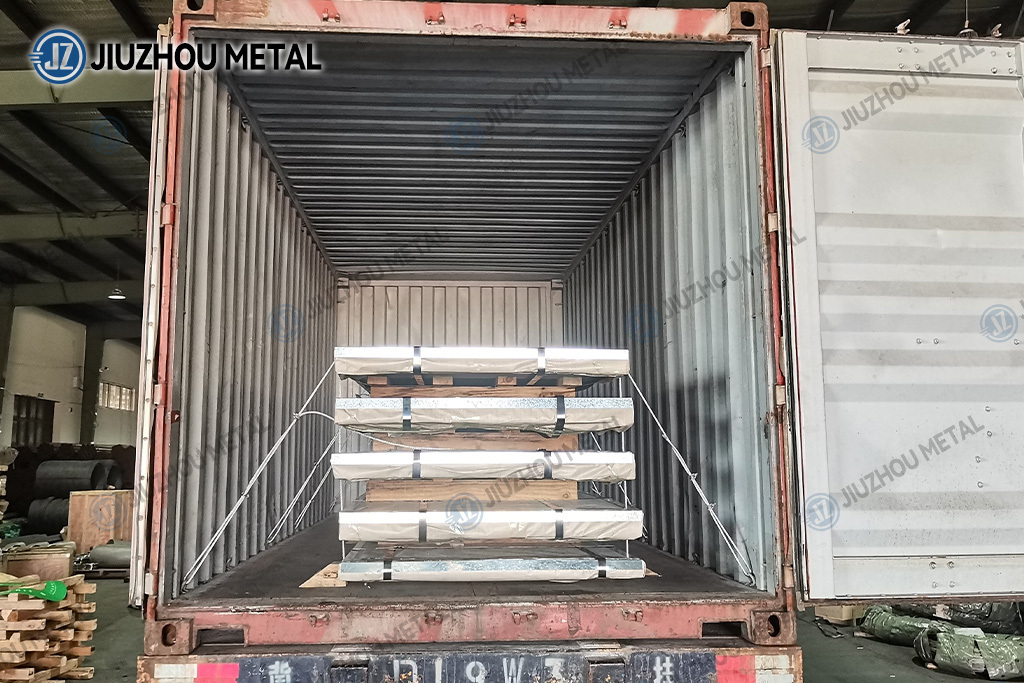

DC01/DC02/DC03/DC04 Cold Rolled Steel Plate- Product Packaging
Baowu Special steel
Your reliable steel supplier
Baowu Special steel has 10+ warehouses with ready stock. The annual supply capacity is approximately 10 million tons. It has 10 years of experience in large-scale project supply. The customer reorder rate reaches 86%. We ensure quality and quantity, provide material certificates, and will refund if the products are not qualified, so please be assured the purchase.
