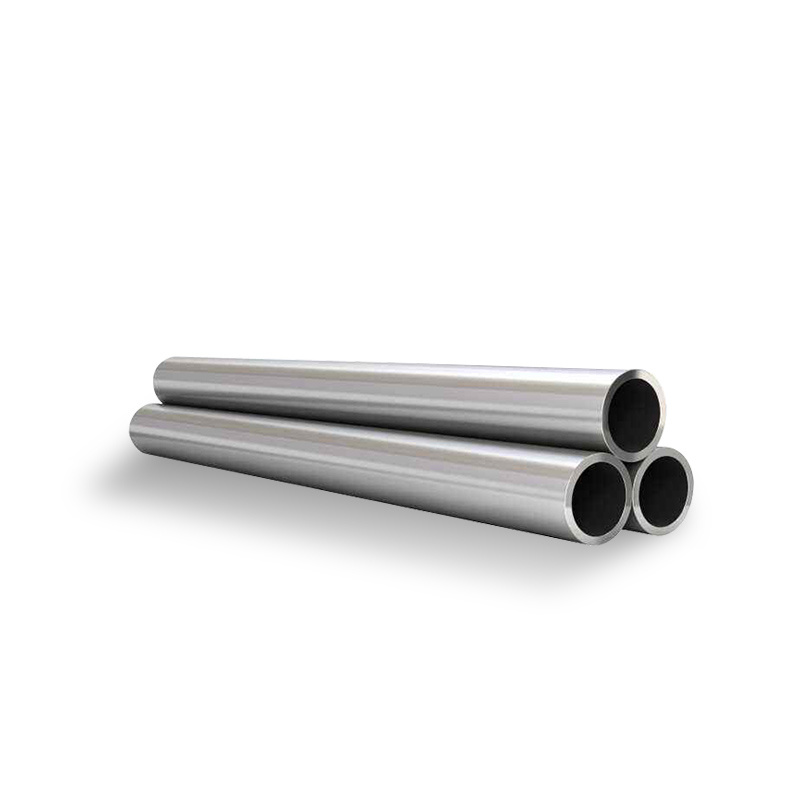

254SMO Stainless Steel Pipe
254SMO stainless steel has a precisely proportioned and optimized chemical elements, giving it unbeatable corrosion resistance, high temperature strength and processing performance. So it has been widely adopted in petroleum, chemical industry, marine engineering and other fields.
- Product Description
- Spot Warehouse
- Product Inspection
- Product Measurement
- Product Packaging
-
- Commodity name: 254SMO Stainless Steel Pipe
254SMO stainless steel has a precisely proportioned and optimized chemical elements, giving it unbeatable corrosion resistance, high temperature strength and processing performance. So it has been widely adopted in petroleum, chemical industry, marine engineering and other fields.
254SMO Stainless Steel Pipe Description
254SMO is a highly corrosion-resistant austenitic stainless steel, mainly used in environments of high-concentration chloride ion and highly corrosive media, such as seawater, salt water, wet chlorine, acetic acid, formic acid, acetic acid, hydrochloric acid, hypochlorous acid, sulfuric acid, nitric acid, etc.. On the other hand, it also possesses good processing performance and welding performance. Besides, it is very resistant to pitting and crevice corrosion as a result of its high content of chromium and molybdenum. As this special stainless steel is a high-alloy material, the manufacturing process is quite complex. Generally, only traditional processes are adopted to manufacture this special stainless steel, such as pouring, forging, rolling, etc.
Product ParametersProduct Name
254SMO Stainless Steel Pipe
Type
Steel Pipe
Outer diameter
Round Tube
4mm-200mm
Square Tube
10*10mm-100*100mm
Rectangular Tube
10*20mm-50*100mm
Wall Thickness
0.6mm-6.0mm
Length
1-6 meters, Length can be customized
Standard
ASTM, AISI, JIS, GB, DIN, EN, etc.
Surface
Black, Bright Polished, Rough Turning, Matt Surface Treatment, No. 4. BA, etc.
Scope of Application
Common applications for stainless steel pipes include food processing,
Textile operations, Breweries, Water treatment plants, Oil and gas processing,
Fertilizers and pesticides, Chemical applications, Construction, Pharmaceuticals, Auto parts, etc.
Certificate
ISO, SGS, BV, etc.
Production Technology
Hot Rolling, Cold Rolling
Edge Processing
Edging, Trimming
Chemical Composition
C
Si
Mn
Cr
Ni
Mo
S
P
≤ 0.02
≤ 0.8
≤1.0
19.5~20.5
17.5~18.5
6.0~6.5
≤ 0.01
≤ 0.03
Mechanical Properties
Tensile Strength Kb (MPa)
Yield Strength σ0.2 (MPa)
Elongation D5 (%)
Hardness
≥680
≥300
≥45
≤ 180HRB
Physical Performance
Density(g/cm³)
Modulus of Elasticity(Gpa)
Coefficient of Thermal Expansion(10-6/°C)
Coefficient of Thermal Conductivity(W/m*K)
Resistivity(ΜΩ. cm)
8.0
195
16.0
14.0
85
-

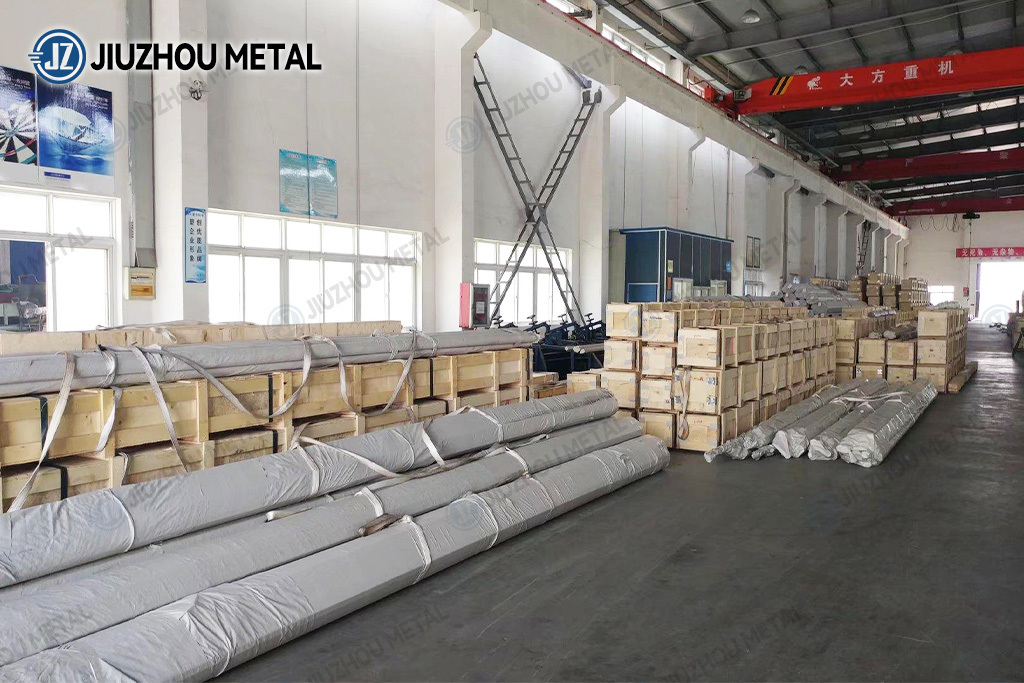

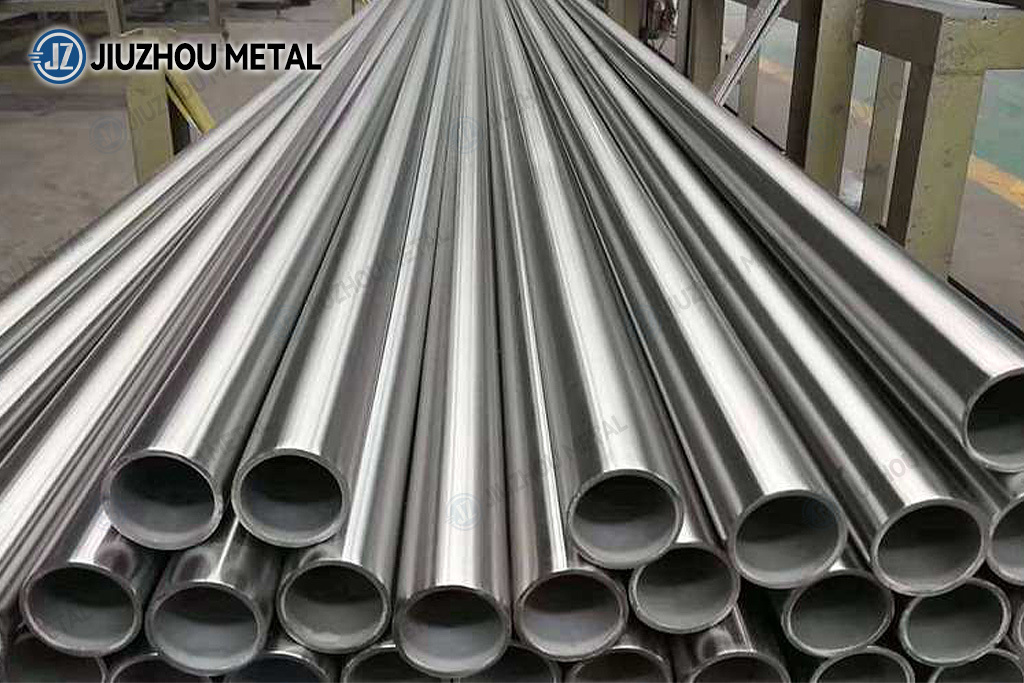

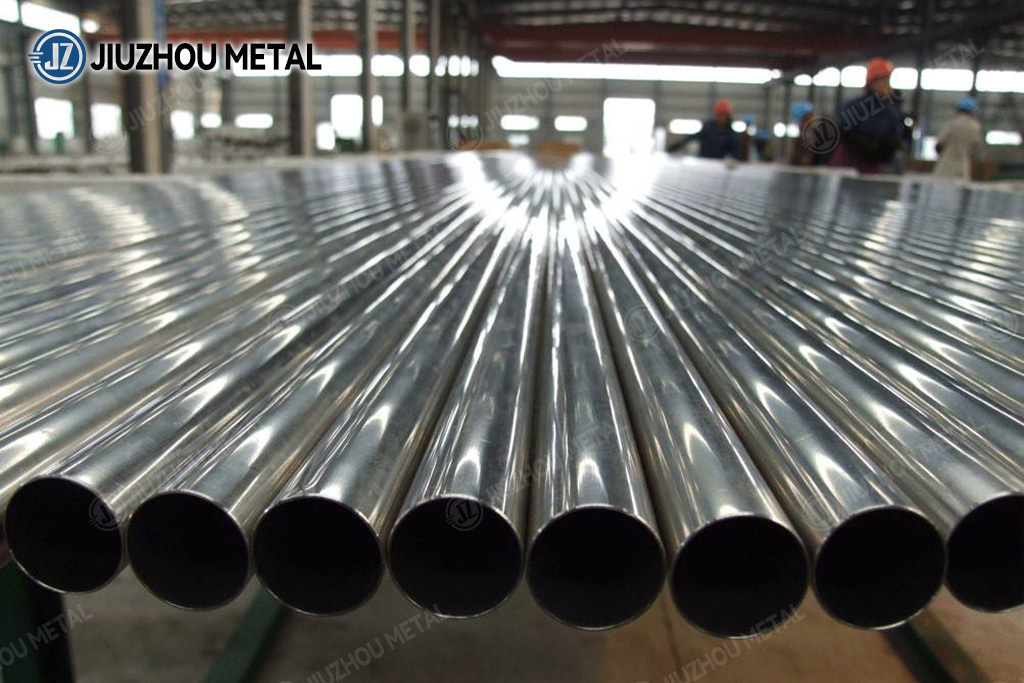

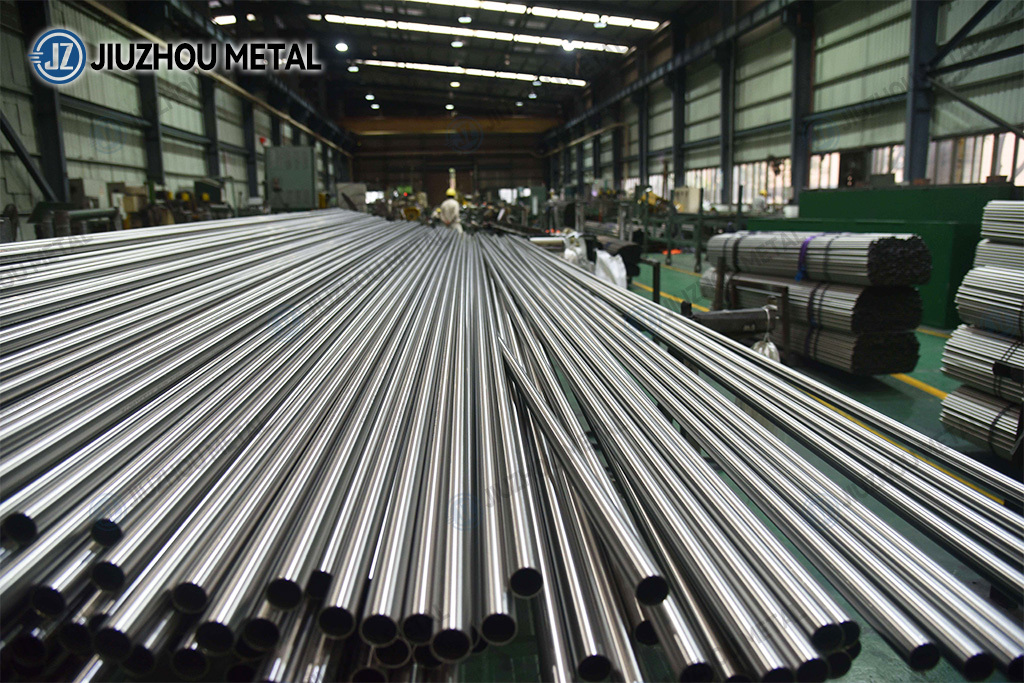

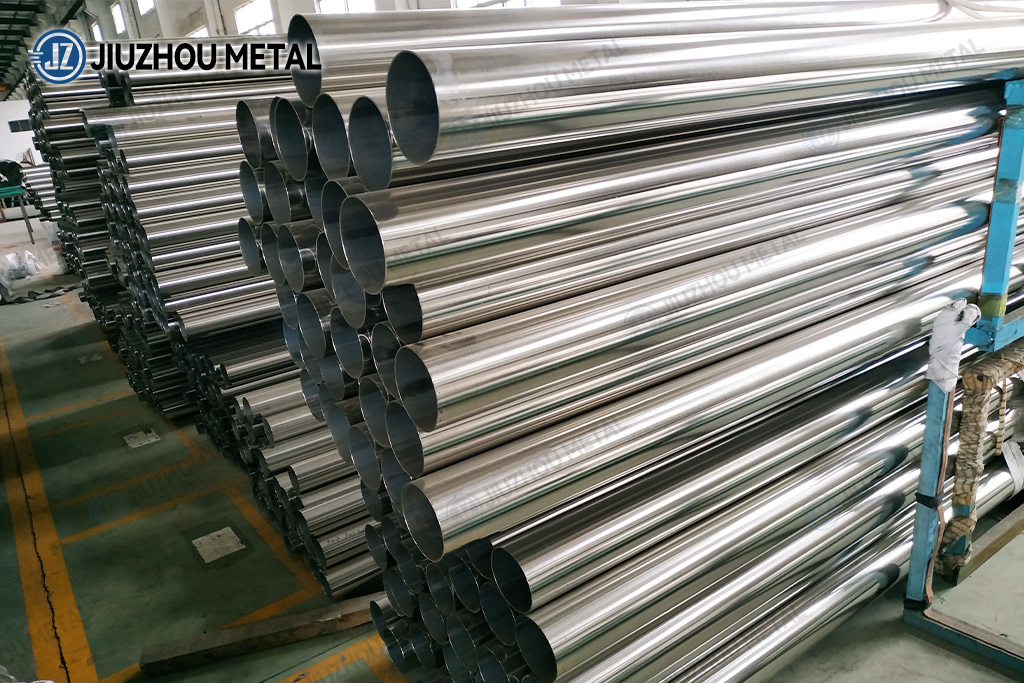

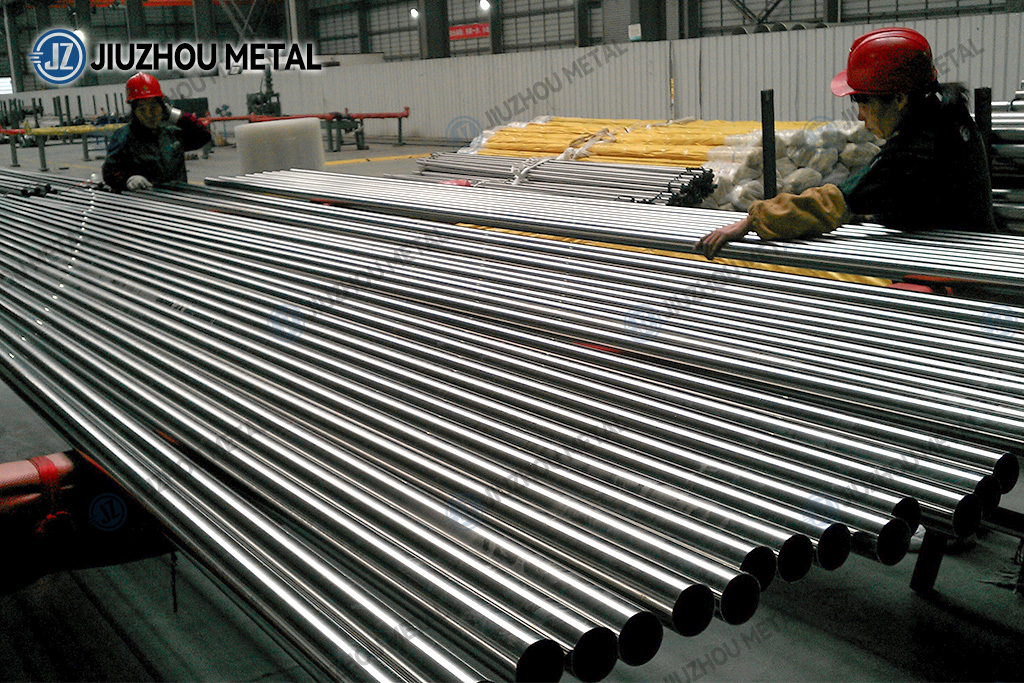

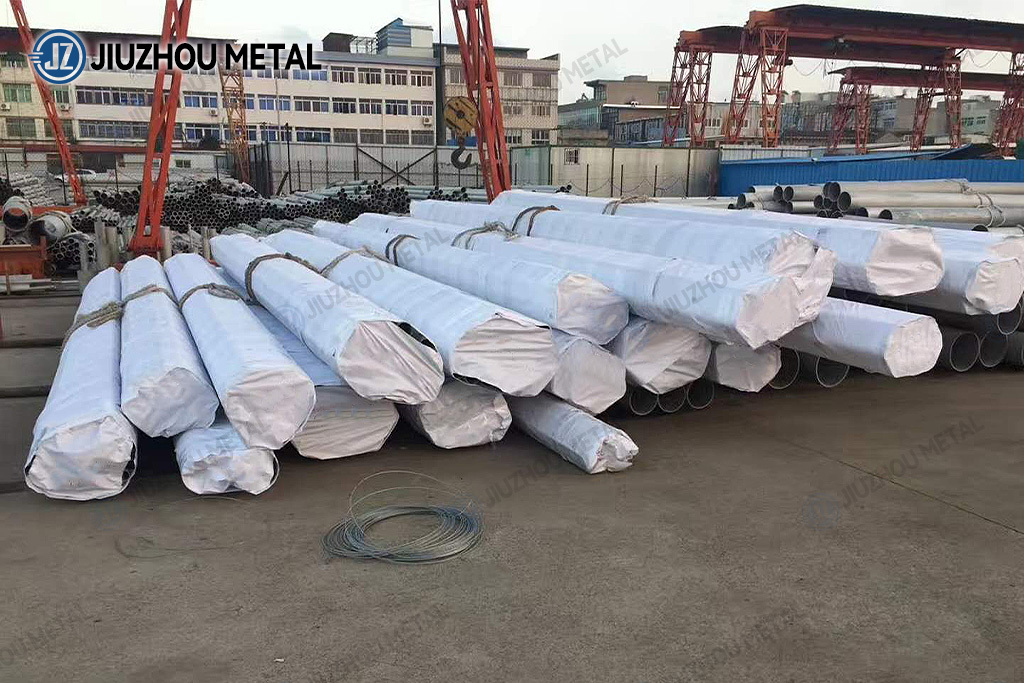

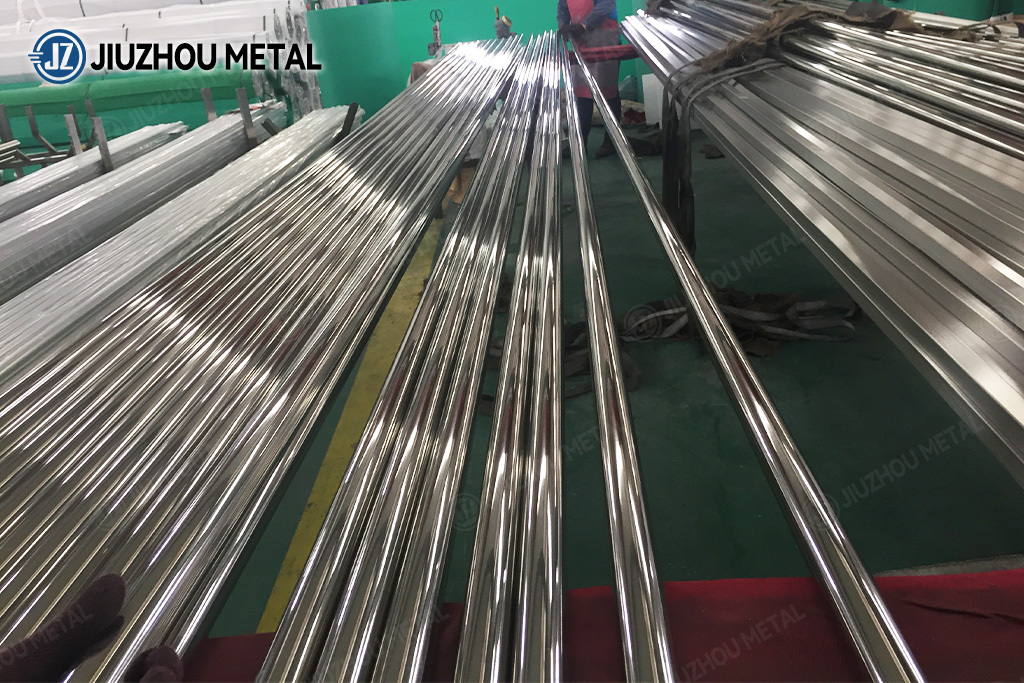

254SMO Stainless Steel Pipe - Stock Warehouse
-

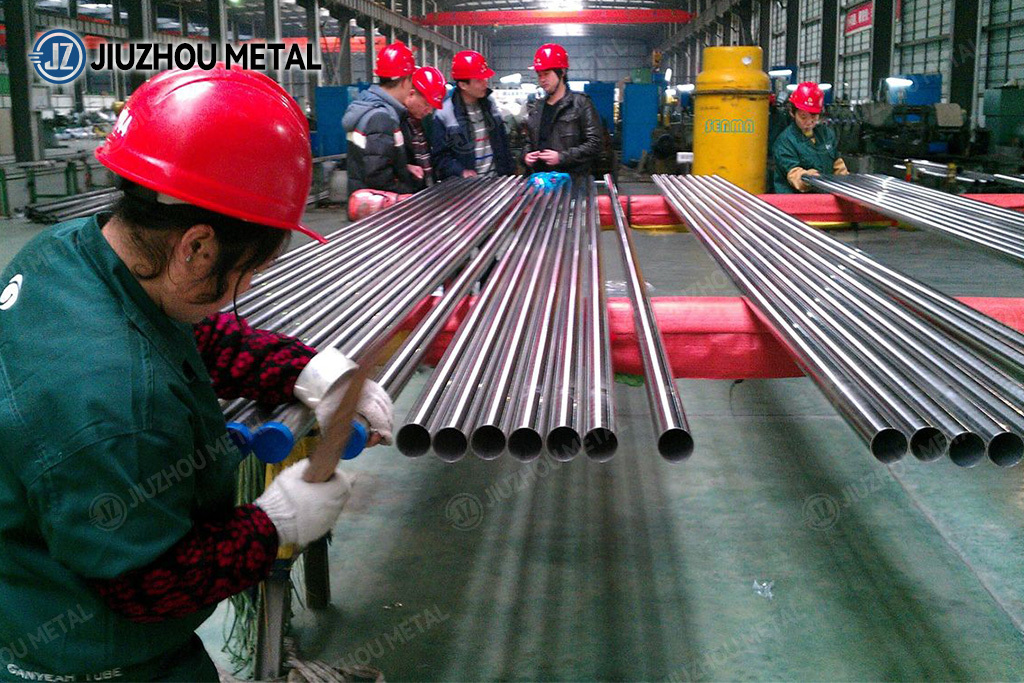

254SMO Stainless Steel Pipe - Product Inspection
Tensile Strength Testing Tensile Strength Testing Physical Performance Testing Chemical Composition Testing
Inspection Hardness Testing Spectral Detection Mechanical Properties -

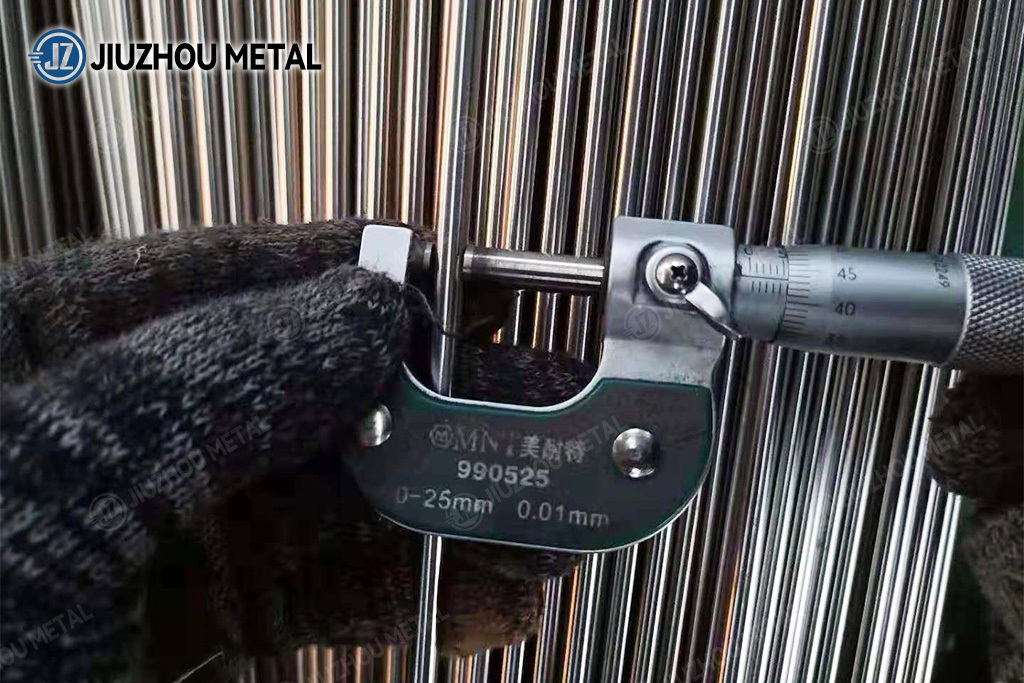

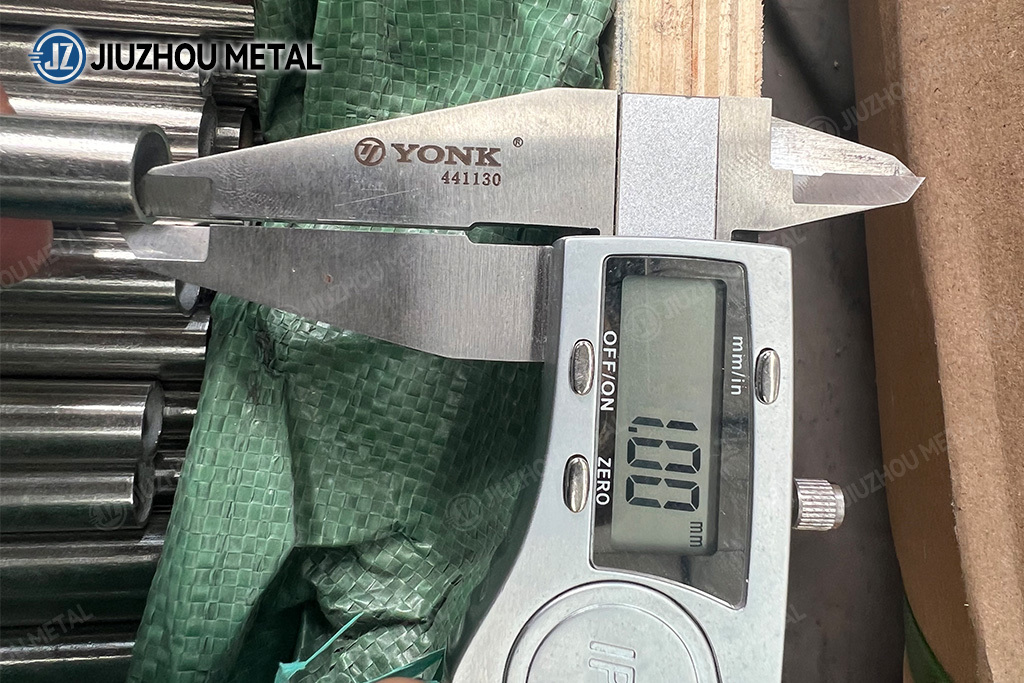

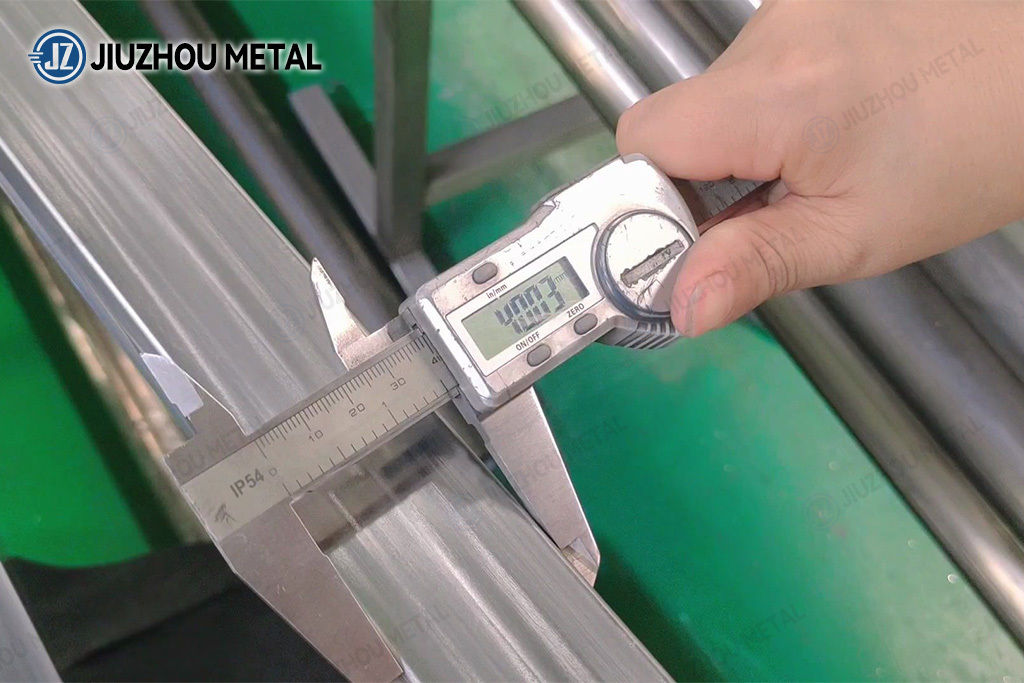

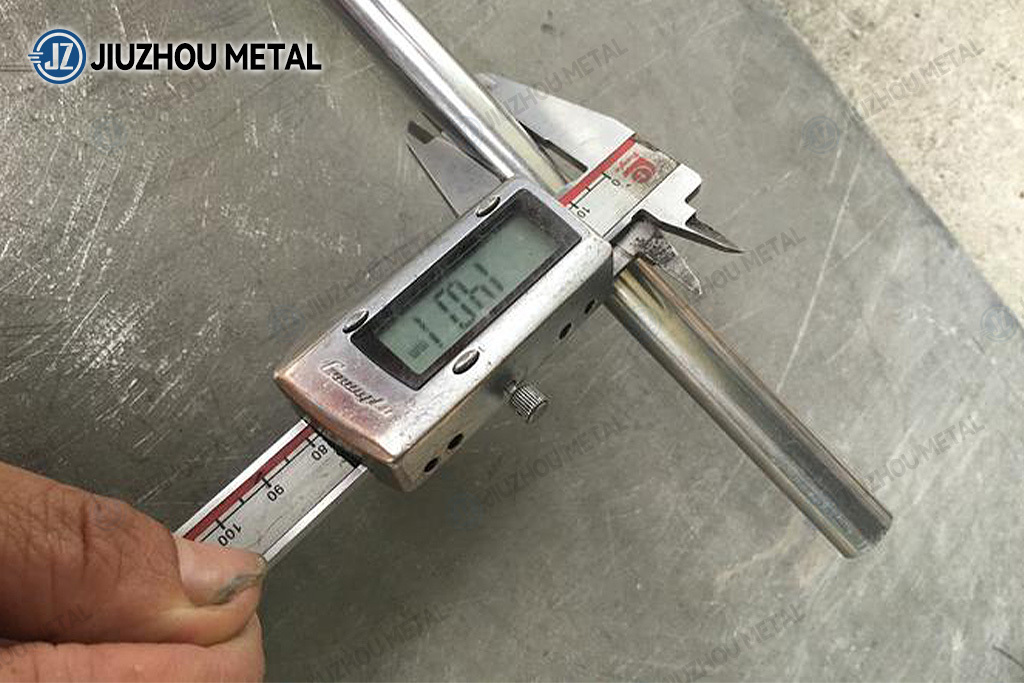

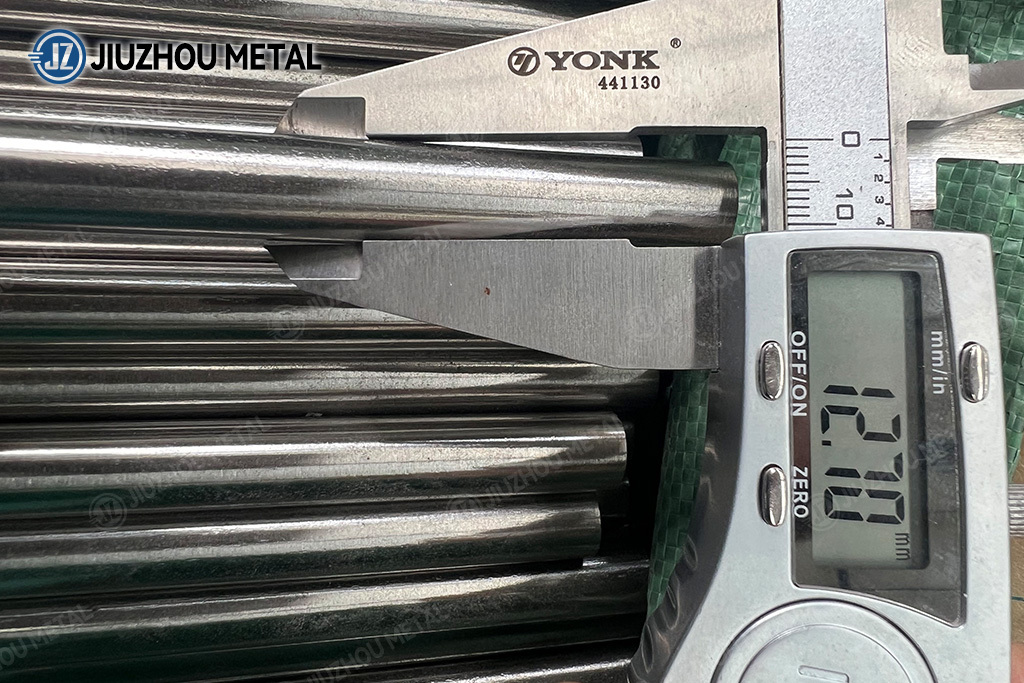

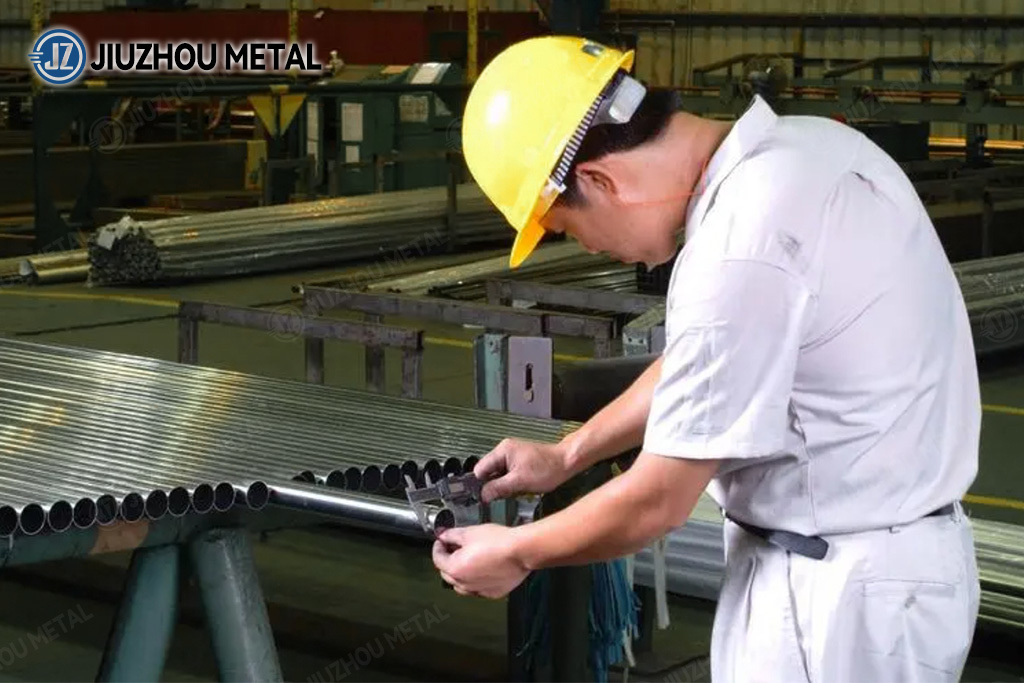

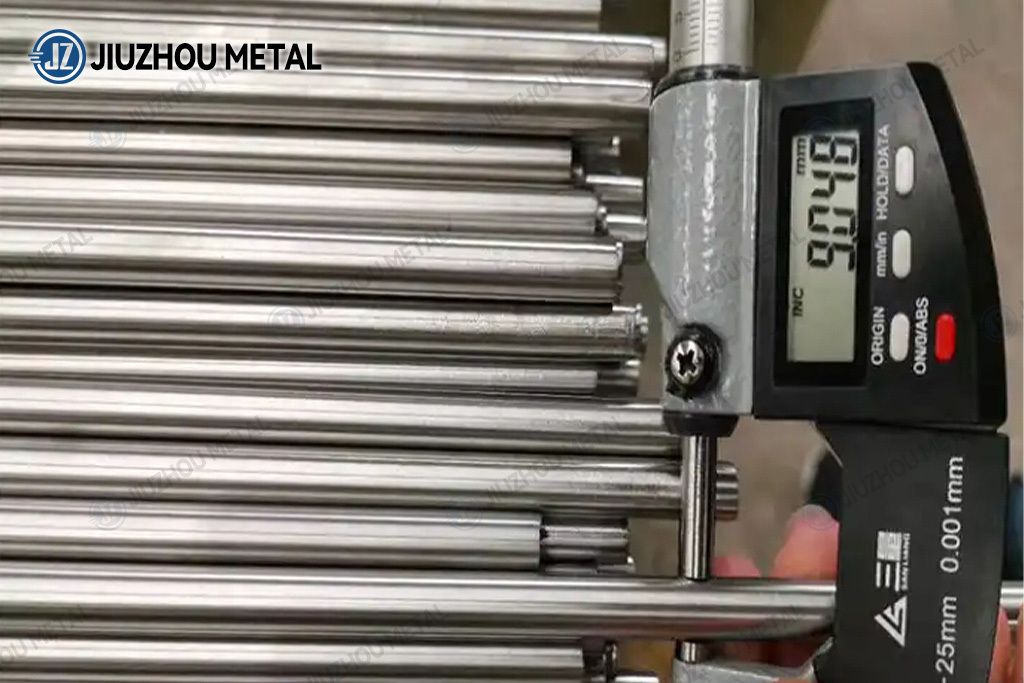

254SMO Stainless Steel Pipe - Product Measurement
Outer Diameter Measurement Outer Diameter Measurement Wall Thickness Measurement Outer Diameter Measurement
Outer Diameter Measurement Outer Diameter Measurement Wall Thickness Measurement Diameter Measurement -

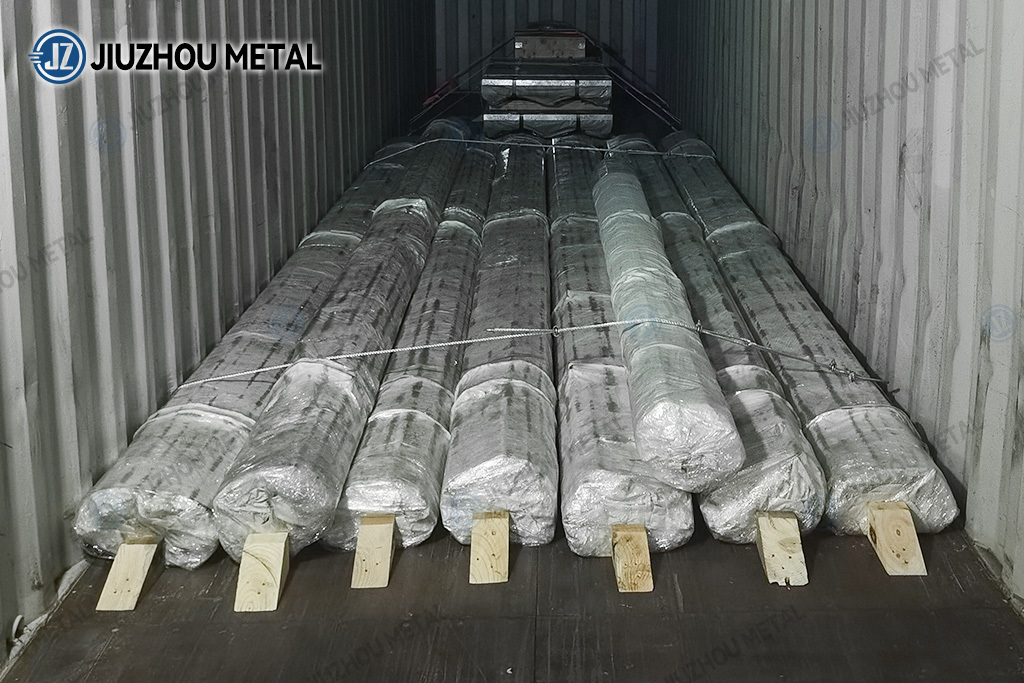

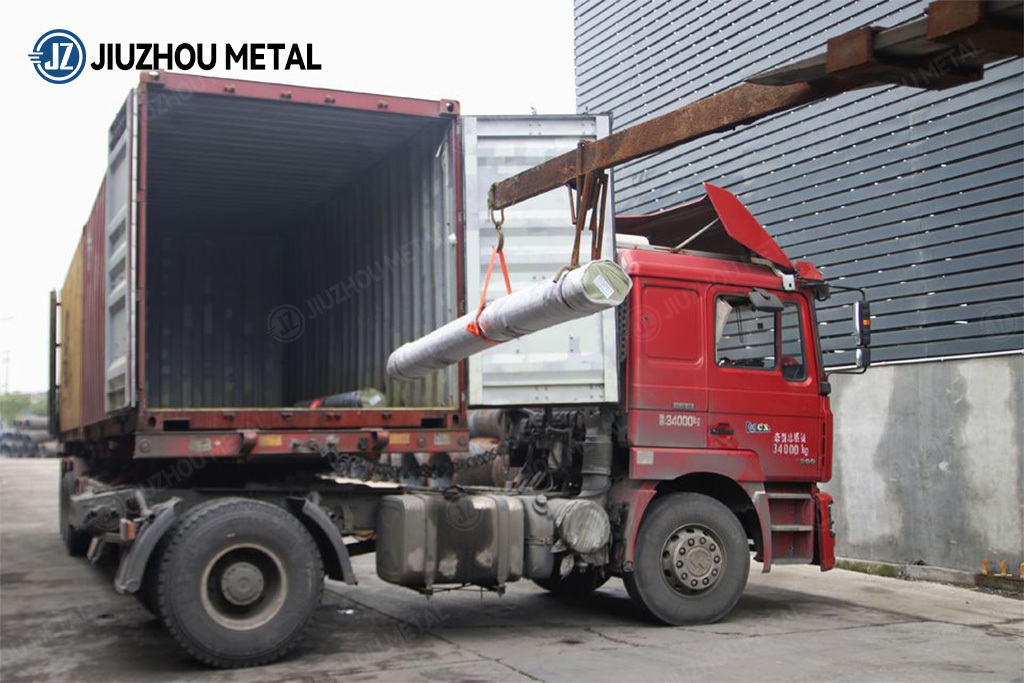

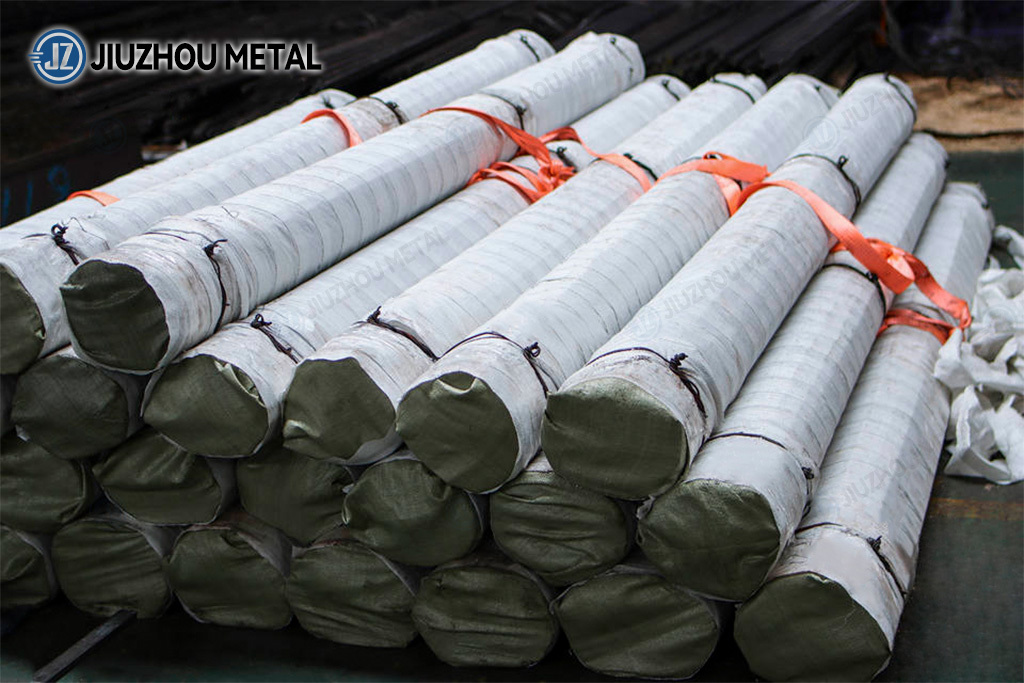

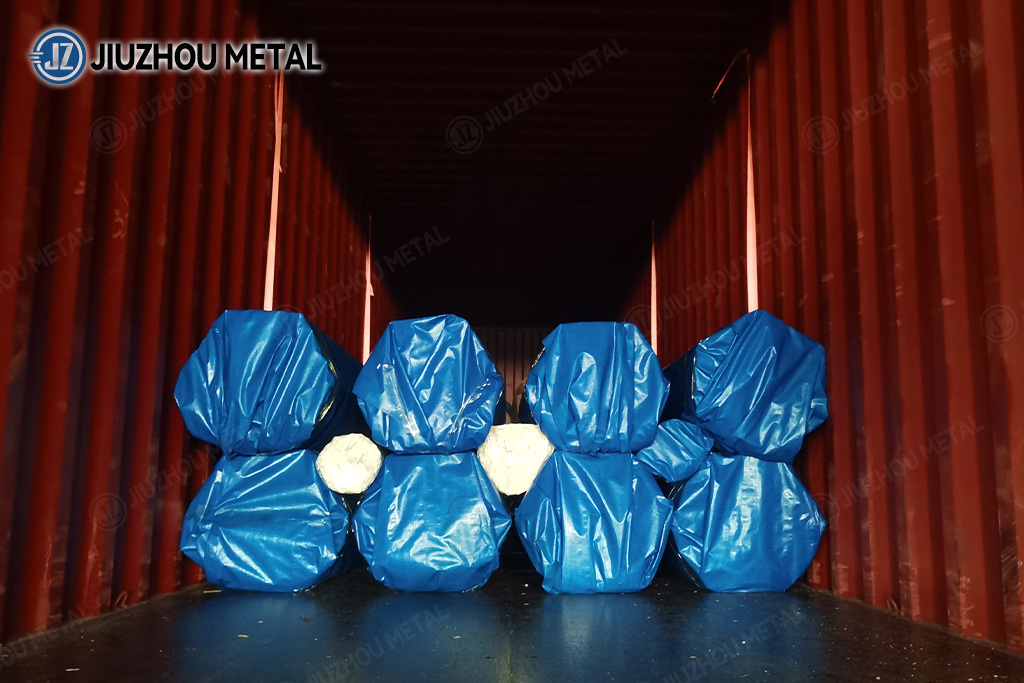

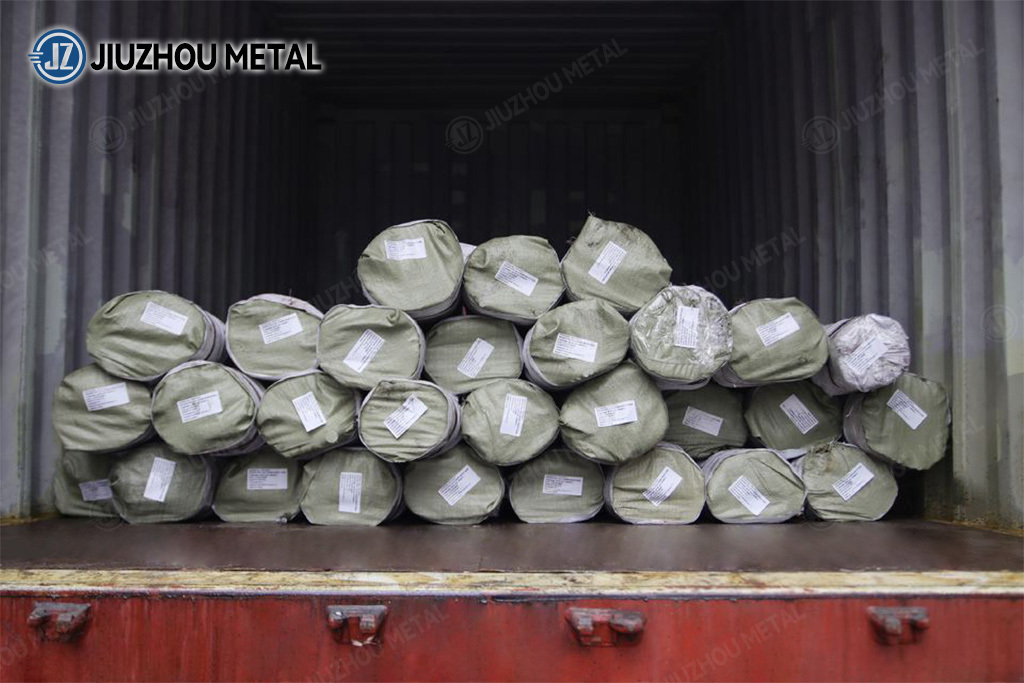

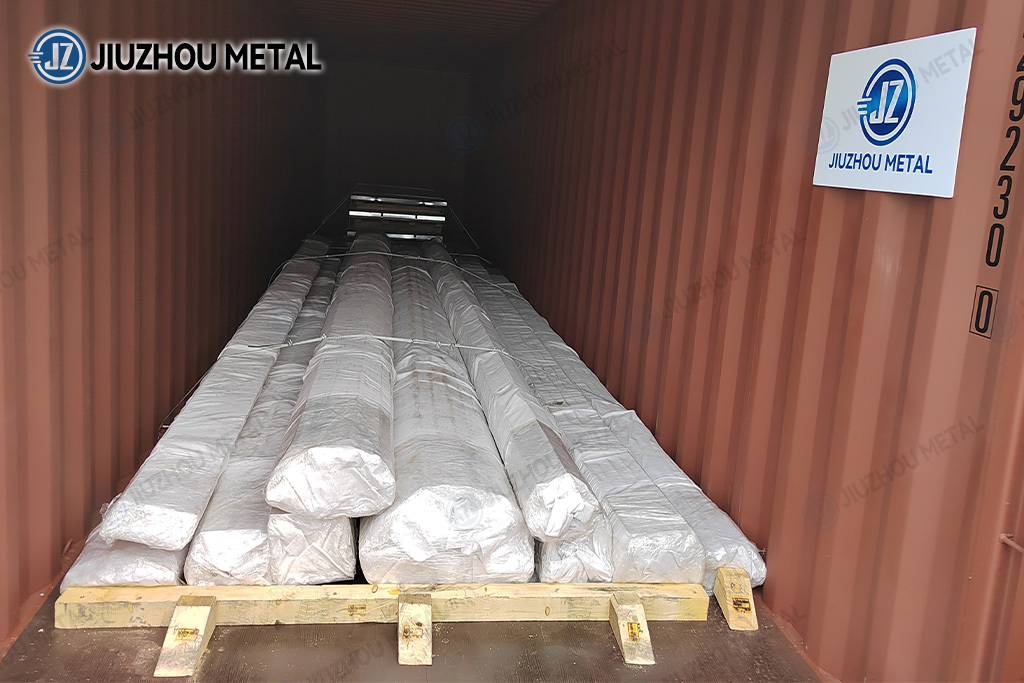

254SMO Stainless Steel Pipe - Product Packaging
Baowu Special steel
Your reliable steel supplier
Baowu Special steel has 10+ warehouses with ready stock. The annual supply capacity is approximately 10 million tons. It has 10 years of experience in large-scale project supply. The customer reorder rate reaches 86%. We ensure quality and quantity, provide material certificates, and will refund if the products are not qualified, so please be assured the purchase.
