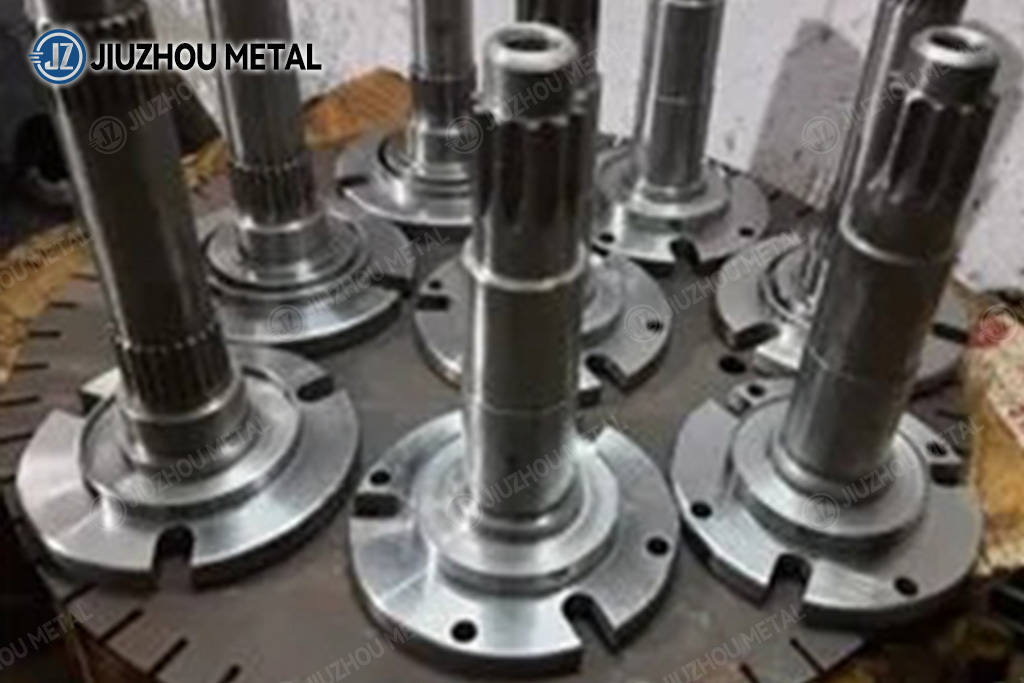

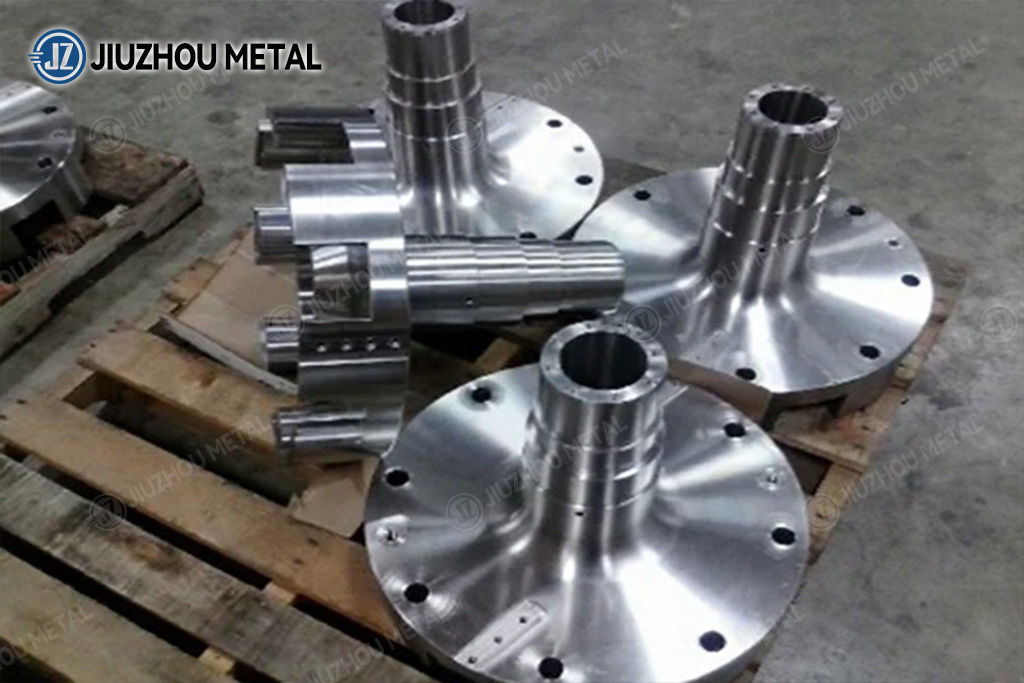

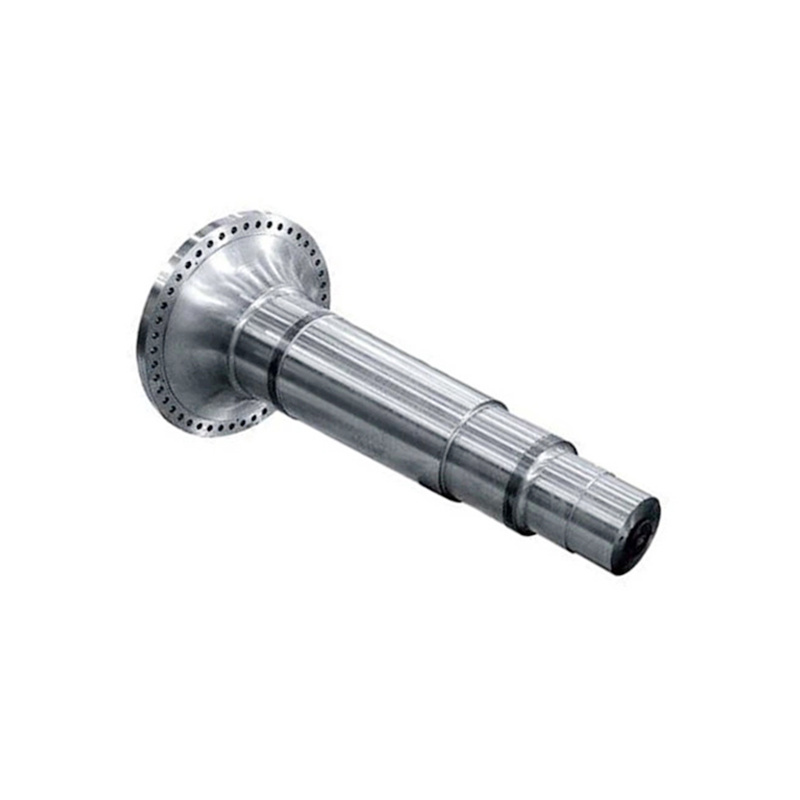

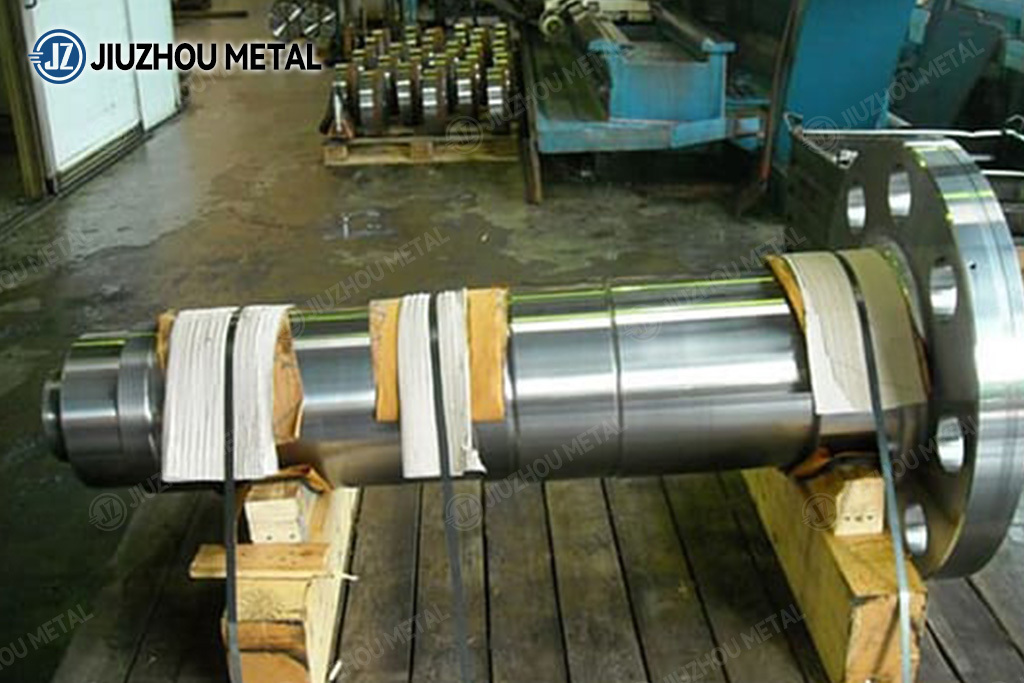

Flange shafts
Flanged shafts are used for torque transmission in the powertrain. On the one hand, they serve as a full floating axle shaft for driven rigid axles in commercial vehicles and, on the other hand, as a connection between the differential gear and the constant-velocity shaft in passenger cars. Process combinations are usually used to produce the flanged shafts. Firstly, the flange is generated by means of extrusion, then the shaft is elongated by swaging and, at the same time, the diameter is reduced. In this way, long undercuts are possible that would otherwise have to be produced by machining.
- Product Description
- Spot Warehouse
- Product Inspection
- Product Measurement
- Product Packaging
-

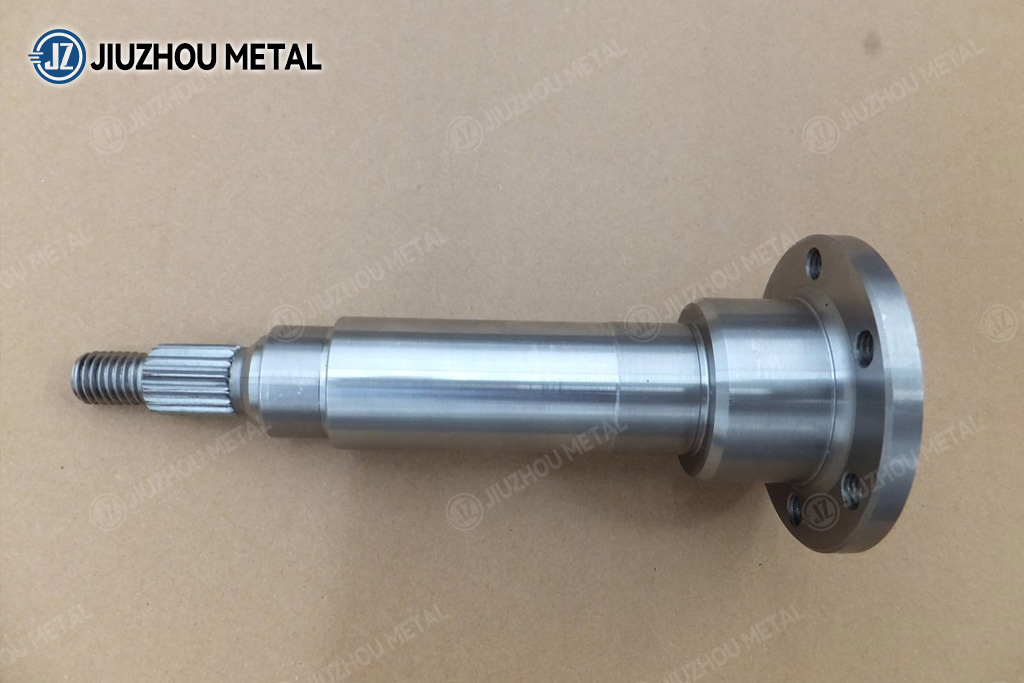

- Commodity name: Flange shafts
Flanged shafts are used for torque transmission in the powertrain. On the one hand, they serve as a full floating axle shaft for driven rigid axles in commercial vehicles and, on the other hand, as a connection between the differential gear and the constant-velocity shaft in passenger cars. Process combinations are usually used to produce the flanged shafts. Firstly, the flange is generated by means of extrusion, then the shaft is elongated by swaging and, at the same time, the diameter is reduced. In this way, long undercuts are possible that would otherwise have to be produced by machining.

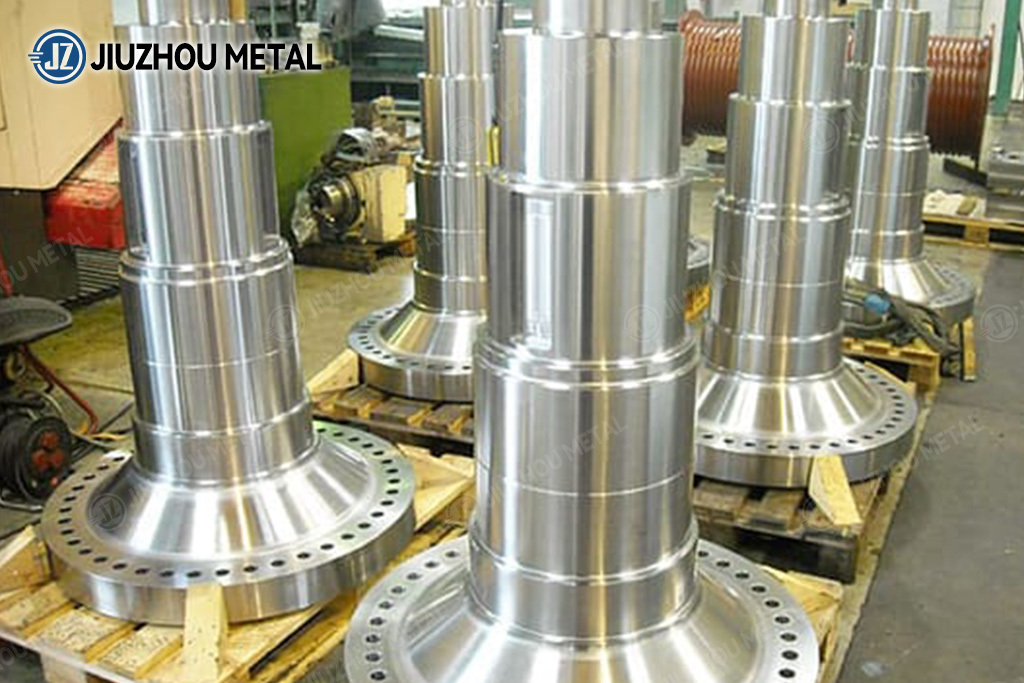

Flange shafts Description
Flanged shaft is one of the important parts in the mechanical transmission which has critical mechanical performance and structure.Flange shaft usually used for the transmission,transfer case and connected to the drive shaft between the left and right front.
Besides, Flange shaft is important in automotive driveline shaft parts, the main role is to support the drive components and pass power, exposed to alternating load in harsh working environments, also heat-treated , forging, grinding in the production process , and easy to cause a variety of defects in step. Currently, we use forging process for flange shaft, such as closed die forging, extrusion, etc., which can reduce energy consumption and improve forging surface and internal quality, so as to improve product quality, reduce product cost purposes.
Product ParametersProduct category Product specification Forged round steel Diameter φ250mm-1200mm,length≤14000mm Module Thickness 140mm-800m,width 300mm-1700mm Shaft piece Thickness 140mm-800m,width 300mm-1700mm Disk type D≤2500mm,H≤600mm Cylinder type D≤2000mm,L≤6000mm All kinds of profiled parts Customized according to customer needs -

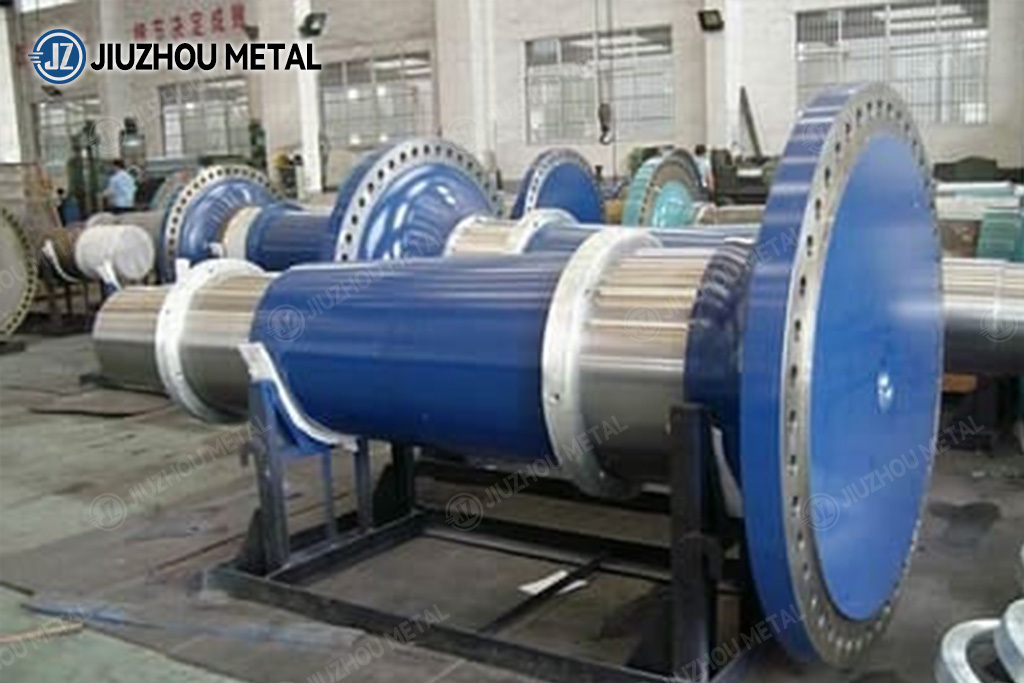

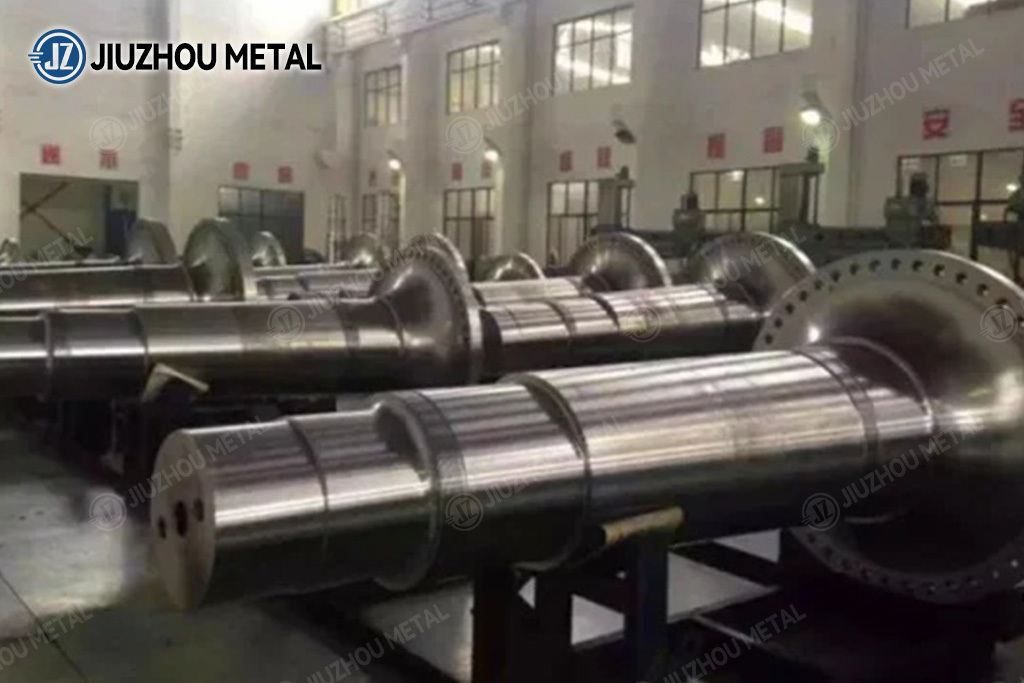

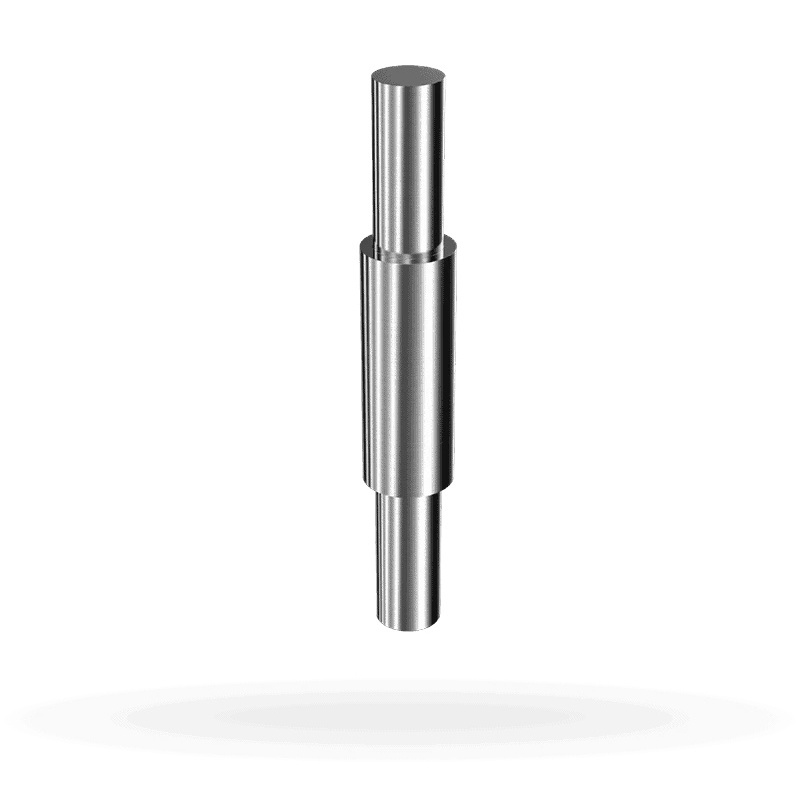

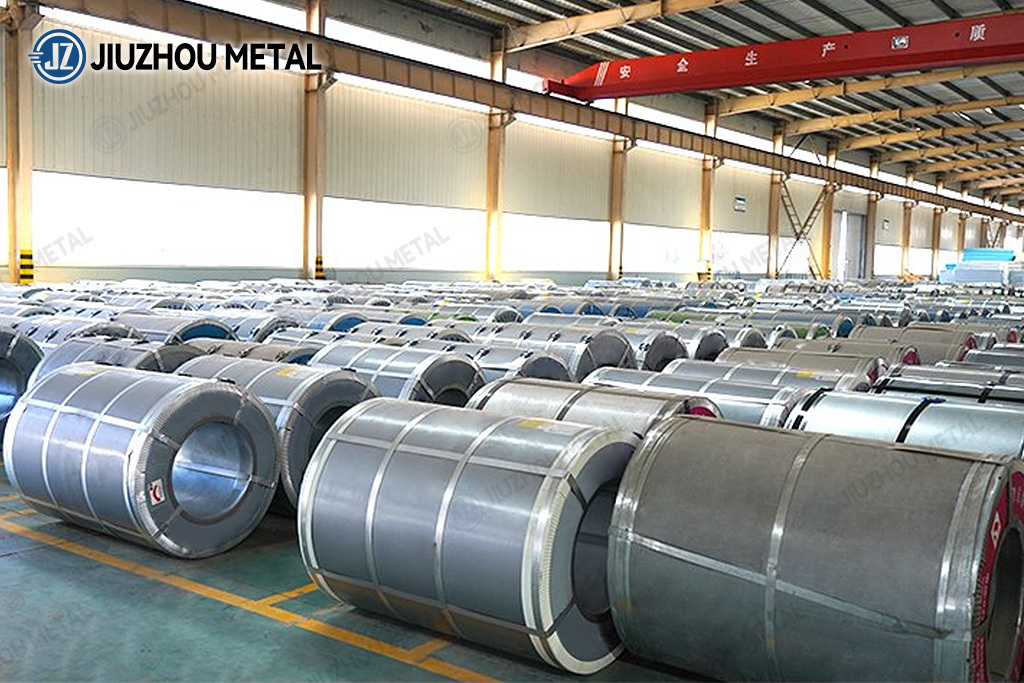

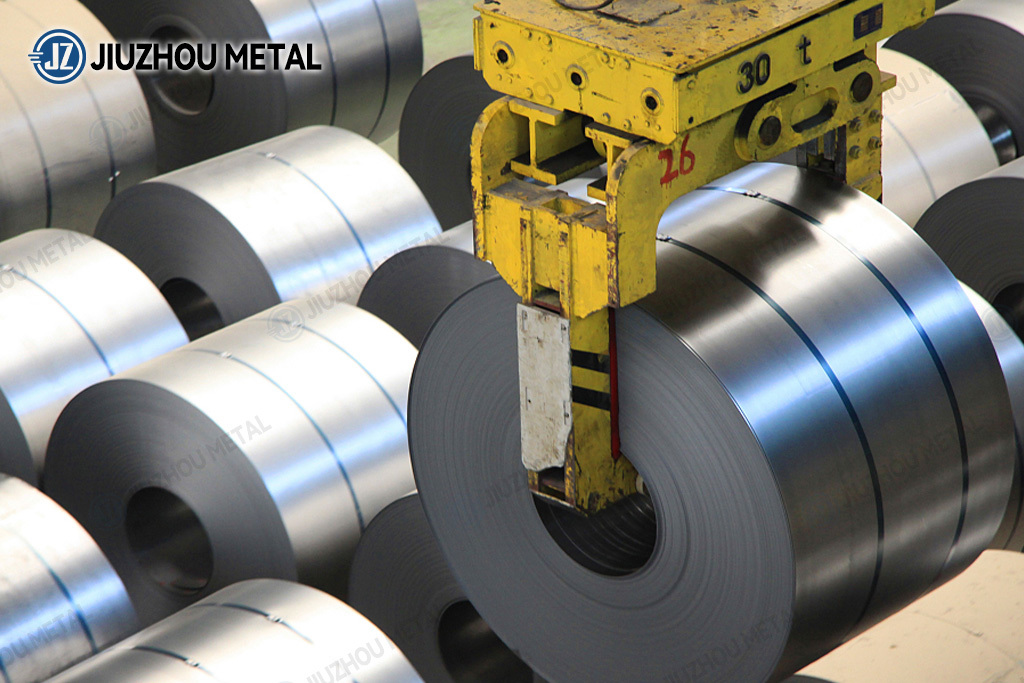

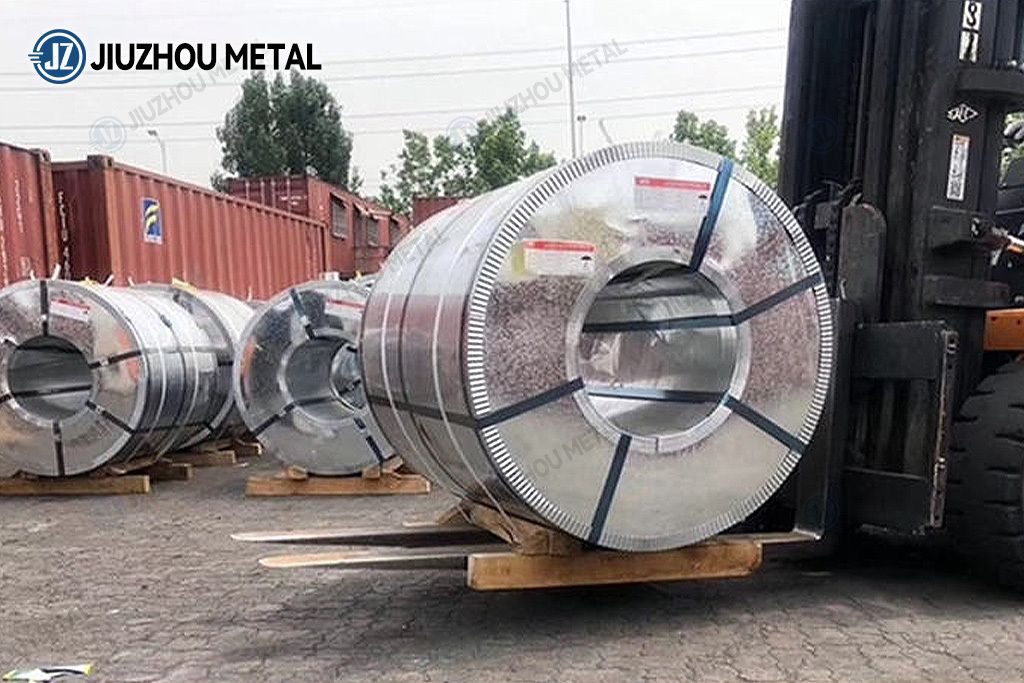

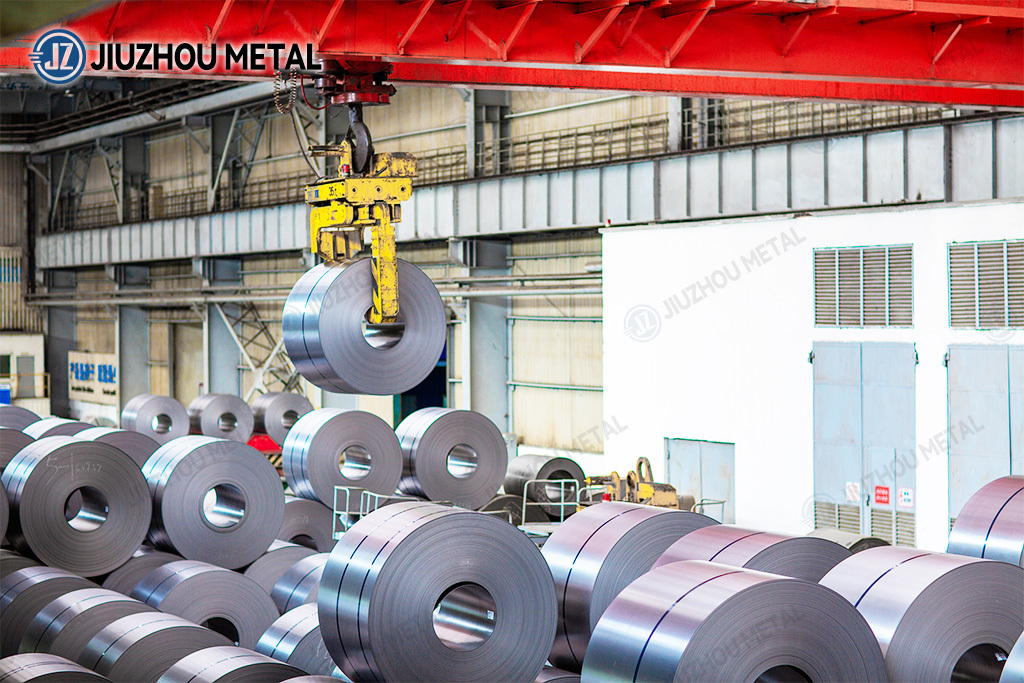

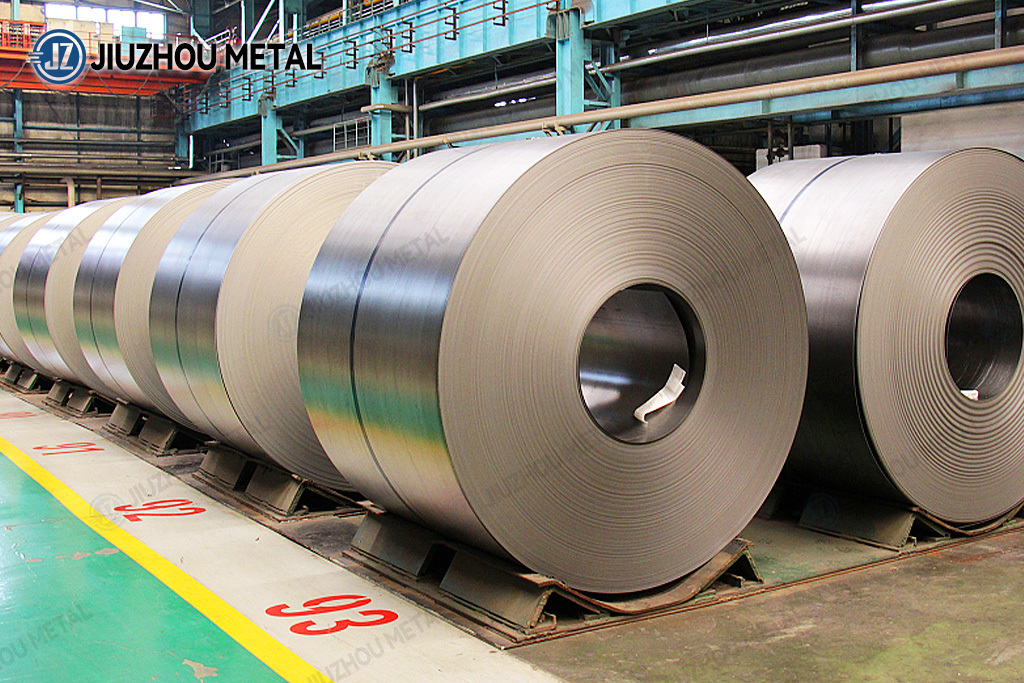

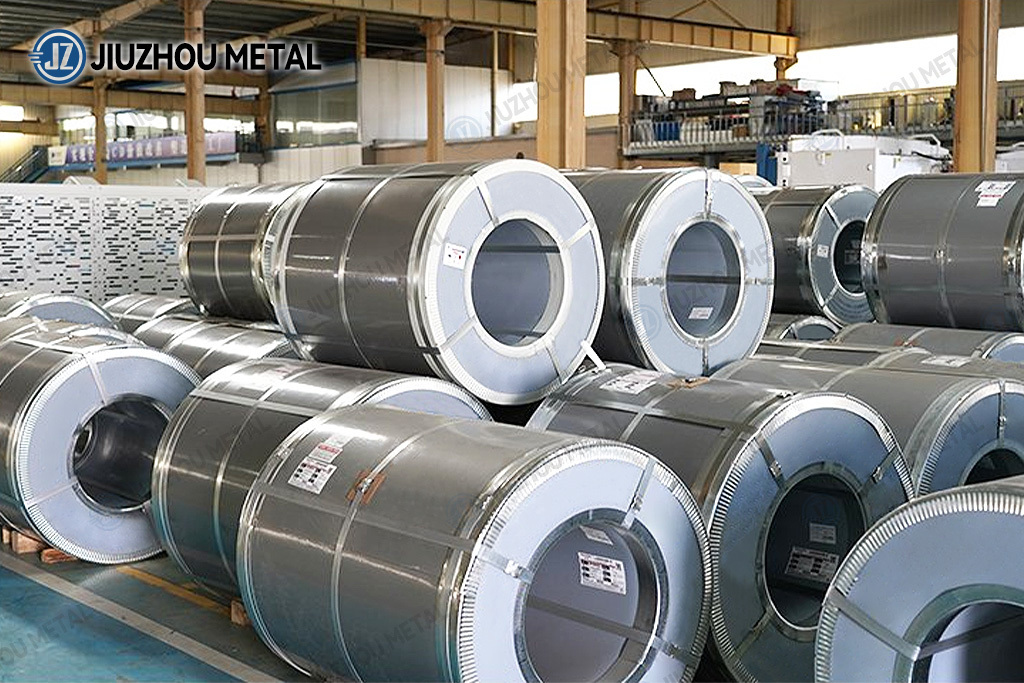

Step shafts- Stock Warehouse
-

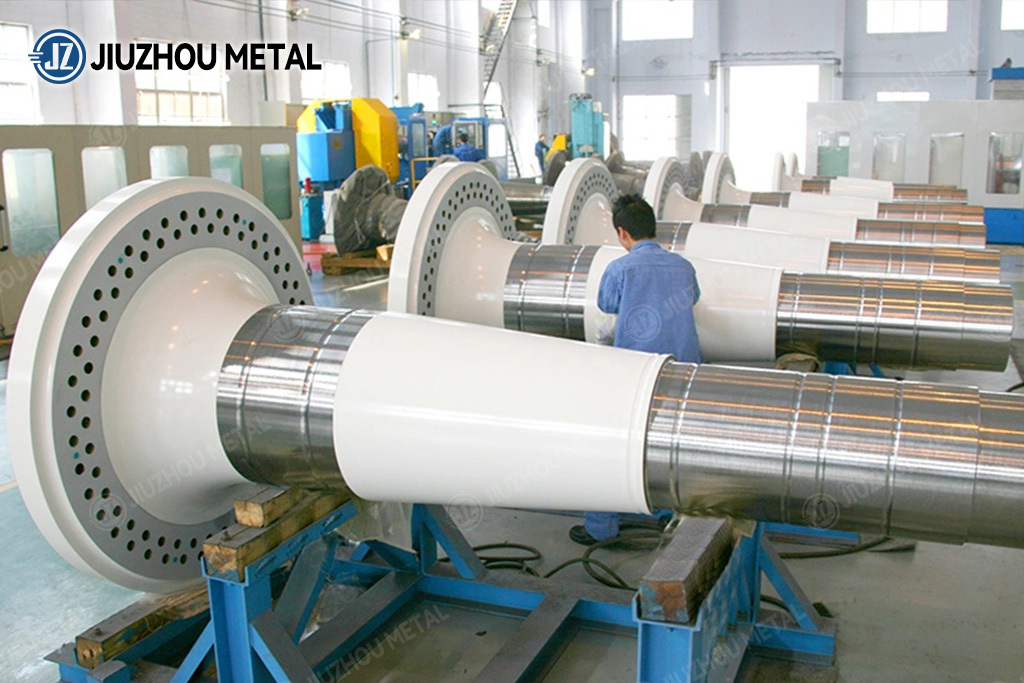

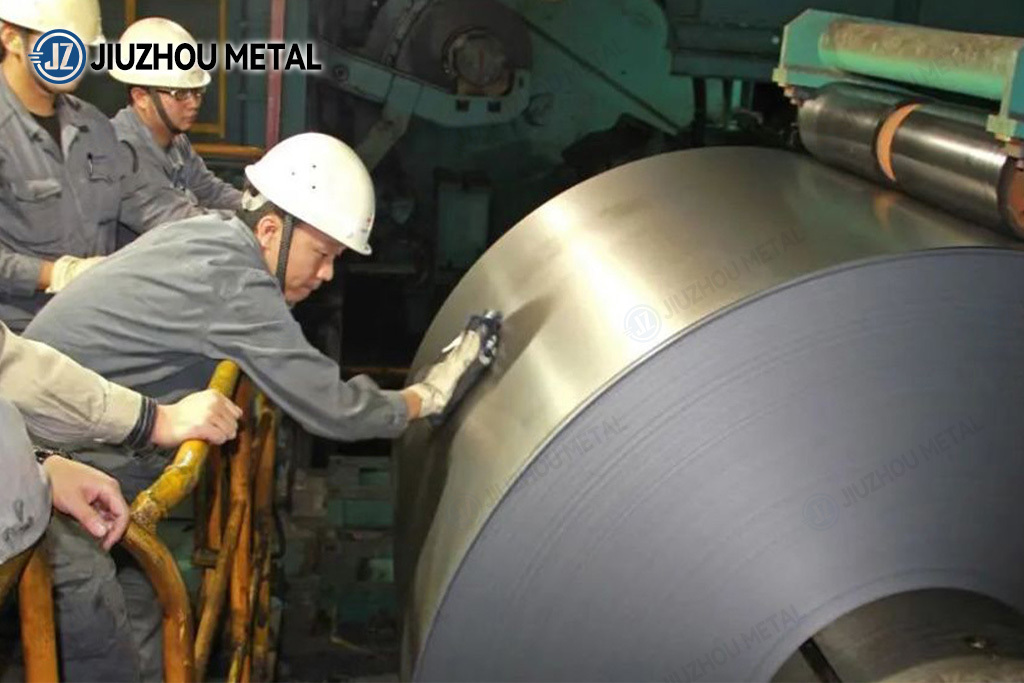

Step shafts - Product Inspection
Stress-rupture-testing Tensile-testing Hardness-testing Chemical Composition Testing
Inspection Magnetic-particle-inspection Charpy-impact-testing Ultrasonic-testing -
Step shafts - Product Measurement
Measurement Measurement Measurement Measurement
Measurement Measurement Measurement Measurement -
Step shafts - Product Packaging
Baowu Special steel
Your reliable steel supplier
Baowu Special steel has 10+ warehouses with ready stock. The annual supply capacity is approximately 10 million tons. It has 10 years of experience in large-scale project supply. The customer reorder rate reaches 86%. We ensure quality and quantity, provide material certificates, and will refund if the products are not qualified, so please be assured the purchase.
