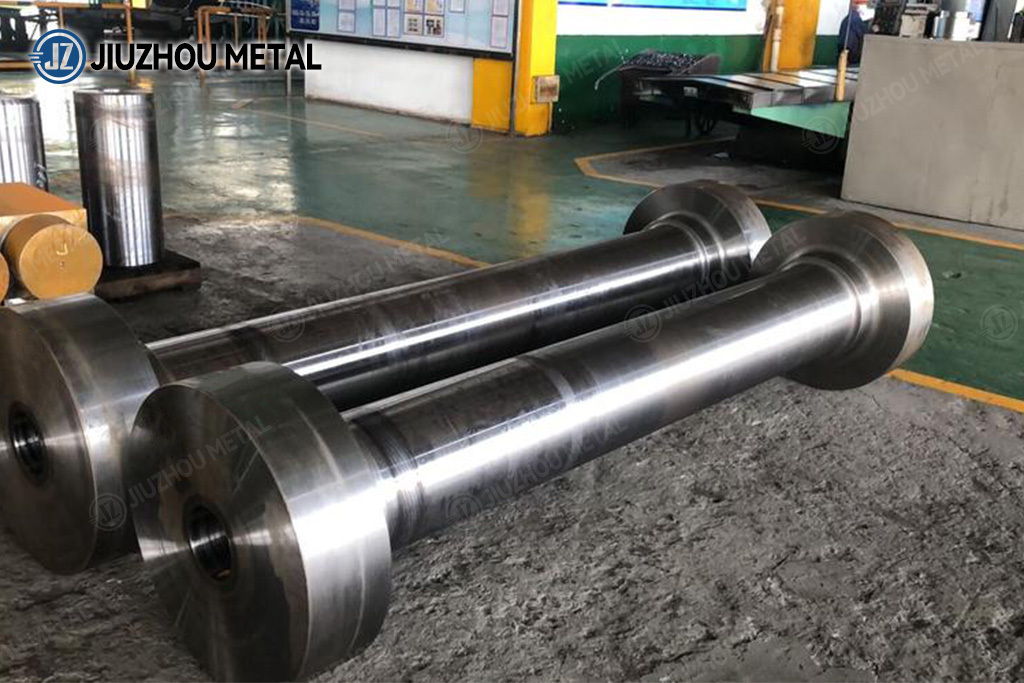

Propeller Shaft - Marine Forgings
A propeller shaft, also called as drive shaft, is an important component in automotive and marine industries. Its primary motive is the transmission of torque and rotational power from the engine to the wheels or propeller. It allows vehicles and vessels to move efficiently and smoothly. The propeller shaft plays an indispensable role in converting the engine's power into kinetic energy, thereby, enabling the propeller to rotate at the required speed and move the vehicle forward.
- Product Description
- Spot Warehouse
- Product Inspection
- Product Measurement
- Product Packaging
-
- Commodity name: Propeller Shaft - Marine Forgings
A propeller shaft, also called as drive shaft, is an important component in automotive and marine industries. Its primary motive is the transmission of torque and rotational power from the engine to the wheels or propeller. It allows vehicles and vessels to move efficiently and smoothly. The propeller shaft plays an indispensable role in converting the engine's power into kinetic energy, thereby, enabling the propeller to rotate at the required speed and move the vehicle forward.
Propeller Shaft - Marine Forgings Description

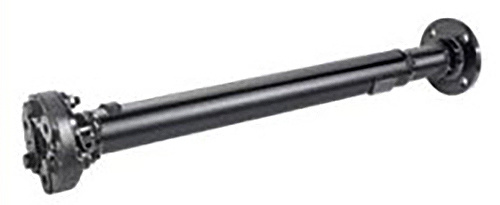

A propeller shaft, also known as a drive shaft, transmits torque and rotation from a vehicle's transmission to its wheels or other mechanical components. It's a vital part of automotive and machinery systems, allowing power to be efficiently transferred while accommodating changes in distance and alignment between components.
Propeller shaft is a fundamental component responsible for transferring the torque from the gearbox to the rear axle or differential. It is also called the Cardan shaft or Drive shaft. Although widely used in cars, this vital mechanism also finds application in boats and airplanes. Constructed as a hollow, tube-like structure, the propeller shaft combines universal and slip spline joints.
In traditional automobile designs, with the rear end engine, this shaft allows the propulsion of the rear wheels. This effectively transmits power from one end of the vehicle to the other. On the contrary, in modern-day front wheeled cars, a shorter shaft serves the purpose. In any case, the propeller shaft remains a critical link in the chain of power transmission within the automotive, marine, and aviation domains.
Types of Propeller Shafts
Single-Piece Type Propeller Shaft
Two-Piece Type Propeller Shaft
The single-piece type propeller shaft comprises two universal joints, one slip spline joint, and one tubular shaft. It is primarily employed for short-distance transmissions, commonly found in cars and widely used in front-wheel and four-wheel drive setups. This design offers superior strength and durability, thanks to friction welding at the junctions, ensuring a sturdy and long-lasting connection.
The two-piece type propeller shaft features three universal joints, one slip joint, and two tubular shafts. This configuration is specifically suited for long-distance transmissions, making it suitable for applications that require power transmission over extended distances.
Materials Used for Making Propeller Shafts：SM45C Steel, Epoxy Composite Material, Alloys of Aluminium and Stainless Steel, SAE1045 Steel, Kevlar Epoxy, etc.
Advantages of Propeller Shafts
● Low or No Power Losses: Propeller shafts facilitate efficient power transmission, resulting in minimal or negligible power losses during the process, optimising overall performance.
● Lightweight Tubular Structure: The tubular design of the propeller shaft contributes to its reduced weight, positively impacting the vehicle's overall weight distribution and fuel efficiency.
● Simple Construction: The propeller shaft's design is relatively straightforward, making it easier to manufacture and maintain, ensuring cost-effectiveness.
● Safe Power Transmission: With its sturdy construction and reliable materials, the propeller shaft ensures secure and safe power transfer from the engine to the wheels, enhancing driving stability.
● Low Noise at High Torques: The well-engineered propeller shaft minimises noise generation, even under high torque conditions, providing a smoother and quieter driving experience.
● Durability: Built from robust materials like high-quality steel, the propeller shaft exhibits exceptional durability and resilience, withstanding challenging operating conditions.
● Minimal Maintenance: Due to its sturdy construction and efficient power transmission, the propeller shaft generally requires minimal maintenance, reducing downtime and associated costs. -

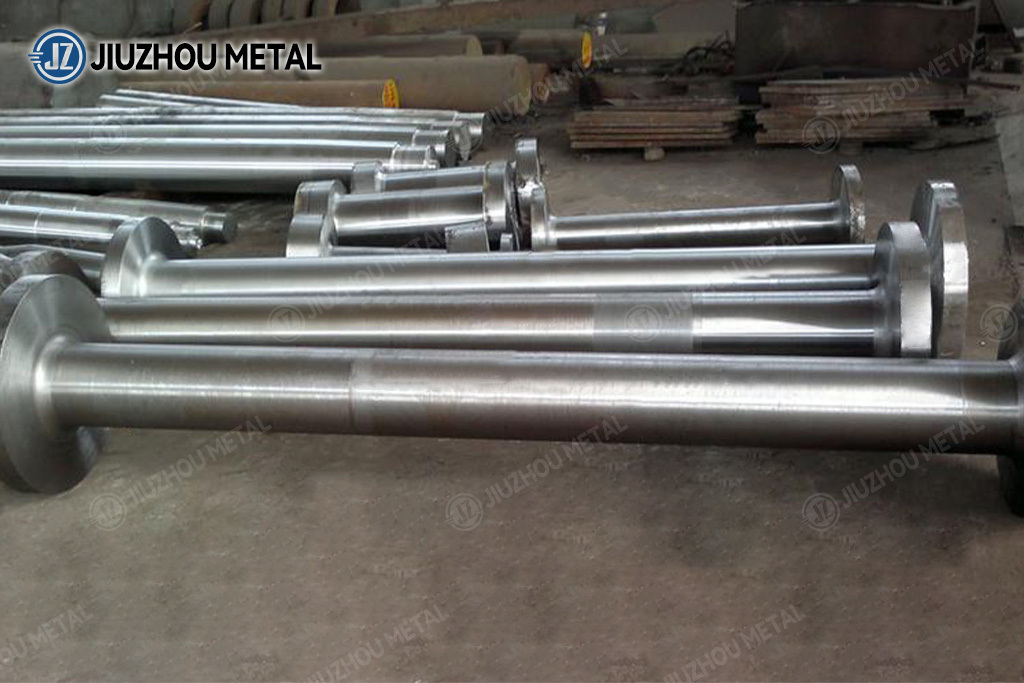

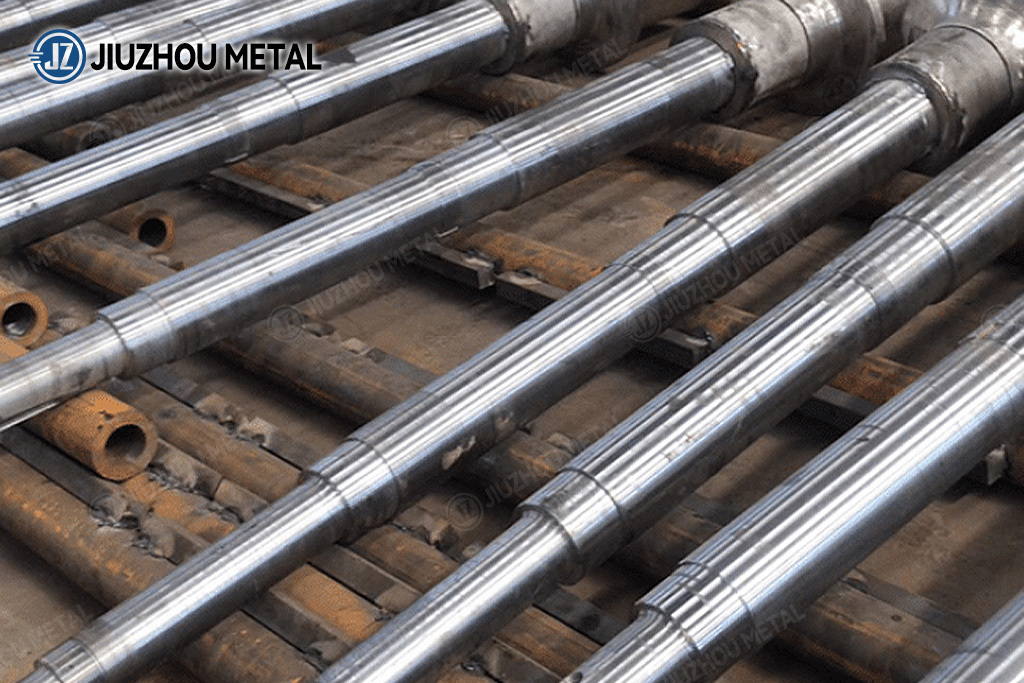

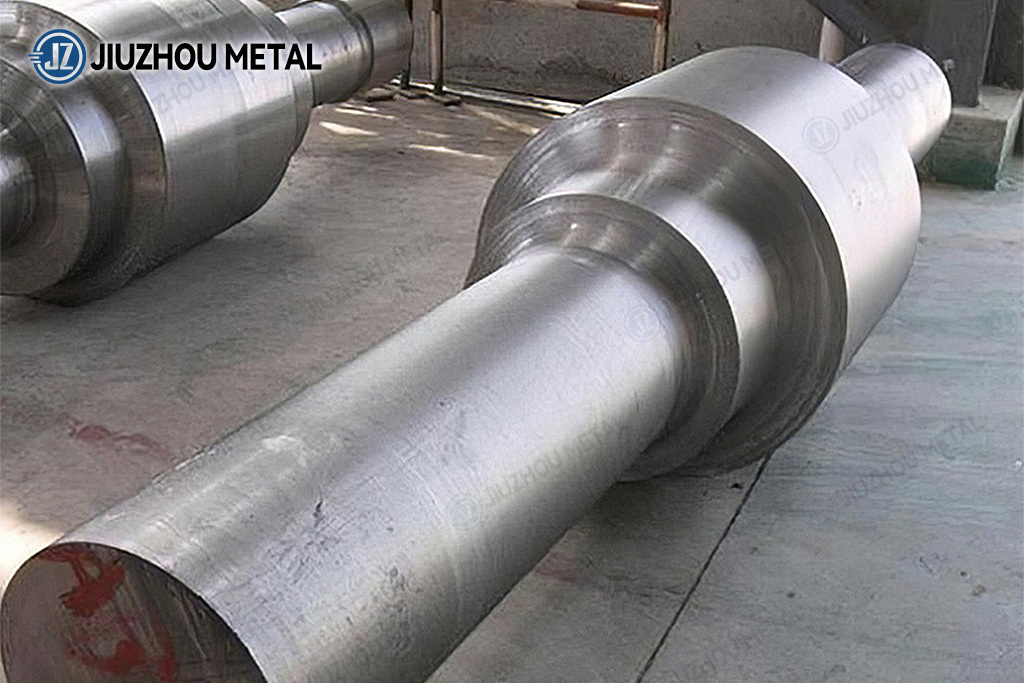

Propeller Shaft Marine Forgings - Stock Warehouse
-
Propeller Shaft Marine Forgings - Product Inspection
Stress-rupture-testing Tensile-testing Hardness-testing Chemical Composition Testing
Inspection Magnetic-particle-inspection Charpy-impact-testing Ultrasonic-testing -
Propeller Shaft Marine Forgings - Product Measurement
Measurement Measurement Measurement Measurement
Measurement Measurement Measurement Measurement -
Propeller Shaft Marine Forgings - Product Packaging
Baowu Special steel
Your reliable steel supplier
Baowu Special steel has 10+ warehouses with ready stock. The annual supply capacity is approximately 10 million tons. It has 10 years of experience in large-scale project supply. The customer reorder rate reaches 86%. We ensure quality and quantity, provide material certificates, and will refund if the products are not qualified, so please be assured the purchase.
